Schema servicerequestNSL.xsd


schema location:  ..\..\servicerequestNSL.xsd
targetNamespace:  http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm

Elements  Complex types
Address  AddressType
AgreedId  AgentAdmInfoType
Comment  BodyType
ContactId  ClientFuncType
ContainerId  ClinicalInfoType
Description  ContainerType
Ehcm  CopyDestinationType
EndTime  CopyRecipientType
Investigations  DocumentType
IssueTime  DrugType
LabelComment  EhcmType
Language  EndpointsType
LowerLimit  ExtensionType
Name  ExternalIdType
NameDetails  HeaderAddressType
Number  HeaderType
Organisation  HistoryType
PlannedTime  InterventionType
Priority  InvestigationsType
Professional  InvestigationType
ProviderComment  ItemsType
ProviderId  LocationType
Reason  ManifestType
RegId  NameDetailsType
RequestedTime  ObjectType
RequesterComment  OrderReferenceType
RequesterId  OrganisationType
RequireDurationTime  PatientType
ServiceType  PaymentGuarantorType
SortCode  ProcessType
StartTime  ProfessionalType
Status  PropertiesType
Telecom  ReferenceLimitType
Type  ReferenceType
Unit  RequestedInvestigationsType
UpperLimit  RequestedInvestigationType
Value  RequestedTimeType
Ward  ResultItemType
Warning  ResultType
RosInfoType
SamplesType
SampleToBeCollectedType
SendToType
ServiceProviderType
ServiceRequesterType
ServiceRequestType
ServicesType
SignatureInfoType
SignatureType
StandingOrderType
TelecomType
UncertaintyType
UserInfoType

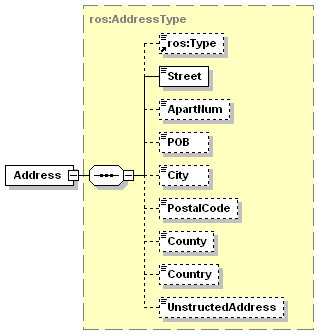

element Address
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:AddressType
children ros:Type Street ApartNum POB City PostalCode County Country UnstructedAddress
used by
complexTypes ObjectType OrganisationType PatientType ProfessionalType
source
<xsd:element name="Address" type="ros:AddressType"/>

element AgreedId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes OrganisationType ProfessionalType
source
<xsd:element name="AgreedId" type="xsd:string"/>

element Comment
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes InvestigationType SampleToBeCollectedType
source
<xsd:element name="Comment" type="xsd:string"/>

element ContactId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes AgentAdmInfoType ExternalIdType
source
<xsd:element name="ContactId" type="xsd:string"/>

element ContainerId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes ContainerType InvestigationType SampleToBeCollectedType
source
<xsd:element name="ContainerId" type="xsd:string"/>

element Description
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes ClinicalInfoType DocumentType InterventionType ReferenceType
source
<xsd:element name="Description" type="xsd:string"/>

element Ehcm
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:EhcmType
children Header Body
annotation
documentation
Ehcr -  Electronic Healtcare Record
				Based on CEN Standard 1613 ServiceRequest
				Implemented by European Medical Solutions
				2001
source
<xsd:element name="Ehcm" type="ros:EhcmType">
  <xsd:annotation>
    <xsd:documentation>Ehcr -  Electronic Healtcare Record
				Based on CEN Standard 1613 ServiceRequest
				Implemented by European Medical Solutions
				2001
			</xsd:documentation>
  </xsd:annotation>
</xsd:element>

element EndTime
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes AgentAdmInfoType StandingOrderType
source
<xsd:element name="EndTime" type="xsd:string"/>

element Investigations
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:InvestigationsType
children Investigation
used by
complexType SampleToBeCollectedType
source
<xsd:element name="Investigations" type="ros:InvestigationsType"/>

element IssueTime
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes OrderReferenceType RequestedInvestigationType ServiceRequestType
source
<xsd:element name="IssueTime" type="xsd:string"/>

element LabelComment
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes ContainerType InvestigationType
source
<xsd:element name="LabelComment" type="xsd:string"/>

element Language
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes OrganisationType PatientType ProfessionalType ServiceRequestType
source
<xsd:element name="Language" type="xsd:string"/>

element LowerLimit
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes ReferenceLimitType UncertaintyType
source
<xsd:element name="LowerLimit" type="xsd:string"/>

element Name
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes DocumentType InvestigationType
source
<xsd:element name="Name" type="xsd:string"/>

element NameDetails
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:NameDetailsType
children DailyName FamilyName FirstName MiddleName Title NameSuffix UnstructedName
used by
complexTypes ObjectType PatientType ProfessionalType
source
<xsd:element name="NameDetails" type="ros:NameDetailsType"/>

element Number
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes StandingOrderType TelecomType
source
<xsd:element name="Number" type="xsd:string"/>

element Organisation
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:OrganisationType
children ros:Type ros:RegId ros:AgreedId ros:RequesterId ros:ProviderId OrganisationName ros:Language ros:Address ros:Telecom
used by
complexTypes CopyDestinationType CopyRecipientType PaymentGuarantorType ServiceProviderType ServiceRequesterType
source
<xsd:element name="Organisation" type="ros:OrganisationType"/>

element PlannedTime
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes RequestedInvestigationType ServiceRequestType
source
<xsd:element name="PlannedTime" type="xsd:string"/>

element Priority
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
element ServiceRequestType/Investigations/RequestedInvestigation
complexTypes RequestedInvestigationType SampleToBeCollectedType ServiceRequestType
source
<xsd:element name="Priority" type="xsd:string"/>

element Professional
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:ProfessionalType
children ros:Type ros:RegId ros:AgreedId ros:RequesterId ros:ProviderId Qualification Speciality Position MilitaryRank ros:Language ros:NameDetails ros:Address ros:Telecom
used by
complexTypes CopyDestinationType CopyRecipientType PaymentGuarantorType ServiceRequesterType
source
<xsd:element name="Professional" type="ros:ProfessionalType"/>

element ProviderComment
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes InvestigationType RequestedInvestigationType ResultItemType SampleToBeCollectedType ServiceRequestType
source
<xsd:element name="ProviderComment" type="xsd:string"/>

element ProviderId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes ObjectType OrderReferenceType OrganisationType ProfessionalType ResultItemType SamplesType ServiceRequestType
source
<xsd:element name="ProviderId" type="xsd:string"/>

element Reason
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes RequestedInvestigationType ServiceRequestType
source
<xsd:element name="Reason" type="xsd:string"/>

element RegId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes OrganisationType ProfessionalType
source
<xsd:element name="RegId" type="xsd:string"/>

element RequestedTime
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type extension of xsd:string
used by
complexTypes RequestedTimeType SampleToBeCollectedType
attributes
Name  Type  Use  Default  Fixed  Annotation
xmlnsX  xsd:normalizedString  optional
source
<xsd:element name="RequestedTime">
  <xsd:complexType>
    <xsd:simpleContent>
      <xsd:extension base="xsd:string">
        <xsd:attribute name="xmlnsX" type="xsd:normalizedString" use="optional"/>
      </xsd:extension>
    </xsd:simpleContent>
  </xsd:complexType>
</xsd:element>

element RequesterComment
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes InvestigationType RequestedInvestigationType SampleToBeCollectedType ServiceRequestType
source
<xsd:element name="RequesterComment" type="xsd:string"/>

element RequesterId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes ObjectType OrderReferenceType OrganisationType ProfessionalType ServiceRequestType UserInfoType
source
<xsd:element name="RequesterId" type="xsd:string"/>

element RequireDurationTime
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes InvestigationType RosInfoType SampleToBeCollectedType
source
<xsd:element name="RequireDurationTime" type="xsd:string"/>

element ServiceType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes RequestedInvestigationType ServiceRequestType
source
<xsd:element name="ServiceType" type="xsd:string"/>

element SortCode
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes ContainerType SampleToBeCollectedType
source
<xsd:element name="SortCode" type="xsd:string"/>

element StartTime
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes AgentAdmInfoType ResultItemType StandingOrderType
source
<xsd:element name="StartTime" type="xsd:string"/>

element Status
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes AgentAdmInfoType ResultItemType
source
<xsd:element name="Status" type="xsd:string"/>

element Telecom
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:TelecomType
children ros:Type CountryCode ros:Number UnstructNumber
used by
complexTypes ObjectType OrganisationType PatientType ProfessionalType
source
<xsd:element name="Telecom" type="ros:TelecomType"/>

element Type
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes AddressType ClinicalInfoType ContainerType InterventionType ObjectType OrganisationType ProcessType ProfessionalType SampleToBeCollectedType TelecomType
source
<xsd:element name="Type" type="xsd:string"/>

element Unit
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes ReferenceLimitType ResultType UncertaintyType
source
<xsd:element name="Unit" type="xsd:string"/>

element UpperLimit
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes ReferenceLimitType UncertaintyType
source
<xsd:element name="UpperLimit" type="xsd:string"/>

element Value
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes ResultItemType ResultType
source
<xsd:element name="Value" type="xsd:string"/>

element Ward
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes LocationType UserInfoType
source
<xsd:element name="Ward" type="xsd:string"/>

element Warning
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
used by
complexTypes InvestigationType SampleToBeCollectedType
source
<xsd:element name="Warning" type="xsd:string"/>

complexType AddressType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Type Street ApartNum POB City PostalCode County Country UnstructedAddress
used by
element Address
source
<xsd:complexType name="AddressType">
  <xsd:sequence>
    <xsd:element ref="ros:Type" minOccurs="0"/>
    <xsd:element name="Street" type="xsd:string"/>
    <xsd:element name="ApartNum" type="xsd:string" minOccurs="0"/>
    <xsd:element name="POB" type="xsd:string" minOccurs="0"/>
    <xsd:element name="City" type="xsd:string" minOccurs="0"/>
    <xsd:element name="PostalCode" type="xsd:string" minOccurs="0"/>
    <xsd:element name="County" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Country" type="xsd:string" minOccurs="0"/>
    <xsd:element name="UnstructedAddress" type="xsd:string" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element AddressType/Street
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Street" type="xsd:string"/>

element AddressType/ApartNum
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="ApartNum" type="xsd:string" minOccurs="0"/>

element AddressType/POB
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="POB" type="xsd:string" minOccurs="0"/>

element AddressType/City
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="City" type="xsd:string" minOccurs="0"/>

element AddressType/PostalCode
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="PostalCode" type="xsd:string" minOccurs="0"/>

element AddressType/County
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="County" type="xsd:string" minOccurs="0"/>

element AddressType/Country
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Country" type="xsd:string" minOccurs="0"/>

element AddressType/UnstructedAddress
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="UnstructedAddress" type="xsd:string" minOccurs="0"/>

complexType AgentAdmInfoType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Status DischargeTime AdmissionTime ros:StartTime ros:EndTime ros:ContactId ReferralId Location
used by
element ServiceRequestType/AgentAdmInfo
source
<xsd:complexType name="AgentAdmInfoType">
  <xsd:sequence>
    <xsd:element ref="ros:Status" minOccurs="0"/>
    <xsd:element name="DischargeTime" type="xsd:string" minOccurs="0"/>
    <xsd:element name="AdmissionTime" type="xsd:string" minOccurs="0"/>
    <xsd:element ref="ros:StartTime" minOccurs="0"/>
    <xsd:element ref="ros:EndTime" minOccurs="0"/>
    <xsd:element ref="ros:ContactId" minOccurs="0"/>
    <xsd:element name="ReferralId" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Location" type="ros:LocationType" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element AgentAdmInfoType/DischargeTime
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="DischargeTime" type="xsd:string" minOccurs="0"/>

element AgentAdmInfoType/AdmissionTime
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="AdmissionTime" type="xsd:string" minOccurs="0"/>

element AgentAdmInfoType/ReferralId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="ReferralId" type="xsd:string" minOccurs="0"/>

element AgentAdmInfoType/Location
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:LocationType
children ros:Ward Room Bed
source
<xsd:element name="Location" type="ros:LocationType" minOccurs="0"/>

complexType BodyType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ServiceRequest
used by
element EhcmType/Body
source
<xsd:complexType name="BodyType">
  <xsd:sequence>
    <xsd:element name="ServiceRequest">
      <xsd:complexType>
        <xsd:complexContent>
          <xsd:extension base="ros:ServiceRequestType">
            <xsd:attribute name="xmlnsX" type="xsd:normalizedString" use="optional"/>
          </xsd:extension>
        </xsd:complexContent>
      </xsd:complexType>
    </xsd:element>
  </xsd:sequence>
</xsd:complexType>

element BodyType/ServiceRequest
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type extension of ros:ServiceRequestType
children ros:Reason ros:RequesterComment ros:ServiceType ros:RequesterId ros:ProviderId ros:IssueTime ros:PlannedTime ros:Priority PaymentCategory ros:ProviderComment CancelReason ros:Language OrderReference StandingOrder ServiceRequester ServiceProvider Signature CopyRecipient PaymentGuarantor CopyDest Patient ClinicalInfo AgentAdmInfo Intervention Samples Investigations
attributes
Name  Type  Use  Default  Fixed  Annotation
xmlnsX  xsd:normalizedString  optional
source
<xsd:element name="ServiceRequest">
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="ros:ServiceRequestType">
        <xsd:attribute name="xmlnsX" type="xsd:normalizedString" use="optional"/>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>

complexType ClientFuncType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children XmlReadyFunc XmlOrderFunc XmlSaveFunc
used by
element RosInfoType/ClientFunctions
source
<xsd:complexType name="ClientFuncType">
  <xsd:sequence>
    <xsd:element name="XmlReadyFunc" type="xsd:string" minOccurs="0"/>
    <xsd:element name="XmlOrderFunc" type="xsd:string" minOccurs="0"/>
    <xsd:element name="XmlSaveFunc" type="xsd:string" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element ClientFuncType/XmlReadyFunc
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="XmlReadyFunc" type="xsd:string" minOccurs="0"/>

element ClientFuncType/XmlOrderFunc
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="XmlOrderFunc" type="xsd:string" minOccurs="0"/>

element ClientFuncType/XmlSaveFunc
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="XmlSaveFunc" type="xsd:string" minOccurs="0"/>

complexType ClinicalInfoType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Type ros:Description Certainty
used by
element ServiceRequestType/ClinicalInfo
source
<xsd:complexType name="ClinicalInfoType">
  <xsd:sequence>
    <xsd:element ref="ros:Type" minOccurs="0"/>
    <xsd:element ref="ros:Description" minOccurs="0"/>
    <xsd:element name="Certainty" type="xsd:string" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element ClinicalInfoType/Certainty
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Certainty" type="xsd:string" minOccurs="0"/>

complexType ContainerType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:ContainerId ros:Type ros:SortCode ros:LabelComment
used by
element SampleToBeCollectedType/Containers/Container
source
<xsd:complexType name="ContainerType">
  <xsd:sequence>
    <xsd:element ref="ros:ContainerId"/>
    <xsd:element ref="ros:Type"/>
    <xsd:element ref="ros:SortCode"/>
    <xsd:element ref="ros:LabelComment"/>
  </xsd:sequence>
</xsd:complexType>

complexType CopyDestinationType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Organisation ros:Professional
used by
element ServiceRequestType/CopyDest
source
<xsd:complexType name="CopyDestinationType">
  <xsd:choice>
    <xsd:element ref="ros:Organisation" minOccurs="0"/>
    <xsd:element ref="ros:Professional" minOccurs="0"/>
  </xsd:choice>
</xsd:complexType>

complexType CopyRecipientType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Organisation ros:Professional
used by
element ServiceRequestType/CopyRecipient
source
<xsd:complexType name="CopyRecipientType">
  <xsd:choice>
    <xsd:element ref="ros:Organisation" minOccurs="0"/>
    <xsd:element ref="ros:Professional" minOccurs="0"/>
  </xsd:choice>
</xsd:complexType>

complexType DocumentType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Name ros:Description FormVersion History
used by
element RosInfoType/Document
source
<xsd:complexType name="DocumentType">
  <xsd:sequence>
    <xsd:element ref="ros:Name"/>
    <xsd:element ref="ros:Description" minOccurs="0"/>
    <xsd:element name="FormVersion" type="xsd:string" minOccurs="0"/>
    <xsd:element name="History">
      <xsd:complexType>
        <xsd:complexContent>
          <xsd:extension base="ros:HistoryType">
            <xsd:attribute name="Created" type="xsd:normalizedString" use="required"/>
          </xsd:extension>
        </xsd:complexContent>
      </xsd:complexType>
    </xsd:element>
  </xsd:sequence>
</xsd:complexType>

element DocumentType/FormVersion
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="FormVersion" type="xsd:string" minOccurs="0"/>

element DocumentType/History
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type extension of ros:HistoryType
children Changed
attributes
Name  Type  Use  Default  Fixed  Annotation
Created  xsd:normalizedString  required
source
<xsd:element name="History">
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="ros:HistoryType">
        <xsd:attribute name="Created" type="xsd:normalizedString" use="required"/>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>

complexType DrugType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children DrugId DosageCode Dosage
used by
element InterventionType/Drug
source
<xsd:complexType name="DrugType">
  <xsd:sequence>
    <xsd:element name="DrugId" type="xsd:string" minOccurs="0"/>
    <xsd:element name="DosageCode" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Dosage" type="xsd:string" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element DrugType/DrugId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="DrugId" type="xsd:string" minOccurs="0"/>

element DrugType/DosageCode
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="DosageCode" type="xsd:string" minOccurs="0"/>

element DrugType/Dosage
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Dosage" type="xsd:string" minOccurs="0"/>

complexType EhcmType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children Header Body
used by
element Ehcm
source
<xsd:complexType name="EhcmType">
  <xsd:sequence>
    <xsd:element name="Header" type="ros:HeaderType"/>
    <xsd:element name="Body" type="ros:BodyType"/>
  </xsd:sequence>
</xsd:complexType>

element EhcmType/Header
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:HeaderType
children Endpoints Properties Services Manifest Process Extension
source
<xsd:element name="Header" type="ros:HeaderType"/>

element EhcmType/Body
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:BodyType
children ServiceRequest
source
<xsd:element name="Body" type="ros:BodyType"/>

complexType EndpointsType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children To From
used by
element HeaderType/Endpoints
source
<xsd:complexType name="EndpointsType">
  <xsd:sequence>
    <xsd:element name="To" type="ros:HeaderAddressType"/>
    <xsd:element name="From" type="ros:HeaderAddressType"/>
  </xsd:sequence>
</xsd:complexType>

element EndpointsType/To
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:HeaderAddressType
children AddressId
source
<xsd:element name="To" type="ros:HeaderAddressType"/>

element EndpointsType/From
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:HeaderAddressType
children AddressId
source
<xsd:element name="From" type="ros:HeaderAddressType"/>

complexType ExtensionType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children RosInfo
used by
element HeaderType/Extension
source
<xsd:complexType name="ExtensionType">
  <xsd:sequence>
    <xsd:element name="RosInfo" type="ros:RosInfoType"/>
  </xsd:sequence>
</xsd:complexType>

element ExtensionType/RosInfo
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:RosInfoType
children XmlVersion Document ExternalId ProcessingAction SignatureRequired UserInfo RequesterEmail Notification ros:RequireDurationTime LabelPrinted RequestedTimes ClientFunctions
source
<xsd:element name="RosInfo" type="ros:RosInfoType"/>

complexType ExternalIdType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:ContactId PeriodId ApplRequestId HcpId HcpId2 HcoMedId HcoAdmId HcoTeamId
used by
element RosInfoType/ExternalId
source
<xsd:complexType name="ExternalIdType">
  <xsd:sequence>
    <xsd:element ref="ros:ContactId" minOccurs="0"/>
    <xsd:element name="PeriodId" type="xsd:string" minOccurs="0"/>
    <xsd:element name="ApplRequestId" type="xsd:string" minOccurs="0"/>
    <xsd:element name="HcpId" type="xsd:string" minOccurs="0"/>
    <xsd:element name="HcpId2" type="xsd:string" minOccurs="0"/>
    <xsd:element name="HcoMedId" type="xsd:string" minOccurs="0"/>
    <xsd:element name="HcoAdmId" type="xsd:string" minOccurs="0"/>
    <xsd:element name="HcoTeamId" type="xsd:string" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element ExternalIdType/PeriodId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="PeriodId" type="xsd:string" minOccurs="0"/>

element ExternalIdType/ApplRequestId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="ApplRequestId" type="xsd:string" minOccurs="0"/>

element ExternalIdType/HcpId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="HcpId" type="xsd:string" minOccurs="0"/>

element ExternalIdType/HcpId2
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="HcpId2" type="xsd:string" minOccurs="0"/>

element ExternalIdType/HcoMedId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="HcoMedId" type="xsd:string" minOccurs="0"/>

element ExternalIdType/HcoAdmId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="HcoAdmId" type="xsd:string" minOccurs="0"/>

element ExternalIdType/HcoTeamId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="HcoTeamId" type="xsd:string" minOccurs="0"/>

complexType HeaderAddressType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children AddressId
used by
elements EndpointsType/From SendToType/SendTo EndpointsType/To
source
<xsd:complexType name="HeaderAddressType">
  <xsd:sequence>
    <xsd:element name="AddressId">
      <xsd:complexType>
        <xsd:simpleContent>
          <xsd:extension base="xsd:string">
            <xsd:attribute name="Type" type="xsd:normalizedString" use="required"/>
          </xsd:extension>
        </xsd:simpleContent>
      </xsd:complexType>
    </xsd:element>
  </xsd:sequence>
</xsd:complexType>

element HeaderAddressType/AddressId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type extension of xsd:string
attributes
Name  Type  Use  Default  Fixed  Annotation
Type  xsd:normalizedString  required
source
<xsd:element name="AddressId">
  <xsd:complexType>
    <xsd:simpleContent>
      <xsd:extension base="xsd:string">
        <xsd:attribute name="Type" type="xsd:normalizedString" use="required"/>
      </xsd:extension>
    </xsd:simpleContent>
  </xsd:complexType>
</xsd:element>

complexType HeaderType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children Endpoints Properties Services Manifest Process Extension
used by
element EhcmType/Header
source
<xsd:complexType name="HeaderType">
  <xsd:sequence>
    <xsd:element name="Endpoints" type="ros:EndpointsType"/>
    <xsd:element name="Properties" type="ros:PropertiesType"/>
    <xsd:element name="Services" type="ros:ServicesType" minOccurs="0"/>
    <xsd:element name="Manifest" type="ros:ManifestType" minOccurs="0"/>
    <xsd:element name="Process" type="ros:ProcessType" minOccurs="0"/>
    <xsd:element name="Extension" type="ros:ExtensionType"/>
  </xsd:sequence>
</xsd:complexType>

element HeaderType/Endpoints
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:EndpointsType
children To From
source
<xsd:element name="Endpoints" type="ros:EndpointsType"/>

element HeaderType/Properties
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:PropertiesType
children Identity SentAt ExpiresAt Topic
source
<xsd:element name="Properties" type="ros:PropertiesType"/>

element HeaderType/Services
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:ServicesType
children DeliveryReceiptRequest CommitmentReceiptRequest
source
<xsd:element name="Services" type="ros:ServicesType" minOccurs="0"/>

element HeaderType/Manifest
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:ManifestType
children Reference
source
<xsd:element name="Manifest" type="ros:ManifestType" minOccurs="0"/>

element HeaderType/Process
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:ProcessType
children ros:Type Instance Detail
source
<xsd:element name="Process" type="ros:ProcessType" minOccurs="0"/>

element HeaderType/Extension
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:ExtensionType
children RosInfo
source
<xsd:element name="Extension" type="ros:ExtensionType"/>

complexType HistoryType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children Changed
used by
element DocumentType/History
source
<xsd:complexType name="HistoryType">
  <xsd:sequence>
    <xsd:element name="Changed" minOccurs="0" maxOccurs="unbounded">
      <xsd:complexType>
        <xsd:simpleContent>
          <xsd:extension base="xsd:string">
            <xsd:attribute name="Created" type="xsd:normalizedString" use="required"/>
          </xsd:extension>
        </xsd:simpleContent>
      </xsd:complexType>
    </xsd:element>
  </xsd:sequence>
</xsd:complexType>

element HistoryType/Changed
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type extension of xsd:string
attributes
Name  Type  Use  Default  Fixed  Annotation
Created  xsd:normalizedString  required
source
<xsd:element name="Changed" minOccurs="0" maxOccurs="unbounded">
  <xsd:complexType>
    <xsd:simpleContent>
      <xsd:extension base="xsd:string">
        <xsd:attribute name="Created" type="xsd:normalizedString" use="required"/>
      </xsd:extension>
    </xsd:simpleContent>
  </xsd:complexType>
</xsd:element>

complexType InterventionType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Type ros:Description Drug
used by
element ServiceRequestType/Intervention
source
<xsd:complexType name="InterventionType">
  <xsd:sequence>
    <xsd:element ref="ros:Type" minOccurs="0"/>
    <xsd:element ref="ros:Description" minOccurs="0"/>
    <xsd:element name="Drug" type="ros:DrugType" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element InterventionType/Drug
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:DrugType
children DrugId DosageCode Dosage
source
<xsd:element name="Drug" type="ros:DrugType" minOccurs="0"/>

complexType InvestigationsType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children Investigation
used by
element Investigations
source
<xsd:complexType name="InvestigationsType">
  <xsd:sequence>
    <xsd:element name="Investigation" type="ros:InvestigationType" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>

element InvestigationsType/Investigation
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:InvestigationType
children System Quantity Specifications Code ShortName ros:Name ros:ContainerId ros:Comment ros:LabelComment ros:RequireDurationTime LidExtension CostType CostAmoutType CurrencyUnit ros:Warning HCD ros:RequesterComment ros:ProviderComment
source
<xsd:element name="Investigation" type="ros:InvestigationType" maxOccurs="unbounded"/>

complexType InvestigationType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children System Quantity Specifications Code ShortName ros:Name ros:ContainerId ros:Comment ros:LabelComment ros:RequireDurationTime LidExtension CostType CostAmoutType CurrencyUnit ros:Warning HCD ros:RequesterComment ros:ProviderComment
used by
elements ServiceRequestType/Investigations/RequestedInvestigation/Investigation ResultItemType/Investigation RequestedInvestigationType/Investigation InvestigationsType/Investigation
source
<xsd:complexType name="InvestigationType">
  <xsd:sequence>
    <xsd:element name="System" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Quantity" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Specifications" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Code" type="xsd:string" minOccurs="0"/>
    <xsd:element name="ShortName" type="xsd:string" minOccurs="0"/>
    <xsd:element ref="ros:Name" minOccurs="0"/>
    <xsd:element ref="ros:ContainerId" minOccurs="0"/>
    <xsd:element ref="ros:Comment" minOccurs="0"/>
    <xsd:element ref="ros:LabelComment" minOccurs="0"/>
    <xsd:element ref="ros:RequireDurationTime"/>
    <xsd:element name="LidExtension" type="xsd:string" minOccurs="0"/>
    <xsd:element name="CostType" type="xsd:string" minOccurs="0"/>
    <xsd:element name="CostAmoutType" type="xsd:string" minOccurs="0"/>
    <xsd:element name="CurrencyUnit" type="xsd:string" minOccurs="0"/>
    <xsd:element ref="ros:Warning" minOccurs="0"/>
    <xsd:element name="HCD" minOccurs="0">
      <xsd:complexType>
        <xsd:simpleContent>
          <xsd:extension base="xsd:string">
            <xsd:attribute name="Type" type="xsd:normalizedString" use="optional"/>
          </xsd:extension>
        </xsd:simpleContent>
      </xsd:complexType>
    </xsd:element>
    <xsd:element ref="ros:RequesterComment" minOccurs="0"/>
    <xsd:element ref="ros:ProviderComment" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element InvestigationType/System
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="System" type="xsd:string" minOccurs="0"/>

element InvestigationType/Quantity
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Quantity" type="xsd:string" minOccurs="0"/>

element InvestigationType/Specifications
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Specifications" type="xsd:string" minOccurs="0"/>

element InvestigationType/Code
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Code" type="xsd:string" minOccurs="0"/>

element InvestigationType/ShortName
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="ShortName" type="xsd:string" minOccurs="0"/>

element InvestigationType/LidExtension
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="LidExtension" type="xsd:string" minOccurs="0"/>

element InvestigationType/CostType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="CostType" type="xsd:string" minOccurs="0"/>

element InvestigationType/CostAmoutType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="CostAmoutType" type="xsd:string" minOccurs="0"/>

element InvestigationType/CurrencyUnit
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="CurrencyUnit" type="xsd:string" minOccurs="0"/>

element InvestigationType/HCD
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type extension of xsd:string
attributes
Name  Type  Use  Default  Fixed  Annotation
Type  xsd:normalizedString  optional
source
<xsd:element name="HCD" minOccurs="0">
  <xsd:complexType>
    <xsd:simpleContent>
      <xsd:extension base="xsd:string">
        <xsd:attribute name="Type" type="xsd:normalizedString" use="optional"/>
      </xsd:extension>
    </xsd:simpleContent>
  </xsd:complexType>
</xsd:element>

complexType ItemsType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ResultItem
source
<xsd:complexType name="ItemsType">
  <xsd:sequence>
    <xsd:element name="ResultItem" minOccurs="0" maxOccurs="unbounded">
      <xsd:complexType>
        <xsd:complexContent>
          <xsd:extension base="ros:ResultItemType">
            <xsd:attribute name="No" type="xsd:normalizedString" use="required"/>
          </xsd:extension>
        </xsd:complexContent>
      </xsd:complexType>
    </xsd:element>
  </xsd:sequence>
</xsd:complexType>

element ItemsType/ResultItem
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type extension of ros:ResultItemType
children ServiceType ros:ProviderId Result ros:Value ros:ProviderComment Uncertainty ros:Status ros:StartTime ChangeTime ResultTime ReferenceLimit Organisation Signature Investigation
attributes
Name  Type  Use  Default  Fixed  Annotation
No  xsd:normalizedString  required
source
<xsd:element name="ResultItem" minOccurs="0" maxOccurs="unbounded">
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="ros:ResultItemType">
        <xsd:attribute name="No" type="xsd:normalizedString" use="required"/>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>

complexType LocationType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Ward Room Bed
used by
element AgentAdmInfoType/Location
source
<xsd:complexType name="LocationType">
  <xsd:sequence>
    <xsd:element ref="ros:Ward" minOccurs="0"/>
    <xsd:element name="Room" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Bed" type="xsd:string" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element LocationType/Room
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Room" type="xsd:string" minOccurs="0"/>

element LocationType/Bed
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Bed" type="xsd:string" minOccurs="0"/>

complexType ManifestType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children Reference
used by
element HeaderType/Manifest
source
<xsd:complexType name="ManifestType">
  <xsd:sequence>
    <xsd:element name="Reference" type="ros:ReferenceType" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>

element ManifestType/Reference
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:ReferenceType
children DocumentId Attachment ros:Description
source
<xsd:element name="Reference" type="ros:ReferenceType" maxOccurs="unbounded"/>

complexType NameDetailsType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children DailyName FamilyName FirstName MiddleName Title NameSuffix UnstructedName
used by
element NameDetails
source
<xsd:complexType name="NameDetailsType">
  <xsd:sequence>
    <xsd:element name="DailyName" type="xsd:string" minOccurs="0"/>
    <xsd:element name="FamilyName" type="xsd:string" minOccurs="0"/>
    <xsd:element name="FirstName" type="xsd:string" minOccurs="0"/>
    <xsd:element name="MiddleName" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Title" type="xsd:string" minOccurs="0"/>
    <xsd:element name="NameSuffix" type="xsd:string" minOccurs="0"/>
    <xsd:element name="UnstructedName" type="xsd:string" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element NameDetailsType/DailyName
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="DailyName" type="xsd:string" minOccurs="0"/>

element NameDetailsType/FamilyName
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="FamilyName" type="xsd:string" minOccurs="0"/>

element NameDetailsType/FirstName
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="FirstName" type="xsd:string" minOccurs="0"/>

element NameDetailsType/MiddleName
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="MiddleName" type="xsd:string" minOccurs="0"/>

element NameDetailsType/Title
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Title" type="xsd:string" minOccurs="0"/>

element NameDetailsType/NameSuffix
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="NameSuffix" type="xsd:string" minOccurs="0"/>

element NameDetailsType/UnstructedName
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="UnstructedName" type="xsd:string" minOccurs="0"/>

complexType ObjectType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:ProviderId ros:RequesterId ros:Type ros:NameDetails ros:Address ros:Telecom
used by
element SignatureType/Object
source
<xsd:complexType name="ObjectType">
  <xsd:sequence>
    <xsd:element ref="ros:ProviderId"/>
    <xsd:element ref="ros:RequesterId"/>
    <xsd:element ref="ros:Type"/>
    <xsd:element ref="ros:NameDetails"/>
    <xsd:element ref="ros:Address"/>
    <xsd:element ref="ros:Telecom"/>
  </xsd:sequence>
</xsd:complexType>

complexType OrderReferenceType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:ProviderId ros:RequesterId ros:IssueTime
used by
element ServiceRequestType/OrderReference
source
<xsd:complexType name="OrderReferenceType">
  <xsd:sequence>
    <xsd:element ref="ros:ProviderId" minOccurs="0"/>
    <xsd:element ref="ros:RequesterId"/>
    <xsd:element ref="ros:IssueTime" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

complexType OrganisationType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Type ros:RegId ros:AgreedId ros:RequesterId ros:ProviderId OrganisationName ros:Language ros:Address ros:Telecom
used by
elements Organisation ResultItemType/Organisation
source
<xsd:complexType name="OrganisationType">
  <xsd:sequence>
    <xsd:element ref="ros:Type" minOccurs="0"/>
    <xsd:element ref="ros:RegId" minOccurs="0"/>
    <xsd:element ref="ros:AgreedId" minOccurs="0"/>
    <xsd:element ref="ros:RequesterId"/>
    <xsd:element ref="ros:ProviderId" minOccurs="0"/>
    <xsd:element name="OrganisationName" type="xsd:string"/>
    <xsd:element ref="ros:Language" minOccurs="0"/>
    <xsd:element ref="ros:Address" minOccurs="0"/>
    <xsd:element ref="ros:Telecom" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element OrganisationType/OrganisationName
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="OrganisationName" type="xsd:string"/>

complexType PatientType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children OfficialId OfficialIdType PaymentId AdditionalId AnonymousId Civility Sex BirthDate DeathDate Length Weight PregnancyWeek Nationality ros:Language Confidentiality ros:NameDetails ros:Address ros:Telecom RelatedName
used by
element ServiceRequestType/Patient
source
<xsd:complexType name="PatientType">
  <xsd:sequence>
    <xsd:element name="OfficialId" type="xsd:string"/>
    <xsd:element name="OfficialIdType" type="xsd:string" minOccurs="0"/>
    <xsd:element name="PaymentId" type="xsd:string" minOccurs="0"/>
    <xsd:element name="AdditionalId" type="xsd:string" minOccurs="0"/>
    <xsd:element name="AnonymousId" type="xsd:string"/>
    <xsd:element name="Civility" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Sex" type="xsd:string" minOccurs="0"/>
    <xsd:element name="BirthDate" type="xsd:string" minOccurs="0"/>
    <xsd:element name="DeathDate" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Length" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Weight" type="xsd:string" minOccurs="0"/>
    <xsd:element name="PregnancyWeek" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Nationality" type="xsd:string" minOccurs="0"/>
    <xsd:element ref="ros:Language" minOccurs="0"/>
    <xsd:element name="Confidentiality" type="xsd:string" minOccurs="0"/>
    <xsd:element ref="ros:NameDetails"/>
    <xsd:element ref="ros:Address"/>
    <xsd:element ref="ros:Telecom" minOccurs="0"/>
    <xsd:element name="RelatedName" type="xsd:string" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element PatientType/OfficialId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="OfficialId" type="xsd:string"/>

element PatientType/OfficialIdType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="OfficialIdType" type="xsd:string" minOccurs="0"/>

element PatientType/PaymentId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="PaymentId" type="xsd:string" minOccurs="0"/>

element PatientType/AdditionalId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="AdditionalId" type="xsd:string" minOccurs="0"/>

element PatientType/AnonymousId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="AnonymousId" type="xsd:string"/>

element PatientType/Civility
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Civility" type="xsd:string" minOccurs="0"/>

element PatientType/Sex
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Sex" type="xsd:string" minOccurs="0"/>

element PatientType/BirthDate
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="BirthDate" type="xsd:string" minOccurs="0"/>

element PatientType/DeathDate
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="DeathDate" type="xsd:string" minOccurs="0"/>

element PatientType/Length
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Length" type="xsd:string" minOccurs="0"/>

element PatientType/Weight
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Weight" type="xsd:string" minOccurs="0"/>

element PatientType/PregnancyWeek
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="PregnancyWeek" type="xsd:string" minOccurs="0"/>

element PatientType/Nationality
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Nationality" type="xsd:string" minOccurs="0"/>

element PatientType/Confidentiality
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Confidentiality" type="xsd:string" minOccurs="0"/>

element PatientType/RelatedName
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="RelatedName" type="xsd:string" minOccurs="0"/>

complexType PaymentGuarantorType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Organisation ros:Professional
used by
element ServiceRequestType/PaymentGuarantor
source
<xsd:complexType name="PaymentGuarantorType">
  <xsd:choice>
    <xsd:element ref="ros:Organisation" minOccurs="0"/>
    <xsd:element ref="ros:Professional" minOccurs="0"/>
  </xsd:choice>
</xsd:complexType>

complexType ProcessType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Type Instance Detail
used by
element HeaderType/Process
source
<xsd:complexType name="ProcessType">
  <xsd:sequence>
    <xsd:element ref="ros:Type"/>
    <xsd:element name="Instance" type="xsd:anyURI"/>
    <xsd:element name="Detail" type="xsd:string" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element ProcessType/Instance
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:anyURI
source
<xsd:element name="Instance" type="xsd:anyURI"/>

element ProcessType/Detail
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Detail" type="xsd:string" minOccurs="0"/>

complexType ProfessionalType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Type ros:RegId ros:AgreedId ros:RequesterId ros:ProviderId Qualification Speciality Position MilitaryRank ros:Language ros:NameDetails ros:Address ros:Telecom
used by
element Professional
source
<xsd:complexType name="ProfessionalType">
  <xsd:sequence>
    <xsd:element ref="ros:Type" minOccurs="0"/>
    <xsd:element ref="ros:RegId" minOccurs="0"/>
    <xsd:element ref="ros:AgreedId" minOccurs="0"/>
    <xsd:element ref="ros:RequesterId" minOccurs="0"/>
    <xsd:element ref="ros:ProviderId" minOccurs="0"/>
    <xsd:element name="Qualification" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Speciality" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Position" type="xsd:string" minOccurs="0"/>
    <xsd:element name="MilitaryRank" type="xsd:string" minOccurs="0"/>
    <xsd:element ref="ros:Language" minOccurs="0"/>
    <xsd:element ref="ros:NameDetails"/>
    <xsd:element ref="ros:Address"/>
    <xsd:element ref="ros:Telecom" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element ProfessionalType/Qualification
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Qualification" type="xsd:string" minOccurs="0"/>

element ProfessionalType/Speciality
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Speciality" type="xsd:string" minOccurs="0"/>

element ProfessionalType/Position
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Position" type="xsd:string" minOccurs="0"/>

element ProfessionalType/MilitaryRank
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="MilitaryRank" type="xsd:string" minOccurs="0"/>

complexType PropertiesType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children Identity SentAt ExpiresAt Topic
used by
element HeaderType/Properties
source
<xsd:complexType name="PropertiesType">
  <xsd:sequence>
    <xsd:element name="Identity" type="xsd:anyURI" minOccurs="0"/>
    <xsd:element name="SentAt" type="xsd:dateTime" minOccurs="0"/>
    <xsd:element name="ExpiresAt" type="xsd:dateTime" minOccurs="0"/>
    <xsd:element name="Topic" type="xsd:anyURI" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element PropertiesType/Identity
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:anyURI
source
<xsd:element name="Identity" type="xsd:anyURI" minOccurs="0"/>

element PropertiesType/SentAt
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:dateTime
source
<xsd:element name="SentAt" type="xsd:dateTime" minOccurs="0"/>

element PropertiesType/ExpiresAt
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:dateTime
source
<xsd:element name="ExpiresAt" type="xsd:dateTime" minOccurs="0"/>

element PropertiesType/Topic
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:anyURI
source
<xsd:element name="Topic" type="xsd:anyURI" minOccurs="0"/>

complexType ReferenceLimitType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:LowerLimit ros:UpperLimit ros:Unit RefInterval Textual PopulationDef
source
<xsd:complexType name="ReferenceLimitType">
  <xsd:sequence>
    <xsd:element ref="ros:LowerLimit" minOccurs="0"/>
    <xsd:element ref="ros:UpperLimit" minOccurs="0"/>
    <xsd:element ref="ros:Unit" minOccurs="0"/>
    <xsd:element name="RefInterval" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Textual" type="xsd:string" minOccurs="0"/>
    <xsd:element name="PopulationDef" type="xsd:string" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element ReferenceLimitType/RefInterval
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="RefInterval" type="xsd:string" minOccurs="0"/>

element ReferenceLimitType/Textual
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Textual" type="xsd:string" minOccurs="0"/>

element ReferenceLimitType/PopulationDef
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="PopulationDef" type="xsd:string" minOccurs="0"/>

complexType ReferenceType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children DocumentId Attachment ros:Description
used by
element ManifestType/Reference
source
<xsd:complexType name="ReferenceType">
  <xsd:sequence>
    <xsd:choice>
      <xsd:element name="DocumentId" type="xsd:string"/>
      <xsd:element name="Attachment" type="xsd:string"/>
    </xsd:choice>
    <xsd:element ref="ros:Description"/>
  </xsd:sequence>
</xsd:complexType>

element ReferenceType/DocumentId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="DocumentId" type="xsd:string"/>

element ReferenceType/Attachment
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Attachment" type="xsd:string"/>

complexType RequestedInvestigationsType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children RequestedInvestigation
source
<xsd:complexType name="RequestedInvestigationsType">
  <xsd:sequence>
    <xsd:element name="RequestedInvestigation" maxOccurs="unbounded">
      <xsd:complexType>
        <xsd:complexContent>
          <xsd:extension base="ros:RequestedInvestigationType">
            <xsd:attribute name="No" type="xsd:normalizedString" use="required"/>
          </xsd:extension>
        </xsd:complexContent>
      </xsd:complexType>
    </xsd:element>
  </xsd:sequence>
</xsd:complexType>

element RequestedInvestigationsType/RequestedInvestigation
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type extension of ros:RequestedInvestigationType
children ros:ServiceType ros:Priority ReportPriority ros:Reason ros:PlannedTime ros:IssueTime Investigation StandingInvestigation ros:RequesterComment ros:ProviderComment
attributes
Name  Type  Use  Default  Fixed  Annotation
No  xsd:normalizedString  required
source
<xsd:element name="RequestedInvestigation" maxOccurs="unbounded">
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="ros:RequestedInvestigationType">
        <xsd:attribute name="No" type="xsd:normalizedString" use="required"/>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>

complexType RequestedInvestigationType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:ServiceType ros:Priority ReportPriority ros:Reason ros:PlannedTime ros:IssueTime Investigation StandingInvestigation ros:RequesterComment ros:ProviderComment
used by
element RequestedInvestigationsType/RequestedInvestigation
source
<xsd:complexType name="RequestedInvestigationType">
  <xsd:sequence>
    <xsd:element ref="ros:ServiceType" minOccurs="0"/>
    <xsd:element ref="ros:Priority"/>
    <xsd:element name="ReportPriority" type="xsd:string" minOccurs="0"/>
    <xsd:element ref="ros:Reason" minOccurs="0"/>
    <xsd:element ref="ros:PlannedTime" minOccurs="0"/>
    <xsd:element ref="ros:IssueTime" minOccurs="0"/>
    <xsd:element name="Investigation" type="ros:InvestigationType"/>
    <xsd:element name="StandingInvestigation" type="ros:StandingOrderType" minOccurs="0"/>
    <xsd:element ref="ros:RequesterComment" minOccurs="0"/>
    <xsd:element ref="ros:ProviderComment" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element RequestedInvestigationType/ReportPriority
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="ReportPriority" type="xsd:string" minOccurs="0"/>

element RequestedInvestigationType/Investigation
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:InvestigationType
children System Quantity Specifications Code ShortName ros:Name ros:ContainerId ros:Comment ros:LabelComment ros:RequireDurationTime LidExtension CostType CostAmoutType CurrencyUnit ros:Warning HCD ros:RequesterComment ros:ProviderComment
source
<xsd:element name="Investigation" type="ros:InvestigationType"/>

element RequestedInvestigationType/StandingInvestigation
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:StandingOrderType
children ros:Number ros:StartTime ros:EndTime CycleTime EndCondition
source
<xsd:element name="StandingInvestigation" type="ros:StandingOrderType" minOccurs="0"/>

complexType RequestedTimeType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:RequestedTime
used by
element RosInfoType/RequestedTimes
source
<xsd:complexType name="RequestedTimeType">
  <xsd:sequence>
    <xsd:element ref="ros:RequestedTime" minOccurs="0" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>

complexType ResultItemType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ServiceType ros:ProviderId Result ros:Value ros:ProviderComment Uncertainty ros:Status ros:StartTime ChangeTime ResultTime ReferenceLimit Organisation Signature Investigation
used by
element ItemsType/ResultItem
source
<xsd:complexType name="ResultItemType">
  <xsd:sequence>
    <xsd:element name="ServiceType" type="xsd:string" minOccurs="0"/>
    <xsd:element ref="ros:ProviderId"/>
    <xsd:element name="Result" type="ros:ResultType"/>
    <xsd:element ref="ros:Value" minOccurs="0"/>
    <xsd:element ref="ros:ProviderComment" minOccurs="0"/>
    <xsd:element name="Uncertainty" type="ros:UncertaintyType" minOccurs="0"/>
    <xsd:element ref="ros:Status"/>
    <xsd:element ref="ros:StartTime" minOccurs="0"/>
    <xsd:element name="ChangeTime" type="xsd:string" minOccurs="0"/>
    <xsd:element name="ResultTime" type="xsd:string" minOccurs="0"/>
    <xsd:element name="ReferenceLimit" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Organisation" type="ros:OrganisationType" minOccurs="0"/>
    <xsd:element name="Signature" type="ros:SignatureType" minOccurs="0"/>
    <xsd:element name="Investigation" type="ros:InvestigationType"/>
  </xsd:sequence>
</xsd:complexType>

element ResultItemType/ServiceType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="ServiceType" type="xsd:string" minOccurs="0"/>

element ResultItemType/Result
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:ResultType
children Operator ros:Value ros:Unit
source
<xsd:element name="Result" type="ros:ResultType"/>

element ResultItemType/Uncertainty
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:UncertaintyType
children ros:LowerLimit ros:UpperLimit ros:Unit
source
<xsd:element name="Uncertainty" type="ros:UncertaintyType" minOccurs="0"/>

element ResultItemType/ChangeTime
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="ChangeTime" type="xsd:string" minOccurs="0"/>

element ResultItemType/ResultTime
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="ResultTime" type="xsd:string" minOccurs="0"/>

element ResultItemType/ReferenceLimit
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="ReferenceLimit" type="xsd:string" minOccurs="0"/>

element ResultItemType/Organisation
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:OrganisationType
children ros:Type ros:RegId ros:AgreedId ros:RequesterId ros:ProviderId OrganisationName ros:Language ros:Address ros:Telecom
source
<xsd:element name="Organisation" type="ros:OrganisationType" minOccurs="0"/>

element ResultItemType/Signature
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:SignatureType
children SignatureInfo SignatureValue KeyInfo Object
source
<xsd:element name="Signature" type="ros:SignatureType" minOccurs="0"/>

element ResultItemType/Investigation
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:InvestigationType
children System Quantity Specifications Code ShortName ros:Name ros:ContainerId ros:Comment ros:LabelComment ros:RequireDurationTime LidExtension CostType CostAmoutType CurrencyUnit ros:Warning HCD ros:RequesterComment ros:ProviderComment
source
<xsd:element name="Investigation" type="ros:InvestigationType"/>

complexType ResultType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children Operator ros:Value ros:Unit
used by
element ResultItemType/Result
source
<xsd:complexType name="ResultType">
  <xsd:sequence>
    <xsd:element name="Operator" type="xsd:string" minOccurs="0"/>
    <xsd:element ref="ros:Value" minOccurs="0"/>
    <xsd:element ref="ros:Unit" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element ResultType/Operator
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Operator" type="xsd:string" minOccurs="0"/>

complexType RosInfoType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children XmlVersion Document ExternalId ProcessingAction SignatureRequired UserInfo RequesterEmail Notification ros:RequireDurationTime LabelPrinted RequestedTimes ClientFunctions
used by
element ExtensionType/RosInfo
source
<xsd:complexType name="RosInfoType">
  <xsd:sequence>
    <xsd:element name="XmlVersion" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Document" type="ros:DocumentType"/>
    <xsd:element name="ExternalId" type="ros:ExternalIdType"/>
    <xsd:element name="ProcessingAction" type="xsd:string" minOccurs="0"/>
    <xsd:element name="SignatureRequired" type="xsd:string" minOccurs="0"/>
    <xsd:element name="UserInfo" type="ros:UserInfoType" minOccurs="0"/>
    <xsd:element name="RequesterEmail" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Notification" type="xsd:string" minOccurs="0"/>
    <xsd:element ref="ros:RequireDurationTime"/>
    <xsd:element name="LabelPrinted" type="xsd:string"/>
    <xsd:element name="RequestedTimes" type="ros:RequestedTimeType"/>
    <xsd:element name="ClientFunctions" type="ros:ClientFuncType"/>
  </xsd:sequence>
</xsd:complexType>

element RosInfoType/XmlVersion
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="XmlVersion" type="xsd:string" minOccurs="0"/>

element RosInfoType/Document
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:DocumentType
children ros:Name ros:Description FormVersion History
source
<xsd:element name="Document" type="ros:DocumentType"/>

element RosInfoType/ExternalId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:ExternalIdType
children ros:ContactId PeriodId ApplRequestId HcpId HcpId2 HcoMedId HcoAdmId HcoTeamId
source
<xsd:element name="ExternalId" type="ros:ExternalIdType"/>

element RosInfoType/ProcessingAction
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="ProcessingAction" type="xsd:string" minOccurs="0"/>

element RosInfoType/SignatureRequired
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="SignatureRequired" type="xsd:string" minOccurs="0"/>

element RosInfoType/UserInfo
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:UserInfoType
children UserId ros:Ward Workstation TimeStamp ros:RequesterId
source
<xsd:element name="UserInfo" type="ros:UserInfoType" minOccurs="0"/>

element RosInfoType/RequesterEmail
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="RequesterEmail" type="xsd:string" minOccurs="0"/>

element RosInfoType/Notification
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Notification" type="xsd:string" minOccurs="0"/>

element RosInfoType/LabelPrinted
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="LabelPrinted" type="xsd:string"/>

element RosInfoType/RequestedTimes
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:RequestedTimeType
children ros:RequestedTime
source
<xsd:element name="RequestedTimes" type="ros:RequestedTimeType"/>

element RosInfoType/ClientFunctions
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:ClientFuncType
children XmlReadyFunc XmlOrderFunc XmlSaveFunc
source
<xsd:element name="ClientFunctions" type="ros:ClientFuncType"/>

complexType SamplesType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:ProviderId InfectionRisc InfectionRiscCode SampleRound SampleToBeCollected
used by
element ServiceRequestType/Samples
source
<xsd:complexType name="SamplesType">
  <xsd:sequence>
    <xsd:element ref="ros:ProviderId" minOccurs="0"/>
    <xsd:element name="InfectionRisc" type="xsd:string" minOccurs="0"/>
    <xsd:element name="InfectionRiscCode" type="xsd:string" minOccurs="0"/>
    <xsd:element name="SampleRound" type="xsd:string" minOccurs="0"/>
    <xsd:element name="SampleToBeCollected" type="ros:SampleToBeCollectedType" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>

element SamplesType/InfectionRisc
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="InfectionRisc" type="xsd:string" minOccurs="0"/>

element SamplesType/InfectionRiscCode
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="InfectionRiscCode" type="xsd:string" minOccurs="0"/>

element SamplesType/SampleRound
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="SampleRound" type="xsd:string" minOccurs="0"/>

element SamplesType/SampleToBeCollected
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:SampleToBeCollectedType
children ros:Priority ros:Type ros:RequestedTime RequestedStartTime IntervalTime IntervalUnit DifferenceTime DifferenceUnit RequestedPeriod RequestedUnit Origin Procedure Handling Preservation NumberOfContainers CollectionTime AmountValue AmountUnit DurationValue DurationUnit ros:Warning ros:ContainerId ros:Comment ros:SortCode ros:RequesterComment ros:ProviderComment ros:RequireDurationTime Containers ros:Investigations
source
<xsd:element name="SampleToBeCollected" type="ros:SampleToBeCollectedType" maxOccurs="unbounded"/>

complexType SampleToBeCollectedType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Priority ros:Type ros:RequestedTime RequestedStartTime IntervalTime IntervalUnit DifferenceTime DifferenceUnit RequestedPeriod RequestedUnit Origin Procedure Handling Preservation NumberOfContainers CollectionTime AmountValue AmountUnit DurationValue DurationUnit ros:Warning ros:ContainerId ros:Comment ros:SortCode ros:RequesterComment ros:ProviderComment ros:RequireDurationTime Containers ros:Investigations
used by
element SamplesType/SampleToBeCollected
source
<xsd:complexType name="SampleToBeCollectedType">
  <xsd:sequence>
    <xsd:element ref="ros:Priority" minOccurs="0"/>
    <xsd:element ref="ros:Type" minOccurs="0"/>
    <xsd:element ref="ros:RequestedTime" minOccurs="0"/>
    <xsd:element name="RequestedStartTime" type="xsd:string" minOccurs="0"/>
    <xsd:element name="IntervalTime" type="xsd:string" minOccurs="0"/>
    <xsd:element name="IntervalUnit" type="xsd:string" minOccurs="0"/>
    <xsd:element name="DifferenceTime" type="xsd:string" minOccurs="0"/>
    <xsd:element name="DifferenceUnit" type="xsd:string" minOccurs="0"/>
    <xsd:element name="RequestedPeriod" type="xsd:string" minOccurs="0"/>
    <xsd:element name="RequestedUnit" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Origin" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Procedure" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Handling" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Preservation" type="xsd:string" minOccurs="0"/>
    <xsd:element name="NumberOfContainers" type="xsd:string" minOccurs="0"/>
    <xsd:element name="CollectionTime" type="xsd:string" minOccurs="0"/>
    <xsd:element name="AmountValue" type="xsd:string"/>
    <xsd:element name="AmountUnit" type="xsd:string"/>
    <xsd:element name="DurationValue" type="xsd:string"/>
    <xsd:element name="DurationUnit" type="xsd:string"/>
    <xsd:element ref="ros:Warning" minOccurs="0"/>
    <xsd:element ref="ros:ContainerId" minOccurs="0"/>
    <xsd:element ref="ros:Comment" minOccurs="0"/>
    <xsd:element ref="ros:SortCode" minOccurs="0"/>
    <xsd:element ref="ros:RequesterComment" minOccurs="0"/>
    <xsd:element ref="ros:ProviderComment" minOccurs="0"/>
    <xsd:element ref="ros:RequireDurationTime"/>
    <xsd:element name="Containers" maxOccurs="unbounded">
      <xsd:complexType>
        <xsd:sequence>
          <xsd:element name="Container" type="ros:ContainerType"/>
        </xsd:sequence>
      </xsd:complexType>
    </xsd:element>
    <xsd:element ref="ros:Investigations" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element SampleToBeCollectedType/RequestedStartTime
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="RequestedStartTime" type="xsd:string" minOccurs="0"/>

element SampleToBeCollectedType/IntervalTime
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="IntervalTime" type="xsd:string" minOccurs="0"/>

element SampleToBeCollectedType/IntervalUnit
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="IntervalUnit" type="xsd:string" minOccurs="0"/>

element SampleToBeCollectedType/DifferenceTime
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="DifferenceTime" type="xsd:string" minOccurs="0"/>

element SampleToBeCollectedType/DifferenceUnit
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="DifferenceUnit" type="xsd:string" minOccurs="0"/>

element SampleToBeCollectedType/RequestedPeriod
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="RequestedPeriod" type="xsd:string" minOccurs="0"/>

element SampleToBeCollectedType/RequestedUnit
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="RequestedUnit" type="xsd:string" minOccurs="0"/>

element SampleToBeCollectedType/Origin
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Origin" type="xsd:string" minOccurs="0"/>

element SampleToBeCollectedType/Procedure
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Procedure" type="xsd:string" minOccurs="0"/>

element SampleToBeCollectedType/Handling
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Handling" type="xsd:string" minOccurs="0"/>

element SampleToBeCollectedType/Preservation
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Preservation" type="xsd:string" minOccurs="0"/>

element SampleToBeCollectedType/NumberOfContainers
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="NumberOfContainers" type="xsd:string" minOccurs="0"/>

element SampleToBeCollectedType/CollectionTime
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="CollectionTime" type="xsd:string" minOccurs="0"/>

element SampleToBeCollectedType/AmountValue
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="AmountValue" type="xsd:string"/>

element SampleToBeCollectedType/AmountUnit
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="AmountUnit" type="xsd:string"/>

element SampleToBeCollectedType/DurationValue
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="DurationValue" type="xsd:string"/>

element SampleToBeCollectedType/DurationUnit
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="DurationUnit" type="xsd:string"/>

element SampleToBeCollectedType/Containers
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children Container
source
<xsd:element name="Containers" maxOccurs="unbounded">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="Container" type="ros:ContainerType"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element SampleToBeCollectedType/Containers/Container
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:ContainerType
children ros:ContainerId ros:Type ros:SortCode ros:LabelComment
source
<xsd:element name="Container" type="ros:ContainerType"/>

complexType SendToType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children SendTo SendBy
used by
elements ServicesType/CommitmentReceiptRequest ServicesType/DeliveryReceiptRequest
source
<xsd:complexType name="SendToType">
  <xsd:sequence>
    <xsd:element name="SendTo" type="ros:HeaderAddressType"/>
    <xsd:element name="SendBy" type="xsd:dateTime"/>
  </xsd:sequence>
</xsd:complexType>

element SendToType/SendTo
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:HeaderAddressType
children AddressId
source
<xsd:element name="SendTo" type="ros:HeaderAddressType"/>

element SendToType/SendBy
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:dateTime
source
<xsd:element name="SendBy" type="xsd:dateTime"/>

complexType ServiceProviderType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Organisation
used by
element ServiceRequestType/ServiceProvider
source
<xsd:complexType name="ServiceProviderType">
  <xsd:sequence>
    <xsd:element ref="ros:Organisation"/>
  </xsd:sequence>
</xsd:complexType>

complexType ServiceRequesterType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Organisation ros:Professional
used by
element ServiceRequestType/ServiceRequester
source
<xsd:complexType name="ServiceRequesterType">
  <xsd:sequence>
    <xsd:element ref="ros:Organisation"/>
    <xsd:element ref="ros:Professional"/>
  </xsd:sequence>
</xsd:complexType>

complexType ServiceRequestType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Reason ros:RequesterComment ros:ServiceType ros:RequesterId ros:ProviderId ros:IssueTime ros:PlannedTime ros:Priority PaymentCategory ros:ProviderComment CancelReason ros:Language OrderReference StandingOrder ServiceRequester ServiceProvider Signature CopyRecipient PaymentGuarantor CopyDest Patient ClinicalInfo AgentAdmInfo Intervention Samples Investigations
used by
element BodyType/ServiceRequest
source
<xsd:complexType name="ServiceRequestType">
  <xsd:sequence>
    <xsd:element ref="ros:Reason" minOccurs="0"/>
    <xsd:element ref="ros:RequesterComment" minOccurs="0"/>
    <xsd:element ref="ros:ServiceType"/>
    <xsd:element ref="ros:RequesterId"/>
    <xsd:element ref="ros:ProviderId" minOccurs="0"/>
    <xsd:element ref="ros:IssueTime"/>
    <xsd:element ref="ros:PlannedTime" minOccurs="0"/>
    <xsd:element ref="ros:Priority"/>
    <xsd:element name="PaymentCategory" type="xsd:string" minOccurs="0"/>
    <xsd:element ref="ros:ProviderComment" minOccurs="0"/>
    <xsd:element name="CancelReason" type="xsd:string" minOccurs="0"/>
    <xsd:element ref="ros:Language" minOccurs="0"/>
    <xsd:element name="OrderReference" type="ros:OrderReferenceType" minOccurs="0"/>
    <xsd:element name="StandingOrder" type="ros:StandingOrderType" minOccurs="0"/>
    <xsd:element name="ServiceRequester" type="ros:ServiceRequesterType"/>
    <xsd:element name="ServiceProvider" type="ros:ServiceProviderType"/>
    <xsd:element name="Signature" type="ros:SignatureType" minOccurs="0"/>
    <xsd:element name="CopyRecipient" type="ros:CopyRecipientType" minOccurs="0"/>
    <xsd:element name="PaymentGuarantor" type="ros:PaymentGuarantorType" minOccurs="0"/>
    <xsd:element name="CopyDest" type="ros:CopyDestinationType" minOccurs="0"/>
    <xsd:element name="Patient" type="ros:PatientType"/>
    <xsd:element name="ClinicalInfo" type="ros:ClinicalInfoType"/>
    <xsd:element name="AgentAdmInfo" type="ros:AgentAdmInfoType"/>
    <xsd:element name="Intervention" type="ros:InterventionType" minOccurs="0"/>
    <xsd:element name="Samples" type="ros:SamplesType"/>
    <xsd:element name="Investigations">
      <xsd:complexType>
        <xsd:sequence>
          <xsd:element name="RequestedInvestigation" maxOccurs="unbounded">
            <xsd:complexType>
              <xsd:sequence>
                <xsd:element ref="ros:Priority" minOccurs="0"/>
                <xsd:element name="Investigation" type="ros:InvestigationType"/>
              </xsd:sequence>
            </xsd:complexType>
          </xsd:element>
        </xsd:sequence>
      </xsd:complexType>
    </xsd:element>
  </xsd:sequence>
</xsd:complexType>

element ServiceRequestType/PaymentCategory
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="PaymentCategory" type="xsd:string" minOccurs="0"/>

element ServiceRequestType/CancelReason
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="CancelReason" type="xsd:string" minOccurs="0"/>

element ServiceRequestType/OrderReference
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:OrderReferenceType
children ros:ProviderId ros:RequesterId ros:IssueTime
source
<xsd:element name="OrderReference" type="ros:OrderReferenceType" minOccurs="0"/>

element ServiceRequestType/StandingOrder
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:StandingOrderType
children ros:Number ros:StartTime ros:EndTime CycleTime EndCondition
source
<xsd:element name="StandingOrder" type="ros:StandingOrderType" minOccurs="0"/>

element ServiceRequestType/ServiceRequester
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:ServiceRequesterType
children ros:Organisation ros:Professional
source
<xsd:element name="ServiceRequester" type="ros:ServiceRequesterType"/>

element ServiceRequestType/ServiceProvider
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:ServiceProviderType
children ros:Organisation
source
<xsd:element name="ServiceProvider" type="ros:ServiceProviderType"/>

element ServiceRequestType/Signature
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:SignatureType
children SignatureInfo SignatureValue KeyInfo Object
source
<xsd:element name="Signature" type="ros:SignatureType" minOccurs="0"/>

element ServiceRequestType/CopyRecipient
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:CopyRecipientType
children ros:Organisation ros:Professional
source
<xsd:element name="CopyRecipient" type="ros:CopyRecipientType" minOccurs="0"/>

element ServiceRequestType/PaymentGuarantor
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:PaymentGuarantorType
children ros:Organisation ros:Professional
source
<xsd:element name="PaymentGuarantor" type="ros:PaymentGuarantorType" minOccurs="0"/>

element ServiceRequestType/CopyDest
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:CopyDestinationType
children ros:Organisation ros:Professional
source
<xsd:element name="CopyDest" type="ros:CopyDestinationType" minOccurs="0"/>

element ServiceRequestType/Patient
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:PatientType
children OfficialId OfficialIdType PaymentId AdditionalId AnonymousId Civility Sex BirthDate DeathDate Length Weight PregnancyWeek Nationality ros:Language Confidentiality ros:NameDetails ros:Address ros:Telecom RelatedName
source
<xsd:element name="Patient" type="ros:PatientType"/>

element ServiceRequestType/ClinicalInfo
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:ClinicalInfoType
children ros:Type ros:Description Certainty
source
<xsd:element name="ClinicalInfo" type="ros:ClinicalInfoType"/>

element ServiceRequestType/AgentAdmInfo
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:AgentAdmInfoType
children ros:Status DischargeTime AdmissionTime ros:StartTime ros:EndTime ros:ContactId ReferralId Location
source
<xsd:element name="AgentAdmInfo" type="ros:AgentAdmInfoType"/>

element ServiceRequestType/Intervention
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:InterventionType
children ros:Type ros:Description Drug
source
<xsd:element name="Intervention" type="ros:InterventionType" minOccurs="0"/>

element ServiceRequestType/Samples
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:SamplesType
children ros:ProviderId InfectionRisc InfectionRiscCode SampleRound SampleToBeCollected
source
<xsd:element name="Samples" type="ros:SamplesType"/>

element ServiceRequestType/Investigations
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children RequestedInvestigation
source
<xsd:element name="Investigations">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="RequestedInvestigation" maxOccurs="unbounded">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element ref="ros:Priority" minOccurs="0"/>
            <xsd:element name="Investigation" type="ros:InvestigationType"/>
          </xsd:sequence>
        </xsd:complexType>
      </xsd:element>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element ServiceRequestType/Investigations/RequestedInvestigation
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Priority Investigation
source
<xsd:element name="RequestedInvestigation" maxOccurs="unbounded">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="ros:Priority" minOccurs="0"/>
      <xsd:element name="Investigation" type="ros:InvestigationType"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element ServiceRequestType/Investigations/RequestedInvestigation/Investigation
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:InvestigationType
children System Quantity Specifications Code ShortName ros:Name ros:ContainerId ros:Comment ros:LabelComment ros:RequireDurationTime LidExtension CostType CostAmoutType CurrencyUnit ros:Warning HCD ros:RequesterComment ros:ProviderComment
source
<xsd:element name="Investigation" type="ros:InvestigationType"/>

complexType ServicesType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children DeliveryReceiptRequest CommitmentReceiptRequest
used by
element HeaderType/Services
source
<xsd:complexType name="ServicesType">
  <xsd:sequence>
    <xsd:element name="DeliveryReceiptRequest" type="ros:SendToType"/>
    <xsd:element name="CommitmentReceiptRequest" type="ros:SendToType"/>
  </xsd:sequence>
</xsd:complexType>

element ServicesType/DeliveryReceiptRequest
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:SendToType
children SendTo SendBy
source
<xsd:element name="DeliveryReceiptRequest" type="ros:SendToType"/>

element ServicesType/CommitmentReceiptRequest
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:SendToType
children SendTo SendBy
source
<xsd:element name="CommitmentReceiptRequest" type="ros:SendToType"/>

complexType SignatureInfoType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children CanonicalizationMethod SignatureMethod ReferenceId
used by
element SignatureType/SignatureInfo
source
<xsd:complexType name="SignatureInfoType">
  <xsd:sequence>
    <xsd:element name="CanonicalizationMethod" type="xsd:string" minOccurs="0"/>
    <xsd:element name="SignatureMethod" type="xsd:string" minOccurs="0"/>
    <xsd:element name="ReferenceId" type="xsd:string" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element SignatureInfoType/CanonicalizationMethod
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="CanonicalizationMethod" type="xsd:string" minOccurs="0"/>

element SignatureInfoType/SignatureMethod
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="SignatureMethod" type="xsd:string" minOccurs="0"/>

element SignatureInfoType/ReferenceId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="ReferenceId" type="xsd:string" minOccurs="0"/>

complexType SignatureType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children SignatureInfo SignatureValue KeyInfo Object
used by
elements ServiceRequestType/Signature ResultItemType/Signature
source
<xsd:complexType name="SignatureType">
  <xsd:sequence>
    <xsd:element name="SignatureInfo" type="ros:SignatureInfoType" minOccurs="0"/>
    <xsd:element name="SignatureValue" type="xsd:string" minOccurs="0"/>
    <xsd:element name="KeyInfo" type="xsd:string" minOccurs="0"/>
    <xsd:element name="Object" type="ros:ObjectType" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element SignatureType/SignatureInfo
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:SignatureInfoType
children CanonicalizationMethod SignatureMethod ReferenceId
source
<xsd:element name="SignatureInfo" type="ros:SignatureInfoType" minOccurs="0"/>

element SignatureType/SignatureValue
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="SignatureValue" type="xsd:string" minOccurs="0"/>

element SignatureType/KeyInfo
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="KeyInfo" type="xsd:string" minOccurs="0"/>

element SignatureType/Object
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type ros:ObjectType
children ros:ProviderId ros:RequesterId ros:Type ros:NameDetails ros:Address ros:Telecom
source
<xsd:element name="Object" type="ros:ObjectType" minOccurs="0"/>

complexType StandingOrderType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Number ros:StartTime ros:EndTime CycleTime EndCondition
used by
elements RequestedInvestigationType/StandingInvestigation ServiceRequestType/StandingOrder
source
<xsd:complexType name="StandingOrderType">
  <xsd:sequence>
    <xsd:element ref="ros:Number" minOccurs="0"/>
    <xsd:element ref="ros:StartTime" minOccurs="0"/>
    <xsd:element ref="ros:EndTime" minOccurs="0"/>
    <xsd:element name="CycleTime" type="xsd:string" minOccurs="0"/>
    <xsd:element name="EndCondition" type="xsd:string" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element StandingOrderType/CycleTime
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="CycleTime" type="xsd:string" minOccurs="0"/>

element StandingOrderType/EndCondition
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="EndCondition" type="xsd:string" minOccurs="0"/>

complexType TelecomType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:Type CountryCode ros:Number UnstructNumber
used by
element Telecom
source
<xsd:complexType name="TelecomType">
  <xsd:sequence>
    <xsd:element ref="ros:Type" minOccurs="0"/>
    <xsd:element name="CountryCode" type="xsd:string" minOccurs="0"/>
    <xsd:element ref="ros:Number" minOccurs="0"/>
    <xsd:element name="UnstructNumber" type="xsd:string" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element TelecomType/CountryCode
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="CountryCode" type="xsd:string" minOccurs="0"/>

element TelecomType/UnstructNumber
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="UnstructNumber" type="xsd:string" minOccurs="0"/>

complexType UncertaintyType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children ros:LowerLimit ros:UpperLimit ros:Unit
used by
element ResultItemType/Uncertainty
source
<xsd:complexType name="UncertaintyType">
  <xsd:sequence>
    <xsd:element ref="ros:LowerLimit" minOccurs="0"/>
    <xsd:element ref="ros:UpperLimit" minOccurs="0"/>
    <xsd:element ref="ros:Unit" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

complexType UserInfoType
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
children UserId ros:Ward Workstation TimeStamp ros:RequesterId
used by
element RosInfoType/UserInfo
source
<xsd:complexType name="UserInfoType">
  <xsd:sequence>
    <xsd:element name="UserId" type="xsd:string" minOccurs="0"/>
    <xsd:element ref="ros:Ward" minOccurs="0"/>
    <xsd:element name="Workstation" type="xsd:string" minOccurs="0"/>
    <xsd:element name="TimeStamp" type="xsd:string" minOccurs="0"/>
    <xsd:element ref="ros:RequesterId" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

element UserInfoType/UserId
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="UserId" type="xsd:string" minOccurs="0"/>

element UserInfoType/Workstation
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="Workstation" type="xsd:string" minOccurs="0"/>

element UserInfoType/TimeStamp
diagram
namespace http://www.healtxml.org/2001/01/CEN/ENV1613/Ehcm
type xsd:string
source
<xsd:element name="TimeStamp" type="xsd:string" minOccurs="0"/>


XML Schema documentation generated with XML Spy Schema Editor www.xmlspy.com
