Schema Booking.xsd

schema location:	..\..\Booking.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified

Elements	Complex types	Simple types
GetAppointmentRequest	AdditionalIdListBooking	AppointmentStatusType
GetAppointmentResponse	AdditionalIdTypeBooking	NotificationType
ListAppointmentsByOrgRequest	AppointmentByOrgListType	ScheduleSlotStatusType
ListAppointmentsByOrgResponse	AppointmentDetailType
ListPatientAppointmentsRequest	AppointmentListType
ListPatientAppointmentsResponse	AppointmentType

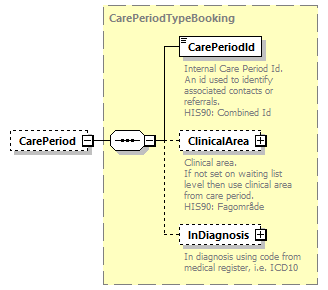

ListResourceAppointments2GRequest	CarePeriodTypeBooking
ListResourceAppointments2GResponse	CodeTextTypeBooking
ListScheduleByOrgRequest	DiagnosisTypeBooking
ListScheduleByOrgResponse	InsertedChangedByType
ListScheduleByResourceRequest	LetterType
ListScheduleByResourceResponse	MedRegisterTypeBooking
ListScheduleByResourcesRequest	MoveScheduleSlotsType
ListScheduleByResourcesResponse	OfficialIdTypeBooking
ListScheduleSlotsRequest	OrganizationType

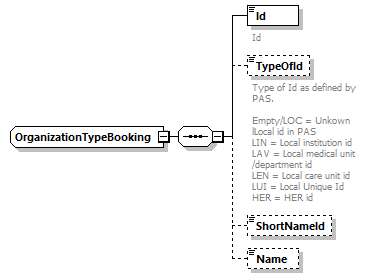

ListScheduleSlotsResponse	OrganizationTypeBooking
MoveScheduleSlotsRequest	OrganizationTypeExtBooking
MoveScheduleSlotsResponse	PatientInfoListType

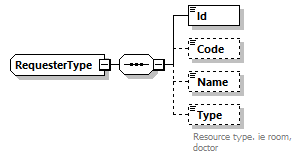

SaveScheduleSlotRequest	RequesterType
SaveScheduleSlotResponse	ResourceAppointmentListType
	ResourceAppointmentType

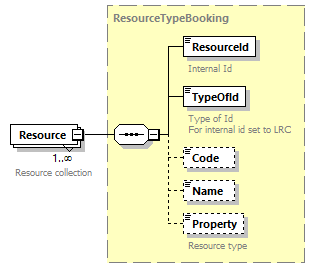

	ResourceTypeBooking
	ResourceTypeBookingExt1
	ScheduleByOrgListType
	ScheduleByResourceListType
	ScheduleSlotBaseType
	ScheduleSlotsBaseListType
	SendNotificationType
	TextTypeOfTextTypeBooking
	ValidDatesBooking

element GetAppointmentRequest

diagram
properties	content  complex
children	Id
annotation	documentation Request for getting informatiosn about one appointement
source	<xs:element name="GetAppointmentRequest">   <xs:annotation>     <xs:documentation>Request for getting informatiosn about one appointement</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string">         <xs:annotation>           <xs:documentation>The internal id for the booking/appointment  HIS90: BookingId (Combinded Id)</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element GetAppointmentRequest/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation The internal id for the booking/appointment  HIS90: BookingId (Combinded Id)
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>The internal id for the booking/appointment  HIS90: BookingId (Combinded Id)</xs:documentation>   </xs:annotation> </xs:element>

element GetAppointmentResponse

diagram
type	AppointmentType
properties	content  complex
children	Patient Appointment
annotation	documentation Response with informatiosn about one appointement
source	<xs:element name="GetAppointmentResponse" type="AppointmentType">   <xs:annotation>     <xs:documentation>Response with informatiosn about one appointement</xs:documentation>   </xs:annotation> </xs:element>

element ListAppointmentsByOrgRequest

diagram
properties	content  complex
children	Unit From To AppointmentStatusFilter
annotation	documentation XXXX NB Slettes!! Er erstattet av ListScheduleByOrgRequest
source	<xs:element name="ListAppointmentsByOrgRequest">   <xs:annotation>     <xs:documentation>XXXX NB Slettes!! Er erstattet av ListScheduleByOrgRequest</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Unit">         <xs:annotation>           <xs:documentation>Organization Unit for the appointments. If missing/blank then uses the logged on user default unit</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string">               <xs:annotation>                 <xs:documentation>Id</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="TypeOfId" type="xs:string">               <xs:annotation>                 <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="From" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>Date and time for the start for the appointment. Default if nothing set is today</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="To" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>Date and time for the end  of the appointment. Default if nothing set is today</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="AppointmentStatusFilter" type="AppointmentStatusType" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Appointmentstatus Booked, free or blocked. appointment. Default if status filter is not set is only booked appointments.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListAppointmentsByOrgRequest/Unit

diagram
properties	content  complex
children	Id TypeOfId
annotation	documentation Organization Unit for the appointments. If missing/blank then uses the logged on user default unit
source	<xs:element name="Unit">   <xs:annotation>     <xs:documentation>Organization Unit for the appointments. If missing/blank then uses the logged on user default unit</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string">         <xs:annotation>           <xs:documentation>Id</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfId" type="xs:string">         <xs:annotation>           <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListAppointmentsByOrgRequest/Unit/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Id
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Id</xs:documentation>   </xs:annotation> </xs:element>

element ListAppointmentsByOrgRequest/Unit/TypeOfId

diagram
type	xs:string
properties	content  simple
annotation	documentation Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id
source	<xs:element name="TypeOfId" type="xs:string">   <xs:annotation>     <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>   </xs:annotation> </xs:element>

element ListAppointmentsByOrgRequest/From

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the start for the appointment. Default if nothing set is today
source	<xs:element name="From" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the start for the appointment. Default if nothing set is today</xs:documentation>   </xs:annotation> </xs:element>

element ListAppointmentsByOrgRequest/To

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the end  of the appointment. Default if nothing set is today
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the end  of the appointment. Default if nothing set is today</xs:documentation>   </xs:annotation> </xs:element>

element ListAppointmentsByOrgRequest/AppointmentStatusFilter

diagram
type	AppointmentStatusType
properties	minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  Annotation enumeration  ALL enumeration  BOOKED enumeration  BLOCKED enumeration  FREE enumeration  PAUSE
annotation	documentation Appointmentstatus Booked, free or blocked. appointment. Default if status filter is not set is only booked appointments.
source	<xs:element name="AppointmentStatusFilter" type="AppointmentStatusType" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Appointmentstatus Booked, free or blocked. appointment. Default if status filter is not set is only booked appointments.</xs:documentation>   </xs:annotation> </xs:element>

element ListAppointmentsByOrgResponse

diagram
properties	content  complex
children	AppointmentsByOrgs
annotation	documentation XXXX NB Slettes!! Er erstattet av ListScheduleByOrgResponse
source	<xs:element name="ListAppointmentsByOrgResponse">   <xs:annotation>     <xs:documentation>XXXX NB Slettes!! Er erstattet av ListScheduleByOrgResponse</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="AppointmentsByOrgs" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="AppointmentByOrg" type="AppointmentByOrgListType" maxOccurs="unbounded"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListAppointmentsByOrgResponse/AppointmentsByOrgs

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	AppointmentByOrg
source	<xs:element name="AppointmentsByOrgs" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="AppointmentByOrg" type="AppointmentByOrgListType" maxOccurs="unbounded"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListAppointmentsByOrgResponse/AppointmentsByOrgs/AppointmentByOrg

diagram
type	AppointmentByOrgListType
properties	minOcc  1 maxOcc  unbounded content  complex
children	ScheduleSlotId BookingId WaitingListId WaitingList ContactId Contact BookingStatus VisitType AppointmentStatus AppointmentType AppointmentDescription OpenScheduleSlot OverBookingAllowed ReservedToDate From To Patient Resource SendNotification MedicalUnit CareUnit
source	<xs:element name="AppointmentByOrg" type="AppointmentByOrgListType" maxOccurs="unbounded"/>

element ListPatientAppointmentsRequest

diagram
properties	content  complex
children	PatientId From To Organization
annotation	documentation Request for ListPatientAppointments
source	<xs:element name="ListPatientAppointmentsRequest">   <xs:annotation>     <xs:documentation>Request for ListPatientAppointments </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="PatientId" type="xs:int">         <xs:annotation>           <xs:documentation>Internal patient id for the HIS</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="From" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>Date and time for the start of the appointment list periode.                         Set to current date if not in input.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="To" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>Date and time for the end of appointment list periode.  Set to current date if not in input</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Organization" minOccurs="0">         <xs:annotation>           <xs:documentation>Organization may be specified.                          If organization used one of the optional tags (MediCalUnit, CareUnit or Scetion) must be used.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="MedicalUnit" minOccurs="0">               <xs:annotation>                 <xs:documentation>Department/Medical Speciality</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Id" type="xs:string">                     <xs:annotation>                       <xs:documentation>Internal id</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="CareUnit" minOccurs="0">               <xs:annotation>                 <xs:documentation>HIS90: Enhet/Post. </xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Id" type="xs:string">                     <xs:annotation>                       <xs:documentation>Internal id</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="Section" minOccurs="0">               <xs:annotation>                 <xs:documentation>HIS90 Only:                     SectionCode can only be used with departmentid/ MedicalIUnitId.</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Id" type="xs:string">                     <xs:annotation>                       <xs:documentation>Internal id/code</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientAppointmentsRequest/PatientId

diagram
type	xs:int
properties	content  simple
annotation	documentation Internal patient id for the HIS
source	<xs:element name="PatientId" type="xs:int">   <xs:annotation>     <xs:documentation>Internal patient id for the HIS</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientAppointmentsRequest/From

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the start of the appointment list periode.                         Set to current date if not in input.
source	<xs:element name="From" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the start of the appointment list periode.                         Set to current date if not in input.</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientAppointmentsRequest/To

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the end of appointment list periode.  Set to current date if not in input
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the end of appointment list periode.  Set to current date if not in input</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientAppointmentsRequest/Organization

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	MedicalUnit CareUnit Section
annotation	documentation Organization may be specified.                          If organization used one of the optional tags (MediCalUnit, CareUnit or Scetion) must be used.
source	<xs:element name="Organization" minOccurs="0">   <xs:annotation>     <xs:documentation>Organization may be specified.                          If organization used one of the optional tags (MediCalUnit, CareUnit or Scetion) must be used.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="MedicalUnit" minOccurs="0">         <xs:annotation>           <xs:documentation>Department/Medical Speciality</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string">               <xs:annotation>                 <xs:documentation>Internal id</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="CareUnit" minOccurs="0">         <xs:annotation>           <xs:documentation>HIS90: Enhet/Post. </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string">               <xs:annotation>                 <xs:documentation>Internal id</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Section" minOccurs="0">         <xs:annotation>           <xs:documentation>HIS90 Only:                     SectionCode can only be used with departmentid/ MedicalIUnitId.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string">               <xs:annotation>                 <xs:documentation>Internal id/code</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientAppointmentsRequest/Organization/MedicalUnit

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Id
annotation	documentation Department/Medical Speciality
source	<xs:element name="MedicalUnit" minOccurs="0">   <xs:annotation>     <xs:documentation>Department/Medical Speciality</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string">         <xs:annotation>           <xs:documentation>Internal id</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientAppointmentsRequest/Organization/MedicalUnit/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Internal id
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Internal id</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientAppointmentsRequest/Organization/CareUnit

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Id
annotation	documentation HIS90: Enhet/Post.
source	<xs:element name="CareUnit" minOccurs="0">   <xs:annotation>     <xs:documentation>HIS90: Enhet/Post. </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string">         <xs:annotation>           <xs:documentation>Internal id</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientAppointmentsRequest/Organization/CareUnit/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Internal id
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Internal id</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientAppointmentsRequest/Organization/Section

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Id
annotation	documentation HIS90 Only:                     SectionCode can only be used with departmentid/ MedicalIUnitId.
source	<xs:element name="Section" minOccurs="0">   <xs:annotation>     <xs:documentation>HIS90 Only:                     SectionCode can only be used with departmentid/ MedicalIUnitId.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string">         <xs:annotation>           <xs:documentation>Internal id/code</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientAppointmentsRequest/Organization/Section/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Internal id/code
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Internal id/code</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientAppointmentsResponse

diagram
properties	content  complex
children	Patient Appointments
annotation	documentation Response for ListPatientAppointments
source	<xs:element name="ListPatientAppointmentsResponse">   <xs:annotation>     <xs:documentation>Response for ListPatientAppointments </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Patient">         <xs:annotation>           <xs:documentation>Patient information </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id">               <xs:complexType>                 <xs:sequence>                   <xs:element name="OfficialId">                     <xs:annotation>                       <xs:documentation>Official id. Can also be an emergency number.</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="Value" type="xs:string">                           <xs:annotation>                             <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="TypeOfId" type="xs:string">                           <xs:annotation>                             <xs:documentation>F = official id, N = Emergency number, K = Catastrophy number, U = Non human number</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="FormattedId" type="xs:string">                           <xs:annotation>                             <xs:documentation>The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.</xs:documentation>                           </xs:annotation>                         </xs:element>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="PatientId" type="xs:int">                     <xs:annotation>                       <xs:documentation>Internal patient id for the HIS</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="Name">               <xs:complexType>                 <xs:sequence>                   <xs:element name="FormattedName" type="xs:string">                     <xs:annotation>                       <xs:documentation>The person's names formatted in one string according to national rules.</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Appointments" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="Appointment" type="AppointmentListType" maxOccurs="unbounded"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientAppointmentsResponse/Patient

diagram
properties	content  complex
children	Id Name
annotation	documentation Patient information
source	<xs:element name="Patient">   <xs:annotation>     <xs:documentation>Patient information </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id">         <xs:complexType>           <xs:sequence>             <xs:element name="OfficialId">               <xs:annotation>                 <xs:documentation>Official id. Can also be an emergency number.</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Value" type="xs:string">                     <xs:annotation>                       <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="TypeOfId" type="xs:string">                     <xs:annotation>                       <xs:documentation>F = official id, N = Emergency number, K = Catastrophy number, U = Non human number</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="FormattedId" type="xs:string">                     <xs:annotation>                       <xs:documentation>The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="PatientId" type="xs:int">               <xs:annotation>                 <xs:documentation>Internal patient id for the HIS</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Name">         <xs:complexType>           <xs:sequence>             <xs:element name="FormattedName" type="xs:string">               <xs:annotation>                 <xs:documentation>The person's names formatted in one string according to national rules.</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientAppointmentsResponse/Patient/Id

diagram
properties	content  complex
children	OfficialId PatientId
source	<xs:element name="Id">   <xs:complexType>     <xs:sequence>       <xs:element name="OfficialId">         <xs:annotation>           <xs:documentation>Official id. Can also be an emergency number.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Value" type="xs:string">               <xs:annotation>                 <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="TypeOfId" type="xs:string">               <xs:annotation>                 <xs:documentation>F = official id, N = Emergency number, K = Catastrophy number, U = Non human number</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="FormattedId" type="xs:string">               <xs:annotation>                 <xs:documentation>The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="PatientId" type="xs:int">         <xs:annotation>           <xs:documentation>Internal patient id for the HIS</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientAppointmentsResponse/Patient/Id/OfficialId

diagram
properties	content  complex
children	Value TypeOfId FormattedId
annotation	documentation Official id. Can also be an emergency number.
source	<xs:element name="OfficialId">   <xs:annotation>     <xs:documentation>Official id. Can also be an emergency number.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Value" type="xs:string">         <xs:annotation>           <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfId" type="xs:string">         <xs:annotation>           <xs:documentation>F = official id, N = Emergency number, K = Catastrophy number, U = Non human number</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="FormattedId" type="xs:string">         <xs:annotation>           <xs:documentation>The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientAppointmentsResponse/Patient/Id/OfficialId/Value

diagram
type	xs:string
properties	content  simple
annotation	documentation The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.
source	<xs:element name="Value" type="xs:string">   <xs:annotation>     <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientAppointmentsResponse/Patient/Id/OfficialId/TypeOfId

diagram
type	xs:string
properties	content  simple
annotation	documentation F = official id, N = Emergency number, K = Catastrophy number, U = Non human number
source	<xs:element name="TypeOfId" type="xs:string">   <xs:annotation>     <xs:documentation>F = official id, N = Emergency number, K = Catastrophy number, U = Non human number</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientAppointmentsResponse/Patient/Id/OfficialId/FormattedId

diagram
type	xs:string
properties	content  simple
annotation	documentation The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.
source	<xs:element name="FormattedId" type="xs:string">   <xs:annotation>     <xs:documentation>The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientAppointmentsResponse/Patient/Id/PatientId

diagram
type	xs:int
properties	content  simple
annotation	documentation Internal patient id for the HIS
source	<xs:element name="PatientId" type="xs:int">   <xs:annotation>     <xs:documentation>Internal patient id for the HIS</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientAppointmentsResponse/Patient/Name

diagram
properties	content  complex
children	FormattedName
source	<xs:element name="Name">   <xs:complexType>     <xs:sequence>       <xs:element name="FormattedName" type="xs:string">         <xs:annotation>           <xs:documentation>The person's names formatted in one string according to national rules.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientAppointmentsResponse/Patient/Name/FormattedName

diagram
type	xs:string
properties	content  simple
annotation	documentation The person's names formatted in one string according to national rules.
source	<xs:element name="FormattedName" type="xs:string">   <xs:annotation>     <xs:documentation>The person's names formatted in one string according to national rules.</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientAppointmentsResponse/Appointments

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Appointment
source	<xs:element name="Appointments" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="Appointment" type="AppointmentListType" maxOccurs="unbounded"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientAppointmentsResponse/Appointments/Appointment

diagram
type	AppointmentListType
properties	minOcc  1 maxOcc  unbounded content  complex
children	Id ContactId CarePeriodId From To Type Status TypeOfCare Organization Resources Requesters
source	<xs:element name="Appointment" type="AppointmentListType" maxOccurs="unbounded"/>

element ListResourceAppointments2GRequest

diagram
properties	content  complex
children	ResourceId TypeOfResourceId Unit From To AppointmentStatusFilter
annotation	documentation NB Slettes!! Er erstattet av ListScheduleByResourceRequest
source	<xs:element name="ListResourceAppointments2GRequest">   <xs:annotation>     <xs:documentation>NB Slettes!! Er erstattet av ListScheduleByResourceRequest</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ResourceId" type="xs:string">         <xs:annotation>           <xs:documentation>Resource id  for the appointments </xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfResourceId" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Type of  Resource Id </xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Unit" minOccurs="0">         <xs:annotation>           <xs:documentation>Organization Unit for the appointments. If missing/blank then uses the logged on user default unit</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string">               <xs:annotation>                 <xs:documentation>Id</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="TypeOfId" type="xs:string">               <xs:annotation>                 <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="From" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>Date and time for the start for the appointment. Default if nothing set is today</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="To" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>Date and time for the end  of the appointment. Default if nothing set is today</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="AppointmentStatusFilter" type="AppointmentStatusType" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Appointmentstatus Booked, free or blocked. appointment. Default if status filter is not set is only booked appointments. HIS90: only ALL and BOOKED is used, all other filters will give errors Other filters are for future expansion/development and are use when wanting to filter on  free or blocked appointments on a resource</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListResourceAppointments2GRequest/ResourceId

diagram
type	xs:string
properties	content  simple
annotation	documentation Resource id  for the appointments
source	<xs:element name="ResourceId" type="xs:string">   <xs:annotation>     <xs:documentation>Resource id  for the appointments </xs:documentation>   </xs:annotation> </xs:element>

element ListResourceAppointments2GRequest/TypeOfResourceId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Type of  Resource Id
source	<xs:element name="TypeOfResourceId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Type of  Resource Id </xs:documentation>   </xs:annotation> </xs:element>

element ListResourceAppointments2GRequest/Unit

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId
annotation	documentation Organization Unit for the appointments. If missing/blank then uses the logged on user default unit
source	<xs:element name="Unit" minOccurs="0">   <xs:annotation>     <xs:documentation>Organization Unit for the appointments. If missing/blank then uses the logged on user default unit</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string">         <xs:annotation>           <xs:documentation>Id</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfId" type="xs:string">         <xs:annotation>           <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListResourceAppointments2GRequest/Unit/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Id
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Id</xs:documentation>   </xs:annotation> </xs:element>

element ListResourceAppointments2GRequest/Unit/TypeOfId

diagram
type	xs:string
properties	content  simple
annotation	documentation Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id
source	<xs:element name="TypeOfId" type="xs:string">   <xs:annotation>     <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>   </xs:annotation> </xs:element>

element ListResourceAppointments2GRequest/From

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the start for the appointment. Default if nothing set is today
source	<xs:element name="From" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the start for the appointment. Default if nothing set is today</xs:documentation>   </xs:annotation> </xs:element>

element ListResourceAppointments2GRequest/To

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the end  of the appointment. Default if nothing set is today
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the end  of the appointment. Default if nothing set is today</xs:documentation>   </xs:annotation> </xs:element>

element ListResourceAppointments2GRequest/AppointmentStatusFilter

diagram
type	AppointmentStatusType
properties	minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  Annotation enumeration  ALL enumeration  BOOKED enumeration  BLOCKED enumeration  FREE enumeration  PAUSE
annotation	documentation Appointmentstatus Booked, free or blocked. appointment. Default if status filter is not set is only booked appointments. HIS90: only ALL and BOOKED is used, all other filters will give errors Other filters are for future expansion/development and are use when wanting to filter on  free or blocked appointments on a resource
source	<xs:element name="AppointmentStatusFilter" type="AppointmentStatusType" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Appointmentstatus Booked, free or blocked. appointment. Default if status filter is not set is only booked appointments. HIS90: only ALL and BOOKED is used, all other filters will give errors Other filters are for future expansion/development and are use when wanting to filter on  free or blocked appointments on a resource</xs:documentation>   </xs:annotation> </xs:element>

element ListResourceAppointments2GResponse

diagram
properties	content  complex
children	ResourceAppointments
annotation	documentation NB Slettes!! Er erstattet av ListScheduleByResourceResponse
source	<xs:element name="ListResourceAppointments2GResponse">   <xs:annotation>     <xs:documentation>NB Slettes!! Er erstattet av ListScheduleByResourceResponse</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ResourceAppointments" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="ResourceAppointment" type="ResourceAppointmentListType" maxOccurs="unbounded"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListResourceAppointments2GResponse/ResourceAppointments

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ResourceAppointment
source	<xs:element name="ResourceAppointments" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="ResourceAppointment" type="ResourceAppointmentListType" maxOccurs="unbounded"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListResourceAppointments2GResponse/ResourceAppointments/ResourceAppointment

diagram
type	ResourceAppointmentListType
properties	minOcc  1 maxOcc  unbounded content  complex
children	ScheduleSlotId BookingId WaitingListId WaitingList ContactId Contact BookingStatus VisitType AppointmentStatus AppointmentType AppointmentDescription OpenScheduleSlot OverBookingAllowed ReservedToDate From To Patient Resource SendNotification
source	<xs:element name="ResourceAppointment" type="ResourceAppointmentListType" maxOccurs="unbounded"/>

element ListScheduleByOrgRequest

diagram
properties	content  complex
children	Unit From To ScheduleSlotStatusFilter
annotation	documentation Request for ListScheduleByOrg
source	<xs:element name="ListScheduleByOrgRequest">   <xs:annotation>     <xs:documentation>Request for ListScheduleByOrg</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Unit">         <xs:annotation>           <xs:documentation>Organization Unit for the schedule slot/appointment. If missing/blank then uses the logged on user default unit</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string">               <xs:annotation>                 <xs:documentation>Id</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="TypeOfId" type="xs:string">               <xs:annotation>                 <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="From" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>Date and time for the start for the schedule slot/appointment. Default if nothing set is today</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="To" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>Date and time for the end  of the schedule slot/appointment. Default if nothing set is today</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ScheduleSlotStatusFilter" type="ScheduleSlotStatusType" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>schedule slot/appointment status Booked, free or blocked. schedule slot/appointment. Default if status filter is not set is only booked schedule slots/appointments.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListScheduleByOrgRequest/Unit

diagram
properties	content  complex
children	Id TypeOfId
annotation	documentation Organization Unit for the schedule slot/appointment. If missing/blank then uses the logged on user default unit
source	<xs:element name="Unit">   <xs:annotation>     <xs:documentation>Organization Unit for the schedule slot/appointment. If missing/blank then uses the logged on user default unit</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string">         <xs:annotation>           <xs:documentation>Id</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfId" type="xs:string">         <xs:annotation>           <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListScheduleByOrgRequest/Unit/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Id
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Id</xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByOrgRequest/Unit/TypeOfId

diagram
type	xs:string
properties	content  simple
annotation	documentation Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id
source	<xs:element name="TypeOfId" type="xs:string">   <xs:annotation>     <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByOrgRequest/From

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the start for the schedule slot/appointment. Default if nothing set is today
source	<xs:element name="From" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the start for the schedule slot/appointment. Default if nothing set is today</xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByOrgRequest/To

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the end  of the schedule slot/appointment. Default if nothing set is today
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the end  of the schedule slot/appointment. Default if nothing set is today</xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByOrgRequest/ScheduleSlotStatusFilter

diagram
type	ScheduleSlotStatusType
properties	minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  Annotation enumeration  ALL enumeration  BOOKED enumeration  BLOCKED enumeration  FREE enumeration  PAUSE enumeration  FirstEachResource
annotation	documentation schedule slot/appointment status Booked, free or blocked. schedule slot/appointment. Default if status filter is not set is only booked schedule slots/appointments.
source	<xs:element name="ScheduleSlotStatusFilter" type="ScheduleSlotStatusType" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>schedule slot/appointment status Booked, free or blocked. schedule slot/appointment. Default if status filter is not set is only booked schedule slots/appointments.</xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByOrgResponse

diagram
properties	content  complex
children	ScheduleByOrgs
annotation	documentation Response for ListScheduleByOrg
source	<xs:element name="ListScheduleByOrgResponse">   <xs:annotation>     <xs:documentation>Response for ListScheduleByOrg</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ScheduleByOrgs" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="ScheduleByOrg" type="ScheduleByOrgListType" maxOccurs="unbounded"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListScheduleByOrgResponse/ScheduleByOrgs

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ScheduleByOrg
source	<xs:element name="ScheduleByOrgs" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="ScheduleByOrg" type="ScheduleByOrgListType" maxOccurs="unbounded"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListScheduleByOrgResponse/ScheduleByOrgs/ScheduleByOrg

diagram
type	ScheduleByOrgListType
properties	minOcc  1 maxOcc  unbounded content  complex
children	ScheduleSlotId BookingId CarePeriod WaitingList Contact ScheduleSlotStatus ScheduleSlotType ScheduleSlotDescription OpenScheduleSlot OverBookingAllowed ReservedToDate From To Patient Resource BookingText SendNotification MedicalUnit CareUnit
source	<xs:element name="ScheduleByOrg" type="ScheduleByOrgListType" maxOccurs="unbounded"/>

element ListScheduleByResourceRequest

diagram
properties	content  complex
children	ResourceId TypeOfResourceId Unit From To ScheduleSlotStatusFilter
annotation	documentation Request for ListScheduleByResource
source	<xs:element name="ListScheduleByResourceRequest">   <xs:annotation>     <xs:documentation>Request for ListScheduleByResource</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ResourceId" type="xs:string">         <xs:annotation>           <xs:documentation>Resource id  for the schedule slots</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfResourceId" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Type of  Resource Id </xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Unit" minOccurs="0">         <xs:annotation>           <xs:documentation>Organization Unit for the schedule slots. If missing/blank then uses the logged on user default unit</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string">               <xs:annotation>                 <xs:documentation>Id</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="TypeOfId" type="xs:string">               <xs:annotation>                 <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="From" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>Date and time for the start for the schedule slot. Default if nothing set is today</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="To" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>Date and time for the end  of the schedule slot. Default if nothing set is today</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ScheduleSlotStatusFilter" type="ScheduleSlotStatusType" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>ScheduleSlotStatus Booked, free or blocked schedule slots. Default if status filter is not set is only booked schedule slots. </xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListScheduleByResourceRequest/ResourceId

diagram
type	xs:string
properties	content  simple
annotation	documentation Resource id  for the schedule slots
source	<xs:element name="ResourceId" type="xs:string">   <xs:annotation>     <xs:documentation>Resource id  for the schedule slots</xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByResourceRequest/TypeOfResourceId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Type of  Resource Id
source	<xs:element name="TypeOfResourceId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Type of  Resource Id </xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByResourceRequest/Unit

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId
annotation	documentation Organization Unit for the schedule slots. If missing/blank then uses the logged on user default unit
source	<xs:element name="Unit" minOccurs="0">   <xs:annotation>     <xs:documentation>Organization Unit for the schedule slots. If missing/blank then uses the logged on user default unit</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string">         <xs:annotation>           <xs:documentation>Id</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfId" type="xs:string">         <xs:annotation>           <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListScheduleByResourceRequest/Unit/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Id
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Id</xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByResourceRequest/Unit/TypeOfId

diagram
type	xs:string
properties	content  simple
annotation	documentation Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id
source	<xs:element name="TypeOfId" type="xs:string">   <xs:annotation>     <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByResourceRequest/From

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the start for the schedule slot. Default if nothing set is today
source	<xs:element name="From" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the start for the schedule slot. Default if nothing set is today</xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByResourceRequest/To

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the end  of the schedule slot. Default if nothing set is today
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the end  of the schedule slot. Default if nothing set is today</xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByResourceRequest/ScheduleSlotStatusFilter

diagram
type	ScheduleSlotStatusType
properties	minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  Annotation enumeration  ALL enumeration  BOOKED enumeration  BLOCKED enumeration  FREE enumeration  PAUSE enumeration  FirstEachResource
annotation	documentation ScheduleSlotStatus Booked, free or blocked schedule slots. Default if status filter is not set is only booked schedule slots.
source	<xs:element name="ScheduleSlotStatusFilter" type="ScheduleSlotStatusType" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>ScheduleSlotStatus Booked, free or blocked schedule slots. Default if status filter is not set is only booked schedule slots. </xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByResourceResponse

diagram
properties	content  complex
children	ResourceSchedules
annotation	documentation Response for ListScheduleByResource
source	<xs:element name="ListScheduleByResourceResponse">   <xs:annotation>     <xs:documentation>Response for ListScheduleByResource</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ResourceSchedules" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="ResourceSchedule" type="ScheduleByResourceListType" maxOccurs="unbounded"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListScheduleByResourceResponse/ResourceSchedules

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ResourceSchedule
source	<xs:element name="ResourceSchedules" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="ResourceSchedule" type="ScheduleByResourceListType" maxOccurs="unbounded"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListScheduleByResourceResponse/ResourceSchedules/ResourceSchedule

diagram
type	ScheduleByResourceListType
properties	minOcc  1 maxOcc  unbounded content  complex
children	ScheduleSlotId BookingId CarePeriod WaitingList Contact ScheduleSlotStatus ScheduleSlotType ScheduleSlotDescription OpenScheduleSlot OverBookingAllowed ReservedToDate From To Patient Resource BookingText SendNotification
source	<xs:element name="ResourceSchedule" type="ScheduleByResourceListType" maxOccurs="unbounded"/>

element ListScheduleByResourcesRequest

diagram
properties	content  complex
children	SchedulesByResources
source	<xs:element name="ListScheduleByResourcesRequest">   <xs:complexType>     <xs:sequence>       <xs:element name="SchedulesByResources" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="SchedulesByResource" maxOccurs="unbounded">               <xs:complexType>                 <xs:sequence>                   <xs:element name="ResourceId" type="xs:string">                     <xs:annotation>                       <xs:documentation>Resource id  for the schedule slots</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="TypeOfResourceId" type="xs:string" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Type of  Resource Id </xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="Unit" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Organization Unit for the schedule slots. If missing/blank then uses the logged on user default unit</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="Id" type="xs:string">                           <xs:annotation>                             <xs:documentation>Id</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="TypeOfId" type="xs:string">                           <xs:annotation>                             <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>                           </xs:annotation>                         </xs:element>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="Dates" type="ValidDatesBooking" minOccurs="0" maxOccurs="unbounded">                     <xs:annotation>                       <xs:documentation>From is date and time for the start for the schedule slot. Default if nothing set is today To is date and time for the end  of the schedule slot. Default if nothing set is today</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="ScheduleSlotStatusFilter" type="ScheduleSlotStatusType" minOccurs="0" maxOccurs="unbounded">                     <xs:annotation>                       <xs:documentation>ScheduleSlotStatus Booked, free or blocked schedule slots. Default if status filter is not set is only booked schedule slots. </xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListScheduleByResourcesRequest/SchedulesByResources

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	SchedulesByResource
source	<xs:element name="SchedulesByResources" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="SchedulesByResource" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="ResourceId" type="xs:string">               <xs:annotation>                 <xs:documentation>Resource id  for the schedule slots</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="TypeOfResourceId" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>Type of  Resource Id </xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Unit" minOccurs="0">               <xs:annotation>                 <xs:documentation>Organization Unit for the schedule slots. If missing/blank then uses the logged on user default unit</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Id" type="xs:string">                     <xs:annotation>                       <xs:documentation>Id</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="TypeOfId" type="xs:string">                     <xs:annotation>                       <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="Dates" type="ValidDatesBooking" minOccurs="0" maxOccurs="unbounded">               <xs:annotation>                 <xs:documentation>From is date and time for the start for the schedule slot. Default if nothing set is today To is date and time for the end  of the schedule slot. Default if nothing set is today</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="ScheduleSlotStatusFilter" type="ScheduleSlotStatusType" minOccurs="0" maxOccurs="unbounded">               <xs:annotation>                 <xs:documentation>ScheduleSlotStatus Booked, free or blocked schedule slots. Default if status filter is not set is only booked schedule slots. </xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListScheduleByResourcesRequest/SchedulesByResources/SchedulesByResource

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	ResourceId TypeOfResourceId Unit Dates ScheduleSlotStatusFilter
source	<xs:element name="SchedulesByResource" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="ResourceId" type="xs:string">         <xs:annotation>           <xs:documentation>Resource id  for the schedule slots</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfResourceId" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Type of  Resource Id </xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Unit" minOccurs="0">         <xs:annotation>           <xs:documentation>Organization Unit for the schedule slots. If missing/blank then uses the logged on user default unit</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string">               <xs:annotation>                 <xs:documentation>Id</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="TypeOfId" type="xs:string">               <xs:annotation>                 <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Dates" type="ValidDatesBooking" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>From is date and time for the start for the schedule slot. Default if nothing set is today To is date and time for the end  of the schedule slot. Default if nothing set is today</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ScheduleSlotStatusFilter" type="ScheduleSlotStatusType" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>ScheduleSlotStatus Booked, free or blocked schedule slots. Default if status filter is not set is only booked schedule slots. </xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListScheduleByResourcesRequest/SchedulesByResources/SchedulesByResource/ResourceId

diagram
type	xs:string
properties	content  simple
annotation	documentation Resource id  for the schedule slots
source	<xs:element name="ResourceId" type="xs:string">   <xs:annotation>     <xs:documentation>Resource id  for the schedule slots</xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByResourcesRequest/SchedulesByResources/SchedulesByResource/TypeOfResourceId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Type of  Resource Id
source	<xs:element name="TypeOfResourceId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Type of  Resource Id </xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByResourcesRequest/SchedulesByResources/SchedulesByResource/Unit

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId
annotation	documentation Organization Unit for the schedule slots. If missing/blank then uses the logged on user default unit
source	<xs:element name="Unit" minOccurs="0">   <xs:annotation>     <xs:documentation>Organization Unit for the schedule slots. If missing/blank then uses the logged on user default unit</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string">         <xs:annotation>           <xs:documentation>Id</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfId" type="xs:string">         <xs:annotation>           <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListScheduleByResourcesRequest/SchedulesByResources/SchedulesByResource/Unit/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Id
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Id</xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByResourcesRequest/SchedulesByResources/SchedulesByResource/Unit/TypeOfId

diagram
type	xs:string
properties	content  simple
annotation	documentation Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id
source	<xs:element name="TypeOfId" type="xs:string">   <xs:annotation>     <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByResourcesRequest/SchedulesByResources/SchedulesByResource/Dates

diagram
type	ValidDatesBooking
properties	minOcc  0 maxOcc  unbounded content  complex
children	From To
annotation	documentation From is date and time for the start for the schedule slot. Default if nothing set is today To is date and time for the end  of the schedule slot. Default if nothing set is today
source	<xs:element name="Dates" type="ValidDatesBooking" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>From is date and time for the start for the schedule slot. Default if nothing set is today To is date and time for the end  of the schedule slot. Default if nothing set is today</xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByResourcesRequest/SchedulesByResources/SchedulesByResource/ScheduleSlotStatusFilter

diagram
type	ScheduleSlotStatusType
properties	minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  Annotation enumeration  ALL enumeration  BOOKED enumeration  BLOCKED enumeration  FREE enumeration  PAUSE enumeration  FirstEachResource
annotation	documentation ScheduleSlotStatus Booked, free or blocked schedule slots. Default if status filter is not set is only booked schedule slots.
source	<xs:element name="ScheduleSlotStatusFilter" type="ScheduleSlotStatusType" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>ScheduleSlotStatus Booked, free or blocked schedule slots. Default if status filter is not set is only booked schedule slots. </xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleByResourcesResponse

diagram
properties	content  complex
children	ResourcesSchedules
source	<xs:element name="ListScheduleByResourcesResponse">   <xs:complexType>     <xs:sequence>       <xs:element name="ResourcesSchedules" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="ResourcesSchedule" type="ScheduleByOrgListType" maxOccurs="unbounded"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListScheduleByResourcesResponse/ResourcesSchedules

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ResourcesSchedule
source	<xs:element name="ResourcesSchedules" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="ResourcesSchedule" type="ScheduleByOrgListType" maxOccurs="unbounded"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListScheduleByResourcesResponse/ResourcesSchedules/ResourcesSchedule

diagram
type	ScheduleByOrgListType
properties	minOcc  1 maxOcc  unbounded content  complex
children	ScheduleSlotId BookingId CarePeriod WaitingList Contact ScheduleSlotStatus ScheduleSlotType ScheduleSlotDescription OpenScheduleSlot OverBookingAllowed ReservedToDate From To Patient Resource BookingText SendNotification MedicalUnit CareUnit
source	<xs:element name="ResourcesSchedule" type="ScheduleByOrgListType" maxOccurs="unbounded"/>

element ListScheduleSlotsRequest

diagram
properties	content  complex
children	ScheduleSlotId WaitingListId PatientId
annotation	documentation Request for getting one (or several) specific schedule slot/appointment (only schdeule slot/appointments info, no/little other info)
source	<xs:element name="ListScheduleSlotsRequest">   <xs:annotation>     <xs:documentation>Request for getting one (or several) specific schedule slot/appointment (only schdeule slot/appointments info, no/little other info)</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:choice>       <xs:element name="ScheduleSlotId" type="xs:string">         <xs:annotation>           <xs:documentation>The internal id for one schedule slot for a resource. A schedule slot can be allocted to a patient also.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="WaitingListId" type="xs:string">         <xs:annotation>           <xs:documentation>Waitinglist Id. If WaitingListId is used then other input parameters is ignored/not used.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:sequence>         <xs:element name="PatientId" type="xs:int">           <xs:annotation>             <xs:documentation>Internal patient id for the HIS HIS90: Only liste schedule slots7appointments form todya and later, no historic items.</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:choice>   </xs:complexType> </xs:element>

element ListScheduleSlotsRequest/ScheduleSlotId

diagram
type	xs:string
properties	content  simple
annotation	documentation The internal id for one schedule slot for a resource. A schedule slot can be allocted to a patient also.
source	<xs:element name="ScheduleSlotId" type="xs:string">   <xs:annotation>     <xs:documentation>The internal id for one schedule slot for a resource. A schedule slot can be allocted to a patient also.</xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleSlotsRequest/WaitingListId

diagram
type	xs:string
properties	content  simple
annotation	documentation Waitinglist Id. If WaitingListId is used then other input parameters is ignored/not used.
source	<xs:element name="WaitingListId" type="xs:string">   <xs:annotation>     <xs:documentation>Waitinglist Id. If WaitingListId is used then other input parameters is ignored/not used.</xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleSlotsRequest/PatientId

diagram
type	xs:int
properties	content  simple
annotation	documentation Internal patient id for the HIS HIS90: Only liste schedule slots7appointments form todya and later, no historic items.
source	<xs:element name="PatientId" type="xs:int">   <xs:annotation>     <xs:documentation>Internal patient id for the HIS HIS90: Only liste schedule slots7appointments form todya and later, no historic items.</xs:documentation>   </xs:annotation> </xs:element>

element ListScheduleSlotsResponse

diagram
properties	content  complex
children	ScheduleSlots
annotation	documentation Response from getting one (or several) specific schedule slot/appointment (only schdeule slot/appointments info, no/little other info)
source	<xs:element name="ListScheduleSlotsResponse">   <xs:annotation>     <xs:documentation>Response from getting one (or several) specific schedule slot/appointment (only schdeule slot/appointments info, no/little other info)</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ScheduleSlots" type="ScheduleSlotsBaseListType" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListScheduleSlotsResponse/ScheduleSlots

diagram
type	ScheduleSlotsBaseListType
properties	minOcc  0 maxOcc  1 content  complex
children	ScheduleSlot
source	<xs:element name="ScheduleSlots" type="ScheduleSlotsBaseListType" minOccurs="0"/>

element MoveScheduleSlotsRequest

diagram
properties	content  complex
children	MoveScheduleSlots
source	<xs:element name="MoveScheduleSlotsRequest">   <xs:complexType>     <xs:sequence>       <xs:element name="MoveScheduleSlots" type="MoveScheduleSlotsType"/>     </xs:sequence>   </xs:complexType> </xs:element>

element MoveScheduleSlotsRequest/MoveScheduleSlots

diagram
type	MoveScheduleSlotsType
properties	content  complex
children	Resource OrganzationUnit Date ToNewDate ToNewResource
source	<xs:element name="MoveScheduleSlots" type="MoveScheduleSlotsType"/>

element MoveScheduleSlotsResponse

diagram
properties	content  complex
source	<xs:element name="MoveScheduleSlotsResponse">   <xs:complexType>     <xs:sequence/>   </xs:complexType> </xs:element>

element SaveScheduleSlotRequest

diagram
properties	content  complex
children	ScheduleSlots
annotation	documentation Request for saving one (or several) specific schedule slot/appointment (only schdeule slot/appointments info, no/little other info)
source	<xs:element name="SaveScheduleSlotRequest">   <xs:annotation>     <xs:documentation>Request for saving one (or several) specific schedule slot/appointment (only schdeule slot/appointments info, no/little other info)</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ScheduleSlots" type="ScheduleSlotsBaseListType" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element SaveScheduleSlotRequest/ScheduleSlots

diagram
type	ScheduleSlotsBaseListType
properties	minOcc  0 maxOcc  1 content  complex
children	ScheduleSlot
source	<xs:element name="ScheduleSlots" type="ScheduleSlotsBaseListType" minOccurs="0"/>

element SaveScheduleSlotResponse

diagram
properties	content  complex
children	ScheduleSlots
annotation	documentation Response from saving one (or several) specific schedule slot/appointment (only schdeule slot/appointments info, no/little other info)
source	<xs:element name="SaveScheduleSlotResponse">   <xs:annotation>     <xs:documentation>Response from saving one (or several) specific schedule slot/appointment (only schdeule slot/appointments info, no/little other info)</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ScheduleSlots" type="ScheduleSlotsBaseListType" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element SaveScheduleSlotResponse/ScheduleSlots

diagram
type	ScheduleSlotsBaseListType
properties	minOcc  0 maxOcc  1 content  complex
children	ScheduleSlot
source	<xs:element name="ScheduleSlots" type="ScheduleSlotsBaseListType" minOccurs="0"/>

complexType AdditionalIdListBooking

diagram
children	AdditionalId
used by	element  OrganizationTypeExtBooking/AdditionalIds
annotation	documentation Type for list of additional id for organiszation, requester, contact, patientids etc
source	<xs:complexType name="AdditionalIdListBooking">   <xs:annotation>     <xs:documentation>Type for list of additional id for organiszation, requester, contact, patientids etc</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="AdditionalId" type="AdditionalIdTypeBooking" maxOccurs="unbounded"/>   </xs:sequence> </xs:complexType>

element AdditionalIdListBooking/AdditionalId

diagram
type	AdditionalIdTypeBooking
properties	minOcc  1 maxOcc  unbounded content  complex
children	Id TypeOfId
source	<xs:element name="AdditionalId" type="AdditionalIdTypeBooking" maxOccurs="unbounded"/>

complexType AdditionalIdTypeBooking

diagram
children	Id TypeOfId
used by	element  AdditionalIdListBooking/AdditionalId
annotation	documentation Type for additional id for organiszation, requester, contact, patientids etc
source	<xs:complexType name="AdditionalIdTypeBooking">   <xs:annotation>     <xs:documentation>Type for additional id for organiszation, requester, contact, patientids etc</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:string"/>     <xs:element name="TypeOfId" type="xs:string">       <xs:annotation>         <xs:documentation>KITH code standard  8268 Some of the types are:        ENH=Off. org.no in Br.sund HER=HER-id                RSH=RESH-id                 NPR= NPR nr               LOK= Lokal id           XXX=Annet                   Other Tieto codes are: For HIS90: LUI=UniqueId    </xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element AdditionalIdTypeBooking/Id

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element AdditionalIdTypeBooking/TypeOfId

diagram
type	xs:string
properties	content  simple
annotation	documentation KITH code standard  8268 Some of the types are:        ENH=Off. org.no in Br.sund HER=HER-id                RSH=RESH-id                 NPR= NPR nr               LOK= Lokal id           XXX=Annet                   Other Tieto codes are: For HIS90: LUI=UniqueId
source	<xs:element name="TypeOfId" type="xs:string">   <xs:annotation>     <xs:documentation>KITH code standard  8268 Some of the types are:        ENH=Off. org.no in Br.sund HER=HER-id                RSH=RESH-id                 NPR= NPR nr               LOK= Lokal id           XXX=Annet                   Other Tieto codes are: For HIS90: LUI=UniqueId    </xs:documentation>   </xs:annotation> </xs:element>

complexType AppointmentByOrgListType

diagram
type	extension of ResourceAppointmentListType
properties	base  ResourceAppointmentListType
children	ScheduleSlotId BookingId WaitingListId WaitingList ContactId Contact BookingStatus VisitType AppointmentStatus AppointmentType AppointmentDescription OpenScheduleSlot OverBookingAllowed ReservedToDate From To Patient Resource SendNotification MedicalUnit CareUnit
used by	element  ListAppointmentsByOrgResponse/AppointmentsByOrgs/AppointmentByOrg
annotation	documentation XXXX NB Slettes!! Er erstattet av ScheduleSlotByOrgListType
source	<xs:complexType name="AppointmentByOrgListType">   <xs:annotation>     <xs:documentation>XXXX NB Slettes!! Er erstattet av ScheduleSlotByOrgListType</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="ResourceAppointmentListType">       <xs:sequence>         <xs:element name="MedicalUnit" type="OrganizationTypeBooking">           <xs:annotation>             <xs:documentation>Department/Medical Speciality                       HIS90: Avdeling</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="CareUnit" type="OrganizationTypeBooking">           <xs:annotation>             <xs:documentation>Unit where the care takes place.                       HIS90: Enhet/Post</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element AppointmentByOrgListType/MedicalUnit

diagram
type	OrganizationTypeBooking
properties	content  complex
children	Id TypeOfId ShortNameId Name
annotation	documentation Department/Medical Speciality                       HIS90: Avdeling
source	<xs:element name="MedicalUnit" type="OrganizationTypeBooking">   <xs:annotation>     <xs:documentation>Department/Medical Speciality                       HIS90: Avdeling</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentByOrgListType/CareUnit

diagram
type	OrganizationTypeBooking
properties	content  complex
children	Id TypeOfId ShortNameId Name
annotation	documentation Unit where the care takes place.                       HIS90: Enhet/Post
source	<xs:element name="CareUnit" type="OrganizationTypeBooking">   <xs:annotation>     <xs:documentation>Unit where the care takes place.                       HIS90: Enhet/Post</xs:documentation>   </xs:annotation> </xs:element>

complexType AppointmentDetailType

diagram
children	Id CarePeriodId Type Status VisitType TypeOfCare From To PreviousVisits Group FreeHospitalChoice Organization Resources Requesters Reason BookingText Admission Update
used by	element  AppointmentType/Appointment
annotation	documentation Type for detailed appointment infomation
source	<xs:complexType name="AppointmentDetailType">   <xs:annotation>     <xs:documentation>Type for detailed appointment infomation</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:string">       <xs:annotation>         <xs:documentation>The internal id for the booking/appointment  HIS90: BookingId (Combinded Id)</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="CarePeriodId" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Internal Care Period Id.    An id used to identify associated  booking/referrals. HIS90: CarePeriodId (Combinded Id)</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Type" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Appointment type HIS90:                               Type of an appointment. Valid types are T1-T5 and OB</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Status">       <xs:annotation>         <xs:documentation>Appointment/Booking status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="xs:string"/>           <xs:element name="Text" type="xs:string"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="VisitType">       <xs:annotation>         <xs:documentation>Type of consulting For valid codes/values see documentation.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="xs:string"/>           <xs:element name="Text" type="xs:string"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="TypeOfCare">       <xs:annotation>         <xs:documentation>TypeOfCare:             I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk  D= In hospital only at daytime                             </xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="xs:string"/>           <xs:element name="Text" type="xs:string"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="From" type="xs:dateTime">       <xs:annotation>         <xs:documentation>Date and time for the start for the appointment</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="To" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Date and time for the end  of the appointment</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="PreviousVisits" minOccurs="0">       <xs:annotation>         <xs:documentation>Previous visit's date/time.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="PreviousVisit" type="xs:dateTime" maxOccurs="unbounded">             <xs:annotation>               <xs:documentation>Previous visit date/time.</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Group" minOccurs="0">       <xs:annotation>         <xs:documentation>Patient group</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="xs:string">             <xs:annotation>               <xs:documentation>Group code</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="Text" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Group description</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="FreeHospitalChoice" type="xs:boolean" minOccurs="0">       <xs:annotation>         <xs:documentation>If treatment(booking) is due to Free Hospital Choice (Norway only). True = Free choice False = Not free choice Tag missing/nul = Not decided/patient have not done a choice(not asked) HIS90: Valid values True = J False = N Tag missing/null = U</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Organization" type="OrganizationType">       <xs:annotation>         <xs:documentation>Organization where booking belongs to/take place.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Resources">       <xs:annotation>         <xs:documentation>Resources involved in the booking</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Resource" type="ResourceAppointmentType" minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:documentation>Resource related to the appointment</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="EvaluatedBy">             <xs:annotation>               <xs:documentation>The resource (i.e. the chief physician) responsible for evaluation of the refarreal/waitinglist</xs:documentation>             </xs:annotation>             <xs:complexType>               <xs:sequence>                 <xs:element name="Id" type="xs:string"/>                 <xs:element name="Code" type="xs:string" minOccurs="0"/>                 <xs:element name="Name" type="xs:string" minOccurs="0"/>                 <xs:element name="Property" type="xs:string" minOccurs="0">                   <xs:annotation>                     <xs:documentation>Resource type</xs:documentation>                   </xs:annotation>                 </xs:element>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Requesters" minOccurs="0">       <xs:annotation>         <xs:documentation>Who requested this service/booking.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Requester" type="RequesterType" maxOccurs="unbounded">             <xs:annotation>               <xs:documentation>Requester collection</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Reason" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Reason for Waitinglist.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="BookingText" minOccurs="0" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>Free text used in referrall/waitinglist/booking</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Text" type="xs:string">             <xs:annotation>               <xs:documentation>The Text</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="TypeOfText" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Coded description of the text type. For valid codes see documentation.</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Admission" minOccurs="0">       <xs:annotation>         <xs:documentation>Admittance</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="ContactedDate" type="xs:dateTime" minOccurs="0">             <xs:annotation>               <xs:documentation>Date when inpatient is/was contacted about admittance.</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="ByPhoned" type="xs:boolean" minOccurs="0">             <xs:annotation>               <xs:documentation>Used if in-patient has been contacted by phone to confirm admittance. </xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="Letter" type="LetterType" minOccurs="0"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Update" minOccurs="0">       <xs:annotation>         <xs:documentation>Information about update or modification of waitinglist</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:complexContent>           <xs:extension base="InsertedChangedByType">             <xs:sequence>               <xs:element name="UpdateCount" type="xs:int" minOccurs="0">                 <xs:annotation>                   <xs:documentation>Count used for concurrency testing when waiting list is updated.</xs:documentation>                 </xs:annotation>               </xs:element>             </xs:sequence>           </xs:extension>         </xs:complexContent>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element AppointmentDetailType/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation The internal id for the booking/appointment  HIS90: BookingId (Combinded Id)
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>The internal id for the booking/appointment  HIS90: BookingId (Combinded Id)</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/CarePeriodId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Internal Care Period Id.    An id used to identify associated  booking/referrals. HIS90: CarePeriodId (Combinded Id)
source	<xs:element name="CarePeriodId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Internal Care Period Id.    An id used to identify associated  booking/referrals. HIS90: CarePeriodId (Combinded Id)</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/Type

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Appointment type HIS90:                               Type of an appointment. Valid types are T1-T5 and OB
source	<xs:element name="Type" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Appointment type HIS90:                               Type of an appointment. Valid types are T1-T5 and OB</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/Status

diagram
properties	content  complex
children	Code Text
annotation	documentation Appointment/Booking status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)
source	<xs:element name="Status">   <xs:annotation>     <xs:documentation>Appointment/Booking status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Text" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element AppointmentDetailType/Status/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element AppointmentDetailType/Status/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element AppointmentDetailType/VisitType

diagram
properties	content  complex
children	Code Text
annotation	documentation Type of consulting For valid codes/values see documentation.
source	<xs:element name="VisitType">   <xs:annotation>     <xs:documentation>Type of consulting For valid codes/values see documentation.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Text" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element AppointmentDetailType/VisitType/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element AppointmentDetailType/VisitType/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element AppointmentDetailType/TypeOfCare

diagram
properties	content  complex
children	Code Text
annotation	documentation TypeOfCare:             I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk  D= In hospital only at daytime
source	<xs:element name="TypeOfCare">   <xs:annotation>     <xs:documentation>TypeOfCare:             I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk  D= In hospital only at daytime                             </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Text" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element AppointmentDetailType/TypeOfCare/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element AppointmentDetailType/TypeOfCare/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element AppointmentDetailType/From

diagram
type	xs:dateTime
properties	content  simple
annotation	documentation Date and time for the start for the appointment
source	<xs:element name="From" type="xs:dateTime">   <xs:annotation>     <xs:documentation>Date and time for the start for the appointment</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/To

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the end  of the appointment
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the end  of the appointment</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/PreviousVisits

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	PreviousVisit
annotation	documentation Previous visit's date/time.
source	<xs:element name="PreviousVisits" minOccurs="0">   <xs:annotation>     <xs:documentation>Previous visit's date/time.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="PreviousVisit" type="xs:dateTime" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Previous visit date/time.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element AppointmentDetailType/PreviousVisits/PreviousVisit

diagram
type	xs:dateTime
properties	minOcc  1 maxOcc  unbounded content  simple
annotation	documentation Previous visit date/time.
source	<xs:element name="PreviousVisit" type="xs:dateTime" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Previous visit date/time.</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/Group

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
annotation	documentation Patient group
source	<xs:element name="Group" minOccurs="0">   <xs:annotation>     <xs:documentation>Patient group</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string">         <xs:annotation>           <xs:documentation>Group code</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Text" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Group description</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element AppointmentDetailType/Group/Code

diagram
type	xs:string
properties	content  simple
annotation	documentation Group code
source	<xs:element name="Code" type="xs:string">   <xs:annotation>     <xs:documentation>Group code</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/Group/Text

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Group description
source	<xs:element name="Text" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Group description</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/FreeHospitalChoice

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation If treatment(booking) is due to Free Hospital Choice (Norway only). True = Free choice False = Not free choice Tag missing/nul = Not decided/patient have not done a choice(not asked) HIS90: Valid values True = J False = N Tag missing/null = U
source	<xs:element name="FreeHospitalChoice" type="xs:boolean" minOccurs="0">   <xs:annotation>     <xs:documentation>If treatment(booking) is due to Free Hospital Choice (Norway only). True = Free choice False = Not free choice Tag missing/nul = Not decided/patient have not done a choice(not asked) HIS90: Valid values True = J False = N Tag missing/null = U</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/Organization

diagram
type	OrganizationType
properties	content  complex
children	MedicalUnit CareUnit Section
annotation	documentation Organization where booking belongs to/take place.
source	<xs:element name="Organization" type="OrganizationType">   <xs:annotation>     <xs:documentation>Organization where booking belongs to/take place.</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/Resources

diagram
properties	content  complex
children	Resource EvaluatedBy
annotation	documentation Resources involved in the booking
source	<xs:element name="Resources">   <xs:annotation>     <xs:documentation>Resources involved in the booking</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Resource" type="ResourceAppointmentType" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Resource related to the appointment</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="EvaluatedBy">         <xs:annotation>           <xs:documentation>The resource (i.e. the chief physician) responsible for evaluation of the refarreal/waitinglist</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string"/>             <xs:element name="Code" type="xs:string" minOccurs="0"/>             <xs:element name="Name" type="xs:string" minOccurs="0"/>             <xs:element name="Property" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>Resource type</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element AppointmentDetailType/Resources/Resource

diagram
type	ResourceAppointmentType
properties	minOcc  0 maxOcc  unbounded content  complex
children	ResourceId Id From To Code Name Type MedicalUnit CareUnit
annotation	documentation Resource related to the appointment
source	<xs:element name="Resource" type="ResourceAppointmentType" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Resource related to the appointment</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/Resources/EvaluatedBy

diagram
properties	content  complex
children	Id Code Name Property
annotation	documentation The resource (i.e. the chief physician) responsible for evaluation of the refarreal/waitinglist
source	<xs:element name="EvaluatedBy">   <xs:annotation>     <xs:documentation>The resource (i.e. the chief physician) responsible for evaluation of the refarreal/waitinglist</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string"/>       <xs:element name="Code" type="xs:string" minOccurs="0"/>       <xs:element name="Name" type="xs:string" minOccurs="0"/>       <xs:element name="Property" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Resource type</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element AppointmentDetailType/Resources/EvaluatedBy/Id

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element AppointmentDetailType/Resources/EvaluatedBy/Code

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Code" type="xs:string" minOccurs="0"/>

element AppointmentDetailType/Resources/EvaluatedBy/Name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Name" type="xs:string" minOccurs="0"/>

element AppointmentDetailType/Resources/EvaluatedBy/Property

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Resource type
source	<xs:element name="Property" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Resource type</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/Requesters

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Requester
annotation	documentation Who requested this service/booking.
source	<xs:element name="Requesters" minOccurs="0">   <xs:annotation>     <xs:documentation>Who requested this service/booking.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Requester" type="RequesterType" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Requester collection</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element AppointmentDetailType/Requesters/Requester

diagram
type	RequesterType
properties	minOcc  1 maxOcc  unbounded content  complex
children	Id Code Name Type
annotation	documentation Requester collection
source	<xs:element name="Requester" type="RequesterType" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Requester collection</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/Reason

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Reason for Waitinglist.
source	<xs:element name="Reason" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Reason for Waitinglist.</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/BookingText

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	Text TypeOfText
annotation	documentation Free text used in referrall/waitinglist/booking
source	<xs:element name="BookingText" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Free text used in referrall/waitinglist/booking</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Text" type="xs:string">         <xs:annotation>           <xs:documentation>The Text</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfText" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Coded description of the text type. For valid codes see documentation.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element AppointmentDetailType/BookingText/Text

diagram
type	xs:string
properties	content  simple
annotation	documentation The Text
source	<xs:element name="Text" type="xs:string">   <xs:annotation>     <xs:documentation>The Text</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/BookingText/TypeOfText

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Coded description of the text type. For valid codes see documentation.
source	<xs:element name="TypeOfText" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Coded description of the text type. For valid codes see documentation.</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/Admission

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ContactedDate ByPhoned Letter
annotation	documentation Admittance
source	<xs:element name="Admission" minOccurs="0">   <xs:annotation>     <xs:documentation>Admittance</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ContactedDate" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>Date when inpatient is/was contacted about admittance.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ByPhoned" type="xs:boolean" minOccurs="0">         <xs:annotation>           <xs:documentation>Used if in-patient has been contacted by phone to confirm admittance. </xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Letter" type="LetterType" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element AppointmentDetailType/Admission/ContactedDate

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date when inpatient is/was contacted about admittance.
source	<xs:element name="ContactedDate" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date when inpatient is/was contacted about admittance.</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/Admission/ByPhoned

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Used if in-patient has been contacted by phone to confirm admittance.
source	<xs:element name="ByPhoned" type="xs:boolean" minOccurs="0">   <xs:annotation>     <xs:documentation>Used if in-patient has been contacted by phone to confirm admittance. </xs:documentation>   </xs:annotation> </xs:element>

element AppointmentDetailType/Admission/Letter

diagram
type	LetterType
properties	minOcc  0 maxOcc  1 content  complex
children	LetterDate ToRequester ToPatient TextToPatient
source	<xs:element name="Letter" type="LetterType" minOccurs="0"/>

element AppointmentDetailType/Update

diagram
type	extension of InsertedChangedByType
properties	minOcc  0 maxOcc  1 content  complex
children	Date Name Organization SignedBy UpdateCount
annotation	documentation Information about update or modification of waitinglist
source	<xs:element name="Update" minOccurs="0">   <xs:annotation>     <xs:documentation>Information about update or modification of waitinglist</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="InsertedChangedByType">         <xs:sequence>           <xs:element name="UpdateCount" type="xs:int" minOccurs="0">             <xs:annotation>               <xs:documentation>Count used for concurrency testing when waiting list is updated.</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element AppointmentDetailType/Update/UpdateCount

diagram
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Count used for concurrency testing when waiting list is updated.
source	<xs:element name="UpdateCount" type="xs:int" minOccurs="0">   <xs:annotation>     <xs:documentation>Count used for concurrency testing when waiting list is updated.</xs:documentation>   </xs:annotation> </xs:element>

complexType AppointmentListType

diagram
children	Id ContactId CarePeriodId From To Type Status TypeOfCare Organization Resources Requesters
used by	element  ListPatientAppointmentsResponse/Appointments/Appointment
annotation	documentation Type for listing appointments
source	<xs:complexType name="AppointmentListType">   <xs:annotation>     <xs:documentation>Type for listing appointments</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:string">       <xs:annotation>         <xs:documentation>The internal id for the booking/appointment  HIS90: BookingId (Combinded Id)</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ContactId" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Internal Contact Id              Only if appointment is related to a contact              HIS90: Combined Id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="CarePeriodId" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Internal Care Period Id.    An id used to identify associated contacts or referrals.                             HIS90: Combined Id.         Omsorgsperiode/Care Period</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="From" type="xs:dateTime">       <xs:annotation>         <xs:documentation>Date and time for the start for the appointment</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="To" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Date and time for the end  of the appointment</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Type" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Appointment type                Infomedix:                          ExamCode?                                                       HIS90:                               Type of an appointment. Valid types are T1-T5 and OB</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Status">       <xs:annotation>         <xs:documentation>Appointment/Booking status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="xs:string"/>           <xs:element name="Text" type="xs:string"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="TypeOfCare">       <xs:annotation>         <xs:documentation>TypeOfCare:             I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk  D= In hospital only at daytime                             </xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="xs:string"/>           <xs:element name="Text" type="xs:string"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Organization" type="OrganizationType">       <xs:annotation>         <xs:documentation>Organization where booking belongs to/take place.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Resources">       <xs:annotation>         <xs:documentation>Resources involved in the booking</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Resource" type="ResourceAppointmentType" minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:documentation>Resource related to the appointment</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="EvaluatedBy">             <xs:annotation>               <xs:documentation>The resource (i.e. the chief physician) responsible for evaluation of the refarreal/waitinglist</xs:documentation>             </xs:annotation>             <xs:complexType>               <xs:sequence>                 <xs:element name="Id" type="xs:string"/>                 <xs:element name="Code" type="xs:string" minOccurs="0"/>                 <xs:element name="Name" type="xs:string" minOccurs="0"/>                 <xs:element name="Property" type="xs:string" minOccurs="0">                   <xs:annotation>                     <xs:documentation>Resource type</xs:documentation>                   </xs:annotation>                 </xs:element>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Requesters" minOccurs="0">       <xs:annotation>         <xs:documentation>Who requested this service/booking.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Requester" type="RequesterType" maxOccurs="unbounded">             <xs:annotation>               <xs:documentation>Requester collection</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element AppointmentListType/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation The internal id for the booking/appointment  HIS90: BookingId (Combinded Id)
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>The internal id for the booking/appointment  HIS90: BookingId (Combinded Id)</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentListType/ContactId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Internal Contact Id              Only if appointment is related to a contact              HIS90: Combined Id
source	<xs:element name="ContactId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Internal Contact Id              Only if appointment is related to a contact              HIS90: Combined Id</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentListType/CarePeriodId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Internal Care Period Id.    An id used to identify associated contacts or referrals.                             HIS90: Combined Id.         Omsorgsperiode/Care Period
source	<xs:element name="CarePeriodId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Internal Care Period Id.    An id used to identify associated contacts or referrals.                             HIS90: Combined Id.         Omsorgsperiode/Care Period</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentListType/From

diagram
type	xs:dateTime
properties	content  simple
annotation	documentation Date and time for the start for the appointment
source	<xs:element name="From" type="xs:dateTime">   <xs:annotation>     <xs:documentation>Date and time for the start for the appointment</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentListType/To

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the end  of the appointment
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the end  of the appointment</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentListType/Type

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Appointment type                Infomedix:                          ExamCode?                                                       HIS90:                               Type of an appointment. Valid types are T1-T5 and OB
source	<xs:element name="Type" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Appointment type                Infomedix:                          ExamCode?                                                       HIS90:                               Type of an appointment. Valid types are T1-T5 and OB</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentListType/Status

diagram
properties	content  complex
children	Code Text
annotation	documentation Appointment/Booking status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)
source	<xs:element name="Status">   <xs:annotation>     <xs:documentation>Appointment/Booking status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Text" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element AppointmentListType/Status/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element AppointmentListType/Status/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element AppointmentListType/TypeOfCare

diagram
properties	content  complex
children	Code Text
annotation	documentation TypeOfCare:             I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk  D= In hospital only at daytime
source	<xs:element name="TypeOfCare">   <xs:annotation>     <xs:documentation>TypeOfCare:             I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk  D= In hospital only at daytime                             </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Text" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element AppointmentListType/TypeOfCare/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element AppointmentListType/TypeOfCare/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element AppointmentListType/Organization

diagram
type	OrganizationType
properties	content  complex
children	MedicalUnit CareUnit Section
annotation	documentation Organization where booking belongs to/take place.
source	<xs:element name="Organization" type="OrganizationType">   <xs:annotation>     <xs:documentation>Organization where booking belongs to/take place.</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentListType/Resources

diagram
properties	content  complex
children	Resource EvaluatedBy
annotation	documentation Resources involved in the booking
source	<xs:element name="Resources">   <xs:annotation>     <xs:documentation>Resources involved in the booking</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Resource" type="ResourceAppointmentType" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Resource related to the appointment</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="EvaluatedBy">         <xs:annotation>           <xs:documentation>The resource (i.e. the chief physician) responsible for evaluation of the refarreal/waitinglist</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string"/>             <xs:element name="Code" type="xs:string" minOccurs="0"/>             <xs:element name="Name" type="xs:string" minOccurs="0"/>             <xs:element name="Property" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>Resource type</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element AppointmentListType/Resources/Resource

diagram
type	ResourceAppointmentType
properties	minOcc  0 maxOcc  unbounded content  complex
children	ResourceId Id From To Code Name Type MedicalUnit CareUnit
annotation	documentation Resource related to the appointment
source	<xs:element name="Resource" type="ResourceAppointmentType" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Resource related to the appointment</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentListType/Resources/EvaluatedBy

diagram
properties	content  complex
children	Id Code Name Property
annotation	documentation The resource (i.e. the chief physician) responsible for evaluation of the refarreal/waitinglist
source	<xs:element name="EvaluatedBy">   <xs:annotation>     <xs:documentation>The resource (i.e. the chief physician) responsible for evaluation of the refarreal/waitinglist</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string"/>       <xs:element name="Code" type="xs:string" minOccurs="0"/>       <xs:element name="Name" type="xs:string" minOccurs="0"/>       <xs:element name="Property" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Resource type</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element AppointmentListType/Resources/EvaluatedBy/Id

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element AppointmentListType/Resources/EvaluatedBy/Code

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Code" type="xs:string" minOccurs="0"/>

element AppointmentListType/Resources/EvaluatedBy/Name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Name" type="xs:string" minOccurs="0"/>

element AppointmentListType/Resources/EvaluatedBy/Property

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Resource type
source	<xs:element name="Property" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Resource type</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentListType/Requesters

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Requester
annotation	documentation Who requested this service/booking.
source	<xs:element name="Requesters" minOccurs="0">   <xs:annotation>     <xs:documentation>Who requested this service/booking.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Requester" type="RequesterType" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Requester collection</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element AppointmentListType/Requesters/Requester

diagram
type	RequesterType
properties	minOcc  1 maxOcc  unbounded content  complex
children	Id Code Name Type
annotation	documentation Requester collection
source	<xs:element name="Requester" type="RequesterType" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Requester collection</xs:documentation>   </xs:annotation> </xs:element>

complexType AppointmentType

diagram
children	Patient Appointment
used by	element  GetAppointmentResponse
annotation	documentation Type for get/save appointment inlcuding patient
source	<xs:complexType name="AppointmentType">   <xs:annotation>     <xs:documentation>Type for get/save appointment inlcuding patient</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Patient">       <xs:annotation>         <xs:documentation>Patient information </xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Id">             <xs:complexType>               <xs:sequence>                 <xs:element name="PatientId" type="xs:int">                   <xs:annotation>                     <xs:documentation>Internal patient id for the HIS</xs:documentation>                   </xs:annotation>                 </xs:element>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Appointment" type="AppointmentDetailType"/>   </xs:sequence> </xs:complexType>

element AppointmentType/Patient

diagram
properties	content  complex
children	Id
annotation	documentation Patient information
source	<xs:element name="Patient">   <xs:annotation>     <xs:documentation>Patient information </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id">         <xs:complexType>           <xs:sequence>             <xs:element name="PatientId" type="xs:int">               <xs:annotation>                 <xs:documentation>Internal patient id for the HIS</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element AppointmentType/Patient/Id

diagram
properties	content  complex
children	PatientId
source	<xs:element name="Id">   <xs:complexType>     <xs:sequence>       <xs:element name="PatientId" type="xs:int">         <xs:annotation>           <xs:documentation>Internal patient id for the HIS</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element AppointmentType/Patient/Id/PatientId

diagram
type	xs:int
properties	content  simple
annotation	documentation Internal patient id for the HIS
source	<xs:element name="PatientId" type="xs:int">   <xs:annotation>     <xs:documentation>Internal patient id for the HIS</xs:documentation>   </xs:annotation> </xs:element>

element AppointmentType/Appointment

diagram
type	AppointmentDetailType
properties	content  complex
children	Id CarePeriodId Type Status VisitType TypeOfCare From To PreviousVisits Group FreeHospitalChoice Organization Resources Requesters Reason BookingText Admission Update
source	<xs:element name="Appointment" type="AppointmentDetailType"/>

complexType CarePeriodTypeBooking

diagram
children	CarePeriodId ClinicalArea InDiagnosis
used by	element  ScheduleByResourceListType/CarePeriod
source	<xs:complexType name="CarePeriodTypeBooking">   <xs:sequence>     <xs:element name="CarePeriodId" type="xs:string">       <xs:annotation>         <xs:documentation>Internal Care Period Id.    An id used to identify associated contacts or referrals.                             HIS90: Combined Id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ClinicalArea" type="CodeTextTypeBooking" minOccurs="0">       <xs:annotation>         <xs:documentation>Clinical area. If not set on waiting list level then use clinical area from care period. HIS90: Fagområde</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="InDiagnosis" type="DiagnosisTypeBooking" minOccurs="0">       <xs:annotation>         <xs:documentation>In diagnosis using code from medical register, i.e. ICD10</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element CarePeriodTypeBooking/CarePeriodId

diagram
type	xs:string
properties	content  simple
annotation	documentation Internal Care Period Id.    An id used to identify associated contacts or referrals.                             HIS90: Combined Id
source	<xs:element name="CarePeriodId" type="xs:string">   <xs:annotation>     <xs:documentation>Internal Care Period Id.    An id used to identify associated contacts or referrals.                             HIS90: Combined Id</xs:documentation>   </xs:annotation> </xs:element>

element CarePeriodTypeBooking/ClinicalArea

diagram
type	CodeTextTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
annotation	documentation Clinical area. If not set on waiting list level then use clinical area from care period. HIS90: Fagområde
source	<xs:element name="ClinicalArea" type="CodeTextTypeBooking" minOccurs="0">   <xs:annotation>     <xs:documentation>Clinical area. If not set on waiting list level then use clinical area from care period. HIS90: Fagområde</xs:documentation>   </xs:annotation> </xs:element>

element CarePeriodTypeBooking/InDiagnosis

diagram
type	DiagnosisTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	Id Code Text MedRegister
annotation	documentation In diagnosis using code from medical register, i.e. ICD10
source	<xs:element name="InDiagnosis" type="DiagnosisTypeBooking" minOccurs="0">   <xs:annotation>     <xs:documentation>In diagnosis using code from medical register, i.e. ICD10</xs:documentation>   </xs:annotation> </xs:element>

complexType CodeTextTypeBooking

diagram
children	Code Text
used by	elements  ScheduleByResourceListType/WaitingList/ClinicalArea CarePeriodTypeBooking/ClinicalArea ResourceAppointmentListType/Contact/Status ScheduleByResourceListType/WaitingList/Status ScheduleByResourceListType/Contact/Status ScheduleSlotBaseType/WaitingList/Status ResourceAppointmentListType/Contact/Status/VisitStatus ScheduleByResourceListType/Contact/Status/VisitStatus ScheduleByResourceListType/WaitingList/VisitType complexType  SendNotificationType
annotation	documentation Type for Code and Text(with text as optional)
source	<xs:complexType name="CodeTextTypeBooking">   <xs:annotation>     <xs:documentation>Type for Code and Text(with text as optional)</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Code" type="xs:string"/>     <xs:element name="Text" type="xs:string" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element CodeTextTypeBooking/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element CodeTextTypeBooking/Text

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Text" type="xs:string" minOccurs="0"/>

complexType DiagnosisTypeBooking

diagram
children	Id Code Text MedRegister
used by	elements  ScheduleByResourceListType/WaitingList/InDiagnosis CarePeriodTypeBooking/InDiagnosis
source	<xs:complexType name="DiagnosisTypeBooking">   <xs:sequence>     <xs:element name="Id" type="xs:string" minOccurs="0"/>     <xs:element name="Code" type="xs:string"/>     <xs:element name="Text" type="xs:string" minOccurs="0"/>     <xs:element name="MedRegister" type="MedRegisterTypeBooking">       <xs:annotation>         <xs:documentation>Medical register, i.e. ICD10</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element DiagnosisTypeBooking/Id

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Id" type="xs:string" minOccurs="0"/>

element DiagnosisTypeBooking/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element DiagnosisTypeBooking/Text

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Text" type="xs:string" minOccurs="0"/>

element DiagnosisTypeBooking/MedRegister

diagram
type	MedRegisterTypeBooking
properties	content  complex
children	Id Code Text
annotation	documentation Medical register, i.e. ICD10
source	<xs:element name="MedRegister" type="MedRegisterTypeBooking">   <xs:annotation>     <xs:documentation>Medical register, i.e. ICD10</xs:documentation>   </xs:annotation> </xs:element>

complexType InsertedChangedByType

diagram
children	Date Name Organization SignedBy
used by	elements  ScheduleSlotBaseType/Update AppointmentDetailType/Update
annotation	documentation Type for information about insertion and changes in the database
source	<xs:complexType name="InsertedChangedByType">   <xs:annotation>     <xs:documentation>Type for information about insertion and changes in the database</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Date" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Date when inserted/last modified.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Name" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Organization Name</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Organization" minOccurs="0">       <xs:annotation>         <xs:documentation>Organization responsible for insertion/last modification of the instance. </xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Id" type="xs:string">             <xs:annotation>               <xs:documentation> Internal Id.</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="ShortNameId" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Organization Code</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="Name" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Organization Name</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="SignedBy" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Initials of user that inserted/modified the instance.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element InsertedChangedByType/Date

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date when inserted/last modified.
source	<xs:element name="Date" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date when inserted/last modified.</xs:documentation>   </xs:annotation> </xs:element>

element InsertedChangedByType/Name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Organization Name
source	<xs:element name="Name" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Organization Name</xs:documentation>   </xs:annotation> </xs:element>

element InsertedChangedByType/Organization

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Id ShortNameId Name
annotation	documentation Organization responsible for insertion/last modification of the instance.
source	<xs:element name="Organization" minOccurs="0">   <xs:annotation>     <xs:documentation>Organization responsible for insertion/last modification of the instance. </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string">         <xs:annotation>           <xs:documentation> Internal Id.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ShortNameId" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Organization Code</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Name" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Organization Name</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element InsertedChangedByType/Organization/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Internal Id.
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation> Internal Id.</xs:documentation>   </xs:annotation> </xs:element>

element InsertedChangedByType/Organization/ShortNameId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Organization Code
source	<xs:element name="ShortNameId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Organization Code</xs:documentation>   </xs:annotation> </xs:element>

element InsertedChangedByType/Organization/Name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Organization Name
source	<xs:element name="Name" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Organization Name</xs:documentation>   </xs:annotation> </xs:element>

element InsertedChangedByType/SignedBy

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Initials of user that inserted/modified the instance.
source	<xs:element name="SignedBy" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Initials of user that inserted/modified the instance.</xs:documentation>   </xs:annotation> </xs:element>

complexType LetterType

diagram
children	LetterDate ToRequester ToPatient TextToPatient
used by	element  AppointmentDetailType/Admission/Letter
annotation	documentation Type for letter
source	<xs:complexType name="LetterType">   <xs:annotation>     <xs:documentation>Type for letter</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="LetterDate" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Date for letter is sent</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ToRequester" minOccurs="0" maxOccurs="unbounded">       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="xs:string">             <xs:annotation>               <xs:documentation>Code used in letter to requester. </xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="Text" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Letter code description</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="ToPatient" minOccurs="0" maxOccurs="unbounded">       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="xs:string">             <xs:annotation>               <xs:documentation>Code used in letter to patient. </xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="Text" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Letter code description</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="TextToPatient" minOccurs="0" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>Free text used in letter to patient</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Text" type="xs:string">             <xs:annotation>               <xs:documentation>The Text</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="TypeOfText" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Coded description of the text type. For valid codes see documentation.</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element LetterType/LetterDate

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date for letter is sent
source	<xs:element name="LetterDate" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date for letter is sent</xs:documentation>   </xs:annotation> </xs:element>

element LetterType/ToRequester

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	Code Text
source	<xs:element name="ToRequester" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string">         <xs:annotation>           <xs:documentation>Code used in letter to requester. </xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Text" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Letter code description</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element LetterType/ToRequester/Code

diagram
type	xs:string
properties	content  simple
annotation	documentation Code used in letter to requester.
source	<xs:element name="Code" type="xs:string">   <xs:annotation>     <xs:documentation>Code used in letter to requester. </xs:documentation>   </xs:annotation> </xs:element>

element LetterType/ToRequester/Text

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Letter code description
source	<xs:element name="Text" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Letter code description</xs:documentation>   </xs:annotation> </xs:element>

element LetterType/ToPatient

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	Code Text
source	<xs:element name="ToPatient" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string">         <xs:annotation>           <xs:documentation>Code used in letter to patient. </xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Text" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Letter code description</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element LetterType/ToPatient/Code

diagram
type	xs:string
properties	content  simple
annotation	documentation Code used in letter to patient.
source	<xs:element name="Code" type="xs:string">   <xs:annotation>     <xs:documentation>Code used in letter to patient. </xs:documentation>   </xs:annotation> </xs:element>

element LetterType/ToPatient/Text

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Letter code description
source	<xs:element name="Text" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Letter code description</xs:documentation>   </xs:annotation> </xs:element>

element LetterType/TextToPatient

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	Text TypeOfText
annotation	documentation Free text used in letter to patient
source	<xs:element name="TextToPatient" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Free text used in letter to patient</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Text" type="xs:string">         <xs:annotation>           <xs:documentation>The Text</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfText" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Coded description of the text type. For valid codes see documentation.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element LetterType/TextToPatient/Text

diagram
type	xs:string
properties	content  simple
annotation	documentation The Text
source	<xs:element name="Text" type="xs:string">   <xs:annotation>     <xs:documentation>The Text</xs:documentation>   </xs:annotation> </xs:element>

element LetterType/TextToPatient/TypeOfText

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Coded description of the text type. For valid codes see documentation.
source	<xs:element name="TypeOfText" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Coded description of the text type. For valid codes see documentation.</xs:documentation>   </xs:annotation> </xs:element>

complexType MedRegisterTypeBooking

diagram
children	Id Code Text
used by	element  DiagnosisTypeBooking/MedRegister
source	<xs:complexType name="MedRegisterTypeBooking">   <xs:sequence>     <xs:element name="Id" type="xs:string"/>     <xs:element name="Code" type="xs:string" minOccurs="0"/>     <xs:element name="Text" type="xs:string"/>   </xs:sequence> </xs:complexType>

element MedRegisterTypeBooking/Id

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element MedRegisterTypeBooking/Code

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Code" type="xs:string" minOccurs="0"/>

element MedRegisterTypeBooking/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

complexType MoveScheduleSlotsType

diagram
children	Resource OrganzationUnit Date ToNewDate ToNewResource
used by	element  MoveScheduleSlotsRequest/MoveScheduleSlots
source	<xs:complexType name="MoveScheduleSlotsType">   <xs:sequence>     <xs:element name="Resource" type="ResourceTypeBooking">       <xs:annotation>         <xs:documentation>Resource the schedule slots belongs to</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="OrganzationUnit" type="OrganizationTypeBooking" minOccurs="0">       <xs:annotation>         <xs:documentation>Unit where the resource has schedules slots.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Date" type="xs:dateTime">       <xs:annotation>         <xs:documentation>Date on the schedule slots. HIS90: PAQREBO.RSCH_DATE</xs:documentation>       </xs:annotation>     </xs:element>     <xs:sequence>       <xs:annotation>         <xs:documentation>One of ToNewDate or ToNewResource mujst be give. If both is given an error message will be given.</xs:documentation>       </xs:annotation>       <xs:element name="ToNewDate" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>New date if moving the schedule slots to a new date. HIS90: PAQREBO.RSCH_DATE</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ToNewResource" type="ResourceTypeBooking" minOccurs="0">         <xs:annotation>           <xs:documentation>New resource if moving the schedule slots to a new resource</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:sequence> </xs:complexType>

element MoveScheduleSlotsType/Resource

diagram
type	ResourceTypeBooking
properties	content  complex
children	ResourceId TypeOfId Code Name Property
annotation	documentation Resource the schedule slots belongs to
source	<xs:element name="Resource" type="ResourceTypeBooking">   <xs:annotation>     <xs:documentation>Resource the schedule slots belongs to</xs:documentation>   </xs:annotation> </xs:element>

element MoveScheduleSlotsType/OrganzationUnit

diagram
type	OrganizationTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name
annotation	documentation Unit where the resource has schedules slots.
source	<xs:element name="OrganzationUnit" type="OrganizationTypeBooking" minOccurs="0">   <xs:annotation>     <xs:documentation>Unit where the resource has schedules slots.</xs:documentation>   </xs:annotation> </xs:element>

element MoveScheduleSlotsType/Date

diagram
type	xs:dateTime
properties	content  simple
annotation	documentation Date on the schedule slots. HIS90: PAQREBO.RSCH_DATE
source	<xs:element name="Date" type="xs:dateTime">   <xs:annotation>     <xs:documentation>Date on the schedule slots. HIS90: PAQREBO.RSCH_DATE</xs:documentation>   </xs:annotation> </xs:element>

element MoveScheduleSlotsType/ToNewDate

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation New date if moving the schedule slots to a new date. HIS90: PAQREBO.RSCH_DATE
source	<xs:element name="ToNewDate" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>New date if moving the schedule slots to a new date. HIS90: PAQREBO.RSCH_DATE</xs:documentation>   </xs:annotation> </xs:element>

element MoveScheduleSlotsType/ToNewResource

diagram
type	ResourceTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	ResourceId TypeOfId Code Name Property
annotation	documentation New resource if moving the schedule slots to a new resource
source	<xs:element name="ToNewResource" type="ResourceTypeBooking" minOccurs="0">   <xs:annotation>     <xs:documentation>New resource if moving the schedule slots to a new resource</xs:documentation>   </xs:annotation> </xs:element>

complexType OfficialIdTypeBooking

diagram
children	Value TypeOfId FormattedId
used by	element  PatientInfoListType/OfficialId
source	<xs:complexType name="OfficialIdTypeBooking">   <xs:sequence>     <xs:element name="Value" type="xs:string">       <xs:annotation>         <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TypeOfId" type="xs:string">       <xs:annotation>         <xs:documentation>F = official id, N = Emergency number, K = Catastrophy number, U = Non human number</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="FormattedId" type="xs:string">       <xs:annotation>         <xs:documentation>The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element OfficialIdTypeBooking/Value

diagram
type	xs:string
properties	content  simple
annotation	documentation The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.
source	<xs:element name="Value" type="xs:string">   <xs:annotation>     <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>   </xs:annotation> </xs:element>

element OfficialIdTypeBooking/TypeOfId

diagram
type	xs:string
properties	content  simple
annotation	documentation F = official id, N = Emergency number, K = Catastrophy number, U = Non human number
source	<xs:element name="TypeOfId" type="xs:string">   <xs:annotation>     <xs:documentation>F = official id, N = Emergency number, K = Catastrophy number, U = Non human number</xs:documentation>   </xs:annotation> </xs:element>

element OfficialIdTypeBooking/FormattedId

diagram
type	xs:string
properties	content  simple
annotation	documentation The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.
source	<xs:element name="FormattedId" type="xs:string">   <xs:annotation>     <xs:documentation>The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.</xs:documentation>   </xs:annotation> </xs:element>

complexType OrganizationType

diagram
children	MedicalUnit CareUnit Section
used by	elements  AppointmentDetailType/Organization AppointmentListType/Organization
source	<xs:complexType name="OrganizationType">   <xs:sequence>     <xs:element name="MedicalUnit" minOccurs="0">       <xs:annotation>         <xs:documentation>Department/Medical Speciality                       HIS90: Avdeling</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Id" type="xs:string"/>           <xs:element name="ShortNameId" type="xs:string"/>           <xs:element name="Name" type="xs:string" minOccurs="0"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="CareUnit">       <xs:annotation>         <xs:documentation>Unit where the care takes place.                       HIS90: Enhet/Post</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Id" type="xs:string"/>           <xs:element name="ShortNameId" type="xs:string"/>           <xs:element name="Name" type="xs:string" minOccurs="0"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Section" minOccurs="0">       <xs:annotation>         <xs:documentation>HIS90 Only                Section defines a collection of CareUnits within one MedicalUnit                   </xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="xs:string"/>           <xs:element name="Text" type="xs:string" minOccurs="0"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element OrganizationType/MedicalUnit

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Id ShortNameId Name
annotation	documentation Department/Medical Speciality                       HIS90: Avdeling
source	<xs:element name="MedicalUnit" minOccurs="0">   <xs:annotation>     <xs:documentation>Department/Medical Speciality                       HIS90: Avdeling</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string"/>       <xs:element name="ShortNameId" type="xs:string"/>       <xs:element name="Name" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/MedicalUnit/Id

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element OrganizationType/MedicalUnit/ShortNameId

diagram
type	xs:string
properties	content  simple
source	<xs:element name="ShortNameId" type="xs:string"/>

element OrganizationType/MedicalUnit/Name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Name" type="xs:string" minOccurs="0"/>

element OrganizationType/CareUnit

diagram
properties	content  complex
children	Id ShortNameId Name
annotation	documentation Unit where the care takes place.                       HIS90: Enhet/Post
source	<xs:element name="CareUnit">   <xs:annotation>     <xs:documentation>Unit where the care takes place.                       HIS90: Enhet/Post</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string"/>       <xs:element name="ShortNameId" type="xs:string"/>       <xs:element name="Name" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/CareUnit/Id

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element OrganizationType/CareUnit/ShortNameId

diagram
type	xs:string
properties	content  simple
source	<xs:element name="ShortNameId" type="xs:string"/>

element OrganizationType/CareUnit/Name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Name" type="xs:string" minOccurs="0"/>

element OrganizationType/Section

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
annotation	documentation HIS90 Only                Section defines a collection of CareUnits within one MedicalUnit
source	<xs:element name="Section" minOccurs="0">   <xs:annotation>     <xs:documentation>HIS90 Only                Section defines a collection of CareUnits within one MedicalUnit                   </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Text" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/Section/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element OrganizationType/Section/Text

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Text" type="xs:string" minOccurs="0"/>

complexType OrganizationTypeBooking

diagram
children	Id TypeOfId ShortNameId Name
used by	elements  ScheduleByOrgListType/CareUnit AppointmentByOrgListType/CareUnit ScheduleSlotBaseType/CareUnit ResourceTypeBookingExt1/CareUnit ScheduleByOrgListType/MedicalUnit AppointmentByOrgListType/MedicalUnit ResourceTypeBookingExt1/MedicalUnit MoveScheduleSlotsType/OrganzationUnit complexType  OrganizationTypeExtBooking
source	<xs:complexType name="OrganizationTypeBooking">   <xs:sequence>     <xs:element name="Id" type="xs:string">       <xs:annotation>         <xs:documentation>Id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TypeOfId" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ShortNameId" type="xs:string" minOccurs="0"/>     <xs:element name="Name" type="xs:string" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element OrganizationTypeBooking/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Id
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Id</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationTypeBooking/TypeOfId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id
source	<xs:element name="TypeOfId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationTypeBooking/ShortNameId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ShortNameId" type="xs:string" minOccurs="0"/>

element OrganizationTypeBooking/Name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Name" type="xs:string" minOccurs="0"/>

complexType OrganizationTypeExtBooking

diagram
type	extension of OrganizationTypeBooking
properties	base  OrganizationTypeBooking
children	Id TypeOfId ShortNameId Name AdditionalIds
source	<xs:complexType name="OrganizationTypeExtBooking">   <xs:complexContent>     <xs:extension base="OrganizationTypeBooking">       <xs:sequence>         <xs:element name="AdditionalIds" type="AdditionalIdListBooking" minOccurs="0">           <xs:annotation>             <xs:documentation>Additional ids for the organization</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element OrganizationTypeExtBooking/AdditionalIds

diagram
type	AdditionalIdListBooking
properties	minOcc  0 maxOcc  1 content  complex
children	AdditionalId
annotation	documentation Additional ids for the organization
source	<xs:element name="AdditionalIds" type="AdditionalIdListBooking" minOccurs="0">   <xs:annotation>     <xs:documentation>Additional ids for the organization</xs:documentation>   </xs:annotation> </xs:element>

complexType PatientInfoListType

diagram
children	PatientId OfficialId FormattedName BirthDate Dead Sex Municipality PostalAddress Telecom
used by	elements  ResourceAppointmentListType/Patient ScheduleByResourceListType/Patient
annotation	documentation Common Patient info type used in list methods. Please only use data as necessary to avoid big responses.
source	<xs:complexType name="PatientInfoListType">   <xs:annotation>     <xs:documentation>Common Patient info type used in list methods. Please only use data as necessary to avoid big responses.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="PatientId" type="xs:string">       <xs:annotation>         <xs:documentation>Internal patient id for the HIS</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="OfficialId" type="OfficialIdTypeBooking" minOccurs="0">       <xs:annotation>         <xs:documentation>Official id. Can also be an emergency number.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="FormattedName" type="xs:string">       <xs:annotation>         <xs:documentation>The person's names formatted in one string according to national rules.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="BirthDate" type="xs:date" minOccurs="0">       <xs:annotation>         <xs:documentation>Birthdate including century</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Dead" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="DeathDate" type="xs:dateTime"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Sex" minOccurs="0">       <xs:annotation>         <xs:documentation>M = male, K = female, U=Unknown</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="xs:string"/>           <xs:element name="OfficialCode" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>1=Male, 2=Female, 9=Unknown</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="Text" type="xs:string"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Municipality" minOccurs="0">       <xs:annotation>         <xs:documentation>Municipality the patient belongs to. Economic Municipality</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="xs:string"/>           <xs:element name="Name" type="xs:string"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="PostalAddress" minOccurs="0">       <xs:annotation>         <xs:documentation>Postal code/address for the patient.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="xs:string"/>           <xs:element name="Name" type="xs:string"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Telecom" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="MobilePhoneNumber" type="xs:string" minOccurs="0"/>           <xs:element name="MobilePhoneReservation" type="xs:boolean" minOccurs="0">             <xs:annotation>               <xs:documentation>Set to true if the patients has reservations about using his mobilephonenumber</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element PatientInfoListType/PatientId

diagram
type	xs:string
properties	content  simple
annotation	documentation Internal patient id for the HIS
source	<xs:element name="PatientId" type="xs:string">   <xs:annotation>     <xs:documentation>Internal patient id for the HIS</xs:documentation>   </xs:annotation> </xs:element>

element PatientInfoListType/OfficialId

diagram
type	OfficialIdTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	Value TypeOfId FormattedId
annotation	documentation Official id. Can also be an emergency number.
source	<xs:element name="OfficialId" type="OfficialIdTypeBooking" minOccurs="0">   <xs:annotation>     <xs:documentation>Official id. Can also be an emergency number.</xs:documentation>   </xs:annotation> </xs:element>

element PatientInfoListType/FormattedName

diagram
type	xs:string
properties	content  simple
annotation	documentation The person's names formatted in one string according to national rules.
source	<xs:element name="FormattedName" type="xs:string">   <xs:annotation>     <xs:documentation>The person's names formatted in one string according to national rules.</xs:documentation>   </xs:annotation> </xs:element>

element PatientInfoListType/BirthDate

diagram
type	xs:date
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Birthdate including century
source	<xs:element name="BirthDate" type="xs:date" minOccurs="0">   <xs:annotation>     <xs:documentation>Birthdate including century</xs:documentation>   </xs:annotation> </xs:element>

element PatientInfoListType/Dead

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	DeathDate
source	<xs:element name="Dead" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="DeathDate" type="xs:dateTime"/>     </xs:sequence>   </xs:complexType> </xs:element>

element PatientInfoListType/Dead/DeathDate

diagram
type	xs:dateTime
properties	content  simple
source	<xs:element name="DeathDate" type="xs:dateTime"/>

element PatientInfoListType/Sex

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Code OfficialCode Text
annotation	documentation M = male, K = female, U=Unknown
source	<xs:element name="Sex" minOccurs="0">   <xs:annotation>     <xs:documentation>M = male, K = female, U=Unknown</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="OfficialCode" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>1=Male, 2=Female, 9=Unknown</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Text" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element PatientInfoListType/Sex/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element PatientInfoListType/Sex/OfficialCode

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation 1=Male, 2=Female, 9=Unknown
source	<xs:element name="OfficialCode" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>1=Male, 2=Female, 9=Unknown</xs:documentation>   </xs:annotation> </xs:element>

element PatientInfoListType/Sex/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element PatientInfoListType/Municipality

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Code Name
annotation	documentation Municipality the patient belongs to. Economic Municipality
source	<xs:element name="Municipality" minOccurs="0">   <xs:annotation>     <xs:documentation>Municipality the patient belongs to. Economic Municipality</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Name" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element PatientInfoListType/Municipality/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element PatientInfoListType/Municipality/Name

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Name" type="xs:string"/>

element PatientInfoListType/PostalAddress

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Code Name
annotation	documentation Postal code/address for the patient.
source	<xs:element name="PostalAddress" minOccurs="0">   <xs:annotation>     <xs:documentation>Postal code/address for the patient.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Name" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element PatientInfoListType/PostalAddress/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element PatientInfoListType/PostalAddress/Name

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Name" type="xs:string"/>

element PatientInfoListType/Telecom

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	MobilePhoneNumber MobilePhoneReservation
source	<xs:element name="Telecom" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="MobilePhoneNumber" type="xs:string" minOccurs="0"/>       <xs:element name="MobilePhoneReservation" type="xs:boolean" minOccurs="0">         <xs:annotation>           <xs:documentation>Set to true if the patients has reservations about using his mobilephonenumber</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element PatientInfoListType/Telecom/MobilePhoneNumber

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="MobilePhoneNumber" type="xs:string" minOccurs="0"/>

element PatientInfoListType/Telecom/MobilePhoneReservation

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Set to true if the patients has reservations about using his mobilephonenumber
source	<xs:element name="MobilePhoneReservation" type="xs:boolean" minOccurs="0">   <xs:annotation>     <xs:documentation>Set to true if the patients has reservations about using his mobilephonenumber</xs:documentation>   </xs:annotation> </xs:element>

complexType RequesterType

diagram
children	Id Code Name Type
used by	elements  AppointmentDetailType/Requesters/Requester AppointmentListType/Requesters/Requester
source	<xs:complexType name="RequesterType">   <xs:sequence>     <xs:element name="Id" type="xs:string"/>     <xs:element name="Code" type="xs:string" minOccurs="0"/>     <xs:element name="Name" type="xs:string" minOccurs="0"/>     <xs:element name="Type" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Resource type. ie room, doctor</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element RequesterType/Id

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element RequesterType/Code

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Code" type="xs:string" minOccurs="0"/>

element RequesterType/Name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Name" type="xs:string" minOccurs="0"/>

element RequesterType/Type

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Resource type. ie room, doctor
source	<xs:element name="Type" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Resource type. ie room, doctor</xs:documentation>   </xs:annotation> </xs:element>

complexType ResourceAppointmentListType

diagram
children	ScheduleSlotId BookingId WaitingListId WaitingList ContactId Contact BookingStatus VisitType AppointmentStatus AppointmentType AppointmentDescription OpenScheduleSlot OverBookingAllowed ReservedToDate From To Patient Resource SendNotification
used by	element  ListResourceAppointments2GResponse/ResourceAppointments/ResourceAppointment complexType  AppointmentByOrgListType
annotation	documentation XXXX NB Slettes!! Er erstattet av ScheduleByResourceListType
source	<xs:complexType name="ResourceAppointmentListType">   <xs:annotation>     <xs:documentation>XXXX NB Slettes!! Er erstattet av ScheduleByResourceListType</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="ScheduleSlotId" type="xs:string">       <xs:annotation>         <xs:documentation>The internal id for one schedlule/appointment for a resource. </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="BookingId" type="xs:string">       <xs:annotation>         <xs:documentation>The internal id for the booking/appointment/schedule slot.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="WaitingListId" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Waitinglist Id.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="WaitingList" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="Reason" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Reason from waitinglist</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="ContactId" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Contact Id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Contact" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="Status" minOccurs="0">             <xs:annotation>               <xs:documentation>Contact status For TypeOfCare I: AK=Active/Aktiv UT=Discharged/Utskrevet For TypeOfCare P: AK=OutPatient Visit Arrival Registered/Ankomstregistrert UT= OutPatient Visit Finished Registered/Besøksregistrert </xs:documentation>             </xs:annotation>             <xs:complexType>               <xs:complexContent>                 <xs:extension base="CodeTextTypeBooking">                   <xs:sequence>                     <xs:element name="VisitStatus" type="CodeTextTypeBooking" minOccurs="0"/>                   </xs:sequence>                 </xs:extension>               </xs:complexContent>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="BookingStatus">       <xs:annotation>         <xs:documentation>Appointment/Booking status  related to the waiting list HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="xs:string"/>           <xs:element name="Text" type="xs:string"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="VisitType" minOccurs="0">       <xs:annotation>         <xs:documentation>Type of consulting</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="xs:string"/>           <xs:element name="Text" type="xs:string"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="AppointmentStatus" type="AppointmentStatusType">       <xs:annotation>         <xs:documentation>Appointmentstatus If booked, free or blocked. appointment.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="AppointmentType" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Appointment type HIS90:                               Type of an appointment. Valid types are T1-T5 and OB</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="AppointmentDescription" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Appointment reason/description HIS90: PAQREBO.REASON</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="OpenScheduleSlot" type="xs:boolean" minOccurs="0">       <xs:annotation>         <xs:documentation>If the schedule slot is an open schedule slot (user must specify start and endtime) this is TRUE. If FALSE or NULL then the schedule slot is fixed (have fixed/already set start and endtime)</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="OverBookingAllowed" type="xs:int" minOccurs="0">       <xs:annotation>         <xs:documentation>Overbooking if this is allowed. If fixed schedule slot the number of schedule slots available for overbooking. If open schedule slot then number of minutes available for overbooking. If 0(zero) or NULL then no overbooking is allowed.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ReservedToDate" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Date/time when a schedule slot is reserved until and cannot be booked/used in PAS. After this date/time the schedule slot can be booked in PAS. If no date/time or NULL then no reservation date is set. Only valid if AppointmentStatus is FREE</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="From" type="xs:dateTime">       <xs:annotation>         <xs:documentation>Date and time for the start for the appointment</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="To" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Date and time for the end  of the appointment</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Patient" type="PatientInfoListType" minOccurs="0">       <xs:annotation>         <xs:documentation>Patient information</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Resource" type="ResourceTypeBooking" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>Resource collection</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="SendNotification" type="SendNotificationType" minOccurs="0">       <xs:annotation>         <xs:documentation>Sending notfication  to the patient. If not set/null the no notifictaion is sent. Codes are: Y (YES) only patient N (NO) no for both patients and relations R Relations only A All (both aptient and relations)</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element ResourceAppointmentListType/ScheduleSlotId

diagram
type	xs:string
properties	content  simple
annotation	documentation The internal id for one schedlule/appointment for a resource.
source	<xs:element name="ScheduleSlotId" type="xs:string">   <xs:annotation>     <xs:documentation>The internal id for one schedlule/appointment for a resource. </xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentListType/BookingId

diagram
type	xs:string
properties	content  simple
annotation	documentation The internal id for the booking/appointment/schedule slot.
source	<xs:element name="BookingId" type="xs:string">   <xs:annotation>     <xs:documentation>The internal id for the booking/appointment/schedule slot.</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentListType/WaitingListId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Waitinglist Id.
source	<xs:element name="WaitingListId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Waitinglist Id.</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentListType/WaitingList

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Reason
source	<xs:element name="WaitingList" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="Reason" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Reason from waitinglist</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ResourceAppointmentListType/WaitingList/Reason

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Reason from waitinglist
source	<xs:element name="Reason" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Reason from waitinglist</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentListType/ContactId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Contact Id
source	<xs:element name="ContactId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Contact Id</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentListType/Contact

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Status
source	<xs:element name="Contact" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="Status" minOccurs="0">         <xs:annotation>           <xs:documentation>Contact status For TypeOfCare I: AK=Active/Aktiv UT=Discharged/Utskrevet For TypeOfCare P: AK=OutPatient Visit Arrival Registered/Ankomstregistrert UT= OutPatient Visit Finished Registered/Besøksregistrert </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:complexContent>             <xs:extension base="CodeTextTypeBooking">               <xs:sequence>                 <xs:element name="VisitStatus" type="CodeTextTypeBooking" minOccurs="0"/>               </xs:sequence>             </xs:extension>           </xs:complexContent>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ResourceAppointmentListType/Contact/Status

diagram
type	extension of CodeTextTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text VisitStatus
annotation	documentation Contact status For TypeOfCare I: AK=Active/Aktiv UT=Discharged/Utskrevet For TypeOfCare P: AK=OutPatient Visit Arrival Registered/Ankomstregistrert UT= OutPatient Visit Finished Registered/Besøksregistrert
source	<xs:element name="Status" minOccurs="0">   <xs:annotation>     <xs:documentation>Contact status For TypeOfCare I: AK=Active/Aktiv UT=Discharged/Utskrevet For TypeOfCare P: AK=OutPatient Visit Arrival Registered/Ankomstregistrert UT= OutPatient Visit Finished Registered/Besøksregistrert </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="CodeTextTypeBooking">         <xs:sequence>           <xs:element name="VisitStatus" type="CodeTextTypeBooking" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element ResourceAppointmentListType/Contact/Status/VisitStatus

diagram
type	CodeTextTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
source	<xs:element name="VisitStatus" type="CodeTextTypeBooking" minOccurs="0"/>

element ResourceAppointmentListType/BookingStatus

diagram
properties	content  complex
children	Code Text
annotation	documentation Appointment/Booking status  related to the waiting list HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)
source	<xs:element name="BookingStatus">   <xs:annotation>     <xs:documentation>Appointment/Booking status  related to the waiting list HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Text" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ResourceAppointmentListType/BookingStatus/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element ResourceAppointmentListType/BookingStatus/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element ResourceAppointmentListType/VisitType

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
annotation	documentation Type of consulting
source	<xs:element name="VisitType" minOccurs="0">   <xs:annotation>     <xs:documentation>Type of consulting</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Text" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ResourceAppointmentListType/VisitType/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element ResourceAppointmentListType/VisitType/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element ResourceAppointmentListType/AppointmentStatus

diagram
type	AppointmentStatusType
properties	content  simple
facets	Kind  Value  Annotation enumeration  ALL enumeration  BOOKED enumeration  BLOCKED enumeration  FREE enumeration  PAUSE
annotation	documentation Appointmentstatus If booked, free or blocked. appointment.
source	<xs:element name="AppointmentStatus" type="AppointmentStatusType">   <xs:annotation>     <xs:documentation>Appointmentstatus If booked, free or blocked. appointment.</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentListType/AppointmentType

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Appointment type HIS90:                               Type of an appointment. Valid types are T1-T5 and OB
source	<xs:element name="AppointmentType" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Appointment type HIS90:                               Type of an appointment. Valid types are T1-T5 and OB</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentListType/AppointmentDescription

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Appointment reason/description HIS90: PAQREBO.REASON
source	<xs:element name="AppointmentDescription" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Appointment reason/description HIS90: PAQREBO.REASON</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentListType/OpenScheduleSlot

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation If the schedule slot is an open schedule slot (user must specify start and endtime) this is TRUE. If FALSE or NULL then the schedule slot is fixed (have fixed/already set start and endtime)
source	<xs:element name="OpenScheduleSlot" type="xs:boolean" minOccurs="0">   <xs:annotation>     <xs:documentation>If the schedule slot is an open schedule slot (user must specify start and endtime) this is TRUE. If FALSE or NULL then the schedule slot is fixed (have fixed/already set start and endtime)</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentListType/OverBookingAllowed

diagram
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Overbooking if this is allowed. If fixed schedule slot the number of schedule slots available for overbooking. If open schedule slot then number of minutes available for overbooking. If 0(zero) or NULL then no overbooking is allowed.
source	<xs:element name="OverBookingAllowed" type="xs:int" minOccurs="0">   <xs:annotation>     <xs:documentation>Overbooking if this is allowed. If fixed schedule slot the number of schedule slots available for overbooking. If open schedule slot then number of minutes available for overbooking. If 0(zero) or NULL then no overbooking is allowed.</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentListType/ReservedToDate

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date/time when a schedule slot is reserved until and cannot be booked/used in PAS. After this date/time the schedule slot can be booked in PAS. If no date/time or NULL then no reservation date is set. Only valid if AppointmentStatus is FREE
source	<xs:element name="ReservedToDate" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date/time when a schedule slot is reserved until and cannot be booked/used in PAS. After this date/time the schedule slot can be booked in PAS. If no date/time or NULL then no reservation date is set. Only valid if AppointmentStatus is FREE</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentListType/From

diagram
type	xs:dateTime
properties	content  simple
annotation	documentation Date and time for the start for the appointment
source	<xs:element name="From" type="xs:dateTime">   <xs:annotation>     <xs:documentation>Date and time for the start for the appointment</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentListType/To

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the end  of the appointment
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the end  of the appointment</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentListType/Patient

diagram
type	PatientInfoListType
properties	minOcc  0 maxOcc  1 content  complex
children	PatientId OfficialId FormattedName BirthDate Dead Sex Municipality PostalAddress Telecom
annotation	documentation Patient information
source	<xs:element name="Patient" type="PatientInfoListType" minOccurs="0">   <xs:annotation>     <xs:documentation>Patient information</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentListType/Resource

diagram
type	ResourceTypeBooking
properties	minOcc  1 maxOcc  unbounded content  complex
children	ResourceId TypeOfId Code Name Property
annotation	documentation Resource collection
source	<xs:element name="Resource" type="ResourceTypeBooking" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Resource collection</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentListType/SendNotification

diagram
type	SendNotificationType
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text TypeOfNotification
annotation	documentation Sending notfication  to the patient. If not set/null the no notifictaion is sent. Codes are: Y (YES) only patient N (NO) no for both patients and relations R Relations only A All (both aptient and relations)
source	<xs:element name="SendNotification" type="SendNotificationType" minOccurs="0">   <xs:annotation>     <xs:documentation>Sending notfication  to the patient. If not set/null the no notifictaion is sent. Codes are: Y (YES) only patient N (NO) no for both patients and relations R Relations only A All (both aptient and relations)</xs:documentation>   </xs:annotation> </xs:element>

complexType ResourceAppointmentType

diagram
children	ResourceId Id From To Code Name Type MedicalUnit CareUnit
used by	elements  AppointmentDetailType/Resources/Resource AppointmentListType/Resources/Resource
annotation	documentation Type fpr giving reosurce details for an appointement/schedule slot
source	<xs:complexType name="ResourceAppointmentType">   <xs:annotation>     <xs:documentation>Type fpr giving reosurce details for an appointement/schedule slot</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="ResourceId" type="xs:string"/>     <xs:element name="Id" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Internal id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="From" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Date and time for the start for the appointment with this resource</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="To" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Date and time for the end  of the appointment with this resource</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Code" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Code for reaource</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Name" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Resource name</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Type" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Resource type. ie room, doctor</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="MedicalUnit" minOccurs="0">       <xs:annotation>         <xs:documentation>Medicla unit/Department where the resource is placed.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Id" type="xs:string"/>           <xs:element name="ShortNameId" type="xs:string"/>           <xs:element name="Name" type="xs:string" minOccurs="0"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="CareUnit" minOccurs="0">       <xs:annotation>         <xs:documentation>Care unit where the resource is placed.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Id" type="xs:string"/>           <xs:element name="ShortNameId" type="xs:string"/>           <xs:element name="Name" type="xs:string" minOccurs="0"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element ResourceAppointmentType/ResourceId

diagram
type	xs:string
properties	content  simple
source	<xs:element name="ResourceId" type="xs:string"/>

element ResourceAppointmentType/Id

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Internal id
source	<xs:element name="Id" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Internal id</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentType/From

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the start for the appointment with this resource
source	<xs:element name="From" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the start for the appointment with this resource</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentType/To

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the end  of the appointment with this resource
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the end  of the appointment with this resource</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentType/Code

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Code for reaource
source	<xs:element name="Code" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Code for reaource</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentType/Name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Resource name
source	<xs:element name="Name" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Resource name</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentType/Type

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Resource type. ie room, doctor
source	<xs:element name="Type" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Resource type. ie room, doctor</xs:documentation>   </xs:annotation> </xs:element>

element ResourceAppointmentType/MedicalUnit

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Id ShortNameId Name
annotation	documentation Medicla unit/Department where the resource is placed.
source	<xs:element name="MedicalUnit" minOccurs="0">   <xs:annotation>     <xs:documentation>Medicla unit/Department where the resource is placed.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string"/>       <xs:element name="ShortNameId" type="xs:string"/>       <xs:element name="Name" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ResourceAppointmentType/MedicalUnit/Id

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element ResourceAppointmentType/MedicalUnit/ShortNameId

diagram
type	xs:string
properties	content  simple
source	<xs:element name="ShortNameId" type="xs:string"/>

element ResourceAppointmentType/MedicalUnit/Name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Name" type="xs:string" minOccurs="0"/>

element ResourceAppointmentType/CareUnit

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Id ShortNameId Name
annotation	documentation Care unit where the resource is placed.
source	<xs:element name="CareUnit" minOccurs="0">   <xs:annotation>     <xs:documentation>Care unit where the resource is placed.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string"/>       <xs:element name="ShortNameId" type="xs:string"/>       <xs:element name="Name" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ResourceAppointmentType/CareUnit/Id

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element ResourceAppointmentType/CareUnit/ShortNameId

diagram
type	xs:string
properties	content  simple
source	<xs:element name="ShortNameId" type="xs:string"/>

element ResourceAppointmentType/CareUnit/Name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Name" type="xs:string" minOccurs="0"/>

complexType ResourceTypeBooking

diagram
children	ResourceId TypeOfId Code Name Property
used by	elements  ResourceAppointmentListType/Resource ScheduleByResourceListType/Resource MoveScheduleSlotsType/Resource MoveScheduleSlotsType/ToNewResource complexType  ResourceTypeBookingExt1
source	<xs:complexType name="ResourceTypeBooking">   <xs:sequence>     <xs:element name="ResourceId" type="xs:string">       <xs:annotation>         <xs:documentation>Internal Id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TypeOfId" type="xs:string">       <xs:annotation>         <xs:documentation>Type of Id For internal id set to LRC</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Code" type="xs:string" minOccurs="0"/>     <xs:element name="Name" type="xs:string" minOccurs="0"/>     <xs:element name="Property" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Resource type</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element ResourceTypeBooking/ResourceId

diagram
type	xs:string
properties	content  simple
annotation	documentation Internal Id
source	<xs:element name="ResourceId" type="xs:string">   <xs:annotation>     <xs:documentation>Internal Id</xs:documentation>   </xs:annotation> </xs:element>

element ResourceTypeBooking/TypeOfId

diagram
type	xs:string
properties	content  simple
annotation	documentation Type of Id For internal id set to LRC
source	<xs:element name="TypeOfId" type="xs:string">   <xs:annotation>     <xs:documentation>Type of Id For internal id set to LRC</xs:documentation>   </xs:annotation> </xs:element>

element ResourceTypeBooking/Code

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Code" type="xs:string" minOccurs="0"/>

element ResourceTypeBooking/Name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Name" type="xs:string" minOccurs="0"/>

element ResourceTypeBooking/Property

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Resource type
source	<xs:element name="Property" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Resource type</xs:documentation>   </xs:annotation> </xs:element>

complexType ResourceTypeBookingExt1

diagram
type	extension of ResourceTypeBooking
properties	base  ResourceTypeBooking
children	ResourceId TypeOfId Code Name Property MedicalUnit CareUnit
used by	element  ScheduleSlotBaseType/Resource
source	<xs:complexType name="ResourceTypeBookingExt1">   <xs:complexContent>     <xs:extension base="ResourceTypeBooking">       <xs:sequence>         <xs:element name="MedicalUnit" type="OrganizationTypeBooking" minOccurs="0">           <xs:annotation>             <xs:documentation>Medicla unit/Department where the resource is placed.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="CareUnit" type="OrganizationTypeBooking" minOccurs="0">           <xs:annotation>             <xs:documentation>Care unit where the resource is placed.</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element ResourceTypeBookingExt1/MedicalUnit

diagram
type	OrganizationTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name
annotation	documentation Medicla unit/Department where the resource is placed.
source	<xs:element name="MedicalUnit" type="OrganizationTypeBooking" minOccurs="0">   <xs:annotation>     <xs:documentation>Medicla unit/Department where the resource is placed.</xs:documentation>   </xs:annotation> </xs:element>

element ResourceTypeBookingExt1/CareUnit

diagram
type	OrganizationTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name
annotation	documentation Care unit where the resource is placed.
source	<xs:element name="CareUnit" type="OrganizationTypeBooking" minOccurs="0">   <xs:annotation>     <xs:documentation>Care unit where the resource is placed.</xs:documentation>   </xs:annotation> </xs:element>

complexType ScheduleByOrgListType

diagram
type	extension of ScheduleByResourceListType
properties	base  ScheduleByResourceListType
children	ScheduleSlotId BookingId CarePeriod WaitingList Contact ScheduleSlotStatus ScheduleSlotType ScheduleSlotDescription OpenScheduleSlot OverBookingAllowed ReservedToDate From To Patient Resource BookingText SendNotification MedicalUnit CareUnit
used by	elements  ListScheduleByResourcesResponse/ResourcesSchedules/ResourcesSchedule ListScheduleByOrgResponse/ScheduleByOrgs/ScheduleByOrg
annotation	documentation Type used for schedule slot related to an organisation. E.g.ListScheduleSlotByOrgResponse
source	<xs:complexType name="ScheduleByOrgListType">   <xs:annotation>     <xs:documentation>Type used for schedule slot related to an organisation. E.g.ListScheduleSlotByOrgResponse</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="ScheduleByResourceListType">       <xs:sequence>         <xs:element name="MedicalUnit" type="OrganizationTypeBooking" minOccurs="0">           <xs:annotation>             <xs:documentation>Department/Medical Speciality                       HIS90: Avdeling</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="CareUnit" type="OrganizationTypeBooking">           <xs:annotation>             <xs:documentation>Unit where the care takes place.                       HIS90: Enhet/Post</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element ScheduleByOrgListType/MedicalUnit

diagram
type	OrganizationTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name
annotation	documentation Department/Medical Speciality                       HIS90: Avdeling
source	<xs:element name="MedicalUnit" type="OrganizationTypeBooking" minOccurs="0">   <xs:annotation>     <xs:documentation>Department/Medical Speciality                       HIS90: Avdeling</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByOrgListType/CareUnit

diagram
type	OrganizationTypeBooking
properties	content  complex
children	Id TypeOfId ShortNameId Name
annotation	documentation Unit where the care takes place.                       HIS90: Enhet/Post
source	<xs:element name="CareUnit" type="OrganizationTypeBooking">   <xs:annotation>     <xs:documentation>Unit where the care takes place.                       HIS90: Enhet/Post</xs:documentation>   </xs:annotation> </xs:element>

complexType ScheduleByResourceListType

diagram
children	ScheduleSlotId BookingId CarePeriod WaitingList Contact ScheduleSlotStatus ScheduleSlotType ScheduleSlotDescription OpenScheduleSlot OverBookingAllowed ReservedToDate From To Patient Resource BookingText SendNotification
used by	element  ListScheduleByResourceResponse/ResourceSchedules/ResourceSchedule complexType  ScheduleByOrgListType
annotation	documentation Type for listing schedule slots for a resource
source	<xs:complexType name="ScheduleByResourceListType">   <xs:annotation>     <xs:documentation>Type for listing schedule slots for a resource </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="ScheduleSlotId" type="xs:string">       <xs:annotation>         <xs:documentation>The internal id for one schedule slot/appointment for a resource. </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="BookingId" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>The internal id for the booking.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="CarePeriod" type="CarePeriodTypeBooking" minOccurs="0"/>     <xs:element name="WaitingList" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="WaitingListId" type="xs:string">             <xs:annotation>               <xs:documentation>Waitinglist Id.</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="Reason" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Reason from waitinglist</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="Status" type="CodeTextTypeBooking">             <xs:annotation>               <xs:documentation>Waiting list/Booking status  related to the waiting list HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="VisitType" type="CodeTextTypeBooking" minOccurs="0">             <xs:annotation>               <xs:documentation>Type of consulting</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="ClinicalArea" type="CodeTextTypeBooking" minOccurs="0">             <xs:annotation>               <xs:documentation>Clinical area. If not set on waiting list level then use clinical area from care period. HIS90: Fagområde</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="InDiagnosis" type="DiagnosisTypeBooking" minOccurs="0">             <xs:annotation>               <xs:documentation>In diagnosis using code from medical register, i.e. ICD10</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Contact" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="ContactId" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Contact Id</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="Status" minOccurs="0">             <xs:annotation>               <xs:documentation>Contact status For TypeOfCare I: AK=Active/Aktiv UT=Discharged/Utskrevet For TypeOfCare P: AK=OutPatient Visit Arrival Registered/Ankomstregistrert UT= OutPatient Visit Finished Registered/Besøksregistrert </xs:documentation>             </xs:annotation>             <xs:complexType>               <xs:complexContent>                 <xs:extension base="CodeTextTypeBooking">                   <xs:sequence>                     <xs:element name="VisitStatus" type="CodeTextTypeBooking" minOccurs="0"/>                   </xs:sequence>                 </xs:extension>               </xs:complexContent>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="ScheduleSlotStatus" type="ScheduleSlotStatusType">       <xs:annotation>         <xs:documentation>Schdeule slot/Appointment status If booked, free or blocked. schedule slot/appointment.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ScheduleSlotType" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Schedule slot type HIS90:                               Type of an Schedule slot/appointment. Valid types are T1-T5 and OB</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ScheduleSlotDescription" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Schedule slot/Appointment reason/description HIS90: PAQREBO.REASON</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="OpenScheduleSlot" type="xs:boolean" minOccurs="0">       <xs:annotation>         <xs:documentation>If the schedule slot is an open schedule slot (user must specify start and endtime) this is TRUE. If FALSE or NULL then the schedule slot is fixed (have fixed/already set start and endtime)</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="OverBookingAllowed" type="xs:int" minOccurs="0">       <xs:annotation>         <xs:documentation>Overbooking if this is allowed. If fixed schedule slot the number of schedule slots available for overbooking. If open schedule slot then number of minutes available for overbooking. If 0(zero) or NULL then no overbooking is allowed.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ReservedToDate" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Date/time when a schedule slot is reserved until and cannot be booked/used in PAS. After this date/time the schedule slot can be booked in PAS. If no date/time or NULL then no reservation date is set. Only valid if AppointmentStatus is FREE</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="From" type="xs:dateTime">       <xs:annotation>         <xs:documentation>Date and time for the start for the schedule slot/appointment</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="To" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Date and time for the end  of the schedule slot/appointment</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Patient" type="PatientInfoListType" minOccurs="0">       <xs:annotation>         <xs:documentation>Patient information</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Resource" type="ResourceTypeBooking" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>Resource collection</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="BookingText" minOccurs="0" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>Free text used in referrall/waitinglist/booking</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Text" type="xs:string">             <xs:annotation>               <xs:documentation>The Text</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="TypeOfText" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Coded description of the text type. For valid codes see documentation.</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="SendNotification" type="SendNotificationType" minOccurs="0">       <xs:annotation>         <xs:documentation>Sending notfication  to the patient. If not set/null the no notifictaion is sent. Codes are: Y (YES) only patient N (NO) no for both patients and relations R Relations only A All (both aptient and relations)</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element ScheduleByResourceListType/ScheduleSlotId

diagram
type	xs:string
properties	content  simple
annotation	documentation The internal id for one schedule slot/appointment for a resource.
source	<xs:element name="ScheduleSlotId" type="xs:string">   <xs:annotation>     <xs:documentation>The internal id for one schedule slot/appointment for a resource. </xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/BookingId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation The internal id for the booking.
source	<xs:element name="BookingId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>The internal id for the booking.</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/CarePeriod

diagram
type	CarePeriodTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	CarePeriodId ClinicalArea InDiagnosis
source	<xs:element name="CarePeriod" type="CarePeriodTypeBooking" minOccurs="0"/>

element ScheduleByResourceListType/WaitingList

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	WaitingListId Reason Status VisitType ClinicalArea InDiagnosis
source	<xs:element name="WaitingList" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="WaitingListId" type="xs:string">         <xs:annotation>           <xs:documentation>Waitinglist Id.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Reason" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Reason from waitinglist</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Status" type="CodeTextTypeBooking">         <xs:annotation>           <xs:documentation>Waiting list/Booking status  related to the waiting list HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="VisitType" type="CodeTextTypeBooking" minOccurs="0">         <xs:annotation>           <xs:documentation>Type of consulting</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ClinicalArea" type="CodeTextTypeBooking" minOccurs="0">         <xs:annotation>           <xs:documentation>Clinical area. If not set on waiting list level then use clinical area from care period. HIS90: Fagområde</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="InDiagnosis" type="DiagnosisTypeBooking" minOccurs="0">         <xs:annotation>           <xs:documentation>In diagnosis using code from medical register, i.e. ICD10</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ScheduleByResourceListType/WaitingList/WaitingListId

diagram
type	xs:string
properties	content  simple
annotation	documentation Waitinglist Id.
source	<xs:element name="WaitingListId" type="xs:string">   <xs:annotation>     <xs:documentation>Waitinglist Id.</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/WaitingList/Reason

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Reason from waitinglist
source	<xs:element name="Reason" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Reason from waitinglist</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/WaitingList/Status

diagram
type	CodeTextTypeBooking
properties	content  complex
children	Code Text
annotation	documentation Waiting list/Booking status  related to the waiting list HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)
source	<xs:element name="Status" type="CodeTextTypeBooking">   <xs:annotation>     <xs:documentation>Waiting list/Booking status  related to the waiting list HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/WaitingList/VisitType

diagram
type	CodeTextTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
annotation	documentation Type of consulting
source	<xs:element name="VisitType" type="CodeTextTypeBooking" minOccurs="0">   <xs:annotation>     <xs:documentation>Type of consulting</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/WaitingList/ClinicalArea

diagram
type	CodeTextTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
annotation	documentation Clinical area. If not set on waiting list level then use clinical area from care period. HIS90: Fagområde
source	<xs:element name="ClinicalArea" type="CodeTextTypeBooking" minOccurs="0">   <xs:annotation>     <xs:documentation>Clinical area. If not set on waiting list level then use clinical area from care period. HIS90: Fagområde</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/WaitingList/InDiagnosis

diagram
type	DiagnosisTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	Id Code Text MedRegister
annotation	documentation In diagnosis using code from medical register, i.e. ICD10
source	<xs:element name="InDiagnosis" type="DiagnosisTypeBooking" minOccurs="0">   <xs:annotation>     <xs:documentation>In diagnosis using code from medical register, i.e. ICD10</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/Contact

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ContactId Status
source	<xs:element name="Contact" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="ContactId" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Contact Id</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Status" minOccurs="0">         <xs:annotation>           <xs:documentation>Contact status For TypeOfCare I: AK=Active/Aktiv UT=Discharged/Utskrevet For TypeOfCare P: AK=OutPatient Visit Arrival Registered/Ankomstregistrert UT= OutPatient Visit Finished Registered/Besøksregistrert </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:complexContent>             <xs:extension base="CodeTextTypeBooking">               <xs:sequence>                 <xs:element name="VisitStatus" type="CodeTextTypeBooking" minOccurs="0"/>               </xs:sequence>             </xs:extension>           </xs:complexContent>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ScheduleByResourceListType/Contact/ContactId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Contact Id
source	<xs:element name="ContactId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Contact Id</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/Contact/Status

diagram
type	extension of CodeTextTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text VisitStatus
annotation	documentation Contact status For TypeOfCare I: AK=Active/Aktiv UT=Discharged/Utskrevet For TypeOfCare P: AK=OutPatient Visit Arrival Registered/Ankomstregistrert UT= OutPatient Visit Finished Registered/Besøksregistrert
source	<xs:element name="Status" minOccurs="0">   <xs:annotation>     <xs:documentation>Contact status For TypeOfCare I: AK=Active/Aktiv UT=Discharged/Utskrevet For TypeOfCare P: AK=OutPatient Visit Arrival Registered/Ankomstregistrert UT= OutPatient Visit Finished Registered/Besøksregistrert </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="CodeTextTypeBooking">         <xs:sequence>           <xs:element name="VisitStatus" type="CodeTextTypeBooking" minOccurs="0"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element ScheduleByResourceListType/Contact/Status/VisitStatus

diagram
type	CodeTextTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
source	<xs:element name="VisitStatus" type="CodeTextTypeBooking" minOccurs="0"/>

element ScheduleByResourceListType/ScheduleSlotStatus

diagram
type	ScheduleSlotStatusType
properties	content  simple
facets	Kind  Value  Annotation enumeration  ALL enumeration  BOOKED enumeration  BLOCKED enumeration  FREE enumeration  PAUSE enumeration  FirstEachResource
annotation	documentation Schdeule slot/Appointment status If booked, free or blocked. schedule slot/appointment.
source	<xs:element name="ScheduleSlotStatus" type="ScheduleSlotStatusType">   <xs:annotation>     <xs:documentation>Schdeule slot/Appointment status If booked, free or blocked. schedule slot/appointment.</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/ScheduleSlotType

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Schedule slot type HIS90:                               Type of an Schedule slot/appointment. Valid types are T1-T5 and OB
source	<xs:element name="ScheduleSlotType" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Schedule slot type HIS90:                               Type of an Schedule slot/appointment. Valid types are T1-T5 and OB</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/ScheduleSlotDescription

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Schedule slot/Appointment reason/description HIS90: PAQREBO.REASON
source	<xs:element name="ScheduleSlotDescription" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Schedule slot/Appointment reason/description HIS90: PAQREBO.REASON</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/OpenScheduleSlot

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation If the schedule slot is an open schedule slot (user must specify start and endtime) this is TRUE. If FALSE or NULL then the schedule slot is fixed (have fixed/already set start and endtime)
source	<xs:element name="OpenScheduleSlot" type="xs:boolean" minOccurs="0">   <xs:annotation>     <xs:documentation>If the schedule slot is an open schedule slot (user must specify start and endtime) this is TRUE. If FALSE or NULL then the schedule slot is fixed (have fixed/already set start and endtime)</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/OverBookingAllowed

diagram
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Overbooking if this is allowed. If fixed schedule slot the number of schedule slots available for overbooking. If open schedule slot then number of minutes available for overbooking. If 0(zero) or NULL then no overbooking is allowed.
source	<xs:element name="OverBookingAllowed" type="xs:int" minOccurs="0">   <xs:annotation>     <xs:documentation>Overbooking if this is allowed. If fixed schedule slot the number of schedule slots available for overbooking. If open schedule slot then number of minutes available for overbooking. If 0(zero) or NULL then no overbooking is allowed.</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/ReservedToDate

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date/time when a schedule slot is reserved until and cannot be booked/used in PAS. After this date/time the schedule slot can be booked in PAS. If no date/time or NULL then no reservation date is set. Only valid if AppointmentStatus is FREE
source	<xs:element name="ReservedToDate" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date/time when a schedule slot is reserved until and cannot be booked/used in PAS. After this date/time the schedule slot can be booked in PAS. If no date/time or NULL then no reservation date is set. Only valid if AppointmentStatus is FREE</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/From

diagram
type	xs:dateTime
properties	content  simple
annotation	documentation Date and time for the start for the schedule slot/appointment
source	<xs:element name="From" type="xs:dateTime">   <xs:annotation>     <xs:documentation>Date and time for the start for the schedule slot/appointment</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/To

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the end  of the schedule slot/appointment
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the end  of the schedule slot/appointment</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/Patient

diagram
type	PatientInfoListType
properties	minOcc  0 maxOcc  1 content  complex
children	PatientId OfficialId FormattedName BirthDate Dead Sex Municipality PostalAddress Telecom
annotation	documentation Patient information
source	<xs:element name="Patient" type="PatientInfoListType" minOccurs="0">   <xs:annotation>     <xs:documentation>Patient information</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/Resource

diagram
type	ResourceTypeBooking
properties	minOcc  1 maxOcc  unbounded content  complex
children	ResourceId TypeOfId Code Name Property
annotation	documentation Resource collection
source	<xs:element name="Resource" type="ResourceTypeBooking" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Resource collection</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/BookingText

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	Text TypeOfText
annotation	documentation Free text used in referrall/waitinglist/booking
source	<xs:element name="BookingText" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Free text used in referrall/waitinglist/booking</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Text" type="xs:string">         <xs:annotation>           <xs:documentation>The Text</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfText" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Coded description of the text type. For valid codes see documentation.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ScheduleByResourceListType/BookingText/Text

diagram
type	xs:string
properties	content  simple
annotation	documentation The Text
source	<xs:element name="Text" type="xs:string">   <xs:annotation>     <xs:documentation>The Text</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/BookingText/TypeOfText

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Coded description of the text type. For valid codes see documentation.
source	<xs:element name="TypeOfText" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Coded description of the text type. For valid codes see documentation.</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleByResourceListType/SendNotification

diagram
type	SendNotificationType
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text TypeOfNotification
annotation	documentation Sending notfication  to the patient. If not set/null the no notifictaion is sent. Codes are: Y (YES) only patient N (NO) no for both patients and relations R Relations only A All (both aptient and relations)
source	<xs:element name="SendNotification" type="SendNotificationType" minOccurs="0">   <xs:annotation>     <xs:documentation>Sending notfication  to the patient. If not set/null the no notifictaion is sent. Codes are: Y (YES) only patient N (NO) no for both patients and relations R Relations only A All (both aptient and relations)</xs:documentation>   </xs:annotation> </xs:element>

complexType ScheduleSlotBaseType

diagram
children	ScheduleSlotId NewScheduleSlotId ScheduleSlotSequence WaitingList ScheduleSlotStatus ScheduleSlotType ScheduleSlotDescription OpenScheduleSlot OverBookingAllowed ReservedToDate From To CareUnit Resource Update
used by	element  ScheduleSlotsBaseListType/ScheduleSlot
annotation	documentation Type for get one schedule slot
source	<xs:complexType name="ScheduleSlotBaseType">   <xs:annotation>     <xs:documentation>Type for get one schedule slot</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="ScheduleSlotId" type="xs:string">       <xs:annotation>         <xs:documentation>The internal id for one schedule slot for a resource. For Save rebooking this is the original/old id.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="NewScheduleSlotId" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>The internal id for the new schedule slot. Only used with Save rebooking.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ScheduleSlotSequence" type="xs:int" minOccurs="0">       <xs:annotation>         <xs:documentation>Schedule slot sequence/no. If patient has several schedule slot(appointments) for same waitinglist/treatment this is the sequence for appointments. If 1 then this is the main resource /schedule slot. HIS90: PAQREBO.Resource_no</xs:documentation>         <xs:documentation>Resource sequence/no. If patient has several appointments/bookings this is the sequence for resources the patients shall visit.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="WaitingList" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="WaitingListId" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Waitinglist Id.</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="BookingText" type="TextTypeOfTextTypeBooking" minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:documentation>Free text used in referrall/waitinglist/booking</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="Status" type="CodeTextTypeBooking" minOccurs="0">             <xs:annotation>               <xs:documentation>Waiting list/Booking status  related to the waiting list HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="ScheduleSlotStatus" type="ScheduleSlotStatusType" minOccurs="0">       <xs:annotation>         <xs:documentation>Schedule slot tstatus If booked, free or blocked schedule slot.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ScheduleSlotType" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Schedule slot type HIS90:                               Type of schedule slot. Valid types are T1-T5 and OB</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ScheduleSlotDescription" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Schedule slot/Appointment reason/description If no patient then this is schedule slot description. If slot is allocated to a patient then it is appointments/booking description/reason. HIS90: PAQREBO.REASON</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="OpenScheduleSlot" type="xs:boolean" minOccurs="0">       <xs:annotation>         <xs:documentation>If the schedule slot is an open schedule slot (user must specify start and endtime) this is TRUE. If FALSE or NULL then the schedule slot is fixed (have set start and endtime)</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="OverBookingAllowed" type="xs:int" minOccurs="0">       <xs:annotation>         <xs:documentation>Overbooking if this is allowed. If fixed schedule slot the number of schedule slots available for overbooking. If open schedule slot then number of minutes available for overbooking. If 0(zero) or NULL then no overbooking is allowed.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ReservedToDate" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Date/time when schedule slot is reserved for until and cannot be booked/used in PAS. After this date/time the schedule slot can be booked in PAS. If no date/time or NULL then no reservation date is set. Only valid if ScheduleSlotStatus is FREE</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="From" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Date and time for the start for the schedule slot. HIS90: PAQREBO.RSCH_DATE + PAQREBO.HOUR_MIN</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="To" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Date and time for the end  of the schedule slot. HIS90: PAQREBO.RSCH_DATE + PAQREBO.HOUR_MIN + PAQREBO.DURATION</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="CareUnit" type="OrganizationTypeBooking" minOccurs="0">       <xs:annotation>         <xs:documentation>Unit where the care takes place. HIS90: Enhet/Post</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Resource" type="ResourceTypeBookingExt1">       <xs:annotation>         <xs:documentation>Resource collection</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Update" minOccurs="0">       <xs:annotation>         <xs:documentation>Information about update or modification of waitinglist</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:complexContent>           <xs:extension base="InsertedChangedByType">             <xs:sequence>               <xs:element name="UpdateCount" type="xs:int" minOccurs="0">                 <xs:annotation>                   <xs:documentation>Count used for concurrency testing when waiting list is updated.</xs:documentation>                 </xs:annotation>               </xs:element>             </xs:sequence>           </xs:extension>         </xs:complexContent>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element ScheduleSlotBaseType/ScheduleSlotId

diagram
type	xs:string
properties	content  simple
annotation	documentation The internal id for one schedule slot for a resource. For Save rebooking this is the original/old id.
source	<xs:element name="ScheduleSlotId" type="xs:string">   <xs:annotation>     <xs:documentation>The internal id for one schedule slot for a resource. For Save rebooking this is the original/old id.</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleSlotBaseType/NewScheduleSlotId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation The internal id for the new schedule slot. Only used with Save rebooking.
source	<xs:element name="NewScheduleSlotId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>The internal id for the new schedule slot. Only used with Save rebooking.</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleSlotBaseType/ScheduleSlotSequence

diagram
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Schedule slot sequence/no. If patient has several schedule slot(appointments) for same waitinglist/treatment this is the sequence for appointments. If 1 then this is the main resource /schedule slot. HIS90: PAQREBO.Resource_no documentation Resource sequence/no. If patient has several appointments/bookings this is the sequence for resources the patients shall visit.
source	<xs:element name="ScheduleSlotSequence" type="xs:int" minOccurs="0">   <xs:annotation>     <xs:documentation>Schedule slot sequence/no. If patient has several schedule slot(appointments) for same waitinglist/treatment this is the sequence for appointments. If 1 then this is the main resource /schedule slot. HIS90: PAQREBO.Resource_no</xs:documentation>     <xs:documentation>Resource sequence/no. If patient has several appointments/bookings this is the sequence for resources the patients shall visit.</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleSlotBaseType/WaitingList

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	WaitingListId BookingText Status
source	<xs:element name="WaitingList" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="WaitingListId" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Waitinglist Id.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="BookingText" type="TextTypeOfTextTypeBooking" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Free text used in referrall/waitinglist/booking</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Status" type="CodeTextTypeBooking" minOccurs="0">         <xs:annotation>           <xs:documentation>Waiting list/Booking status  related to the waiting list HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ScheduleSlotBaseType/WaitingList/WaitingListId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Waitinglist Id.
source	<xs:element name="WaitingListId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Waitinglist Id.</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleSlotBaseType/WaitingList/BookingText

diagram
type	TextTypeOfTextTypeBooking
properties	minOcc  0 maxOcc  unbounded content  complex
children	Text TypeOfText
annotation	documentation Free text used in referrall/waitinglist/booking
source	<xs:element name="BookingText" type="TextTypeOfTextTypeBooking" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Free text used in referrall/waitinglist/booking</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleSlotBaseType/WaitingList/Status

diagram
type	CodeTextTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
annotation	documentation Waiting list/Booking status  related to the waiting list HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)
source	<xs:element name="Status" type="CodeTextTypeBooking" minOccurs="0">   <xs:annotation>     <xs:documentation>Waiting list/Booking status  related to the waiting list HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleSlotBaseType/ScheduleSlotStatus

diagram
type	ScheduleSlotStatusType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  ALL enumeration  BOOKED enumeration  BLOCKED enumeration  FREE enumeration  PAUSE enumeration  FirstEachResource
annotation	documentation Schedule slot tstatus If booked, free or blocked schedule slot.
source	<xs:element name="ScheduleSlotStatus" type="ScheduleSlotStatusType" minOccurs="0">   <xs:annotation>     <xs:documentation>Schedule slot tstatus If booked, free or blocked schedule slot.</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleSlotBaseType/ScheduleSlotType

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Schedule slot type HIS90:                               Type of schedule slot. Valid types are T1-T5 and OB
source	<xs:element name="ScheduleSlotType" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Schedule slot type HIS90:                               Type of schedule slot. Valid types are T1-T5 and OB</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleSlotBaseType/ScheduleSlotDescription

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Schedule slot/Appointment reason/description If no patient then this is schedule slot description. If slot is allocated to a patient then it is appointments/booking description/reason. HIS90: PAQREBO.REASON
source	<xs:element name="ScheduleSlotDescription" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Schedule slot/Appointment reason/description If no patient then this is schedule slot description. If slot is allocated to a patient then it is appointments/booking description/reason. HIS90: PAQREBO.REASON</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleSlotBaseType/OpenScheduleSlot

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation If the schedule slot is an open schedule slot (user must specify start and endtime) this is TRUE. If FALSE or NULL then the schedule slot is fixed (have set start and endtime)
source	<xs:element name="OpenScheduleSlot" type="xs:boolean" minOccurs="0">   <xs:annotation>     <xs:documentation>If the schedule slot is an open schedule slot (user must specify start and endtime) this is TRUE. If FALSE or NULL then the schedule slot is fixed (have set start and endtime)</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleSlotBaseType/OverBookingAllowed

diagram
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Overbooking if this is allowed. If fixed schedule slot the number of schedule slots available for overbooking. If open schedule slot then number of minutes available for overbooking. If 0(zero) or NULL then no overbooking is allowed.
source	<xs:element name="OverBookingAllowed" type="xs:int" minOccurs="0">   <xs:annotation>     <xs:documentation>Overbooking if this is allowed. If fixed schedule slot the number of schedule slots available for overbooking. If open schedule slot then number of minutes available for overbooking. If 0(zero) or NULL then no overbooking is allowed.</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleSlotBaseType/ReservedToDate

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date/time when schedule slot is reserved for until and cannot be booked/used in PAS. After this date/time the schedule slot can be booked in PAS. If no date/time or NULL then no reservation date is set. Only valid if ScheduleSlotStatus is FREE
source	<xs:element name="ReservedToDate" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date/time when schedule slot is reserved for until and cannot be booked/used in PAS. After this date/time the schedule slot can be booked in PAS. If no date/time or NULL then no reservation date is set. Only valid if ScheduleSlotStatus is FREE</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleSlotBaseType/From

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the start for the schedule slot. HIS90: PAQREBO.RSCH_DATE + PAQREBO.HOUR_MIN
source	<xs:element name="From" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the start for the schedule slot. HIS90: PAQREBO.RSCH_DATE + PAQREBO.HOUR_MIN</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleSlotBaseType/To

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the end  of the schedule slot. HIS90: PAQREBO.RSCH_DATE + PAQREBO.HOUR_MIN + PAQREBO.DURATION
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the end  of the schedule slot. HIS90: PAQREBO.RSCH_DATE + PAQREBO.HOUR_MIN + PAQREBO.DURATION</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleSlotBaseType/CareUnit

diagram
type	OrganizationTypeBooking
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name
annotation	documentation Unit where the care takes place. HIS90: Enhet/Post
source	<xs:element name="CareUnit" type="OrganizationTypeBooking" minOccurs="0">   <xs:annotation>     <xs:documentation>Unit where the care takes place. HIS90: Enhet/Post</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleSlotBaseType/Resource

diagram
type	ResourceTypeBookingExt1
properties	content  complex
children	ResourceId TypeOfId Code Name Property MedicalUnit CareUnit
annotation	documentation Resource collection
source	<xs:element name="Resource" type="ResourceTypeBookingExt1">   <xs:annotation>     <xs:documentation>Resource collection</xs:documentation>   </xs:annotation> </xs:element>

element ScheduleSlotBaseType/Update

diagram
type	extension of InsertedChangedByType
properties	minOcc  0 maxOcc  1 content  complex
children	Date Name Organization SignedBy UpdateCount
annotation	documentation Information about update or modification of waitinglist
source	<xs:element name="Update" minOccurs="0">   <xs:annotation>     <xs:documentation>Information about update or modification of waitinglist</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="InsertedChangedByType">         <xs:sequence>           <xs:element name="UpdateCount" type="xs:int" minOccurs="0">             <xs:annotation>               <xs:documentation>Count used for concurrency testing when waiting list is updated.</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element ScheduleSlotBaseType/Update/UpdateCount

diagram
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Count used for concurrency testing when waiting list is updated.
source	<xs:element name="UpdateCount" type="xs:int" minOccurs="0">   <xs:annotation>     <xs:documentation>Count used for concurrency testing when waiting list is updated.</xs:documentation>   </xs:annotation> </xs:element>

complexType ScheduleSlotsBaseListType

diagram
children	ScheduleSlot
used by	elements  ListScheduleSlotsResponse/ScheduleSlots SaveScheduleSlotRequest/ScheduleSlots SaveScheduleSlotResponse/ScheduleSlots
annotation	documentation Type for list/array of several ScheduleSlotBaseType
source	<xs:complexType name="ScheduleSlotsBaseListType">   <xs:annotation>     <xs:documentation>Type for list/array of several ScheduleSlotBaseType</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="ScheduleSlot" type="ScheduleSlotBaseType" maxOccurs="unbounded"/>   </xs:sequence> </xs:complexType>

element ScheduleSlotsBaseListType/ScheduleSlot

diagram
type	ScheduleSlotBaseType
properties	minOcc  1 maxOcc  unbounded content  complex
children	ScheduleSlotId NewScheduleSlotId ScheduleSlotSequence WaitingList ScheduleSlotStatus ScheduleSlotType ScheduleSlotDescription OpenScheduleSlot OverBookingAllowed ReservedToDate From To CareUnit Resource Update
source	<xs:element name="ScheduleSlot" type="ScheduleSlotBaseType" maxOccurs="unbounded"/>

complexType SendNotificationType

diagram
type	extension of CodeTextTypeBooking
properties	base  CodeTextTypeBooking
children	Code Text TypeOfNotification
used by	elements  ResourceAppointmentListType/SendNotification ScheduleByResourceListType/SendNotification
annotation	documentation Sending notfication to the patient. If not set/null the no notifictaion is sent. Codes are: Y (YES) only patient N (NO) no for both patients and relations R Relations only A All (both aptient and relations)
source	<xs:complexType name="SendNotificationType">   <xs:annotation>     <xs:documentation>Sending notfication to the patient. If not set/null the no notifictaion is sent. Codes are: Y (YES) only patient N (NO) no for both patients and relations R Relations only A All (both aptient and relations)</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="CodeTextTypeBooking">       <xs:sequence>         <xs:element name="TypeOfNotification" type="NotificationType">           <xs:annotation>             <xs:documentation>Type of notification to send. Valid values are: - SMS - Letter - EMail</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element SendNotificationType/TypeOfNotification

diagram
type	NotificationType
properties	content  simple
facets	Kind  Value  Annotation enumeration  NotSet enumeration  SMS enumeration  Letter enumeration  EMail
annotation	documentation Type of notification to send. Valid values are: - SMS - Letter - EMail
source	<xs:element name="TypeOfNotification" type="NotificationType">   <xs:annotation>     <xs:documentation>Type of notification to send. Valid values are: - SMS - Letter - EMail</xs:documentation>   </xs:annotation> </xs:element>

complexType TextTypeOfTextTypeBooking

diagram
children	Text TypeOfText
used by	element  ScheduleSlotBaseType/WaitingList/BookingText
annotation	documentation Type for Text and TypeOfText(with text as optional)
source	<xs:complexType name="TextTypeOfTextTypeBooking">   <xs:annotation>     <xs:documentation>Type for Text and TypeOfText(with text as optional)</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Text" type="xs:string">       <xs:annotation>         <xs:documentation>The Text</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TypeOfText" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Coded description of the text type. For valid codes see documentation. HIS90: TXT1 and TXT2</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element TextTypeOfTextTypeBooking/Text

diagram
type	xs:string
properties	content  simple
annotation	documentation The Text
source	<xs:element name="Text" type="xs:string">   <xs:annotation>     <xs:documentation>The Text</xs:documentation>   </xs:annotation> </xs:element>

element TextTypeOfTextTypeBooking/TypeOfText

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Coded description of the text type. For valid codes see documentation. HIS90: TXT1 and TXT2
source	<xs:element name="TypeOfText" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Coded description of the text type. For valid codes see documentation. HIS90: TXT1 and TXT2</xs:documentation>   </xs:annotation> </xs:element>

complexType ValidDatesBooking

diagram
children	From To
used by	element  ListScheduleByResourcesRequest/SchedulesByResources/SchedulesByResource/Dates
source	<xs:complexType name="ValidDatesBooking">   <xs:sequence>     <xs:element name="From" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Date and time for the start </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="To" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Date and time for the end  </xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element ValidDatesBooking/From

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the start
source	<xs:element name="From" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the start </xs:documentation>   </xs:annotation> </xs:element>

element ValidDatesBooking/To

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the end
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the end  </xs:documentation>   </xs:annotation> </xs:element>

simpleType AppointmentStatusType

type	restriction of xs:string
properties	base  xs:string
used by	elements  ResourceAppointmentListType/AppointmentStatus ListResourceAppointments2GRequest/AppointmentStatusFilter ListAppointmentsByOrgRequest/AppointmentStatusFilter
facets	Kind  Value  Annotation enumeration  ALL enumeration  BOOKED enumeration  BLOCKED enumeration  FREE enumeration  PAUSE
annotation	documentation XXXX Deleted !! - Apppintmentstatus if appointment is booked, blocked or free
source	<xs:simpleType name="AppointmentStatusType">   <xs:annotation>     <xs:documentation>XXXX Deleted !! - Apppintmentstatus if appointment is booked, blocked or free</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:enumeration value="ALL"/>     <xs:enumeration value="BOOKED"/>     <xs:enumeration value="BLOCKED"/>     <xs:enumeration value="FREE"/>     <xs:enumeration value="PAUSE"/>   </xs:restriction> </xs:simpleType>

simpleType NotificationType

type	restriction of xs:string
properties	base  xs:string
used by	element  SendNotificationType/TypeOfNotification
facets	Kind  Value  Annotation enumeration  NotSet enumeration  SMS enumeration  Letter enumeration  EMail
source	<xs:simpleType name="NotificationType">   <xs:restriction base="xs:string">     <xs:enumeration value="NotSet"/>     <xs:enumeration value="SMS"/>     <xs:enumeration value="Letter"/>     <xs:enumeration value="EMail"/>   </xs:restriction> </xs:simpleType>

simpleType ScheduleSlotStatusType

type	restriction of xs:string
properties	base  xs:string
used by	elements  ScheduleByResourceListType/ScheduleSlotStatus ScheduleSlotBaseType/ScheduleSlotStatus ListScheduleByResourceRequest/ScheduleSlotStatusFilter ListScheduleByOrgRequest/ScheduleSlotStatusFilter ListScheduleByResourcesRequest/SchedulesByResources/SchedulesByResource/ScheduleSlotStatusFilter
facets	Kind  Value  Annotation enumeration  ALL enumeration  BOOKED enumeration  BLOCKED enumeration  FREE enumeration  PAUSE enumeration  FirstEachResource
annotation	documentation Schdeule slot status, if slot is booked, blocked, pause or free
source	<xs:simpleType name="ScheduleSlotStatusType">   <xs:annotation>     <xs:documentation>Schdeule slot status, if slot is booked, blocked, pause or free</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:enumeration value="ALL"/>     <xs:enumeration value="BOOKED"/>     <xs:enumeration value="BLOCKED"/>     <xs:enumeration value="FREE"/>     <xs:enumeration value="PAUSE"/>     <xs:enumeration value="FirstEachResource"/>   </xs:restriction> </xs:simpleType>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
