Schema ContactProcedures.xsd

schema location:	..\..\ContactProcedures.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified

Elements	Complex types	Simple types
ContactProcedures	ProcedureType	PrintGiroType

schema location:	..\..\Include\ContactTypes.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified

Complex types

AdmMedRemarkType

ContactDetailCareType

ContactDetailMedType

ContactDetailType

ContactType

ContactTypeDetails

ContactTypeLatest

DiagnosisType

ProcedureCodeType

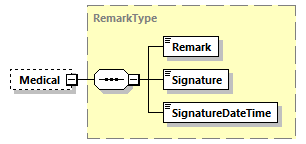

RemarkType

schema location:	..\..\Include\CommonBasicTypes.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified

Complex types

CodeNameType

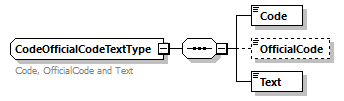

CodeOfficialCodeTextType

CodeTextType

IdCodeNameType

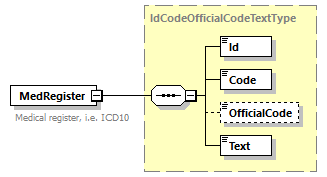

IdCodeOfficialCodeTextType

IdCodeShortAndLongTextType

IdCodeTextType

IdCodeType

IdNameType

IdShortAndLongTextType

IdTextType

LastChangedType

MedCodeType

ShortAndLongTextType

UserType

schema location:	..\..\Include\OrgBasicTypes.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified

Complex types

ExternalOrganizationType

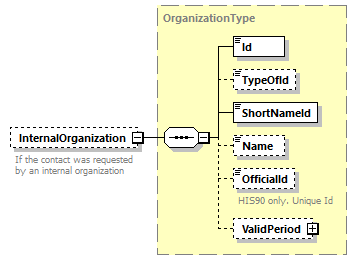

OrganizationType

OrganizationType2

ResourceType

ValidPeriodTypeOrgs

element ContactProcedures

diagram
properties	content  complex
children	PatientId ContactId MedicalResponsible MedicalRegistrationFinished ContactActivities PatientDocuments DoNotCreateEvent
annotation	documentation Procedures, like NCSP (NOMESKO Classification of Surgical Procedures), for a given contact
source	<xs:element name="ContactProcedures">   <xs:annotation>     <xs:documentation>Procedures, like NCSP (NOMESKO Classification of Surgical Procedures), for a given contact</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="PatientId" type="xs:int">         <xs:annotation>           <xs:documentation>Internal PatientId</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ContactId" type="xs:string">         <xs:annotation>           <xs:documentation>Internal ContactId</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="MedicalResponsible" type="ResourceType" minOccurs="0">         <xs:annotation>           <xs:documentation>Resource who is responsible for the diagnosis.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="MedicalRegistrationFinished" type="xs:boolean" minOccurs="0">         <xs:annotation>           <xs:documentation>Indicates whether the medical registration is finished or not. If true, the diagnosis are locked and cannot be modified.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ContactActivities">         <xs:annotation>           <xs:documentation>Part of contact that the procedure is linked to, ie. an Operation.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="ContactActivity" maxOccurs="unbounded">               <xs:complexType>                 <xs:sequence>                   <xs:element name="Id" type="xs:int">                     <xs:annotation>                       <xs:documentation>Internal ContactActivityId</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="Type" type="CodeTextType">                     <xs:annotation>                       <xs:documentation>Type of contact activity, ie Operation.</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="From" type="xs:dateTime">                     <xs:annotation>                       <xs:documentation>Date and time for the start of the contact activity.</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="To" type="xs:dateTime" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Date and time for the end of the contact activity.</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="Emergency" type="xs:boolean">                     <xs:annotation>                       <xs:documentation>True if the contact activitiy is  registered as an emergency activity.</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="MedicalOrganization" type="OrganizationType">                     <xs:annotation>                       <xs:documentation>The medical organization responsible for the contact activity</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="CareOrganization" type="OrganizationType">                     <xs:annotation>                       <xs:documentation>The carel organization wher the contact activity took place.</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="Procedures" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Procedure codes.</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="Procedure" type="ProcedureType" maxOccurs="unbounded"/>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="PatientDocuments" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="Giro" minOccurs="0">               <xs:complexType>                 <xs:sequence>                   <xs:element name="PrintGiroToPatient" type="PrintGiroType" minOccurs="0">                     <xs:annotation>                       <xs:documentation>If giro should be printed. In request set if system/database should print giro. In respoense set if client/application should print giro</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="PrinterAddress" type="xs:string" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Address to printer, either code, DNS of IP address.</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="DoNotCreateEvent" type="xs:boolean" minOccurs="0">         <xs:annotation>           <xs:documentation>Flag only used in Save for if event of changes in procedures should trigger/write an event or not to PAS systems event handling. If flag is not set or omitted then an event is triggered in WS or database. Setting the flag disables event handling in WS/database, and leaves this to the application if needed. Only used by HIS90 PAS</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactProcedures/PatientId

diagram
type	xs:int
properties	content  simple
annotation	documentation Internal PatientId
source	<xs:element name="PatientId" type="xs:int">   <xs:annotation>     <xs:documentation>Internal PatientId</xs:documentation>   </xs:annotation> </xs:element>

element ContactProcedures/ContactId

diagram
type	xs:string
properties	content  simple
annotation	documentation Internal ContactId
source	<xs:element name="ContactId" type="xs:string">   <xs:annotation>     <xs:documentation>Internal ContactId</xs:documentation>   </xs:annotation> </xs:element>

element ContactProcedures/MedicalResponsible

diagram
type	ResourceType
properties	minOcc  0 maxOcc  1 content  complex
children	Id Code Name
annotation	documentation Resource who is responsible for the diagnosis.
source	<xs:element name="MedicalResponsible" type="ResourceType" minOccurs="0">   <xs:annotation>     <xs:documentation>Resource who is responsible for the diagnosis.</xs:documentation>   </xs:annotation> </xs:element>

element ContactProcedures/MedicalRegistrationFinished

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Indicates whether the medical registration is finished or not. If true, the diagnosis are locked and cannot be modified.
source	<xs:element name="MedicalRegistrationFinished" type="xs:boolean" minOccurs="0">   <xs:annotation>     <xs:documentation>Indicates whether the medical registration is finished or not. If true, the diagnosis are locked and cannot be modified.</xs:documentation>   </xs:annotation> </xs:element>

element ContactProcedures/ContactActivities

diagram
properties	content  complex
children	ContactActivity
annotation	documentation Part of contact that the procedure is linked to, ie. an Operation.
source	<xs:element name="ContactActivities">   <xs:annotation>     <xs:documentation>Part of contact that the procedure is linked to, ie. an Operation.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ContactActivity" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:int">               <xs:annotation>                 <xs:documentation>Internal ContactActivityId</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Type" type="CodeTextType">               <xs:annotation>                 <xs:documentation>Type of contact activity, ie Operation.</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="From" type="xs:dateTime">               <xs:annotation>                 <xs:documentation>Date and time for the start of the contact activity.</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="To" type="xs:dateTime" minOccurs="0">               <xs:annotation>                 <xs:documentation>Date and time for the end of the contact activity.</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Emergency" type="xs:boolean">               <xs:annotation>                 <xs:documentation>True if the contact activitiy is  registered as an emergency activity.</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="MedicalOrganization" type="OrganizationType">               <xs:annotation>                 <xs:documentation>The medical organization responsible for the contact activity</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="CareOrganization" type="OrganizationType">               <xs:annotation>                 <xs:documentation>The carel organization wher the contact activity took place.</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Procedures" minOccurs="0">               <xs:annotation>                 <xs:documentation>Procedure codes.</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Procedure" type="ProcedureType" maxOccurs="unbounded"/>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactProcedures/ContactActivities/ContactActivity

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	Id Type From To Emergency MedicalOrganization CareOrganization Procedures
source	<xs:element name="ContactActivity" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:int">         <xs:annotation>           <xs:documentation>Internal ContactActivityId</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Type" type="CodeTextType">         <xs:annotation>           <xs:documentation>Type of contact activity, ie Operation.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="From" type="xs:dateTime">         <xs:annotation>           <xs:documentation>Date and time for the start of the contact activity.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="To" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>Date and time for the end of the contact activity.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Emergency" type="xs:boolean">         <xs:annotation>           <xs:documentation>True if the contact activitiy is  registered as an emergency activity.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="MedicalOrganization" type="OrganizationType">         <xs:annotation>           <xs:documentation>The medical organization responsible for the contact activity</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="CareOrganization" type="OrganizationType">         <xs:annotation>           <xs:documentation>The carel organization wher the contact activity took place.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Procedures" minOccurs="0">         <xs:annotation>           <xs:documentation>Procedure codes.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Procedure" type="ProcedureType" maxOccurs="unbounded"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactProcedures/ContactActivities/ContactActivity/Id

diagram
type	xs:int
properties	content  simple
annotation	documentation Internal ContactActivityId
source	<xs:element name="Id" type="xs:int">   <xs:annotation>     <xs:documentation>Internal ContactActivityId</xs:documentation>   </xs:annotation> </xs:element>

element ContactProcedures/ContactActivities/ContactActivity/Type

diagram
type	CodeTextType
properties	content  complex
children	Code Text
annotation	documentation Type of contact activity, ie Operation.
source	<xs:element name="Type" type="CodeTextType">   <xs:annotation>     <xs:documentation>Type of contact activity, ie Operation.</xs:documentation>   </xs:annotation> </xs:element>

element ContactProcedures/ContactActivities/ContactActivity/From

diagram
type	xs:dateTime
properties	content  simple
annotation	documentation Date and time for the start of the contact activity.
source	<xs:element name="From" type="xs:dateTime">   <xs:annotation>     <xs:documentation>Date and time for the start of the contact activity.</xs:documentation>   </xs:annotation> </xs:element>

element ContactProcedures/ContactActivities/ContactActivity/To

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the end of the contact activity.
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the end of the contact activity.</xs:documentation>   </xs:annotation> </xs:element>

element ContactProcedures/ContactActivities/ContactActivity/Emergency

diagram
type	xs:boolean
properties	content  simple
annotation	documentation True if the contact activitiy is  registered as an emergency activity.
source	<xs:element name="Emergency" type="xs:boolean">   <xs:annotation>     <xs:documentation>True if the contact activitiy is  registered as an emergency activity.</xs:documentation>   </xs:annotation> </xs:element>

element ContactProcedures/ContactActivities/ContactActivity/MedicalOrganization

diagram
type	OrganizationType
properties	content  complex
children	Id TypeOfId ShortNameId Name OfficialId ValidPeriod
annotation	documentation The medical organization responsible for the contact activity
source	<xs:element name="MedicalOrganization" type="OrganizationType">   <xs:annotation>     <xs:documentation>The medical organization responsible for the contact activity</xs:documentation>   </xs:annotation> </xs:element>

element ContactProcedures/ContactActivities/ContactActivity/CareOrganization

diagram
type	OrganizationType
properties	content  complex
children	Id TypeOfId ShortNameId Name OfficialId ValidPeriod
annotation	documentation The carel organization wher the contact activity took place.
source	<xs:element name="CareOrganization" type="OrganizationType">   <xs:annotation>     <xs:documentation>The carel organization wher the contact activity took place.</xs:documentation>   </xs:annotation> </xs:element>

element ContactProcedures/ContactActivities/ContactActivity/Procedures

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Procedure
annotation	documentation Procedure codes.
source	<xs:element name="Procedures" minOccurs="0">   <xs:annotation>     <xs:documentation>Procedure codes.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Procedure" type="ProcedureType" maxOccurs="unbounded"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactProcedures/ContactActivities/ContactActivity/Procedures/Procedure

diagram
type	ProcedureType
properties	minOcc  1 maxOcc  unbounded content  complex
children	Id MainProcedure From To DiagnosisId OperationId Status ExecutedBy Comment Codes ProcedureTypeType
source	<xs:element name="Procedure" type="ProcedureType" maxOccurs="unbounded"/>

element ContactProcedures/PatientDocuments

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Giro
source	<xs:element name="PatientDocuments" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="Giro" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="PrintGiroToPatient" type="PrintGiroType" minOccurs="0">               <xs:annotation>                 <xs:documentation>If giro should be printed. In request set if system/database should print giro. In respoense set if client/application should print giro</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="PrinterAddress" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>Address to printer, either code, DNS of IP address.</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactProcedures/PatientDocuments/Giro

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	PrintGiroToPatient PrinterAddress
source	<xs:element name="Giro" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="PrintGiroToPatient" type="PrintGiroType" minOccurs="0">         <xs:annotation>           <xs:documentation>If giro should be printed. In request set if system/database should print giro. In respoense set if client/application should print giro</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="PrinterAddress" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Address to printer, either code, DNS of IP address.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactProcedures/PatientDocuments/Giro/PrintGiroToPatient

diagram
type	PrintGiroType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  NotSet enumeration  PrintGiroOnServer enumeration  PrintGiroOnClient enumeration  GiroPrintedOK
annotation	documentation If giro should be printed. In request set if system/database should print giro. In respoense set if client/application should print giro
source	<xs:element name="PrintGiroToPatient" type="PrintGiroType" minOccurs="0">   <xs:annotation>     <xs:documentation>If giro should be printed. In request set if system/database should print giro. In respoense set if client/application should print giro</xs:documentation>   </xs:annotation> </xs:element>

element ContactProcedures/PatientDocuments/Giro/PrinterAddress

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Address to printer, either code, DNS of IP address.
source	<xs:element name="PrinterAddress" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Address to printer, either code, DNS of IP address.</xs:documentation>   </xs:annotation> </xs:element>

element ContactProcedures/DoNotCreateEvent

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Flag only used in Save for if event of changes in procedures should trigger/write an event or not to PAS systems event handling. If flag is not set or omitted then an event is triggered in WS or database. Setting the flag disables event handling in WS/database, and leaves this to the application if needed. Only used by HIS90 PAS
source	<xs:element name="DoNotCreateEvent" type="xs:boolean" minOccurs="0">   <xs:annotation>     <xs:documentation>Flag only used in Save for if event of changes in procedures should trigger/write an event or not to PAS systems event handling. If flag is not set or omitted then an event is triggered in WS or database. Setting the flag disables event handling in WS/database, and leaves this to the application if needed. Only used by HIS90 PAS</xs:documentation>   </xs:annotation> </xs:element>

complexType ProcedureType

diagram
children	Id MainProcedure From To DiagnosisId OperationId Status ExecutedBy Comment Codes ProcedureTypeType
used by	element  ContactProcedures/ContactActivities/ContactActivity/Procedures/Procedure
source	<xs:complexType name="ProcedureType">   <xs:sequence>     <xs:element name="Id" type="xs:string">       <xs:annotation>         <xs:documentation>Internal procedure id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="MainProcedure" type="xs:boolean">       <xs:annotation>         <xs:documentation>True if it is the main procedure, false if it is a sub procedure.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="From" type="xs:dateTime">       <xs:annotation>         <xs:documentation>Date and time the procedure started</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="To" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Date and time the procedure ended</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="DiagnosisId" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>The diagnosis that the procedure is connected to</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="OperationId" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>The operation that the procedure is connected to</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Status" type="CodeTextType">       <xs:annotation>         <xs:documentation>Contact status. AK = in progress, UT = finished</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ExecutedBy" minOccurs="0">       <xs:annotation>         <xs:documentation>The resource which the procedure was executed by.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="ExecutedByElement" maxOccurs="unbounded">             <xs:complexType>               <xs:sequence>                 <xs:element name="ResourceProperty" type="CodeTextType" minOccurs="0"/>                 <xs:element name="OrganizationUnit" type="OrganizationType" minOccurs="0"/>                 <xs:element name="Resource" type="ResourceType" minOccurs="0"/>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Comment" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Free text comment</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Codes">       <xs:annotation>         <xs:documentation>Procedure codes. One procedure may consist of many codes. The first code is i.e. a NCSP code and the others are additional codes related to the NCSP code.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Code" maxOccurs="unbounded">             <xs:complexType>               <xs:complexContent>                 <xs:extension base="ProcedureCodeType"/>               </xs:complexContent>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="ProcedureTypeType" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Type of procedure. Can be used to differentiate main and sub procedures.  HIS90: Main procedure = H, sub procedure = B. Undecided procedure = "" (blank). In HIS90 type of procedure is defaulted to blank.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element ProcedureType/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Internal procedure id
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Internal procedure id</xs:documentation>   </xs:annotation> </xs:element>

element ProcedureType/MainProcedure

diagram
type	xs:boolean
properties	content  simple
annotation	documentation True if it is the main procedure, false if it is a sub procedure.
source	<xs:element name="MainProcedure" type="xs:boolean">   <xs:annotation>     <xs:documentation>True if it is the main procedure, false if it is a sub procedure.</xs:documentation>   </xs:annotation> </xs:element>

element ProcedureType/From

diagram
type	xs:dateTime
properties	content  simple
annotation	documentation Date and time the procedure started
source	<xs:element name="From" type="xs:dateTime">   <xs:annotation>     <xs:documentation>Date and time the procedure started</xs:documentation>   </xs:annotation> </xs:element>

element ProcedureType/To

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time the procedure ended
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time the procedure ended</xs:documentation>   </xs:annotation> </xs:element>

element ProcedureType/DiagnosisId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation The diagnosis that the procedure is connected to
source	<xs:element name="DiagnosisId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>The diagnosis that the procedure is connected to</xs:documentation>   </xs:annotation> </xs:element>

element ProcedureType/OperationId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation The operation that the procedure is connected to
source	<xs:element name="OperationId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>The operation that the procedure is connected to</xs:documentation>   </xs:annotation> </xs:element>

element ProcedureType/Status

diagram
type	CodeTextType
properties	content  complex
children	Code Text
annotation	documentation Contact status. AK = in progress, UT = finished
source	<xs:element name="Status" type="CodeTextType">   <xs:annotation>     <xs:documentation>Contact status. AK = in progress, UT = finished</xs:documentation>   </xs:annotation> </xs:element>

element ProcedureType/ExecutedBy

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ExecutedByElement
annotation	documentation The resource which the procedure was executed by.
source	<xs:element name="ExecutedBy" minOccurs="0">   <xs:annotation>     <xs:documentation>The resource which the procedure was executed by.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ExecutedByElement" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="ResourceProperty" type="CodeTextType" minOccurs="0"/>             <xs:element name="OrganizationUnit" type="OrganizationType" minOccurs="0"/>             <xs:element name="Resource" type="ResourceType" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ProcedureType/ExecutedBy/ExecutedByElement

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	ResourceProperty OrganizationUnit Resource
source	<xs:element name="ExecutedByElement" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="ResourceProperty" type="CodeTextType" minOccurs="0"/>       <xs:element name="OrganizationUnit" type="OrganizationType" minOccurs="0"/>       <xs:element name="Resource" type="ResourceType" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ProcedureType/ExecutedBy/ExecutedByElement/ResourceProperty

diagram
type	CodeTextType
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
source	<xs:element name="ResourceProperty" type="CodeTextType" minOccurs="0"/>

element ProcedureType/ExecutedBy/ExecutedByElement/OrganizationUnit

diagram
type	OrganizationType
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name OfficialId ValidPeriod
source	<xs:element name="OrganizationUnit" type="OrganizationType" minOccurs="0"/>

element ProcedureType/ExecutedBy/ExecutedByElement/Resource

diagram
type	ResourceType
properties	minOcc  0 maxOcc  1 content  complex
children	Id Code Name
source	<xs:element name="Resource" type="ResourceType" minOccurs="0"/>

element ProcedureType/Comment

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Free text comment
source	<xs:element name="Comment" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Free text comment</xs:documentation>   </xs:annotation> </xs:element>

element ProcedureType/Codes

diagram
properties	content  complex
children	Code
annotation	documentation Procedure codes. One procedure may consist of many codes. The first code is i.e. a NCSP code and the others are additional codes related to the NCSP code.
source	<xs:element name="Codes">   <xs:annotation>     <xs:documentation>Procedure codes. One procedure may consist of many codes. The first code is i.e. a NCSP code and the others are additional codes related to the NCSP code.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" maxOccurs="unbounded">         <xs:complexType>           <xs:complexContent>             <xs:extension base="ProcedureCodeType"/>           </xs:complexContent>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ProcedureType/Codes/Code

diagram
type	extension of ProcedureCodeType
properties	minOcc  1 maxOcc  unbounded content  complex
children	SequenceNumber MedCode PercentAddition UpdateCount
source	<xs:element name="Code" maxOccurs="unbounded">   <xs:complexType>     <xs:complexContent>       <xs:extension base="ProcedureCodeType"/>     </xs:complexContent>   </xs:complexType> </xs:element>

element ProcedureType/ProcedureTypeType

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Type of procedure. Can be used to differentiate main and sub procedures.  HIS90: Main procedure = H, sub procedure = B. Undecided procedure = "" (blank). In HIS90 type of procedure is defaulted to blank.
source	<xs:element name="ProcedureTypeType" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Type of procedure. Can be used to differentiate main and sub procedures.  HIS90: Main procedure = H, sub procedure = B. Undecided procedure = "" (blank). In HIS90 type of procedure is defaulted to blank.</xs:documentation>   </xs:annotation> </xs:element>

simpleType PrintGiroType

type	restriction of xs:string
properties	base  xs:string
used by	element  ContactProcedures/PatientDocuments/Giro/PrintGiroToPatient
facets	Kind  Value  Annotation enumeration  NotSet enumeration  PrintGiroOnServer enumeration  PrintGiroOnClient enumeration  GiroPrintedOK
source	<xs:simpleType name="PrintGiroType">   <xs:restriction base="xs:string">     <xs:enumeration value="NotSet"/>     <xs:enumeration value="PrintGiroOnServer"/>     <xs:enumeration value="PrintGiroOnClient"/>     <xs:enumeration value="GiroPrintedOK"/>   </xs:restriction> </xs:simpleType>

complexType AdmMedRemarkType

diagram
children	Medical Administrative
annotation	documentation Medical and Administrative remarks
source	<xs:complexType name="AdmMedRemarkType">   <xs:annotation>     <xs:documentation>Medical and Administrative remarks</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Medical" type="RemarkType" minOccurs="0"/>     <xs:element name="Administrative" type="RemarkType" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element AdmMedRemarkType/Medical

diagram
type	RemarkType
properties	minOcc  0 maxOcc  1 content  complex
children	Remark Signature SignatureDateTime
source	<xs:element name="Medical" type="RemarkType" minOccurs="0"/>

element AdmMedRemarkType/Administrative

diagram
type	RemarkType
properties	minOcc  0 maxOcc  1 content  complex
children	Remark Signature SignatureDateTime
source	<xs:element name="Administrative" type="RemarkType" minOccurs="0"/>

complexType ContactDetailCareType

diagram
type	extension of ContactDetailType
properties	base  ContactDetailType
children	Id Status From To Organization OrganizationAddresses ContactActivityId CareResponsible CareGroup Placement PatientCategory
used by	elements  ContactTypeLatest/Details/LatestDetails/CareDetail ContactTypeDetails/Details/CareDetails/CareDetail
annotation	documentation ContactDetailType + care specific data
source	<xs:complexType name="ContactDetailCareType">   <xs:annotation>     <xs:documentation>ContactDetailType + care specific data</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="ContactDetailType">       <xs:sequence>         <xs:element name="CareResponsible" type="ResourceType" minOccurs="0">           <xs:annotation>             <xs:documentation>Resource responsible for the care</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="CareGroup" type="ResourceType" minOccurs="0">           <xs:annotation>             <xs:documentation>Resource group involved in the care</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="Placement" minOccurs="0">           <xs:annotation>             <xs:documentation>Where the care takes place, i.e. Roomnumber, bednumber</xs:documentation>           </xs:annotation>           <xs:complexType>             <xs:sequence>               <xs:element name="Permanent" type="IdCodeNameType" minOccurs="0">                 <xs:annotation>                   <xs:documentation>Permanent placement at the care unit</xs:documentation>                 </xs:annotation>               </xs:element>               <xs:element name="Temporary" type="IdCodeNameType" minOccurs="0">                 <xs:annotation>                   <xs:documentation>Temporary placement. May be used to show that the patient has an activity on another unit.</xs:documentation>                 </xs:annotation>               </xs:element>             </xs:sequence>           </xs:complexType>         </xs:element>         <xs:element name="PatientCategory" type="CodeOfficialCodeTextType" minOccurs="0">           <xs:annotation>             <xs:documentation>For inpatients only. Indicates i.e. whether the stay is a 24-hours stay or a stay at daytime only.</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element ContactDetailCareType/CareResponsible

diagram
type	ResourceType
properties	minOcc  0 maxOcc  1 content  complex
children	Id Code Name
annotation	documentation Resource responsible for the care
source	<xs:element name="CareResponsible" type="ResourceType" minOccurs="0">   <xs:annotation>     <xs:documentation>Resource responsible for the care</xs:documentation>   </xs:annotation> </xs:element>

element ContactDetailCareType/CareGroup

diagram
type	ResourceType
properties	minOcc  0 maxOcc  1 content  complex
children	Id Code Name
annotation	documentation Resource group involved in the care
source	<xs:element name="CareGroup" type="ResourceType" minOccurs="0">   <xs:annotation>     <xs:documentation>Resource group involved in the care</xs:documentation>   </xs:annotation> </xs:element>

element ContactDetailCareType/Placement

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Permanent Temporary
annotation	documentation Where the care takes place, i.e. Roomnumber, bednumber
source	<xs:element name="Placement" minOccurs="0">   <xs:annotation>     <xs:documentation>Where the care takes place, i.e. Roomnumber, bednumber</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Permanent" type="IdCodeNameType" minOccurs="0">         <xs:annotation>           <xs:documentation>Permanent placement at the care unit</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Temporary" type="IdCodeNameType" minOccurs="0">         <xs:annotation>           <xs:documentation>Temporary placement. May be used to show that the patient has an activity on another unit.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactDetailCareType/Placement/Permanent

diagram
type	IdCodeNameType
properties	minOcc  0 maxOcc  1 content  complex
children	Id Code Name
annotation	documentation Permanent placement at the care unit
source	<xs:element name="Permanent" type="IdCodeNameType" minOccurs="0">   <xs:annotation>     <xs:documentation>Permanent placement at the care unit</xs:documentation>   </xs:annotation> </xs:element>

element ContactDetailCareType/Placement/Temporary

diagram
type	IdCodeNameType
properties	minOcc  0 maxOcc  1 content  complex
children	Id Code Name
annotation	documentation Temporary placement. May be used to show that the patient has an activity on another unit.
source	<xs:element name="Temporary" type="IdCodeNameType" minOccurs="0">   <xs:annotation>     <xs:documentation>Temporary placement. May be used to show that the patient has an activity on another unit.</xs:documentation>   </xs:annotation> </xs:element>

element ContactDetailCareType/PatientCategory

diagram
type	CodeOfficialCodeTextType
properties	minOcc  0 maxOcc  1 content  complex
children	Code OfficialCode Text
annotation	documentation For inpatients only. Indicates i.e. whether the stay is a 24-hours stay or a stay at daytime only.
source	<xs:element name="PatientCategory" type="CodeOfficialCodeTextType" minOccurs="0">   <xs:annotation>     <xs:documentation>For inpatients only. Indicates i.e. whether the stay is a 24-hours stay or a stay at daytime only.</xs:documentation>   </xs:annotation> </xs:element>

complexType ContactDetailMedType

diagram
type	extension of ContactDetailType
properties	base  ContactDetailType
children	Id Status From To Organization OrganizationAddresses ContactActivityId PatientResponsible ContactResponsible
used by	elements  ContactTypeLatest/Details/LatestDetails/MedicalDetail ContactTypeDetails/Details/MedicalDetails/MedicalDetail
annotation	documentation ContactDetailType + med. specific data
source	<xs:complexType name="ContactDetailMedType">   <xs:annotation>     <xs:documentation>ContactDetailType + med. specific data</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="ContactDetailType">       <xs:sequence>         <xs:element name="PatientResponsible" type="ResourceType" minOccurs="0">           <xs:annotation>             <xs:documentation>The resource (i.e. the chief physician) responsible for the patient.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="ContactResponsible" type="ResourceType" minOccurs="0">           <xs:annotation>             <xs:documentation>The resource responsible for the contact. For outpatients the economy can be influenced whether this resource is a physician or not.</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element ContactDetailMedType/PatientResponsible

diagram
type	ResourceType
properties	minOcc  0 maxOcc  1 content  complex
children	Id Code Name
annotation	documentation The resource (i.e. the chief physician) responsible for the patient.
source	<xs:element name="PatientResponsible" type="ResourceType" minOccurs="0">   <xs:annotation>     <xs:documentation>The resource (i.e. the chief physician) responsible for the patient.</xs:documentation>   </xs:annotation> </xs:element>

element ContactDetailMedType/ContactResponsible

diagram
type	ResourceType
properties	minOcc  0 maxOcc  1 content  complex
children	Id Code Name
annotation	documentation The resource responsible for the contact. For outpatients the economy can be influenced whether this resource is a physician or not.
source	<xs:element name="ContactResponsible" type="ResourceType" minOccurs="0">   <xs:annotation>     <xs:documentation>The resource responsible for the contact. For outpatients the economy can be influenced whether this resource is a physician or not.</xs:documentation>   </xs:annotation> </xs:element>

complexType ContactDetailType

diagram
children	Id Status From To Organization OrganizationAddresses ContactActivityId
used by	complexTypes  ContactDetailCareType ContactDetailMedType
annotation	documentation Id, status, organization
source	<xs:complexType name="ContactDetailType">   <xs:annotation>     <xs:documentation>Id, status, organization</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:string">       <xs:annotation>         <xs:documentation>Internal Id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Status" type="CodeTextType">       <xs:annotation>         <xs:documentation>AK = in progress, UT = finished</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="From" type="xs:dateTime">       <xs:annotation>         <xs:documentation>Started date/time </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="To" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Ended date/time </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Organization">       <xs:complexType>         <xs:complexContent>           <xs:extension base="OrganizationType"/>         </xs:complexContent>       </xs:complexType>     </xs:element>     <xs:element name="OrganizationAddresses" minOccurs="0">       <xs:complexType>         <xs:sequence minOccurs="0">           <xs:element name="Address1" type="xs:string" minOccurs="0"/>           <xs:element name="Address2" type="xs:string" minOccurs="0"/>           <xs:element name="Address3" type="xs:string" minOccurs="0"/>           <xs:element name="PostalAddress1" type="xs:string" minOccurs="0"/>           <xs:element name="PostalAddress2" type="xs:string" minOccurs="0"/>           <xs:element name="PostalNumber" type="xs:string" minOccurs="0"/>           <xs:element name="PhoneNumber" type="xs:string" minOccurs="0"/>           <xs:element name="FaxNumber" type="xs:string" minOccurs="0"/>           <xs:element name="EMailAddress" type="xs:string" minOccurs="0"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="ContactActivityId" type="xs:int"/>   </xs:sequence> </xs:complexType>

element ContactDetailType/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Internal Id
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Internal Id</xs:documentation>   </xs:annotation> </xs:element>

element ContactDetailType/Status

diagram
type	CodeTextType
properties	content  complex
children	Code Text
annotation	documentation AK = in progress, UT = finished
source	<xs:element name="Status" type="CodeTextType">   <xs:annotation>     <xs:documentation>AK = in progress, UT = finished</xs:documentation>   </xs:annotation> </xs:element>

element ContactDetailType/From

diagram
type	xs:dateTime
properties	content  simple
annotation	documentation Started date/time
source	<xs:element name="From" type="xs:dateTime">   <xs:annotation>     <xs:documentation>Started date/time </xs:documentation>   </xs:annotation> </xs:element>

element ContactDetailType/To

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Ended date/time
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Ended date/time </xs:documentation>   </xs:annotation> </xs:element>

element ContactDetailType/Organization

diagram
type	extension of OrganizationType
properties	content  complex
children	Id TypeOfId ShortNameId Name OfficialId ValidPeriod
source	<xs:element name="Organization">   <xs:complexType>     <xs:complexContent>       <xs:extension base="OrganizationType"/>     </xs:complexContent>   </xs:complexType> </xs:element>

element ContactDetailType/OrganizationAddresses

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Address1 Address2 Address3 PostalAddress1 PostalAddress2 PostalNumber PhoneNumber FaxNumber EMailAddress
source	<xs:element name="OrganizationAddresses" minOccurs="0">   <xs:complexType>     <xs:sequence minOccurs="0">       <xs:element name="Address1" type="xs:string" minOccurs="0"/>       <xs:element name="Address2" type="xs:string" minOccurs="0"/>       <xs:element name="Address3" type="xs:string" minOccurs="0"/>       <xs:element name="PostalAddress1" type="xs:string" minOccurs="0"/>       <xs:element name="PostalAddress2" type="xs:string" minOccurs="0"/>       <xs:element name="PostalNumber" type="xs:string" minOccurs="0"/>       <xs:element name="PhoneNumber" type="xs:string" minOccurs="0"/>       <xs:element name="FaxNumber" type="xs:string" minOccurs="0"/>       <xs:element name="EMailAddress" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactDetailType/OrganizationAddresses/Address1

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Address1" type="xs:string" minOccurs="0"/>

element ContactDetailType/OrganizationAddresses/Address2

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Address2" type="xs:string" minOccurs="0"/>

element ContactDetailType/OrganizationAddresses/Address3

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Address3" type="xs:string" minOccurs="0"/>

element ContactDetailType/OrganizationAddresses/PostalAddress1

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="PostalAddress1" type="xs:string" minOccurs="0"/>

element ContactDetailType/OrganizationAddresses/PostalAddress2

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="PostalAddress2" type="xs:string" minOccurs="0"/>

element ContactDetailType/OrganizationAddresses/PostalNumber

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="PostalNumber" type="xs:string" minOccurs="0"/>

element ContactDetailType/OrganizationAddresses/PhoneNumber

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="PhoneNumber" type="xs:string" minOccurs="0"/>

element ContactDetailType/OrganizationAddresses/FaxNumber

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="FaxNumber" type="xs:string" minOccurs="0"/>

element ContactDetailType/OrganizationAddresses/EMailAddress

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="EMailAddress" type="xs:string" minOccurs="0"/>

element ContactDetailType/ContactActivityId

diagram
type	xs:int
properties	content  simple
source	<xs:element name="ContactActivityId" type="xs:int"/>

complexType ContactType

diagram
children	Id From To MedicalOrganization Hospital TypeOfCare Status Emergency RequestFrom TypeOfContact Admitted Transportation VisitType PlaceOfTreatment Discharged InDiagnosis Confidential Accident BookingId
used by	complexTypes  ContactTypeDetails ContactTypeLatest
annotation	documentation INFOMEDIX Contact
source	<xs:complexType name="ContactType">   <xs:annotation>     <xs:documentation>INFOMEDIX Contact</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:string">       <xs:annotation>         <xs:documentation>Internal Id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="From" type="xs:dateTime">       <xs:annotation>         <xs:documentation>Contact start datetime</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="To" type="xs:dateTime" minOccurs="0">       <xs:annotation>         <xs:documentation>Contact end datetime</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="MedicalOrganization" type="OrganizationType">       <xs:annotation>         <xs:documentation>Departement</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Hospital" type="OrganizationType">       <xs:annotation>         <xs:documentation>The hospital of the contact medical/care  unit</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TypeOfCare" type="CodeOfficialCodeTextType">       <xs:annotation>         <xs:documentation>P= outpatient, I=inpatient, D= in hospital only at daytime</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Status" type="CodeTextType">       <xs:annotation>         <xs:documentation>Contact status. AK = in progress, UT = finished</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Emergency" type="xs:boolean">       <xs:annotation>         <xs:documentation>True if this is an emergency contact</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="RequestFrom" minOccurs="0">       <xs:annotation>         <xs:documentation>Shows who requested the contact</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:choice>           <xs:element name="External" minOccurs="0">             <xs:complexType>               <xs:sequence>                 <xs:element name="ExternalOrganization" type="ExternalOrganizationType" minOccurs="0">                   <xs:annotation>                     <xs:documentation>If the contact was requested by an external organization</xs:documentation>                   </xs:annotation>                 </xs:element>                 <xs:element name="ExternalPhysician" type="xs:string" minOccurs="0">                   <xs:annotation>                     <xs:documentation>The external physician who made the request. Text only.</xs:documentation>                   </xs:annotation>                 </xs:element>               </xs:sequence>             </xs:complexType>           </xs:element>           <xs:element name="Internal" minOccurs="0">             <xs:complexType>               <xs:sequence>                 <xs:element name="InternalOrganization" type="OrganizationType" minOccurs="0">                   <xs:annotation>                     <xs:documentation>If the contact was requested by an internal organization</xs:documentation>                   </xs:annotation>                 </xs:element>                 <xs:element name="InternalPhysician" type="ResourceType" minOccurs="0">                   <xs:annotation>                     <xs:documentation>The internal physician who made the request.</xs:documentation>                   </xs:annotation>                 </xs:element>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:choice>       </xs:complexType>     </xs:element>     <xs:element name="TypeOfContact" type="CodeOfficialCodeTextType" minOccurs="0">       <xs:annotation>         <xs:documentation>i.e. Surgery, Consultation etc.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Admitted">       <xs:annotation>         <xs:documentation>Data about the admission</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Type" type="CodeOfficialCodeTextType">             <xs:annotation>               <xs:documentation>Type of admission, i.e. Planned, Emergency, Born in hospital etc.</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="From" type="CodeOfficialCodeTextType" minOccurs="0">             <xs:annotation>               <xs:documentation>Admitted from, i.e. Home, Other institution etc. </xs:documentation>             </xs:annotation>           </xs:element>           <xs:choice minOccurs="0">             <xs:element name="FromExternalOrganization" type="ExternalOrganizationType" minOccurs="0">               <xs:annotation>                 <xs:documentation>If patient was admitted from an external organization </xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="FromInternalOrganization" type="OrganizationType" minOccurs="0">               <xs:annotation>                 <xs:documentation>If patient was transferred from another organization in the hospital</xs:documentation>               </xs:annotation>             </xs:element>           </xs:choice>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Transportation" minOccurs="0">       <xs:annotation>         <xs:documentation>Transportation used for admission, i.e. Ambulance</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:complexContent>           <xs:extension base="CodeTextType">             <xs:sequence>               <xs:element name="Companion" type="CodeTextType" minOccurs="0">                 <xs:annotation>                   <xs:documentation>Transportation for companion. HIS90 only</xs:documentation>                 </xs:annotation>               </xs:element>             </xs:sequence>           </xs:extension>         </xs:complexContent>       </xs:complexType>     </xs:element>     <xs:element name="VisitType" type="CodeOfficialCodeTextType" minOccurs="0">       <xs:annotation>         <xs:documentation>For outpatients only. i.e. New visit, Control visit etc.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="PlaceOfTreatment" type="CodeOfficialCodeTextType" minOccurs="0">       <xs:annotation>         <xs:documentation>For outpatients only, i.e. Home, Telephone etc.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Discharged" minOccurs="0">       <xs:annotation>         <xs:documentation>Data about the discharge</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="To" type="CodeOfficialCodeTextType" minOccurs="0">             <xs:annotation>               <xs:documentation>Where the patient was discharged, i.e. Home, Other organization etc.</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="DeathDate" type="xs:dateTime" minOccurs="0">             <xs:annotation>               <xs:documentation>DeathDate if Discharged To Code = "DO"</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="Physician" type="ResourceType" minOccurs="0">             <xs:annotation>               <xs:documentation>The physician for the internal organization</xs:documentation>             </xs:annotation>           </xs:element>           <xs:choice minOccurs="0">             <xs:element name="ToExternalOrganization" minOccurs="0">               <xs:annotation>                 <xs:documentation>If the patient was discaharged to an external organization</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:complexContent>                   <xs:extension base="ExternalOrganizationType"/>                 </xs:complexContent>               </xs:complexType>             </xs:element>             <xs:element name="ToInternalOrganization" type="OrganizationType" minOccurs="0">               <xs:annotation>                 <xs:documentation>If the patient was discaharged to an internall organization</xs:documentation>               </xs:annotation>             </xs:element>           </xs:choice>           <xs:element name="DischargeLetterSentDate" type="xs:dateTime" minOccurs="0"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="InDiagnosis" type="DiagnosisType" minOccurs="0">       <xs:annotation>         <xs:documentation>In diagnosis using code from medical register, i.e. ICD10</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Confidential" minOccurs="0">       <xs:annotation>         <xs:documentation>Confidential contact</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:complexContent>           <xs:extension base="CodeTextType">             <xs:sequence>               <xs:element name="Comment" type="xs:string" minOccurs="0">                 <xs:annotation>                   <xs:documentation>Comment on the confidentiality (Not Implemented for HIS90)</xs:documentation>                 </xs:annotation>               </xs:element>             </xs:sequence>           </xs:extension>         </xs:complexContent>       </xs:complexType>     </xs:element>     <xs:element name="Accident" minOccurs="0">       <xs:annotation>         <xs:documentation>The patient was admitted because of an accident</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Municipality" type="CodeNameType" minOccurs="0">             <xs:annotation>               <xs:documentation>Municipality in which the accident happened</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>         <xs:attribute name="Accident" type="xs:boolean" use="optional" default="true"/>       </xs:complexType>     </xs:element>     <xs:element name="BookingId" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Booking Id. HIS90 only</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element ContactType/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Internal Id
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Internal Id</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/From

diagram
type	xs:dateTime
properties	content  simple
annotation	documentation Contact start datetime
source	<xs:element name="From" type="xs:dateTime">   <xs:annotation>     <xs:documentation>Contact start datetime</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/To

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Contact end datetime
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Contact end datetime</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/MedicalOrganization

diagram
type	OrganizationType
properties	content  complex
children	Id TypeOfId ShortNameId Name OfficialId ValidPeriod
annotation	documentation Departement
source	<xs:element name="MedicalOrganization" type="OrganizationType">   <xs:annotation>     <xs:documentation>Departement</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/Hospital

diagram
type	OrganizationType
properties	content  complex
children	Id TypeOfId ShortNameId Name OfficialId ValidPeriod
annotation	documentation The hospital of the contact medical/care  unit
source	<xs:element name="Hospital" type="OrganizationType">   <xs:annotation>     <xs:documentation>The hospital of the contact medical/care  unit</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/TypeOfCare

diagram
type	CodeOfficialCodeTextType
properties	content  complex
children	Code OfficialCode Text
annotation	documentation P= outpatient, I=inpatient, D= in hospital only at daytime
source	<xs:element name="TypeOfCare" type="CodeOfficialCodeTextType">   <xs:annotation>     <xs:documentation>P= outpatient, I=inpatient, D= in hospital only at daytime</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/Status

diagram
type	CodeTextType
properties	content  complex
children	Code Text
annotation	documentation Contact status. AK = in progress, UT = finished
source	<xs:element name="Status" type="CodeTextType">   <xs:annotation>     <xs:documentation>Contact status. AK = in progress, UT = finished</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/Emergency

diagram
type	xs:boolean
properties	content  simple
annotation	documentation True if this is an emergency contact
source	<xs:element name="Emergency" type="xs:boolean">   <xs:annotation>     <xs:documentation>True if this is an emergency contact</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/RequestFrom

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	External Internal
annotation	documentation Shows who requested the contact
source	<xs:element name="RequestFrom" minOccurs="0">   <xs:annotation>     <xs:documentation>Shows who requested the contact</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:choice>       <xs:element name="External" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="ExternalOrganization" type="ExternalOrganizationType" minOccurs="0">               <xs:annotation>                 <xs:documentation>If the contact was requested by an external organization</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="ExternalPhysician" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>The external physician who made the request. Text only.</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Internal" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="InternalOrganization" type="OrganizationType" minOccurs="0">               <xs:annotation>                 <xs:documentation>If the contact was requested by an internal organization</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="InternalPhysician" type="ResourceType" minOccurs="0">               <xs:annotation>                 <xs:documentation>The internal physician who made the request.</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:choice>   </xs:complexType> </xs:element>

element ContactType/RequestFrom/External

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ExternalOrganization ExternalPhysician
source	<xs:element name="External" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="ExternalOrganization" type="ExternalOrganizationType" minOccurs="0">         <xs:annotation>           <xs:documentation>If the contact was requested by an external organization</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ExternalPhysician" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>The external physician who made the request. Text only.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactType/RequestFrom/External/ExternalOrganization

diagram
type	ExternalOrganizationType
properties	minOcc  0 maxOcc  1 content  complex
children	Id Code Name OfficialId
annotation	documentation If the contact was requested by an external organization
source	<xs:element name="ExternalOrganization" type="ExternalOrganizationType" minOccurs="0">   <xs:annotation>     <xs:documentation>If the contact was requested by an external organization</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/RequestFrom/External/ExternalPhysician

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation The external physician who made the request. Text only.
source	<xs:element name="ExternalPhysician" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>The external physician who made the request. Text only.</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/RequestFrom/Internal

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	InternalOrganization InternalPhysician
source	<xs:element name="Internal" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="InternalOrganization" type="OrganizationType" minOccurs="0">         <xs:annotation>           <xs:documentation>If the contact was requested by an internal organization</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="InternalPhysician" type="ResourceType" minOccurs="0">         <xs:annotation>           <xs:documentation>The internal physician who made the request.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactType/RequestFrom/Internal/InternalOrganization

diagram
type	OrganizationType
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name OfficialId ValidPeriod
annotation	documentation If the contact was requested by an internal organization
source	<xs:element name="InternalOrganization" type="OrganizationType" minOccurs="0">   <xs:annotation>     <xs:documentation>If the contact was requested by an internal organization</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/RequestFrom/Internal/InternalPhysician

diagram
type	ResourceType
properties	minOcc  0 maxOcc  1 content  complex
children	Id Code Name
annotation	documentation The internal physician who made the request.
source	<xs:element name="InternalPhysician" type="ResourceType" minOccurs="0">   <xs:annotation>     <xs:documentation>The internal physician who made the request.</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/TypeOfContact

diagram
type	CodeOfficialCodeTextType
properties	minOcc  0 maxOcc  1 content  complex
children	Code OfficialCode Text
annotation	documentation i.e. Surgery, Consultation etc.
source	<xs:element name="TypeOfContact" type="CodeOfficialCodeTextType" minOccurs="0">   <xs:annotation>     <xs:documentation>i.e. Surgery, Consultation etc.</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/Admitted

diagram
properties	content  complex
children	Type From FromExternalOrganization FromInternalOrganization
annotation	documentation Data about the admission
source	<xs:element name="Admitted">   <xs:annotation>     <xs:documentation>Data about the admission</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Type" type="CodeOfficialCodeTextType">         <xs:annotation>           <xs:documentation>Type of admission, i.e. Planned, Emergency, Born in hospital etc.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="From" type="CodeOfficialCodeTextType" minOccurs="0">         <xs:annotation>           <xs:documentation>Admitted from, i.e. Home, Other institution etc. </xs:documentation>         </xs:annotation>       </xs:element>       <xs:choice minOccurs="0">         <xs:element name="FromExternalOrganization" type="ExternalOrganizationType" minOccurs="0">           <xs:annotation>             <xs:documentation>If patient was admitted from an external organization </xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="FromInternalOrganization" type="OrganizationType" minOccurs="0">           <xs:annotation>             <xs:documentation>If patient was transferred from another organization in the hospital</xs:documentation>           </xs:annotation>         </xs:element>       </xs:choice>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactType/Admitted/Type

diagram
type	CodeOfficialCodeTextType
properties	content  complex
children	Code OfficialCode Text
annotation	documentation Type of admission, i.e. Planned, Emergency, Born in hospital etc.
source	<xs:element name="Type" type="CodeOfficialCodeTextType">   <xs:annotation>     <xs:documentation>Type of admission, i.e. Planned, Emergency, Born in hospital etc.</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/Admitted/From

diagram
type	CodeOfficialCodeTextType
properties	minOcc  0 maxOcc  1 content  complex
children	Code OfficialCode Text
annotation	documentation Admitted from, i.e. Home, Other institution etc.
source	<xs:element name="From" type="CodeOfficialCodeTextType" minOccurs="0">   <xs:annotation>     <xs:documentation>Admitted from, i.e. Home, Other institution etc. </xs:documentation>   </xs:annotation> </xs:element>

element ContactType/Admitted/FromExternalOrganization

diagram
type	ExternalOrganizationType
properties	minOcc  0 maxOcc  1 content  complex
children	Id Code Name OfficialId
annotation	documentation If patient was admitted from an external organization
source	<xs:element name="FromExternalOrganization" type="ExternalOrganizationType" minOccurs="0">   <xs:annotation>     <xs:documentation>If patient was admitted from an external organization </xs:documentation>   </xs:annotation> </xs:element>

element ContactType/Admitted/FromInternalOrganization

diagram
type	OrganizationType
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name OfficialId ValidPeriod
annotation	documentation If patient was transferred from another organization in the hospital
source	<xs:element name="FromInternalOrganization" type="OrganizationType" minOccurs="0">   <xs:annotation>     <xs:documentation>If patient was transferred from another organization in the hospital</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/Transportation

diagram
type	extension of CodeTextType
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text Companion
annotation	documentation Transportation used for admission, i.e. Ambulance
source	<xs:element name="Transportation" minOccurs="0">   <xs:annotation>     <xs:documentation>Transportation used for admission, i.e. Ambulance</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="CodeTextType">         <xs:sequence>           <xs:element name="Companion" type="CodeTextType" minOccurs="0">             <xs:annotation>               <xs:documentation>Transportation for companion. HIS90 only</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element ContactType/Transportation/Companion

diagram
type	CodeTextType
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
annotation	documentation Transportation for companion. HIS90 only
source	<xs:element name="Companion" type="CodeTextType" minOccurs="0">   <xs:annotation>     <xs:documentation>Transportation for companion. HIS90 only</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/VisitType

diagram
type	CodeOfficialCodeTextType
properties	minOcc  0 maxOcc  1 content  complex
children	Code OfficialCode Text
annotation	documentation For outpatients only. i.e. New visit, Control visit etc.
source	<xs:element name="VisitType" type="CodeOfficialCodeTextType" minOccurs="0">   <xs:annotation>     <xs:documentation>For outpatients only. i.e. New visit, Control visit etc.</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/PlaceOfTreatment

diagram
type	CodeOfficialCodeTextType
properties	minOcc  0 maxOcc  1 content  complex
children	Code OfficialCode Text
annotation	documentation For outpatients only, i.e. Home, Telephone etc.
source	<xs:element name="PlaceOfTreatment" type="CodeOfficialCodeTextType" minOccurs="0">   <xs:annotation>     <xs:documentation>For outpatients only, i.e. Home, Telephone etc.</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/Discharged

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	To DeathDate Physician ToExternalOrganization ToInternalOrganization DischargeLetterSentDate
annotation	documentation Data about the discharge
source	<xs:element name="Discharged" minOccurs="0">   <xs:annotation>     <xs:documentation>Data about the discharge</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="To" type="CodeOfficialCodeTextType" minOccurs="0">         <xs:annotation>           <xs:documentation>Where the patient was discharged, i.e. Home, Other organization etc.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="DeathDate" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>DeathDate if Discharged To Code = "DO"</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Physician" type="ResourceType" minOccurs="0">         <xs:annotation>           <xs:documentation>The physician for the internal organization</xs:documentation>         </xs:annotation>       </xs:element>       <xs:choice minOccurs="0">         <xs:element name="ToExternalOrganization" minOccurs="0">           <xs:annotation>             <xs:documentation>If the patient was discaharged to an external organization</xs:documentation>           </xs:annotation>           <xs:complexType>             <xs:complexContent>               <xs:extension base="ExternalOrganizationType"/>             </xs:complexContent>           </xs:complexType>         </xs:element>         <xs:element name="ToInternalOrganization" type="OrganizationType" minOccurs="0">           <xs:annotation>             <xs:documentation>If the patient was discaharged to an internall organization</xs:documentation>           </xs:annotation>         </xs:element>       </xs:choice>       <xs:element name="DischargeLetterSentDate" type="xs:dateTime" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactType/Discharged/To

diagram
type	CodeOfficialCodeTextType
properties	minOcc  0 maxOcc  1 content  complex
children	Code OfficialCode Text
annotation	documentation Where the patient was discharged, i.e. Home, Other organization etc.
source	<xs:element name="To" type="CodeOfficialCodeTextType" minOccurs="0">   <xs:annotation>     <xs:documentation>Where the patient was discharged, i.e. Home, Other organization etc.</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/Discharged/DeathDate

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation DeathDate if Discharged To Code = "DO"
source	<xs:element name="DeathDate" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>DeathDate if Discharged To Code = "DO"</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/Discharged/Physician

diagram
type	ResourceType
properties	minOcc  0 maxOcc  1 content  complex
children	Id Code Name
annotation	documentation The physician for the internal organization
source	<xs:element name="Physician" type="ResourceType" minOccurs="0">   <xs:annotation>     <xs:documentation>The physician for the internal organization</xs:documentation>   </xs:annotation> </xs:element>

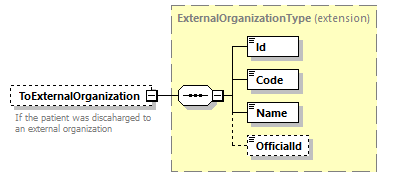

element ContactType/Discharged/ToExternalOrganization

diagram
type	extension of ExternalOrganizationType
properties	minOcc  0 maxOcc  1 content  complex
children	Id Code Name OfficialId
annotation	documentation If the patient was discaharged to an external organization
source	<xs:element name="ToExternalOrganization" minOccurs="0">   <xs:annotation>     <xs:documentation>If the patient was discaharged to an external organization</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="ExternalOrganizationType"/>     </xs:complexContent>   </xs:complexType> </xs:element>

element ContactType/Discharged/ToInternalOrganization

diagram
type	OrganizationType
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name OfficialId ValidPeriod
annotation	documentation If the patient was discaharged to an internall organization
source	<xs:element name="ToInternalOrganization" type="OrganizationType" minOccurs="0">   <xs:annotation>     <xs:documentation>If the patient was discaharged to an internall organization</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/Discharged/DischargeLetterSentDate

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="DischargeLetterSentDate" type="xs:dateTime" minOccurs="0"/>

element ContactType/InDiagnosis

diagram
type	DiagnosisType
properties	minOcc  0 maxOcc  1 content  complex
children	Id MedCode
annotation	documentation In diagnosis using code from medical register, i.e. ICD10
source	<xs:element name="InDiagnosis" type="DiagnosisType" minOccurs="0">   <xs:annotation>     <xs:documentation>In diagnosis using code from medical register, i.e. ICD10</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/Confidential

diagram
type	extension of CodeTextType
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text Comment
annotation	documentation Confidential contact
source	<xs:element name="Confidential" minOccurs="0">   <xs:annotation>     <xs:documentation>Confidential contact</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="CodeTextType">         <xs:sequence>           <xs:element name="Comment" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Comment on the confidentiality (Not Implemented for HIS90)</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element ContactType/Confidential/Comment

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Comment on the confidentiality (Not Implemented for HIS90)
source	<xs:element name="Comment" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Comment on the confidentiality (Not Implemented for HIS90)</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/Accident

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Municipality
attributes	Name   Type   Use   Default   Fixed   Annotation Accident   xs:boolean   optional   true
annotation	documentation The patient was admitted because of an accident
source	<xs:element name="Accident" minOccurs="0">   <xs:annotation>     <xs:documentation>The patient was admitted because of an accident</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Municipality" type="CodeNameType" minOccurs="0">         <xs:annotation>           <xs:documentation>Municipality in which the accident happened</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>     <xs:attribute name="Accident" type="xs:boolean" use="optional" default="true"/>   </xs:complexType> </xs:element>

attribute ContactType/Accident/@Accident

type	xs:boolean
properties	use  optional default  true
source	<xs:attribute name="Accident" type="xs:boolean" use="optional" default="true"/>

element ContactType/Accident/Municipality

diagram
type	CodeNameType
properties	minOcc  0 maxOcc  1 content  complex
children	Code Name
annotation	documentation Municipality in which the accident happened
source	<xs:element name="Municipality" type="CodeNameType" minOccurs="0">   <xs:annotation>     <xs:documentation>Municipality in which the accident happened</xs:documentation>   </xs:annotation> </xs:element>

element ContactType/BookingId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Booking Id. HIS90 only
source	<xs:element name="BookingId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Booking Id. HIS90 only</xs:documentation>   </xs:annotation> </xs:element>

complexType ContactTypeDetails

diagram
type	extension of ContactType
properties	base  ContactType
children	Id From To MedicalOrganization Hospital TypeOfCare Status Emergency RequestFrom TypeOfContact Admitted Transportation VisitType PlaceOfTreatment Discharged InDiagnosis Confidential Accident BookingId Details
annotation	documentation Contact with all org. details
source	<xs:complexType name="ContactTypeDetails">   <xs:annotation>     <xs:documentation>Contact with all org. details</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="ContactType">       <xs:sequence>         <xs:element name="Details">           <xs:annotation>             <xs:documentation>Details attached to the medical organization and the care unit. Details change if the patient is transferred between organizations during the admission.</xs:documentation>           </xs:annotation>           <xs:complexType>             <xs:sequence>               <xs:element name="MedicalDetails">                 <xs:complexType>                   <xs:sequence>                     <xs:element name="MedicalDetail" type="ContactDetailMedType" maxOccurs="unbounded">                       <xs:annotation>                         <xs:documentation>Details attached to the medical organziation</xs:documentation>                       </xs:annotation>                     </xs:element>                   </xs:sequence>                 </xs:complexType>               </xs:element>               <xs:element name="CareDetails">                 <xs:complexType>                   <xs:sequence>                     <xs:element name="CareDetail" type="ContactDetailCareType" maxOccurs="unbounded">                       <xs:annotation>                         <xs:documentation>Details attached to the care unit.</xs:documentation>                       </xs:annotation>                     </xs:element>                   </xs:sequence>                 </xs:complexType>               </xs:element>             </xs:sequence>           </xs:complexType>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element ContactTypeDetails/Details

diagram
properties	content  complex
children	MedicalDetails CareDetails
annotation	documentation Details attached to the medical organization and the care unit. Details change if the patient is transferred between organizations during the admission.
source	<xs:element name="Details">   <xs:annotation>     <xs:documentation>Details attached to the medical organization and the care unit. Details change if the patient is transferred between organizations during the admission.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="MedicalDetails">         <xs:complexType>           <xs:sequence>             <xs:element name="MedicalDetail" type="ContactDetailMedType" maxOccurs="unbounded">               <xs:annotation>                 <xs:documentation>Details attached to the medical organziation</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="CareDetails">         <xs:complexType>           <xs:sequence>             <xs:element name="CareDetail" type="ContactDetailCareType" maxOccurs="unbounded">               <xs:annotation>                 <xs:documentation>Details attached to the care unit.</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactTypeDetails/Details/MedicalDetails

diagram
properties	content  complex
children	MedicalDetail
source	<xs:element name="MedicalDetails">   <xs:complexType>     <xs:sequence>       <xs:element name="MedicalDetail" type="ContactDetailMedType" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Details attached to the medical organziation</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactTypeDetails/Details/MedicalDetails/MedicalDetail

diagram
type	ContactDetailMedType
properties	minOcc  1 maxOcc  unbounded content  complex
children	Id Status From To Organization OrganizationAddresses ContactActivityId PatientResponsible ContactResponsible
annotation	documentation Details attached to the medical organziation
source	<xs:element name="MedicalDetail" type="ContactDetailMedType" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Details attached to the medical organziation</xs:documentation>   </xs:annotation> </xs:element>

element ContactTypeDetails/Details/CareDetails

diagram
properties	content  complex
children	CareDetail
source	<xs:element name="CareDetails">   <xs:complexType>     <xs:sequence>       <xs:element name="CareDetail" type="ContactDetailCareType" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Details attached to the care unit.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactTypeDetails/Details/CareDetails/CareDetail

diagram
type	ContactDetailCareType
properties	minOcc  1 maxOcc  unbounded content  complex
children	Id Status From To Organization OrganizationAddresses ContactActivityId CareResponsible CareGroup Placement PatientCategory
annotation	documentation Details attached to the care unit.
source	<xs:element name="CareDetail" type="ContactDetailCareType" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Details attached to the care unit.</xs:documentation>   </xs:annotation> </xs:element>

complexType ContactTypeLatest

diagram
type	extension of ContactType
properties	base  ContactType
children	Id From To MedicalOrganization Hospital TypeOfCare Status Emergency RequestFrom TypeOfContact Admitted Transportation VisitType PlaceOfTreatment Discharged InDiagnosis Confidential Accident BookingId Details
annotation	documentation Contact with latest org. details
source	<xs:complexType name="ContactTypeLatest">   <xs:annotation>     <xs:documentation>Contact with latest org. details</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="ContactType">       <xs:sequence>         <xs:element name="Details">           <xs:annotation>             <xs:documentation>Details attached to the medical organization and the care unit</xs:documentation>           </xs:annotation>           <xs:complexType>             <xs:sequence>               <xs:element name="LatestDetails">                 <xs:annotation>                   <xs:documentation>The current details if the patient is in hospital or the details at the time of discharge if the patient is discharged.</xs:documentation>                 </xs:annotation>                 <xs:complexType>                   <xs:sequence>                     <xs:element name="MedicalDetail" type="ContactDetailMedType">                       <xs:annotation>                         <xs:documentation>Details attached to the medical organziation</xs:documentation>                       </xs:annotation>                     </xs:element>                     <xs:element name="CareDetail" type="ContactDetailCareType">                       <xs:annotation>                         <xs:documentation>Details attached to the care unit.</xs:documentation>                       </xs:annotation>                     </xs:element>                   </xs:sequence>                 </xs:complexType>               </xs:element>             </xs:sequence>           </xs:complexType>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element ContactTypeLatest/Details

diagram
properties	content  complex
children	LatestDetails
annotation	documentation Details attached to the medical organization and the care unit
source	<xs:element name="Details">   <xs:annotation>     <xs:documentation>Details attached to the medical organization and the care unit</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="LatestDetails">         <xs:annotation>           <xs:documentation>The current details if the patient is in hospital or the details at the time of discharge if the patient is discharged.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="MedicalDetail" type="ContactDetailMedType">               <xs:annotation>                 <xs:documentation>Details attached to the medical organziation</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="CareDetail" type="ContactDetailCareType">               <xs:annotation>                 <xs:documentation>Details attached to the care unit.</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactTypeLatest/Details/LatestDetails

diagram
properties	content  complex
children	MedicalDetail CareDetail
annotation	documentation The current details if the patient is in hospital or the details at the time of discharge if the patient is discharged.
source	<xs:element name="LatestDetails">   <xs:annotation>     <xs:documentation>The current details if the patient is in hospital or the details at the time of discharge if the patient is discharged.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="MedicalDetail" type="ContactDetailMedType">         <xs:annotation>           <xs:documentation>Details attached to the medical organziation</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="CareDetail" type="ContactDetailCareType">         <xs:annotation>           <xs:documentation>Details attached to the care unit.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactTypeLatest/Details/LatestDetails/MedicalDetail

diagram
type	ContactDetailMedType
properties	content  complex
children	Id Status From To Organization OrganizationAddresses ContactActivityId PatientResponsible ContactResponsible
annotation	documentation Details attached to the medical organziation
source	<xs:element name="MedicalDetail" type="ContactDetailMedType">   <xs:annotation>     <xs:documentation>Details attached to the medical organziation</xs:documentation>   </xs:annotation> </xs:element>

element ContactTypeLatest/Details/LatestDetails/CareDetail

diagram
type	ContactDetailCareType
properties	content  complex
children	Id Status From To Organization OrganizationAddresses ContactActivityId CareResponsible CareGroup Placement PatientCategory
annotation	documentation Details attached to the care unit.
source	<xs:element name="CareDetail" type="ContactDetailCareType">   <xs:annotation>     <xs:documentation>Details attached to the care unit.</xs:documentation>   </xs:annotation> </xs:element>

complexType DiagnosisType

diagram
children	Id MedCode
used by	element  ContactType/InDiagnosis
annotation	documentation Diagnosis incl. medcode and medregister
source	<xs:complexType name="DiagnosisType">   <xs:annotation>     <xs:documentation>Diagnosis incl. medcode and medregister</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:string">       <xs:annotation>         <xs:documentation>Internal Id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="MedCode">       <xs:annotation>         <xs:documentation>Medical code from a medical register, i.e. ICD10</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Id" type="xs:string"/>           <xs:element name="Code" type="xs:string"/>           <xs:element name="Text" type="xs:string"/>           <xs:element name="MedRegister" type="IdCodeOfficialCodeTextType">             <xs:annotation>               <xs:documentation>Medical register, i.e. ICD10</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element DiagnosisType/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Internal Id
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Internal Id</xs:documentation>   </xs:annotation> </xs:element>

element DiagnosisType/MedCode

diagram
properties	content  complex
children	Id Code Text MedRegister
annotation	documentation Medical code from a medical register, i.e. ICD10
source	<xs:element name="MedCode">   <xs:annotation>     <xs:documentation>Medical code from a medical register, i.e. ICD10</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string"/>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Text" type="xs:string"/>       <xs:element name="MedRegister" type="IdCodeOfficialCodeTextType">         <xs:annotation>           <xs:documentation>Medical register, i.e. ICD10</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element DiagnosisType/MedCode/Id

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element DiagnosisType/MedCode/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element DiagnosisType/MedCode/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element DiagnosisType/MedCode/MedRegister

diagram
type	IdCodeOfficialCodeTextType
properties	content  complex
children	Id Code OfficialCode Text
annotation	documentation Medical register, i.e. ICD10
source	<xs:element name="MedRegister" type="IdCodeOfficialCodeTextType">   <xs:annotation>     <xs:documentation>Medical register, i.e. ICD10</xs:documentation>   </xs:annotation> </xs:element>

complexType ProcedureCodeType

diagram
children	SequenceNumber MedCode PercentAddition UpdateCount
used by	element  ProcedureType/Codes/Code
annotation	documentation Procedure codes incl. medcode and medregister
source	<xs:complexType name="ProcedureCodeType">   <xs:annotation>     <xs:documentation>Procedure codes incl. medcode and medregister</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="SequenceNumber" type="xs:int">       <xs:annotation>         <xs:documentation>Code sequence number. 1 is the maincode. 2..n are additional codes.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="MedCode">       <xs:annotation>         <xs:documentation>Medical code from a medical register, i.e. NCSP</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Id" type="xs:string"/>           <xs:element name="Code" type="xs:string"/>           <xs:element name="Text" type="xs:string"/>           <xs:element name="MedRegister" type="IdCodeOfficialCodeTextType">             <xs:annotation>               <xs:documentation>Medical register, i.e. NCSP</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="PercentAddition" type="xs:int" minOccurs="0"/>     <xs:element name="UpdateCount" type="xs:int" minOccurs="0">       <xs:annotation>         <xs:documentation>Number of diagnosis updates. </xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element ProcedureCodeType/SequenceNumber

diagram
type	xs:int
properties	content  simple
annotation	documentation Code sequence number. 1 is the maincode. 2..n are additional codes.
source	<xs:element name="SequenceNumber" type="xs:int">   <xs:annotation>     <xs:documentation>Code sequence number. 1 is the maincode. 2..n are additional codes.</xs:documentation>   </xs:annotation> </xs:element>

element ProcedureCodeType/MedCode

diagram
properties	content  complex
children	Id Code Text MedRegister
annotation	documentation Medical code from a medical register, i.e. NCSP
source	<xs:element name="MedCode">   <xs:annotation>     <xs:documentation>Medical code from a medical register, i.e. NCSP</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string"/>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Text" type="xs:string"/>       <xs:element name="MedRegister" type="IdCodeOfficialCodeTextType">         <xs:annotation>           <xs:documentation>Medical register, i.e. NCSP</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ProcedureCodeType/MedCode/Id

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element ProcedureCodeType/MedCode/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element ProcedureCodeType/MedCode/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element ProcedureCodeType/MedCode/MedRegister

diagram
type	IdCodeOfficialCodeTextType
properties	content  complex
children	Id Code OfficialCode Text
annotation	documentation Medical register, i.e. NCSP
source	<xs:element name="MedRegister" type="IdCodeOfficialCodeTextType">   <xs:annotation>     <xs:documentation>Medical register, i.e. NCSP</xs:documentation>   </xs:annotation> </xs:element>

element ProcedureCodeType/PercentAddition

diagram
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="PercentAddition" type="xs:int" minOccurs="0"/>

element ProcedureCodeType/UpdateCount

diagram
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Number of diagnosis updates.
source	<xs:element name="UpdateCount" type="xs:int" minOccurs="0">   <xs:annotation>     <xs:documentation>Number of diagnosis updates. </xs:documentation>   </xs:annotation> </xs:element>

complexType RemarkType

diagram
children	Remark Signature SignatureDateTime
used by	elements  AdmMedRemarkType/Administrative AdmMedRemarkType/Medical
annotation	documentation Remark, signature and signature date
source	<xs:complexType name="RemarkType">   <xs:annotation>     <xs:documentation>Remark, signature and signature date</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Remark" type="xs:string"/>     <xs:element name="Signature" type="xs:string"/>     <xs:element name="SignatureDateTime" type="xs:dateTime"/>   </xs:sequence> </xs:complexType>

element RemarkType/Remark

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Remark" type="xs:string"/>

element RemarkType/Signature

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Signature" type="xs:string"/>

element RemarkType/SignatureDateTime

diagram
type	xs:dateTime
properties	content  simple
source	<xs:element name="SignatureDateTime" type="xs:dateTime"/>

complexType CodeNameType

diagram
children	Code Name
used by	element  ContactType/Accident/Municipality
annotation	documentation Code and Name
source	<xs:complexType name="CodeNameType">   <xs:annotation>     <xs:documentation>Code and Name</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Code" type="xs:string"/>     <xs:element name="Name" type="xs:string"/>   </xs:sequence> </xs:complexType>

element CodeNameType/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element CodeNameType/Name

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Name" type="xs:string"/>

complexType CodeOfficialCodeTextType

diagram
children	Code OfficialCode Text
used by	elements  ContactType/Admitted/From ContactDetailCareType/PatientCategory ContactType/PlaceOfTreatment ContactType/Discharged/To ContactType/Admitted/Type ContactType/TypeOfCare ContactType/TypeOfContact ContactType/VisitType
annotation	documentation Code, OfficialCode and Text
source	<xs:complexType name="CodeOfficialCodeTextType">   <xs:annotation>     <xs:documentation>Code, OfficialCode and Text</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Code" type="xs:string"/>     <xs:element name="OfficialCode" type="xs:string" minOccurs="0"/>     <xs:element name="Text" type="xs:string"/>   </xs:sequence> </xs:complexType>

element CodeOfficialCodeTextType/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element CodeOfficialCodeTextType/OfficialCode

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="OfficialCode" type="xs:string" minOccurs="0"/>

element CodeOfficialCodeTextType/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

complexType CodeTextType

diagram
children	Code Text
used by	elements  ContactType/Transportation/Companion ContactType/Confidential ProcedureType/ExecutedBy/ExecutedByElement/ResourceProperty ProcedureType/Status ContactDetailType/Status ContactType/Status ContactType/Transportation ContactProcedures/ContactActivities/ContactActivity/Type
annotation	documentation Code and Text
source	<xs:complexType name="CodeTextType">   <xs:annotation>     <xs:documentation>Code and Text</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Code" type="xs:string"/>     <xs:element name="Text" type="xs:string"/>   </xs:sequence> </xs:complexType>

element CodeTextType/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element CodeTextType/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

complexType IdCodeNameType

diagram
children	Id Code Name
used by	elements  ContactDetailCareType/Placement/Permanent ContactDetailCareType/Placement/Temporary
annotation	documentation Id, Code and Name
source	<xs:complexType name="IdCodeNameType">   <xs:annotation>     <xs:documentation>Id, Code and Name</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:int"/>     <xs:element name="Code" type="xs:string"/>     <xs:element name="Name" type="xs:string"/>   </xs:sequence> </xs:complexType>

element IdCodeNameType/Id

diagram
type	xs:int
properties	content  simple
source	<xs:element name="Id" type="xs:int"/>

element IdCodeNameType/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element IdCodeNameType/Name

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Name" type="xs:string"/>

complexType IdCodeOfficialCodeTextType

diagram
children	Id Code OfficialCode Text
used by	elements  DiagnosisType/MedCode/MedRegister ProcedureCodeType/MedCode/MedRegister MedCodeType/MedRegister
annotation	documentation Id, Code, Official Code and Text
source	<xs:complexType name="IdCodeOfficialCodeTextType">   <xs:annotation>     <xs:documentation>Id, Code, Official Code and Text</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:int"/>     <xs:element name="Code" type="xs:string"/>     <xs:element name="OfficialCode" type="xs:string" minOccurs="0"/>     <xs:element name="Text" type="xs:string"/>   </xs:sequence> </xs:complexType>

element IdCodeOfficialCodeTextType/Id

diagram
type	xs:int
properties	content  simple
source	<xs:element name="Id" type="xs:int"/>

element IdCodeOfficialCodeTextType/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element IdCodeOfficialCodeTextType/OfficialCode

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="OfficialCode" type="xs:string" minOccurs="0"/>

element IdCodeOfficialCodeTextType/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

complexType IdCodeShortAndLongTextType

diagram
children	Id Code ShortText LongText
annotation	documentation Id, Code, ShortText and LongText
source	<xs:complexType name="IdCodeShortAndLongTextType">   <xs:annotation>     <xs:documentation>Id, Code, ShortText and LongText</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:int"/>     <xs:element name="Code" type="xs:string"/>     <xs:element name="ShortText" type="xs:string"/>     <xs:element name="LongText" type="xs:string"/>   </xs:sequence> </xs:complexType>

element IdCodeShortAndLongTextType/Id

diagram
type	xs:int
properties	content  simple
source	<xs:element name="Id" type="xs:int"/>

element IdCodeShortAndLongTextType/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element IdCodeShortAndLongTextType/ShortText

diagram
type	xs:string
properties	content  simple
source	<xs:element name="ShortText" type="xs:string"/>

element IdCodeShortAndLongTextType/LongText

diagram
type	xs:string
properties	content  simple
source	<xs:element name="LongText" type="xs:string"/>

complexType IdCodeTextType

diagram
children	Id Code Text
used by	complexType  MedCodeType
annotation	documentation Id, Code and Text
source	<xs:complexType name="IdCodeTextType">   <xs:annotation>     <xs:documentation>Id, Code and Text</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:int"/>     <xs:element name="Code" type="xs:string"/>     <xs:element name="Text" type="xs:string"/>   </xs:sequence> </xs:complexType>

element IdCodeTextType/Id

diagram
type	xs:int
properties	content  simple
source	<xs:element name="Id" type="xs:int"/>

element IdCodeTextType/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element IdCodeTextType/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

complexType IdCodeType

diagram
children	Id Code
annotation	documentation Id and Code
source	<xs:complexType name="IdCodeType">   <xs:annotation>     <xs:documentation> Id and Code</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:int"/>     <xs:element name="Code" type="xs:string"/>   </xs:sequence> </xs:complexType>

element IdCodeType/Id

diagram
type	xs:int
properties	content  simple
source	<xs:element name="Id" type="xs:int"/>

element IdCodeType/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

complexType IdNameType

diagram
children	Id Name
annotation	documentation Id and Name
source	<xs:complexType name="IdNameType">   <xs:annotation>     <xs:documentation>Id and Name</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:int"/>     <xs:element name="Name" type="xs:string"/>   </xs:sequence> </xs:complexType>

element IdNameType/Id

diagram
type	xs:int
properties	content  simple
source	<xs:element name="Id" type="xs:int"/>

element IdNameType/Name

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Name" type="xs:string"/>

complexType IdShortAndLongTextType

diagram
children	Id ShortText LongText
annotation	documentation Id, ShortText and LongText
source	<xs:complexType name="IdShortAndLongTextType">   <xs:annotation>     <xs:documentation>Id, ShortText and LongText</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:int"/>     <xs:element name="ShortText" type="xs:string"/>     <xs:element name="LongText" type="xs:string"/>   </xs:sequence> </xs:complexType>

element IdShortAndLongTextType/Id

diagram
type	xs:int
properties	content  simple
source	<xs:element name="Id" type="xs:int"/>

element IdShortAndLongTextType/ShortText

diagram
type	xs:string
properties	content  simple
source	<xs:element name="ShortText" type="xs:string"/>

element IdShortAndLongTextType/LongText

diagram
type	xs:string
properties	content  simple
source	<xs:element name="LongText" type="xs:string"/>

complexType IdTextType

diagram
children	Id Text
annotation	documentation Id and Text
source	<xs:complexType name="IdTextType">   <xs:annotation>     <xs:documentation>Id and Text</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:int"/>     <xs:element name="Text" type="xs:string"/>   </xs:sequence> </xs:complexType>

element IdTextType/Id

diagram
type	xs:int
properties	content  simple
source	<xs:element name="Id" type="xs:int"/>

element IdTextType/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

complexType LastChangedType

diagram
children	ChangedBy Changed
annotation	documentation Last changed by and date
source	<xs:complexType name="LastChangedType">   <xs:annotation>     <xs:documentation>Last changed by and date</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="ChangedBy" type="xs:string"/>     <xs:element name="Changed" type="xs:dateTime"/>   </xs:sequence> </xs:complexType>

element LastChangedType/ChangedBy

diagram
type	xs:string
properties	content  simple
source	<xs:element name="ChangedBy" type="xs:string"/>

element LastChangedType/Changed

diagram
type	xs:dateTime
properties	content  simple
source	<xs:element name="Changed" type="xs:dateTime"/>

complexType MedCodeType

diagram
type	extension of IdCodeTextType
properties	base  IdCodeTextType
children	Id Code Text MedRegister
annotation	documentation Medical code incl. medregister
source	<xs:complexType name="MedCodeType">   <xs:annotation>     <xs:documentation>Medical code incl. medregister</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="IdCodeTextType">       <xs:sequence>         <xs:element name="MedRegister" type="IdCodeOfficialCodeTextType">           <xs:annotation>             <xs:documentation>Medical register, i.e. ICD10</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element MedCodeType/MedRegister

diagram
type	IdCodeOfficialCodeTextType
properties	content  complex
children	Id Code OfficialCode Text
annotation	documentation Medical register, i.e. ICD10
source	<xs:element name="MedRegister" type="IdCodeOfficialCodeTextType">   <xs:annotation>     <xs:documentation>Medical register, i.e. ICD10</xs:documentation>   </xs:annotation> </xs:element>

complexType ShortAndLongTextType

diagram
children	ShortText LongText
annotation	documentation ShortText and LongText
source	<xs:complexType name="ShortAndLongTextType">   <xs:annotation>     <xs:documentation>ShortText and LongText</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="ShortText" type="xs:string"/>     <xs:element name="LongText" type="xs:string"/>   </xs:sequence> </xs:complexType>

element ShortAndLongTextType/ShortText

diagram
type	xs:string
properties	content  simple
source	<xs:element name="ShortText" type="xs:string"/>

element ShortAndLongTextType/LongText

diagram
type	xs:string
properties	content  simple
source	<xs:element name="LongText" type="xs:string"/>

complexType UserType

diagram
children	Name FullName
annotation	documentation ShortNameId and Name
source	<xs:complexType name="UserType">   <xs:annotation>     <xs:documentation>ShortNameId and Name</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Name" type="xs:string"/>     <xs:element name="FullName" type="xs:string"/>   </xs:sequence> </xs:complexType>

element UserType/Name

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Name" type="xs:string"/>

element UserType/FullName

diagram
type	xs:string
properties	content  simple
source	<xs:element name="FullName" type="xs:string"/>

complexType ExternalOrganizationType

diagram
children	Id Code Name OfficialId
used by	elements  ContactType/RequestFrom/External/ExternalOrganization ContactType/Admitted/FromExternalOrganization ContactType/Discharged/ToExternalOrganization
annotation	documentation Type for an external organization or resource (EksternInstans)
source	<xs:complexType name="ExternalOrganizationType">   <xs:annotation>     <xs:documentation>Type for an external organization or resource (EksternInstans)</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:string"/>     <xs:element name="Code" type="xs:string"/>     <xs:element name="Name" type="xs:string"/>     <xs:element name="OfficialId" type="xs:string" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element ExternalOrganizationType/Id

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element ExternalOrganizationType/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element ExternalOrganizationType/Name

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Name" type="xs:string"/>

element ExternalOrganizationType/OfficialId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="OfficialId" type="xs:string" minOccurs="0"/>

complexType OrganizationType

diagram
children	Id TypeOfId ShortNameId Name OfficialId ValidPeriod
used by	elements  ContactProcedures/ContactActivities/ContactActivity/CareOrganization ContactType/Admitted/FromInternalOrganization ContactType/Hospital ContactType/RequestFrom/Internal/InternalOrganization ContactProcedures/ContactActivities/ContactActivity/MedicalOrganization ContactType/MedicalOrganization ContactDetailType/Organization ProcedureType/ExecutedBy/ExecutedByElement/OrganizationUnit ContactType/Discharged/ToInternalOrganization complexType  OrganizationType2
annotation	documentation Type for the organizational unit
source	<xs:complexType name="OrganizationType">   <xs:annotation>     <xs:documentation>Type for the organizational unit</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:int"/>     <xs:element name="TypeOfId" type="xs:string" minOccurs="0"/>     <xs:element name="ShortNameId" type="xs:string"/>     <xs:element name="Name" type="xs:string" minOccurs="0"/>     <xs:element name="OfficialId" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>HIS90 only. Unique Id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ValidPeriod" type="ValidPeriodTypeOrgs" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element OrganizationType/Id

diagram
type	xs:int
properties	content  simple
source	<xs:element name="Id" type="xs:int"/>

element OrganizationType/TypeOfId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="TypeOfId" type="xs:string" minOccurs="0"/>

element OrganizationType/ShortNameId

diagram
type	xs:string
properties	content  simple
source	<xs:element name="ShortNameId" type="xs:string"/>

element OrganizationType/Name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Name" type="xs:string" minOccurs="0"/>

element OrganizationType/OfficialId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation HIS90 only. Unique Id
source	<xs:element name="OfficialId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>HIS90 only. Unique Id</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/ValidPeriod

diagram
type	ValidPeriodTypeOrgs
properties	minOcc  0 maxOcc  1 content  complex
children	ValidFrom ValidTo
source	<xs:element name="ValidPeriod" type="ValidPeriodTypeOrgs" minOccurs="0"/>

complexType OrganizationType2

diagram
type	extension of OrganizationType
properties	base  OrganizationType
children	Id TypeOfId ShortNameId Name OfficialId ValidPeriod OrgUnitType
annotation	documentation Type for the organizational unit extended
source	<xs:complexType name="OrganizationType2">   <xs:annotation>     <xs:documentation>Type for the organizational unit extended</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="OrganizationType">       <xs:sequence>         <xs:element name="OrgUnitType" type="xs:string" minOccurs="0">           <xs:annotation>             <xs:documentation>Organization unit type I : Inpatients/Sengepost org P : Oupatients/Poliklinikk org A : Admin org R : Xray/røntgen org M : Reception/Mottakelse org</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element OrganizationType2/OrgUnitType

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Organization unit type I : Inpatients/Sengepost org P : Oupatients/Poliklinikk org A : Admin org R : Xray/røntgen org M : Reception/Mottakelse org
source	<xs:element name="OrgUnitType" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Organization unit type I : Inpatients/Sengepost org P : Oupatients/Poliklinikk org A : Admin org R : Xray/røntgen org M : Reception/Mottakelse org</xs:documentation>   </xs:annotation> </xs:element>

complexType ResourceType

diagram
children	Id Code Name
used by	elements  ContactDetailCareType/CareGroup ContactDetailCareType/CareResponsible ContactDetailMedType/ContactResponsible ContactType/RequestFrom/Internal/InternalPhysician ContactProcedures/MedicalResponsible ContactDetailMedType/PatientResponsible ContactType/Discharged/Physician ProcedureType/ExecutedBy/ExecutedByElement/Resource
annotation	documentation Type for a resource
source	<xs:complexType name="ResourceType">   <xs:annotation>     <xs:documentation>Type for a resource</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:string"/>     <xs:element name="Code" type="xs:string" minOccurs="0"/>     <xs:element name="Name" type="xs:string"/>   </xs:sequence> </xs:complexType>

element ResourceType/Id

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element ResourceType/Code

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Code" type="xs:string" minOccurs="0"/>

element ResourceType/Name

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Name" type="xs:string"/>

complexType ValidPeriodTypeOrgs

diagram
children	ValidFrom ValidTo
used by	element  OrganizationType/ValidPeriod
source	<xs:complexType name="ValidPeriodTypeOrgs">   <xs:sequence>     <xs:element name="ValidFrom" type="xs:dateTime" minOccurs="0"/>     <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element ValidPeriodTypeOrgs/ValidFrom

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ValidFrom" type="xs:dateTime" minOccurs="0"/>

element ValidPeriodTypeOrgs/ValidTo

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
