Schema medicalregister.xsd


schema location:  ..\..\medicalregister.xsd

Elements
MedicalRegister


schema location:  ..\..\PeriodicBasicTypes.xsd

Complex types
PerFixCodeTextCommentType
PerFixCodeTextType
PerFixCodeType
PerFixDTCodeTextCommentType
PerFixDTCodeTextType
PerFixDTCodeType
PerFixDTTextCommentType
PerFixTextCommentType
PerVarCodeTextCommentType
PerVarCodeTextType
PerVarCodeType
PerVarDTCodeTextCommentType
PerVarDTCodeTextType
PerVarDTCodeType
PerVarDTTextCommentType
PerVarTextCommentType
ValidPeriodDateTimeType
ValidPeriodDateType


schema location:  ..\..\CommonBasicTypes.xsd

Complex types
CodeNameType
CodeOfficialCodeTextType
CodeTextType
IdCodeNameType
IdCodeOfficialCodeTextType
IdCodeShortAndLongTextType
IdCodeTextType
IdCodeType
IdNameType
IdShortAndLongTextType
IdTextType
LastChangedType
ShortAndLongTextType
UserType


schema location:  ..\..\OrgBasicTypes.xsd

Complex types
ExternalOrganizationType
OrganizationType
ResourceType

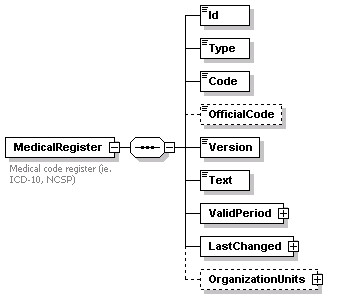

element MedicalRegister
diagram
children Id Type Code OfficialCode Version Text ValidPeriod LastChanged OrganizationUnits
annotation
documentation
Medical code register (ie. ICD-10, NCSP)

element MedicalRegister/Id
diagram
type xs:int

element MedicalRegister/Type
diagram
type xs:string

element MedicalRegister/Code
diagram
type xs:string

element MedicalRegister/OfficialCode
diagram
type xs:string

element MedicalRegister/Version
diagram
type xs:string

element MedicalRegister/Text
diagram
type xs:string

element MedicalRegister/ValidPeriod
diagram
type ValidPeriodDateType
children ValidFrom ValidTo

element MedicalRegister/LastChanged
diagram
type LastChangedType
children ChangedBy Changed

element MedicalRegister/OrganizationUnits
diagram
children OrganizationUnit

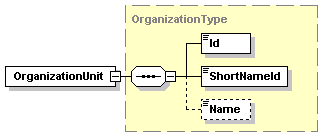

element MedicalRegister/OrganizationUnits/OrganizationUnit
diagram
type OrganizationType
children Id ShortNameId Name

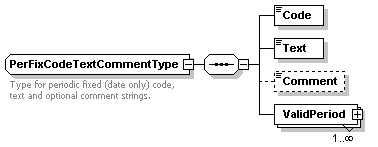

complexType PerFixCodeTextCommentType
diagram
children Code Text Comment ValidPeriod
annotation
documentation
Type for periodic fixed (date only) code, text and optional comment strings.

element PerFixCodeTextCommentType/Code
diagram
type xs:string

element PerFixCodeTextCommentType/Text
diagram
type xs:string

element PerFixCodeTextCommentType/Comment
diagram
type xs:string

element PerFixCodeTextCommentType/ValidPeriod
diagram
type ValidPeriodDateType
children ValidFrom ValidTo

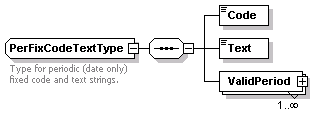

complexType PerFixCodeTextType
diagram
children Code Text ValidPeriod
annotation
documentation
Type for periodic (date only) fixed code and text strings.

element PerFixCodeTextType/Code
diagram
type xs:string

element PerFixCodeTextType/Text
diagram
type xs:string

element PerFixCodeTextType/ValidPeriod
diagram
type ValidPeriodDateType
children ValidFrom ValidTo

complexType PerFixCodeType
diagram
children Code ValidPeriod
annotation
documentation
Type for periodic (date only) fixed code string.

element PerFixCodeType/Code
diagram
type xs:string

element PerFixCodeType/ValidPeriod
diagram
type ValidPeriodDateType
children ValidFrom ValidTo

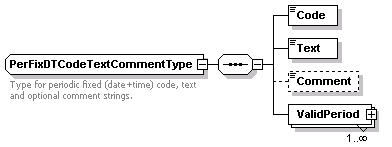

complexType PerFixDTCodeTextCommentType
diagram
children Code Text Comment ValidPeriod
annotation
documentation
Type for periodic fixed (date+time) code, text and optional comment strings.

element PerFixDTCodeTextCommentType/Code
diagram
type xs:string

element PerFixDTCodeTextCommentType/Text
diagram
type xs:string

element PerFixDTCodeTextCommentType/Comment
diagram
type xs:string

element PerFixDTCodeTextCommentType/ValidPeriod
diagram
type ValidPeriodDateTimeType
children ValidFrom ValidTo

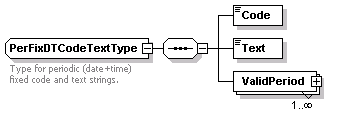

complexType PerFixDTCodeTextType
diagram
children Code Text ValidPeriod
annotation
documentation
Type for periodic (date+time) fixed code and text strings.

element PerFixDTCodeTextType/Code
diagram
type xs:string

element PerFixDTCodeTextType/Text
diagram
type xs:string

element PerFixDTCodeTextType/ValidPeriod
diagram
type ValidPeriodDateTimeType
children ValidFrom ValidTo

complexType PerFixDTCodeType
diagram
children Code ValidPeriod
annotation
documentation
Type for periodic (date+time) fixed code string.

element PerFixDTCodeType/Code
diagram
type xs:string

element PerFixDTCodeType/ValidPeriod
diagram
type ValidPeriodDateTimeType
children ValidFrom ValidTo

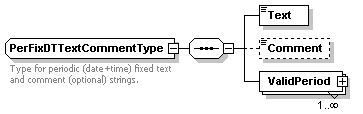

complexType PerFixDTTextCommentType
diagram
children Text Comment ValidPeriod
annotation
documentation
Type for periodic (date+time) fixed text and comment (optional) strings.

element PerFixDTTextCommentType/Text
diagram
type xs:string

element PerFixDTTextCommentType/Comment
diagram
type xs:string

element PerFixDTTextCommentType/ValidPeriod
diagram
type ValidPeriodDateTimeType
children ValidFrom ValidTo

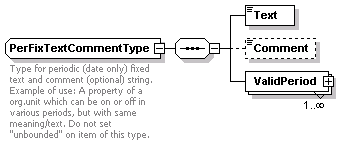

complexType PerFixTextCommentType
diagram
children Text Comment ValidPeriod
annotation
documentation
Type for periodic (date only) fixed text and comment (optional) string. Example of use: A property of a org.unit which can be on or off in various periods, but with same meaning/text. Do not set "unbounded" on item of this type.

element PerFixTextCommentType/Text
diagram
type xs:string

element PerFixTextCommentType/Comment
diagram
type xs:string

element PerFixTextCommentType/ValidPeriod
diagram
type ValidPeriodDateType
children ValidFrom ValidTo

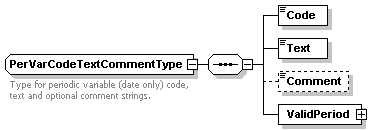

complexType PerVarCodeTextCommentType
diagram
children Code Text Comment ValidPeriod
annotation
documentation
Type for periodic variable (date only) code, text and optional comment strings.

element PerVarCodeTextCommentType/Code
diagram
type xs:string

element PerVarCodeTextCommentType/Text
diagram
type xs:string

element PerVarCodeTextCommentType/Comment
diagram
type xs:string

element PerVarCodeTextCommentType/ValidPeriod
diagram
type ValidPeriodDateType
children ValidFrom ValidTo

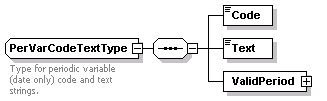

complexType PerVarCodeTextType
diagram
children Code Text ValidPeriod
annotation
documentation
Type for periodic variable (date only) code and text strings.

element PerVarCodeTextType/Code
diagram
type xs:string

element PerVarCodeTextType/Text
diagram
type xs:string

element PerVarCodeTextType/ValidPeriod
diagram
type ValidPeriodDateType
children ValidFrom ValidTo

complexType PerVarCodeType
diagram
children Code ValidPeriod
annotation
documentation
Type for periodic variable (date only) code string.

element PerVarCodeType/Code
diagram
type xs:string

element PerVarCodeType/ValidPeriod
diagram
type ValidPeriodDateType
children ValidFrom ValidTo

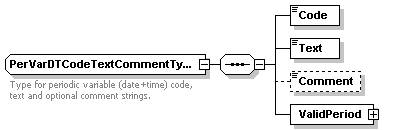

complexType PerVarDTCodeTextCommentType
diagram
children Code Text Comment ValidPeriod
annotation
documentation
Type for periodic variable (date+time) code, text and optional comment strings.

element PerVarDTCodeTextCommentType/Code
diagram
type xs:string

element PerVarDTCodeTextCommentType/Text
diagram
type xs:string

element PerVarDTCodeTextCommentType/Comment
diagram
type xs:string

element PerVarDTCodeTextCommentType/ValidPeriod
diagram
type ValidPeriodDateTimeType
children ValidFrom ValidTo

complexType PerVarDTCodeTextType
diagram
children Code Text ValidPeriod
annotation
documentation
Type for periodic variable (date+time) code and text strings.

element PerVarDTCodeTextType/Code
diagram
type xs:string

element PerVarDTCodeTextType/Text
diagram
type xs:string

element PerVarDTCodeTextType/ValidPeriod
diagram
type ValidPeriodDateTimeType
children ValidFrom ValidTo

complexType PerVarDTCodeType
diagram
children Code ValidPeriod
annotation
documentation
Type for periodic variable (date+time) code string.

element PerVarDTCodeType/Code
diagram
type xs:string

element PerVarDTCodeType/ValidPeriod
diagram
type ValidPeriodDateTimeType
children ValidFrom ValidTo

complexType PerVarDTTextCommentType
diagram
children Text Comment ValidPeriod
annotation
documentation
Type for periodic (date+time) variable text and comment (optional) strings.

element PerVarDTTextCommentType/Text
diagram
type xs:string

element PerVarDTTextCommentType/Comment
diagram
type xs:string

element PerVarDTTextCommentType/ValidPeriod
diagram
type ValidPeriodDateTimeType
children ValidFrom ValidTo

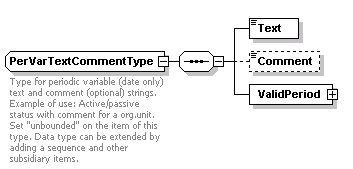

complexType PerVarTextCommentType
diagram
children Text Comment ValidPeriod
annotation
documentation
Type for periodic variable (date only) text and comment (optional) strings. Example of use: Active/passive status with comment for a org.unit. Set "unbounded" on the item of this type. Data type can be extended by adding a sequence and other subsidiary items.

element PerVarTextCommentType/Text
diagram
type xs:string

element PerVarTextCommentType/Comment
diagram
type xs:string

element PerVarTextCommentType/ValidPeriod
diagram
type ValidPeriodDateType
children ValidFrom ValidTo

complexType ValidPeriodDateTimeType
diagram
children ValidFrom ValidTo
used by
elements PerVarDTCodeType/ValidPeriod PerVarDTCodeTextType/ValidPeriod PerVarDTCodeTextCommentType/ValidPeriod PerVarDTTextCommentType/ValidPeriod PerFixDTCodeType/ValidPeriod PerFixDTCodeTextType/ValidPeriod PerFixDTCodeTextCommentType/ValidPeriod PerFixDTTextCommentType/ValidPeriod
annotation
documentation
Type for valid datetimeperiods (date and time/clock)

element ValidPeriodDateTimeType/ValidFrom
diagram
type xs:dateTime

element ValidPeriodDateTimeType/ValidTo
diagram
type xs:dateTime

complexType ValidPeriodDateType
diagram
children ValidFrom ValidTo
used by
elements MedicalRegister/ValidPeriod PerVarCodeType/ValidPeriod PerVarCodeTextType/ValidPeriod PerVarCodeTextCommentType/ValidPeriod PerVarTextCommentType/ValidPeriod PerFixCodeType/ValidPeriod PerFixCodeTextType/ValidPeriod PerFixCodeTextCommentType/ValidPeriod PerFixTextCommentType/ValidPeriod
annotation
documentation
Type for valid dateperiods (date only, not time/clock)

element ValidPeriodDateType/ValidFrom
diagram
type xs:date

element ValidPeriodDateType/ValidTo
diagram
type xs:date

complexType CodeNameType
diagram
children Code Name
annotation
documentation
Code and Name

element CodeNameType/Code
diagram
type xs:string

element CodeNameType/Name
diagram
type xs:string

complexType CodeOfficialCodeTextType
diagram
children Code OfficialCode Text
annotation
documentation
Code, OfficialCode and Text

element CodeOfficialCodeTextType/Code
diagram
type xs:string

element CodeOfficialCodeTextType/OfficialCode
diagram
type xs:string

element CodeOfficialCodeTextType/Text
diagram
type xs:string

complexType CodeTextType
diagram
children Code Text
annotation
documentation
Code and Text

element CodeTextType/Code
diagram
type xs:string

element CodeTextType/Text
diagram
type xs:string

complexType IdCodeNameType
diagram
children Id Code Name
annotation
documentation
Id, Code and Name

element IdCodeNameType/Id
diagram
type xs:int

element IdCodeNameType/Code
diagram
type xs:string

element IdCodeNameType/Name
diagram
type xs:string

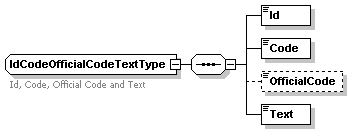

complexType IdCodeOfficialCodeTextType
diagram
children Id Code OfficialCode Text
annotation
documentation
Id, Code, Official Code and Text

element IdCodeOfficialCodeTextType/Id
diagram
type xs:int

element IdCodeOfficialCodeTextType/Code
diagram
type xs:string

element IdCodeOfficialCodeTextType/OfficialCode
diagram
type xs:string

element IdCodeOfficialCodeTextType/Text
diagram
type xs:string

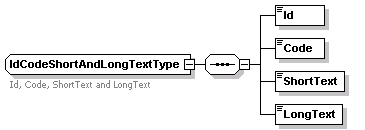

complexType IdCodeShortAndLongTextType
diagram
children Id Code ShortText LongText
annotation
documentation
Id, Code, ShortText and LongText

element IdCodeShortAndLongTextType/Id
diagram
type xs:int

element IdCodeShortAndLongTextType/Code
diagram
type xs:string

element IdCodeShortAndLongTextType/ShortText
diagram
type xs:string

element IdCodeShortAndLongTextType/LongText
diagram
type xs:string

complexType IdCodeTextType
diagram
children Id Code Text
annotation
documentation
Id, Code and Text

element IdCodeTextType/Id
diagram
type xs:int

element IdCodeTextType/Code
diagram
type xs:string

element IdCodeTextType/Text
diagram
type xs:string

complexType IdCodeType
diagram
children Id Code
annotation
documentation
 Id and Code

element IdCodeType/Id
diagram
type xs:int

element IdCodeType/Code
diagram
type xs:string

complexType IdNameType
diagram
children Id Name
annotation
documentation
Id and Name

element IdNameType/Id
diagram
type xs:int

element IdNameType/Name
diagram
type xs:string

complexType IdShortAndLongTextType
diagram
children Id ShortText LongText
annotation
documentation
Id, ShortText and LongText

element IdShortAndLongTextType/Id
diagram
type xs:int

element IdShortAndLongTextType/ShortText
diagram
type xs:string

element IdShortAndLongTextType/LongText
diagram
type xs:string

complexType IdTextType
diagram
children Id Text
annotation
documentation
Id and Text

element IdTextType/Id
diagram
type xs:int

element IdTextType/Text
diagram
type xs:string

complexType LastChangedType
diagram
children ChangedBy Changed
used by
element MedicalRegister/LastChanged
annotation
documentation
Last changed by and date

element LastChangedType/ChangedBy
diagram
type xs:string

element LastChangedType/Changed
diagram
type xs:dateTime

complexType ShortAndLongTextType
diagram
children ShortText LongText
annotation
documentation
ShortText and LongText

element ShortAndLongTextType/ShortText
diagram
type xs:string

element ShortAndLongTextType/LongText
diagram
type xs:string

complexType UserType
diagram
children Name FullName
annotation
documentation
ShortNameId and Name

element UserType/Name
diagram
type xs:string

element UserType/FullName
diagram
type xs:string

complexType ExternalOrganizationType
diagram
children Id Code Name
annotation
documentation
Type for an external organization or resource (EksternInstans)

element ExternalOrganizationType/Id
diagram
type xs:int

element ExternalOrganizationType/Code
diagram
type xs:string

element ExternalOrganizationType/Name
diagram
type xs:string

complexType OrganizationType
diagram
children Id ShortNameId Name
used by
element MedicalRegister/OrganizationUnits/OrganizationUnit
annotation
documentation
Type for the organizational unit

element OrganizationType/Id
diagram
type xs:int

element OrganizationType/ShortNameId
diagram
type xs:string

element OrganizationType/Name
diagram
type xs:string

complexType ResourceType
diagram
children Id Code Name
annotation
documentation
Type for a resource

element ResourceType/Id
diagram
type xs:int

element ResourceType/Code
diagram
type xs:string

element ResourceType/Name
diagram
type xs:string


XML Schema documentation generated with XML Spy Schema Editor www.xmlspy.com
