Schema Organization2G.xsd

schema location:	..\..\Organization2G.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified

Elements	Complex types	Simple types
GetOrganization2GRequest	AdditionalIdsType	OrganizationResourceFilterEnums
GetOrganization2GResponse	AdditionalIdTypeResourcesInt
GetResourceRequest	CodeTextType
GetResourceResponse	IdCodeNameType
ListOrganizations2GRequest	InsertedChangedByType
ListOrganizations2GResponse	OrganizationResourceFilterType
	OrganizationType
	OrganizationTypeResourcesInt

element GetOrganization2GRequest

diagram
properties	content  complex
children	UnitId
annotation	documentation Request for one organzation unit Department or CareUnit
source	<xs:element name="GetOrganization2GRequest">   <xs:annotation>     <xs:documentation>Request for one organzation unit Department or CareUnit</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="UnitId">         <xs:annotation>           <xs:documentation>Internal Id or selected Id accourding to IdType for HIS90 IdType must be selected.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string">               <xs:annotation>                 <xs:documentation>HIS90: Internal Id. For Institution internal Id = 0</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Type" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>Type of Id as defined by PAS.                       HIS90:                          LIN = institution,            LAV = department (medical unit),                             LEN = care unit</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element GetOrganization2GRequest/UnitId

diagram
properties	content  complex
children	Id Type
annotation	documentation Internal Id or selected Id accourding to IdType for HIS90 IdType must be selected.
source	<xs:element name="UnitId">   <xs:annotation>     <xs:documentation>Internal Id or selected Id accourding to IdType for HIS90 IdType must be selected.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string">         <xs:annotation>           <xs:documentation>HIS90: Internal Id. For Institution internal Id = 0</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Type" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Type of Id as defined by PAS.                       HIS90:                          LIN = institution,            LAV = department (medical unit),                             LEN = care unit</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element GetOrganization2GRequest/UnitId/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation HIS90: Internal Id. For Institution internal Id = 0
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>HIS90: Internal Id. For Institution internal Id = 0</xs:documentation>   </xs:annotation> </xs:element>

element GetOrganization2GRequest/UnitId/Type

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Type of Id as defined by PAS.                       HIS90:                          LIN = institution,            LAV = department (medical unit),                             LEN = care unit
source	<xs:element name="Type" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Type of Id as defined by PAS.                       HIS90:                          LIN = institution,            LAV = department (medical unit),                             LEN = care unit</xs:documentation>   </xs:annotation> </xs:element>

element GetOrganization2GResponse

diagram
type	OrganizationType
properties	content  complex
children	Id TypeOfId AdditionalIds ShortName Name ParentId SectionCode Clinic Location UnitStatuses Details Properties OrganizationAddressInformation Registration Update
annotation	documentation Reposne for one organzation unit Department or CareUnit
source	<xs:element name="GetOrganization2GResponse" type="OrganizationType">   <xs:annotation>     <xs:documentation>Reposne for one organzation unit Department or CareUnit</xs:documentation>   </xs:annotation> </xs:element>

element GetResourceRequest

diagram
properties	content  complex
children	ResourceId TypeOfResourceId
annotation	documentation Request for getting infomation about one resource
source	<xs:element name="GetResourceRequest">   <xs:annotation>     <xs:documentation>Request for getting infomation about one resource</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ResourceId" type="xs:string">         <xs:annotation>           <xs:documentation>Resource id HIS90: Mandatory ResourceId is a combined idDept_No|Resource_Code</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfResourceId" type="xs:string">         <xs:annotation>           <xs:documentation>TypeOfId in ResourceId Valid values are: LOC=Lokal resource id</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element GetResourceRequest/ResourceId

diagram
type	xs:string
properties	content  simple
annotation	documentation Resource id HIS90: Mandatory ResourceId is a combined idDept_No|Resource_Code
source	<xs:element name="ResourceId" type="xs:string">   <xs:annotation>     <xs:documentation>Resource id HIS90: Mandatory ResourceId is a combined idDept_No|Resource_Code</xs:documentation>   </xs:annotation> </xs:element>

element GetResourceRequest/TypeOfResourceId

diagram
type	xs:string
properties	content  simple
annotation	documentation TypeOfId in ResourceId Valid values are: LOC=Lokal resource id
source	<xs:element name="TypeOfResourceId" type="xs:string">   <xs:annotation>     <xs:documentation>TypeOfId in ResourceId Valid values are: LOC=Lokal resource id</xs:documentation>   </xs:annotation> </xs:element>

element GetResourceResponse

diagram
properties	content  complex
children	ResourceId TypeOfResourceId AditionalIds Code Name ValidPeriod Properties AdditionalResourceIds ResourceUnits LastChangedDate
annotation	documentation Response with infomation about a resource
source	<xs:element name="GetResourceResponse">   <xs:annotation>     <xs:documentation>Response with infomation about a resource</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ResourceId" type="xs:string">         <xs:annotation>           <xs:documentation>Resource id HIS90: Mandatory ResourceId is a combined idDept_No|Resource_Code</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfResourceId" type="xs:string">         <xs:annotation>           <xs:documentation>TypeOfId in ResourceId Valid values are: LOC=Lokal resource id</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="AditionalIds" type="AdditionalIdsType" minOccurs="0">         <xs:annotation>           <xs:documentation>Other additional ids for a resource. Use AdditionalResourceIds Type of Id can be: LUI = Local Unique Id HER = HERid HPR = HPR number</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Code" type="xs:string" minOccurs="0"/>       <xs:element name="Name" type="xs:string"/>       <xs:element name="ValidPeriod" minOccurs="0">         <xs:annotation>           <xs:documentation>Resource valid period</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="ValidFrom" type="xs:dateTime"/>             <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Properties" minOccurs="0">         <xs:annotation>           <xs:documentation>Properties the resource have or category/type.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Property" maxOccurs="unbounded">               <xs:complexType>                 <xs:complexContent>                   <xs:extension base="CodeTextType">                     <xs:sequence>                       <xs:element name="ValidPeriod" minOccurs="0" maxOccurs="unbounded">                         <xs:annotation>                           <xs:documentation>Valid periode or periods.</xs:documentation>                         </xs:annotation>                         <xs:complexType>                           <xs:sequence>                             <xs:element name="ValidFrom" type="xs:dateTime"/>                             <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>                           </xs:sequence>                         </xs:complexType>                       </xs:element>                     </xs:sequence>                   </xs:extension>                 </xs:complexContent>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="AdditionalResourceIds" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>AdditionalIds if the resource have more ids. E.g. useird, SSN</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string">               <xs:annotation>                 <xs:documentation>The value of the id as it is stored in the database</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="TypeOfId" type="xs:string">               <xs:annotation>                 <xs:documentation>Type of id in Id. Valid values are: UID = User Id/Name FNR = Persons official id LOC= Local Id LUI = Local Unique Id HER = HERid HPR = HPR number</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="ResourceUnits" type="OrganizationTypeResourcesInt" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Unit the resource belongs to</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="LastChangedDate" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>Date (and Time if exists) when resource was last changed/updated</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element GetResourceResponse/ResourceId

diagram
type	xs:string
properties	content  simple
annotation	documentation Resource id HIS90: Mandatory ResourceId is a combined idDept_No|Resource_Code
source	<xs:element name="ResourceId" type="xs:string">   <xs:annotation>     <xs:documentation>Resource id HIS90: Mandatory ResourceId is a combined idDept_No|Resource_Code</xs:documentation>   </xs:annotation> </xs:element>

element GetResourceResponse/TypeOfResourceId

diagram
type	xs:string
properties	content  simple
annotation	documentation TypeOfId in ResourceId Valid values are: LOC=Lokal resource id
source	<xs:element name="TypeOfResourceId" type="xs:string">   <xs:annotation>     <xs:documentation>TypeOfId in ResourceId Valid values are: LOC=Lokal resource id</xs:documentation>   </xs:annotation> </xs:element>

element GetResourceResponse/AditionalIds

diagram
type	AdditionalIdsType
properties	minOcc  0 maxOcc  1 content  complex
children	AdditionalId
annotation	documentation Other additional ids for a resource. Use AdditionalResourceIds Type of Id can be: LUI = Local Unique Id HER = HERid HPR = HPR number
source	<xs:element name="AditionalIds" type="AdditionalIdsType" minOccurs="0">   <xs:annotation>     <xs:documentation>Other additional ids for a resource. Use AdditionalResourceIds Type of Id can be: LUI = Local Unique Id HER = HERid HPR = HPR number</xs:documentation>   </xs:annotation> </xs:element>

element GetResourceResponse/Code

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Code" type="xs:string" minOccurs="0"/>

element GetResourceResponse/Name

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Name" type="xs:string"/>

element GetResourceResponse/ValidPeriod

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ValidFrom ValidTo
annotation	documentation Resource valid period
source	<xs:element name="ValidPeriod" minOccurs="0">   <xs:annotation>     <xs:documentation>Resource valid period</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ValidFrom" type="xs:dateTime"/>       <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element GetResourceResponse/ValidPeriod/ValidFrom

diagram
type	xs:dateTime
properties	content  simple
source	<xs:element name="ValidFrom" type="xs:dateTime"/>

element GetResourceResponse/ValidPeriod/ValidTo

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>

element GetResourceResponse/Properties

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Property
annotation	documentation Properties the resource have or category/type.
source	<xs:element name="Properties" minOccurs="0">   <xs:annotation>     <xs:documentation>Properties the resource have or category/type.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Property" maxOccurs="unbounded">         <xs:complexType>           <xs:complexContent>             <xs:extension base="CodeTextType">               <xs:sequence>                 <xs:element name="ValidPeriod" minOccurs="0" maxOccurs="unbounded">                   <xs:annotation>                     <xs:documentation>Valid periode or periods.</xs:documentation>                   </xs:annotation>                   <xs:complexType>                     <xs:sequence>                       <xs:element name="ValidFrom" type="xs:dateTime"/>                       <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>                     </xs:sequence>                   </xs:complexType>                 </xs:element>               </xs:sequence>             </xs:extension>           </xs:complexContent>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element GetResourceResponse/Properties/Property

diagram
type	extension of CodeTextType
properties	minOcc  1 maxOcc  unbounded content  complex
children	Code Text ValidPeriod
source	<xs:element name="Property" maxOccurs="unbounded">   <xs:complexType>     <xs:complexContent>       <xs:extension base="CodeTextType">         <xs:sequence>           <xs:element name="ValidPeriod" minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:documentation>Valid periode or periods.</xs:documentation>             </xs:annotation>             <xs:complexType>               <xs:sequence>                 <xs:element name="ValidFrom" type="xs:dateTime"/>                 <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element GetResourceResponse/Properties/Property/ValidPeriod

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	ValidFrom ValidTo
annotation	documentation Valid periode or periods.
source	<xs:element name="ValidPeriod" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Valid periode or periods.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ValidFrom" type="xs:dateTime"/>       <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element GetResourceResponse/Properties/Property/ValidPeriod/ValidFrom

diagram
type	xs:dateTime
properties	content  simple
source	<xs:element name="ValidFrom" type="xs:dateTime"/>

element GetResourceResponse/Properties/Property/ValidPeriod/ValidTo

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>

element GetResourceResponse/AdditionalResourceIds

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	Id TypeOfId
annotation	documentation AdditionalIds if the resource have more ids. E.g. useird, SSN
source	<xs:element name="AdditionalResourceIds" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>AdditionalIds if the resource have more ids. E.g. useird, SSN</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string">         <xs:annotation>           <xs:documentation>The value of the id as it is stored in the database</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfId" type="xs:string">         <xs:annotation>           <xs:documentation>Type of id in Id. Valid values are: UID = User Id/Name FNR = Persons official id LOC= Local Id LUI = Local Unique Id HER = HERid HPR = HPR number</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element GetResourceResponse/AdditionalResourceIds/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation The value of the id as it is stored in the database
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>The value of the id as it is stored in the database</xs:documentation>   </xs:annotation> </xs:element>

element GetResourceResponse/AdditionalResourceIds/TypeOfId

diagram
type	xs:string
properties	content  simple
annotation	documentation Type of id in Id. Valid values are: UID = User Id/Name FNR = Persons official id LOC= Local Id LUI = Local Unique Id HER = HERid HPR = HPR number
source	<xs:element name="TypeOfId" type="xs:string">   <xs:annotation>     <xs:documentation>Type of id in Id. Valid values are: UID = User Id/Name FNR = Persons official id LOC= Local Id LUI = Local Unique Id HER = HERid HPR = HPR number</xs:documentation>   </xs:annotation> </xs:element>

element GetResourceResponse/ResourceUnits

diagram
type	OrganizationTypeResourcesInt
properties	minOcc  0 maxOcc  unbounded content  complex
children	Id TypeOfId ShortNameId Name AdditionalIds DefaultUnit
annotation	documentation Unit the resource belongs to
source	<xs:element name="ResourceUnits" type="OrganizationTypeResourcesInt" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Unit the resource belongs to</xs:documentation>   </xs:annotation> </xs:element>

element GetResourceResponse/LastChangedDate

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date (and Time if exists) when resource was last changed/updated
source	<xs:element name="LastChangedDate" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date (and Time if exists) when resource was last changed/updated</xs:documentation>   </xs:annotation> </xs:element>

element ListOrganizations2GRequest

diagram
properties	content  complex
children	UnitId ValidPeriod Filters
annotation	documentation Requset for listing organizations
source	<xs:element name="ListOrganizations2GRequest">   <xs:annotation>     <xs:documentation>Requset for listing organizations</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="UnitId" minOccurs="0">         <xs:annotation>           <xs:documentation>Id for Units to search/list from. If blank/null/omitted the default is all organization(same as Id=0)</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string">               <xs:annotation>                 <xs:documentation>Id for parent unit to start the list from. HIS90: Internal Id. For Institution Id = 0</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Type" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>Type of Id as defined by PAS. LIN = institution id LAV = department/medical unit id LEN = care unit id LINC = institution code/shortname LAVC = department/medical unit  code/shortname LENC = care unit code/shortname HIS90: Optional, dersom Id er tall og Type ikke er fylt inn vil Id=0 bety Institution og Id ulik 0 betyr Avdeling LENC er ikke støttet av HIS90</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="ValidPeriod" minOccurs="0">         <xs:annotation>           <xs:documentation>List on units within valid dates</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="ValidFrom" type="xs:dateTime"/>             <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Filters" type="OrganizationResourceFilterType" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListOrganizations2GRequest/UnitId

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Id Type
annotation	documentation Id for Units to search/list from. If blank/null/omitted the default is all organization(same as Id=0)
source	<xs:element name="UnitId" minOccurs="0">   <xs:annotation>     <xs:documentation>Id for Units to search/list from. If blank/null/omitted the default is all organization(same as Id=0)</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string">         <xs:annotation>           <xs:documentation>Id for parent unit to start the list from. HIS90: Internal Id. For Institution Id = 0</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Type" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Type of Id as defined by PAS. LIN = institution id LAV = department/medical unit id LEN = care unit id LINC = institution code/shortname LAVC = department/medical unit  code/shortname LENC = care unit code/shortname HIS90: Optional, dersom Id er tall og Type ikke er fylt inn vil Id=0 bety Institution og Id ulik 0 betyr Avdeling LENC er ikke støttet av HIS90</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListOrganizations2GRequest/UnitId/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Id for parent unit to start the list from. HIS90: Internal Id. For Institution Id = 0
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Id for parent unit to start the list from. HIS90: Internal Id. For Institution Id = 0</xs:documentation>   </xs:annotation> </xs:element>

element ListOrganizations2GRequest/UnitId/Type

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Type of Id as defined by PAS. LIN = institution id LAV = department/medical unit id LEN = care unit id LINC = institution code/shortname LAVC = department/medical unit  code/shortname LENC = care unit code/shortname HIS90: Optional, dersom Id er tall og Type ikke er fylt inn vil Id=0 bety Institution og Id ulik 0 betyr Avdeling LENC er ikke støttet av HIS90
source	<xs:element name="Type" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Type of Id as defined by PAS. LIN = institution id LAV = department/medical unit id LEN = care unit id LINC = institution code/shortname LAVC = department/medical unit  code/shortname LENC = care unit code/shortname HIS90: Optional, dersom Id er tall og Type ikke er fylt inn vil Id=0 bety Institution og Id ulik 0 betyr Avdeling LENC er ikke støttet av HIS90</xs:documentation>   </xs:annotation> </xs:element>

element ListOrganizations2GRequest/ValidPeriod

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ValidFrom ValidTo
annotation	documentation List on units within valid dates
source	<xs:element name="ValidPeriod" minOccurs="0">   <xs:annotation>     <xs:documentation>List on units within valid dates</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ValidFrom" type="xs:dateTime"/>       <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListOrganizations2GRequest/ValidPeriod/ValidFrom

diagram
type	xs:dateTime
properties	content  simple
source	<xs:element name="ValidFrom" type="xs:dateTime"/>

element ListOrganizations2GRequest/ValidPeriod/ValidTo

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>

element ListOrganizations2GRequest/Filters

diagram
type	OrganizationResourceFilterType
properties	minOcc  0 maxOcc  1 content  complex
children	Filter
source	<xs:element name="Filters" type="OrganizationResourceFilterType" minOccurs="0"/>

element ListOrganizations2GResponse

diagram
annotation	documentation Response from  listing organizations
source	<xs:element name="ListOrganizations2GResponse">   <xs:annotation>     <xs:documentation>Response from  listing organizations</xs:documentation>   </xs:annotation> </xs:element>

complexType AdditionalIdsType

diagram
children	AdditionalId
used by	elements  OrganizationType/AdditionalIds GetResourceResponse/AditionalIds
annotation	documentation Type for listing additional ids
source	<xs:complexType name="AdditionalIdsType">   <xs:annotation>     <xs:documentation>Type for listing additional ids</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="AdditionalId" maxOccurs="unbounded">       <xs:complexType>         <xs:sequence>           <xs:element name="Id" type="xs:string"/>           <xs:element name="Type" type="xs:string"/>           <xs:element name="Description" type="xs:string" minOccurs="0"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element AdditionalIdsType/AdditionalId

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	Id Type Description
source	<xs:element name="AdditionalId" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string"/>       <xs:element name="Type" type="xs:string"/>       <xs:element name="Description" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element AdditionalIdsType/AdditionalId/Id

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element AdditionalIdsType/AdditionalId/Type

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Type" type="xs:string"/>

element AdditionalIdsType/AdditionalId/Description

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Description" type="xs:string" minOccurs="0"/>

complexType AdditionalIdTypeResourcesInt

diagram
children	Id TypeOfId
used by	element  OrganizationTypeResourcesInt/AdditionalIds
annotation	documentation Type for additional id for organiszation, requester, contact, patientids etc
source	<xs:complexType name="AdditionalIdTypeResourcesInt">   <xs:annotation>     <xs:documentation>Type for additional id for organiszation, requester, contact, patientids etc</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:string"/>     <xs:element name="TypeOfId" type="xs:string">       <xs:annotation>         <xs:documentation>KITH code standard  8268 Some of the types are:        ENH=Off. org.no in Br.sund HER=HER-id                RSH=RESH-id                 NPR= NPR nr               LOK= Local id           XXX=Annet                   Other Tieto codes are: For HIS90: LUI=UniqueId    </xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element AdditionalIdTypeResourcesInt/Id

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element AdditionalIdTypeResourcesInt/TypeOfId

diagram
type	xs:string
properties	content  simple
annotation	documentation KITH code standard  8268 Some of the types are:        ENH=Off. org.no in Br.sund HER=HER-id                RSH=RESH-id                 NPR= NPR nr               LOK= Local id           XXX=Annet                   Other Tieto codes are: For HIS90: LUI=UniqueId
source	<xs:element name="TypeOfId" type="xs:string">   <xs:annotation>     <xs:documentation>KITH code standard  8268 Some of the types are:        ENH=Off. org.no in Br.sund HER=HER-id                RSH=RESH-id                 NPR= NPR nr               LOK= Local id           XXX=Annet                   Other Tieto codes are: For HIS90: LUI=UniqueId    </xs:documentation>   </xs:annotation> </xs:element>

complexType CodeTextType

diagram
children	Code Text
used by	element  GetResourceResponse/Properties/Property
annotation	documentation Type for code and text
source	<xs:complexType name="CodeTextType">   <xs:annotation>     <xs:documentation>Type for code and text</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Code" type="xs:string"/>     <xs:element name="Text" type="xs:string" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element CodeTextType/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element CodeTextType/Text

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Text" type="xs:string" minOccurs="0"/>

complexType IdCodeNameType

diagram
children	Id TypeOfId Code Name
used by	elements  OrganizationType/Clinic OrganizationType/Location
annotation	documentation Type for Id, TypeOfId, Code and Name
source	<xs:complexType name="IdCodeNameType">   <xs:annotation>     <xs:documentation>Type for Id, TypeOfId, Code and Name</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:string"/>     <xs:element name="TypeOfId" type="xs:string" minOccurs="0"/>     <xs:element name="Code" type="xs:string" minOccurs="0"/>     <xs:element name="Name" type="xs:string" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element IdCodeNameType/Id

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element IdCodeNameType/TypeOfId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="TypeOfId" type="xs:string" minOccurs="0"/>

element IdCodeNameType/Code

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Code" type="xs:string" minOccurs="0"/>

element IdCodeNameType/Name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Name" type="xs:string" minOccurs="0"/>

complexType InsertedChangedByType

diagram
children	Date Name Organization SignedBy
used by	elements  OrganizationType/Registration OrganizationType/Update
annotation	documentation Type for information about insertion and changes in the database
source	<xs:complexType name="InsertedChangedByType">   <xs:annotation>     <xs:documentation>Type for information about insertion and changes in the database</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Date" type="xs:dateTime">       <xs:annotation>         <xs:documentation>Date when inserted/last modified.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Name" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Organization Name</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Organization" minOccurs="0">       <xs:annotation>         <xs:documentation>Organization responsible for insertion/last modification of the instance. </xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Id" type="xs:string">             <xs:annotation>               <xs:documentation> Internal Id.</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="ShortNameId" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Organization Code</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="Name" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Organization Name</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="SignedBy" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Initials of user that inserted/modified the instance.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element InsertedChangedByType/Date

diagram
type	xs:dateTime
properties	content  simple
annotation	documentation Date when inserted/last modified.
source	<xs:element name="Date" type="xs:dateTime">   <xs:annotation>     <xs:documentation>Date when inserted/last modified.</xs:documentation>   </xs:annotation> </xs:element>

element InsertedChangedByType/Name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Organization Name
source	<xs:element name="Name" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Organization Name</xs:documentation>   </xs:annotation> </xs:element>

element InsertedChangedByType/Organization

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Id ShortNameId Name
annotation	documentation Organization responsible for insertion/last modification of the instance.
source	<xs:element name="Organization" minOccurs="0">   <xs:annotation>     <xs:documentation>Organization responsible for insertion/last modification of the instance. </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string">         <xs:annotation>           <xs:documentation> Internal Id.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ShortNameId" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Organization Code</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Name" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Organization Name</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element InsertedChangedByType/Organization/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Internal Id.
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation> Internal Id.</xs:documentation>   </xs:annotation> </xs:element>

element InsertedChangedByType/Organization/ShortNameId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Organization Code
source	<xs:element name="ShortNameId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Organization Code</xs:documentation>   </xs:annotation> </xs:element>

element InsertedChangedByType/Organization/Name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Organization Name
source	<xs:element name="Name" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Organization Name</xs:documentation>   </xs:annotation> </xs:element>

element InsertedChangedByType/SignedBy

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Initials of user that inserted/modified the instance.
source	<xs:element name="SignedBy" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Initials of user that inserted/modified the instance.</xs:documentation>   </xs:annotation> </xs:element>

complexType OrganizationResourceFilterType

diagram
children	Filter
used by	element  ListOrganizations2GRequest/Filters
source	<xs:complexType name="OrganizationResourceFilterType">   <xs:sequence>     <xs:element name="Filter" maxOccurs="unbounded">       <xs:complexType>         <xs:simpleContent>           <xs:extension base="OrganizationResourceFilterEnums">             <xs:attribute name="FromDate" type="xs:dateTime"/>             <xs:attribute name="ToDate" type="xs:dateTime"/>           </xs:extension>         </xs:simpleContent>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element OrganizationResourceFilterType/Filter

diagram
type	extension of OrganizationResourceFilterEnums
properties	minOcc  1 maxOcc  unbounded content  complex
facets	Kind  Value  Annotation enumeration  NotSet enumeration  OnlyResourcesChangedSinceLastTime enumeration  OnlyResourcesWithTimeBookOnDate
attributes	Name   Type   Use   Default   Fixed   Annotation FromDate   xs:dateTime            ToDate   xs:dateTime
source	<xs:element name="Filter" maxOccurs="unbounded">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="OrganizationResourceFilterEnums">         <xs:attribute name="FromDate" type="xs:dateTime"/>         <xs:attribute name="ToDate" type="xs:dateTime"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute OrganizationResourceFilterType/Filter/@FromDate

type	xs:dateTime
source	<xs:attribute name="FromDate" type="xs:dateTime"/>

attribute OrganizationResourceFilterType/Filter/@ToDate

type	xs:dateTime
source	<xs:attribute name="ToDate" type="xs:dateTime"/>

complexType OrganizationType

diagram
children	Id TypeOfId AdditionalIds ShortName Name ParentId SectionCode Clinic Location UnitStatuses Details Properties OrganizationAddressInformation Registration Update
used by	element  GetOrganization2GResponse
annotation	documentation Details for one organizational unit
source	<xs:complexType name="OrganizationType">   <xs:annotation>     <xs:documentation>Details for one organizational unit</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:string">       <xs:annotation>         <xs:documentation>Internal Id HIS90: Institution Code / Internal department number (Medical Unit number) / internal CareUnit number. </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TypeOfId" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Description/Type of Id LIN = Local Institution Id LAV= Local Department Id LEN = Local Unit Id LAVC = Local Unit Code/shortname LUI = Local Unique Id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="AdditionalIds" type="AdditionalIdsType" minOccurs="0">       <xs:annotation>         <xs:documentation>A unit can have many additional Id's listed. Each Id  must be of an defined type.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ShortName" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Short name/code for the unit</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Name" type="xs:string">       <xs:annotation>         <xs:documentation>HIS90:Institution name / Department name (Medical Unit name) / CareUnit name. </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ParentId" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Id of parental unit (0/none if top level or virtual unit) ........................................HIS90: If this is a institution or department than there is no parent Id. In case of CareUnit the parent Id is the internal  department number where the CareUnit resides. ParentId is parents internalId.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="SectionCode" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>HIS90: Internal Code for Section that care unit partisipates in</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Clinic" type="IdCodeNameType" minOccurs="0">       <xs:annotation>         <xs:documentation>The clinic the unit belongs to logigally. Used in multihospitals solutions to define units to same clinic/department. HIS90: PaqUnit.Clinic A department in HIS90</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Location" type="IdCodeNameType" minOccurs="0">       <xs:annotation>         <xs:documentation>Location. The hospital where the unit is loacted. HIS90: PaqUnte.Hosp_Loaction ShortName for institution, e.g TR, MO, etc...</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="UnitStatuses" minOccurs="0">       <xs:annotation>         <xs:documentation>Active/passive periods for the organizational unit ................................................HIS90: Only Valid periode in use. The Valid periode gives from and to date for the unit. For institution there is no periode.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="UnitStatus" maxOccurs="unbounded">             <xs:complexType>               <xs:sequence>                 <xs:element name="Text" type="xs:string" minOccurs="0"/>                 <xs:element name="Comment" type="xs:string" minOccurs="0"/>                 <xs:element name="ValidPeriod">                   <xs:complexType>                     <xs:sequence>                       <xs:element name="ValidFrom" type="xs:dateTime"/>                       <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>                     </xs:sequence>                   </xs:complexType>                 </xs:element>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Details" minOccurs="0">       <xs:annotation>         <xs:documentation>Active/passive periods for details of unit if it is of "CareUnit" type ........................................ HIS90: For HIS90 this will give sumarized information if MedicalUnit/Department is in input</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Detail" maxOccurs="unbounded">             <xs:annotation>               <xs:documentation>HIS90: Only one occurs for unit in input.</xs:documentation>             </xs:annotation>             <xs:complexType>               <xs:sequence>                 <xs:element name="ValidPeriod" minOccurs="0">                   <xs:annotation>                     <xs:documentation>Valid period for detail</xs:documentation>                   </xs:annotation>                   <xs:complexType>                     <xs:sequence>                       <xs:element name="ValidFrom" type="xs:dateTime"/>                       <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>                     </xs:sequence>                   </xs:complexType>                 </xs:element>                 <xs:element name="Type" type="xs:string">                   <xs:annotation>                     <xs:documentation>Type of unit .............................. HIS90: Department type or Unit Type. Valid types for HIS90: Avdeling/Department: A-Administrasjon, I-Seng og Poliklinikk, M-Mottakelse, R-Røntgen, B-Blodbank  Enhet/Unit: P-Poliklinikk, I-Sengepost, R-Røntgen </xs:documentation>                   </xs:annotation>                 </xs:element>                 <xs:element name="TypeOfWard" type="xs:string" minOccurs="0">                   <xs:annotation>                     <xs:documentation>Code for type of care (5H/HE...) ......................................HIS90: Not in use for HIS90</xs:documentation>                   </xs:annotation>                 </xs:element>                 <xs:element name="NumberOfBedsNormal" type="xs:int">                   <xs:annotation>                     <xs:documentation>HIS90: In case of a department this is the sum of all beds. In case of an single CareUnit this gives number of beds in the unit. </xs:documentation>                   </xs:annotation>                 </xs:element>                 <xs:element name="NumberOfBedsForActualUse" type="xs:int">                   <xs:annotation>                     <xs:documentation>HIS90: In case of a department this is the sum of all available beds. In case of a single CareUnit this gives number of available beds in the unit. </xs:documentation>                   </xs:annotation>                 </xs:element>                 <xs:element name="NumberOfTechnicalBeds" type="xs:int" minOccurs="0">                   <xs:annotation>                     <xs:documentation>HIS90: In case of a department this is the sum of all technical beds. In case of an single CareUnit this gives number of technical beds in the unit. A tecnical bed is a bed oocupied by patient from an another unit.</xs:documentation>                   </xs:annotation>                 </xs:element>                 <xs:element name="NumberOfDayPatientsNormal" type="xs:int" minOccurs="0">                   <xs:annotation>                     <xs:documentation>HIS90:  In case of a department this is the sum of normalized capasity for day pasients. In case of a single CareUnit this gives the normalized capasity for day pasients in the care unit.  Normalized capasity is the total number of day patients that the unit is to be able to handle. </xs:documentation>                   </xs:annotation>                 </xs:element>                 <xs:element name="NumberOfDayPatientsAvailable" type="xs:int" minOccurs="0">                   <xs:annotation>                     <xs:documentation>HIS90: In case of a department this is the sum of available capasity for day pasients. In case of an single CareUnit this gives the available capasity for day pasients in the care unit. Available capasity is the total number of day patients that the unit is able to handle at the moment.</xs:documentation>                   </xs:annotation>                 </xs:element>                 <xs:element name="ReasonForBedsNotInUse" type="xs:string" minOccurs="0">                   <xs:annotation>                     <xs:documentation>HIS90: Code indicating why beds are not in use for selected care unit.</xs:documentation>                   </xs:annotation>                 </xs:element>                 <xs:element name="WorkingDaysPrWeek" type="xs:int" minOccurs="0">                   <xs:annotation>                     <xs:documentation>HIS90: Number of working days pr. week from Monday to Sunday.</xs:documentation>                   </xs:annotation>                 </xs:element>                 <xs:element name="Accumulation" type="xs:string" minOccurs="0">                   <xs:annotation>                     <xs:documentation>HIS90: Max number of days for accumulation</xs:documentation>                   </xs:annotation>                 </xs:element>                 <xs:element name="Economy" minOccurs="0">                   <xs:complexType>                     <xs:sequence>                       <xs:element name="CostCenter" type="xs:string" minOccurs="0"/>                       <xs:element name="PaymentMethod" minOccurs="0">                         <xs:complexType>                           <xs:sequence>                             <xs:element name="Code" type="xs:string"/>                             <xs:element name="Comment" type="xs:string" minOccurs="0"/>                           </xs:sequence>                         </xs:complexType>                       </xs:element>                       <xs:element name="TransportCodes" minOccurs="0" maxOccurs="unbounded">                         <xs:complexType>                           <xs:sequence>                             <xs:element name="Code" type="xs:string"/>                             <xs:element name="Comment" type="xs:string" minOccurs="0"/>                           </xs:sequence>                         </xs:complexType>                       </xs:element>                     </xs:sequence>                   </xs:complexType>                 </xs:element>                 <xs:element name="LetterDetails" minOccurs="0">                   <xs:annotation>                     <xs:documentation>HIS90: Details for default letter codes</xs:documentation>                   </xs:annotation>                   <xs:complexType>                     <xs:sequence>                       <xs:element name="LetterDetail" maxOccurs="unbounded">                         <xs:complexType>                           <xs:sequence>                             <xs:element name="Type" type="xs:string" minOccurs="0"/>                             <xs:element name="Code" type="xs:string" minOccurs="0"/>                             <xs:element name="Comment" type="xs:string" minOccurs="0"/>                           </xs:sequence>                         </xs:complexType>                       </xs:element>                     </xs:sequence>                   </xs:complexType>                 </xs:element>                 <xs:element name="Printers" minOccurs="0">                   <xs:annotation>                     <xs:documentation>Printer informations and settings for theunit</xs:documentation>                   </xs:annotation>                   <xs:complexType>                     <xs:sequence>                       <xs:element name="Printer" maxOccurs="unbounded">                         <xs:complexType>                           <xs:sequence>                             <xs:element name="Type" type="xs:string" minOccurs="0"/>                             <xs:element name="Code" type="xs:string" minOccurs="0"/>                             <xs:element name="Comment" type="xs:string" minOccurs="0"/>                           </xs:sequence>                         </xs:complexType>                       </xs:element>                     </xs:sequence>                   </xs:complexType>                 </xs:element>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Properties" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="Property" maxOccurs="unbounded">             <xs:complexType>               <xs:sequence>                 <xs:element name="TypeOfProperty" type="xs:string">                   <xs:annotation>                     <xs:documentation>Property for the unit. The validperiod defines the from and to dates when the this property is valid. HIS90: PESC - extra security/sensitive unit PPSYC - Psychiatriy MedicalUnit or CareUnit. PWOMD - Womens Department - MedicalUnit or a CareUnit. PLTTR - Long Time Treatement -  The MedicalUnit or CareUnitis a LongTimeTreatment unit. PPBFU - Productivity Based Funding - If the unit has productivity based funding. PCHYP - Children and Youth Psychiatriy MedicalUnit or CareUnit. PDRAT - (RUS) Drug and Alchohol Treatment Unit - MedicalUnit or CareUnit DEFLANG - Default language for institution/department if avaiable. Language code in found in Description tag.(Code set is DocumentLaguageCodes)</xs:documentation>                   </xs:annotation>                 </xs:element>                 <xs:element name="Description" type="xs:string" minOccurs="0">                   <xs:annotation>                     <xs:documentation>Property description.</xs:documentation>                   </xs:annotation>                 </xs:element>                 <xs:element name="ValidPeriod" minOccurs="0" maxOccurs="unbounded">                   <xs:annotation>                     <xs:documentation>Valid periode or periods.</xs:documentation>                   </xs:annotation>                   <xs:complexType>                     <xs:sequence>                       <xs:element name="ValidFrom" type="xs:dateTime"/>                       <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>                     </xs:sequence>                   </xs:complexType>                 </xs:element>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="OrganizationAddressInformation">       <xs:complexType>         <xs:sequence>           <xs:element name="ContactPerson" minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:documentation>HIS90: Contact person for selected unit.</xs:documentation>             </xs:annotation>             <xs:complexType>               <xs:sequence>                 <xs:element name="Text" type="xs:string"/>                 <xs:element name="Comment" type="xs:string" minOccurs="0"/>               </xs:sequence>             </xs:complexType>           </xs:element>           <xs:element name="EMailAddress" minOccurs="0" maxOccurs="unbounded">             <xs:complexType>               <xs:sequence>                 <xs:element name="Text" type="xs:string"/>                 <xs:element name="Comment" type="xs:string" minOccurs="0"/>               </xs:sequence>             </xs:complexType>           </xs:element>           <xs:element name="Address" minOccurs="0" maxOccurs="unbounded">             <xs:complexType>               <xs:sequence>                 <xs:element name="UnitMainEntrance" type="xs:string" minOccurs="0">                   <xs:annotation>                     <xs:documentation>HIS90: Main entrance to the unit.</xs:documentation>                   </xs:annotation>                 </xs:element>                 <xs:element name="AddressLines" minOccurs="0" maxOccurs="unbounded">                   <xs:complexType>                     <xs:sequence>                       <xs:element name="Code" type="xs:string" minOccurs="0"/>                       <xs:element name="Text" type="xs:string"/>                       <xs:element name="Comment" type="xs:string" minOccurs="0"/>                     </xs:sequence>                   </xs:complexType>                 </xs:element>                 <xs:element name="PostalAddress" minOccurs="0">                   <xs:complexType>                     <xs:sequence>                       <xs:element name="Code" type="xs:string"/>                       <xs:element name="Text" type="xs:string"/>                       <xs:element name="Comment" type="xs:string" minOccurs="0"/>                     </xs:sequence>                   </xs:complexType>                 </xs:element>               </xs:sequence>             </xs:complexType>           </xs:element>           <xs:element name="PhoneNumber" minOccurs="0" maxOccurs="unbounded">             <xs:complexType>               <xs:sequence>                 <xs:element name="Text" type="xs:string"/>                 <xs:element name="Extension" type="xs:string" minOccurs="0"/>                 <xs:element name="Comment" type="xs:string" minOccurs="0"/>               </xs:sequence>             </xs:complexType>           </xs:element>           <xs:element name="FaxNumber" minOccurs="0" maxOccurs="unbounded">             <xs:complexType>               <xs:sequence>                 <xs:element name="Text" type="xs:string"/>                 <xs:element name="Comment" type="xs:string" minOccurs="0"/>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Registration" type="InsertedChangedByType" minOccurs="0">       <xs:annotation>         <xs:documentation>Unit registration</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Update" minOccurs="0">       <xs:annotation>         <xs:documentation>Information about update or modification of unit</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:complexContent>           <xs:extension base="InsertedChangedByType">             <xs:sequence>               <xs:element name="UpdateCount" type="xs:int" minOccurs="0">                 <xs:annotation>                   <xs:documentation>Count used for concurrency testing when updating.</xs:documentation>                 </xs:annotation>               </xs:element>             </xs:sequence>           </xs:extension>         </xs:complexContent>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element OrganizationType/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Internal Id HIS90: Institution Code / Internal department number (Medical Unit number) / internal CareUnit number.
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Internal Id HIS90: Institution Code / Internal department number (Medical Unit number) / internal CareUnit number. </xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/TypeOfId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Description/Type of Id LIN = Local Institution Id LAV= Local Department Id LEN = Local Unit Id LAVC = Local Unit Code/shortname LUI = Local Unique Id
source	<xs:element name="TypeOfId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Description/Type of Id LIN = Local Institution Id LAV= Local Department Id LEN = Local Unit Id LAVC = Local Unit Code/shortname LUI = Local Unique Id</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/AdditionalIds

diagram
type	AdditionalIdsType
properties	minOcc  0 maxOcc  1 content  complex
children	AdditionalId
annotation	documentation A unit can have many additional Id's listed. Each Id  must be of an defined type.
source	<xs:element name="AdditionalIds" type="AdditionalIdsType" minOccurs="0">   <xs:annotation>     <xs:documentation>A unit can have many additional Id's listed. Each Id  must be of an defined type.</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/ShortName

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Short name/code for the unit
source	<xs:element name="ShortName" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Short name/code for the unit</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/Name

diagram
type	xs:string
properties	content  simple
annotation	documentation HIS90:Institution name / Department name (Medical Unit name) / CareUnit name.
source	<xs:element name="Name" type="xs:string">   <xs:annotation>     <xs:documentation>HIS90:Institution name / Department name (Medical Unit name) / CareUnit name. </xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/ParentId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Id of parental unit (0/none if top level or virtual unit) ........................................HIS90: If this is a institution or department than there is no parent Id. In case of CareUnit the parent Id is the internal  department number where the CareUnit resides. ParentId is parents internalId.
source	<xs:element name="ParentId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Id of parental unit (0/none if top level or virtual unit) ........................................HIS90: If this is a institution or department than there is no parent Id. In case of CareUnit the parent Id is the internal  department number where the CareUnit resides. ParentId is parents internalId.</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/SectionCode

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation HIS90: Internal Code for Section that care unit partisipates in
source	<xs:element name="SectionCode" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>HIS90: Internal Code for Section that care unit partisipates in</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/Clinic

diagram
type	IdCodeNameType
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId Code Name
annotation	documentation The clinic the unit belongs to logigally. Used in multihospitals solutions to define units to same clinic/department. HIS90: PaqUnit.Clinic A department in HIS90
source	<xs:element name="Clinic" type="IdCodeNameType" minOccurs="0">   <xs:annotation>     <xs:documentation>The clinic the unit belongs to logigally. Used in multihospitals solutions to define units to same clinic/department. HIS90: PaqUnit.Clinic A department in HIS90</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/Location

diagram
type	IdCodeNameType
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId Code Name
annotation	documentation Location. The hospital where the unit is loacted. HIS90: PaqUnte.Hosp_Loaction ShortName for institution, e.g TR, MO, etc...
source	<xs:element name="Location" type="IdCodeNameType" minOccurs="0">   <xs:annotation>     <xs:documentation>Location. The hospital where the unit is loacted. HIS90: PaqUnte.Hosp_Loaction ShortName for institution, e.g TR, MO, etc...</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/UnitStatuses

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	UnitStatus
annotation	documentation Active/passive periods for the organizational unit ................................................HIS90: Only Valid periode in use. The Valid periode gives from and to date for the unit. For institution there is no periode.
source	<xs:element name="UnitStatuses" minOccurs="0">   <xs:annotation>     <xs:documentation>Active/passive periods for the organizational unit ................................................HIS90: Only Valid periode in use. The Valid periode gives from and to date for the unit. For institution there is no periode.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="UnitStatus" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="Text" type="xs:string" minOccurs="0"/>             <xs:element name="Comment" type="xs:string" minOccurs="0"/>             <xs:element name="ValidPeriod">               <xs:complexType>                 <xs:sequence>                   <xs:element name="ValidFrom" type="xs:dateTime"/>                   <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/UnitStatuses/UnitStatus

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	Text Comment ValidPeriod
source	<xs:element name="UnitStatus" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="Text" type="xs:string" minOccurs="0"/>       <xs:element name="Comment" type="xs:string" minOccurs="0"/>       <xs:element name="ValidPeriod">         <xs:complexType>           <xs:sequence>             <xs:element name="ValidFrom" type="xs:dateTime"/>             <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/UnitStatuses/UnitStatus/Text

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Text" type="xs:string" minOccurs="0"/>

element OrganizationType/UnitStatuses/UnitStatus/Comment

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Comment" type="xs:string" minOccurs="0"/>

element OrganizationType/UnitStatuses/UnitStatus/ValidPeriod

diagram
properties	content  complex
children	ValidFrom ValidTo
source	<xs:element name="ValidPeriod">   <xs:complexType>     <xs:sequence>       <xs:element name="ValidFrom" type="xs:dateTime"/>       <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/UnitStatuses/UnitStatus/ValidPeriod/ValidFrom

diagram
type	xs:dateTime
properties	content  simple
source	<xs:element name="ValidFrom" type="xs:dateTime"/>

element OrganizationType/UnitStatuses/UnitStatus/ValidPeriod/ValidTo

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>

element OrganizationType/Details

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Detail
annotation	documentation Active/passive periods for details of unit if it is of "CareUnit" type ........................................ HIS90: For HIS90 this will give sumarized information if MedicalUnit/Department is in input
source	<xs:element name="Details" minOccurs="0">   <xs:annotation>     <xs:documentation>Active/passive periods for details of unit if it is of "CareUnit" type ........................................ HIS90: For HIS90 this will give sumarized information if MedicalUnit/Department is in input</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Detail" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>HIS90: Only one occurs for unit in input.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="ValidPeriod" minOccurs="0">               <xs:annotation>                 <xs:documentation>Valid period for detail</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="ValidFrom" type="xs:dateTime"/>                   <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="Type" type="xs:string">               <xs:annotation>                 <xs:documentation>Type of unit .............................. HIS90: Department type or Unit Type. Valid types for HIS90: Avdeling/Department: A-Administrasjon, I-Seng og Poliklinikk, M-Mottakelse, R-Røntgen, B-Blodbank  Enhet/Unit: P-Poliklinikk, I-Sengepost, R-Røntgen </xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="TypeOfWard" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>Code for type of care (5H/HE...) ......................................HIS90: Not in use for HIS90</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="NumberOfBedsNormal" type="xs:int">               <xs:annotation>                 <xs:documentation>HIS90: In case of a department this is the sum of all beds. In case of an single CareUnit this gives number of beds in the unit. </xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="NumberOfBedsForActualUse" type="xs:int">               <xs:annotation>                 <xs:documentation>HIS90: In case of a department this is the sum of all available beds. In case of a single CareUnit this gives number of available beds in the unit. </xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="NumberOfTechnicalBeds" type="xs:int" minOccurs="0">               <xs:annotation>                 <xs:documentation>HIS90: In case of a department this is the sum of all technical beds. In case of an single CareUnit this gives number of technical beds in the unit. A tecnical bed is a bed oocupied by patient from an another unit.</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="NumberOfDayPatientsNormal" type="xs:int" minOccurs="0">               <xs:annotation>                 <xs:documentation>HIS90:  In case of a department this is the sum of normalized capasity for day pasients. In case of a single CareUnit this gives the normalized capasity for day pasients in the care unit.  Normalized capasity is the total number of day patients that the unit is to be able to handle. </xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="NumberOfDayPatientsAvailable" type="xs:int" minOccurs="0">               <xs:annotation>                 <xs:documentation>HIS90: In case of a department this is the sum of available capasity for day pasients. In case of an single CareUnit this gives the available capasity for day pasients in the care unit. Available capasity is the total number of day patients that the unit is able to handle at the moment.</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="ReasonForBedsNotInUse" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>HIS90: Code indicating why beds are not in use for selected care unit.</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="WorkingDaysPrWeek" type="xs:int" minOccurs="0">               <xs:annotation>                 <xs:documentation>HIS90: Number of working days pr. week from Monday to Sunday.</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Accumulation" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>HIS90: Max number of days for accumulation</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Economy" minOccurs="0">               <xs:complexType>                 <xs:sequence>                   <xs:element name="CostCenter" type="xs:string" minOccurs="0"/>                   <xs:element name="PaymentMethod" minOccurs="0">                     <xs:complexType>                       <xs:sequence>                         <xs:element name="Code" type="xs:string"/>                         <xs:element name="Comment" type="xs:string" minOccurs="0"/>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="TransportCodes" minOccurs="0" maxOccurs="unbounded">                     <xs:complexType>                       <xs:sequence>                         <xs:element name="Code" type="xs:string"/>                         <xs:element name="Comment" type="xs:string" minOccurs="0"/>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="LetterDetails" minOccurs="0">               <xs:annotation>                 <xs:documentation>HIS90: Details for default letter codes</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="LetterDetail" maxOccurs="unbounded">                     <xs:complexType>                       <xs:sequence>                         <xs:element name="Type" type="xs:string" minOccurs="0"/>                         <xs:element name="Code" type="xs:string" minOccurs="0"/>                         <xs:element name="Comment" type="xs:string" minOccurs="0"/>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="Printers" minOccurs="0">               <xs:annotation>                 <xs:documentation>Printer informations and settings for theunit</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Printer" maxOccurs="unbounded">                     <xs:complexType>                       <xs:sequence>                         <xs:element name="Type" type="xs:string" minOccurs="0"/>                         <xs:element name="Code" type="xs:string" minOccurs="0"/>                         <xs:element name="Comment" type="xs:string" minOccurs="0"/>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/Details/Detail

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	ValidPeriod Type TypeOfWard NumberOfBedsNormal NumberOfBedsForActualUse NumberOfTechnicalBeds NumberOfDayPatientsNormal NumberOfDayPatientsAvailable ReasonForBedsNotInUse WorkingDaysPrWeek Accumulation Economy LetterDetails Printers
annotation	documentation HIS90: Only one occurs for unit in input.
source	<xs:element name="Detail" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>HIS90: Only one occurs for unit in input.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ValidPeriod" minOccurs="0">         <xs:annotation>           <xs:documentation>Valid period for detail</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="ValidFrom" type="xs:dateTime"/>             <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Type" type="xs:string">         <xs:annotation>           <xs:documentation>Type of unit .............................. HIS90: Department type or Unit Type. Valid types for HIS90: Avdeling/Department: A-Administrasjon, I-Seng og Poliklinikk, M-Mottakelse, R-Røntgen, B-Blodbank  Enhet/Unit: P-Poliklinikk, I-Sengepost, R-Røntgen </xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfWard" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Code for type of care (5H/HE...) ......................................HIS90: Not in use for HIS90</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="NumberOfBedsNormal" type="xs:int">         <xs:annotation>           <xs:documentation>HIS90: In case of a department this is the sum of all beds. In case of an single CareUnit this gives number of beds in the unit. </xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="NumberOfBedsForActualUse" type="xs:int">         <xs:annotation>           <xs:documentation>HIS90: In case of a department this is the sum of all available beds. In case of a single CareUnit this gives number of available beds in the unit. </xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="NumberOfTechnicalBeds" type="xs:int" minOccurs="0">         <xs:annotation>           <xs:documentation>HIS90: In case of a department this is the sum of all technical beds. In case of an single CareUnit this gives number of technical beds in the unit. A tecnical bed is a bed oocupied by patient from an another unit.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="NumberOfDayPatientsNormal" type="xs:int" minOccurs="0">         <xs:annotation>           <xs:documentation>HIS90:  In case of a department this is the sum of normalized capasity for day pasients. In case of a single CareUnit this gives the normalized capasity for day pasients in the care unit.  Normalized capasity is the total number of day patients that the unit is to be able to handle. </xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="NumberOfDayPatientsAvailable" type="xs:int" minOccurs="0">         <xs:annotation>           <xs:documentation>HIS90: In case of a department this is the sum of available capasity for day pasients. In case of an single CareUnit this gives the available capasity for day pasients in the care unit. Available capasity is the total number of day patients that the unit is able to handle at the moment.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ReasonForBedsNotInUse" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>HIS90: Code indicating why beds are not in use for selected care unit.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="WorkingDaysPrWeek" type="xs:int" minOccurs="0">         <xs:annotation>           <xs:documentation>HIS90: Number of working days pr. week from Monday to Sunday.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Accumulation" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>HIS90: Max number of days for accumulation</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Economy" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="CostCenter" type="xs:string" minOccurs="0"/>             <xs:element name="PaymentMethod" minOccurs="0">               <xs:complexType>                 <xs:sequence>                   <xs:element name="Code" type="xs:string"/>                   <xs:element name="Comment" type="xs:string" minOccurs="0"/>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="TransportCodes" minOccurs="0" maxOccurs="unbounded">               <xs:complexType>                 <xs:sequence>                   <xs:element name="Code" type="xs:string"/>                   <xs:element name="Comment" type="xs:string" minOccurs="0"/>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="LetterDetails" minOccurs="0">         <xs:annotation>           <xs:documentation>HIS90: Details for default letter codes</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="LetterDetail" maxOccurs="unbounded">               <xs:complexType>                 <xs:sequence>                   <xs:element name="Type" type="xs:string" minOccurs="0"/>                   <xs:element name="Code" type="xs:string" minOccurs="0"/>                   <xs:element name="Comment" type="xs:string" minOccurs="0"/>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Printers" minOccurs="0">         <xs:annotation>           <xs:documentation>Printer informations and settings for theunit</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Printer" maxOccurs="unbounded">               <xs:complexType>                 <xs:sequence>                   <xs:element name="Type" type="xs:string" minOccurs="0"/>                   <xs:element name="Code" type="xs:string" minOccurs="0"/>                   <xs:element name="Comment" type="xs:string" minOccurs="0"/>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/Details/Detail/ValidPeriod

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ValidFrom ValidTo
annotation	documentation Valid period for detail
source	<xs:element name="ValidPeriod" minOccurs="0">   <xs:annotation>     <xs:documentation>Valid period for detail</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ValidFrom" type="xs:dateTime"/>       <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/Details/Detail/ValidPeriod/ValidFrom

diagram
type	xs:dateTime
properties	content  simple
source	<xs:element name="ValidFrom" type="xs:dateTime"/>

element OrganizationType/Details/Detail/ValidPeriod/ValidTo

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>

element OrganizationType/Details/Detail/Type

diagram
type	xs:string
properties	content  simple
annotation	documentation Type of unit .............................. HIS90: Department type or Unit Type. Valid types for HIS90: Avdeling/Department: A-Administrasjon, I-Seng og Poliklinikk, M-Mottakelse, R-Røntgen, B-Blodbank  Enhet/Unit: P-Poliklinikk, I-Sengepost, R-Røntgen
source	<xs:element name="Type" type="xs:string">   <xs:annotation>     <xs:documentation>Type of unit .............................. HIS90: Department type or Unit Type. Valid types for HIS90: Avdeling/Department: A-Administrasjon, I-Seng og Poliklinikk, M-Mottakelse, R-Røntgen, B-Blodbank  Enhet/Unit: P-Poliklinikk, I-Sengepost, R-Røntgen </xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/Details/Detail/TypeOfWard

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Code for type of care (5H/HE...) ......................................HIS90: Not in use for HIS90
source	<xs:element name="TypeOfWard" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Code for type of care (5H/HE...) ......................................HIS90: Not in use for HIS90</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/Details/Detail/NumberOfBedsNormal

diagram
type	xs:int
properties	content  simple
annotation	documentation HIS90: In case of a department this is the sum of all beds. In case of an single CareUnit this gives number of beds in the unit.
source	<xs:element name="NumberOfBedsNormal" type="xs:int">   <xs:annotation>     <xs:documentation>HIS90: In case of a department this is the sum of all beds. In case of an single CareUnit this gives number of beds in the unit. </xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/Details/Detail/NumberOfBedsForActualUse

diagram
type	xs:int
properties	content  simple
annotation	documentation HIS90: In case of a department this is the sum of all available beds. In case of a single CareUnit this gives number of available beds in the unit.
source	<xs:element name="NumberOfBedsForActualUse" type="xs:int">   <xs:annotation>     <xs:documentation>HIS90: In case of a department this is the sum of all available beds. In case of a single CareUnit this gives number of available beds in the unit. </xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/Details/Detail/NumberOfTechnicalBeds

diagram
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation HIS90: In case of a department this is the sum of all technical beds. In case of an single CareUnit this gives number of technical beds in the unit. A tecnical bed is a bed oocupied by patient from an another unit.
source	<xs:element name="NumberOfTechnicalBeds" type="xs:int" minOccurs="0">   <xs:annotation>     <xs:documentation>HIS90: In case of a department this is the sum of all technical beds. In case of an single CareUnit this gives number of technical beds in the unit. A tecnical bed is a bed oocupied by patient from an another unit.</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/Details/Detail/NumberOfDayPatientsNormal

diagram
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation HIS90:  In case of a department this is the sum of normalized capasity for day pasients. In case of a single CareUnit this gives the normalized capasity for day pasients in the care unit.  Normalized capasity is the total number of day patients that the unit is to be able to handle.
source	<xs:element name="NumberOfDayPatientsNormal" type="xs:int" minOccurs="0">   <xs:annotation>     <xs:documentation>HIS90:  In case of a department this is the sum of normalized capasity for day pasients. In case of a single CareUnit this gives the normalized capasity for day pasients in the care unit.  Normalized capasity is the total number of day patients that the unit is to be able to handle. </xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/Details/Detail/NumberOfDayPatientsAvailable

diagram
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation HIS90: In case of a department this is the sum of available capasity for day pasients. In case of an single CareUnit this gives the available capasity for day pasients in the care unit. Available capasity is the total number of day patients that the unit is able to handle at the moment.
source	<xs:element name="NumberOfDayPatientsAvailable" type="xs:int" minOccurs="0">   <xs:annotation>     <xs:documentation>HIS90: In case of a department this is the sum of available capasity for day pasients. In case of an single CareUnit this gives the available capasity for day pasients in the care unit. Available capasity is the total number of day patients that the unit is able to handle at the moment.</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/Details/Detail/ReasonForBedsNotInUse

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation HIS90: Code indicating why beds are not in use for selected care unit.
source	<xs:element name="ReasonForBedsNotInUse" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>HIS90: Code indicating why beds are not in use for selected care unit.</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/Details/Detail/WorkingDaysPrWeek

diagram
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation HIS90: Number of working days pr. week from Monday to Sunday.
source	<xs:element name="WorkingDaysPrWeek" type="xs:int" minOccurs="0">   <xs:annotation>     <xs:documentation>HIS90: Number of working days pr. week from Monday to Sunday.</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/Details/Detail/Accumulation

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation HIS90: Max number of days for accumulation
source	<xs:element name="Accumulation" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>HIS90: Max number of days for accumulation</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/Details/Detail/Economy

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	CostCenter PaymentMethod TransportCodes
source	<xs:element name="Economy" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="CostCenter" type="xs:string" minOccurs="0"/>       <xs:element name="PaymentMethod" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="Code" type="xs:string"/>             <xs:element name="Comment" type="xs:string" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="TransportCodes" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="Code" type="xs:string"/>             <xs:element name="Comment" type="xs:string" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/Details/Detail/Economy/CostCenter

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="CostCenter" type="xs:string" minOccurs="0"/>

element OrganizationType/Details/Detail/Economy/PaymentMethod

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Code Comment
source	<xs:element name="PaymentMethod" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Comment" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/Details/Detail/Economy/PaymentMethod/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element OrganizationType/Details/Detail/Economy/PaymentMethod/Comment

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Comment" type="xs:string" minOccurs="0"/>

element OrganizationType/Details/Detail/Economy/TransportCodes

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	Code Comment
source	<xs:element name="TransportCodes" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Comment" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/Details/Detail/Economy/TransportCodes/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element OrganizationType/Details/Detail/Economy/TransportCodes/Comment

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Comment" type="xs:string" minOccurs="0"/>

element OrganizationType/Details/Detail/LetterDetails

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	LetterDetail
annotation	documentation HIS90: Details for default letter codes
source	<xs:element name="LetterDetails" minOccurs="0">   <xs:annotation>     <xs:documentation>HIS90: Details for default letter codes</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="LetterDetail" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="Type" type="xs:string" minOccurs="0"/>             <xs:element name="Code" type="xs:string" minOccurs="0"/>             <xs:element name="Comment" type="xs:string" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/Details/Detail/LetterDetails/LetterDetail

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	Type Code Comment
source	<xs:element name="LetterDetail" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="Type" type="xs:string" minOccurs="0"/>       <xs:element name="Code" type="xs:string" minOccurs="0"/>       <xs:element name="Comment" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/Details/Detail/LetterDetails/LetterDetail/Type

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Type" type="xs:string" minOccurs="0"/>

element OrganizationType/Details/Detail/LetterDetails/LetterDetail/Code

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Code" type="xs:string" minOccurs="0"/>

element OrganizationType/Details/Detail/LetterDetails/LetterDetail/Comment

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Comment" type="xs:string" minOccurs="0"/>

element OrganizationType/Details/Detail/Printers

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Printer
annotation	documentation Printer informations and settings for theunit
source	<xs:element name="Printers" minOccurs="0">   <xs:annotation>     <xs:documentation>Printer informations and settings for theunit</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Printer" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="Type" type="xs:string" minOccurs="0"/>             <xs:element name="Code" type="xs:string" minOccurs="0"/>             <xs:element name="Comment" type="xs:string" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/Details/Detail/Printers/Printer

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	Type Code Comment
source	<xs:element name="Printer" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="Type" type="xs:string" minOccurs="0"/>       <xs:element name="Code" type="xs:string" minOccurs="0"/>       <xs:element name="Comment" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/Details/Detail/Printers/Printer/Type

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Type" type="xs:string" minOccurs="0"/>

element OrganizationType/Details/Detail/Printers/Printer/Code

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Code" type="xs:string" minOccurs="0"/>

element OrganizationType/Details/Detail/Printers/Printer/Comment

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Comment" type="xs:string" minOccurs="0"/>

element OrganizationType/Properties

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Property
source	<xs:element name="Properties" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="Property" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="TypeOfProperty" type="xs:string">               <xs:annotation>                 <xs:documentation>Property for the unit. The validperiod defines the from and to dates when the this property is valid. HIS90: PESC - extra security/sensitive unit PPSYC - Psychiatriy MedicalUnit or CareUnit. PWOMD - Womens Department - MedicalUnit or a CareUnit. PLTTR - Long Time Treatement -  The MedicalUnit or CareUnitis a LongTimeTreatment unit. PPBFU - Productivity Based Funding - If the unit has productivity based funding. PCHYP - Children and Youth Psychiatriy MedicalUnit or CareUnit. PDRAT - (RUS) Drug and Alchohol Treatment Unit - MedicalUnit or CareUnit DEFLANG - Default language for institution/department if avaiable. Language code in found in Description tag.(Code set is DocumentLaguageCodes)</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Description" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>Property description.</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="ValidPeriod" minOccurs="0" maxOccurs="unbounded">               <xs:annotation>                 <xs:documentation>Valid periode or periods.</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="ValidFrom" type="xs:dateTime"/>                   <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/Properties/Property

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	TypeOfProperty Description ValidPeriod
source	<xs:element name="Property" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="TypeOfProperty" type="xs:string">         <xs:annotation>           <xs:documentation>Property for the unit. The validperiod defines the from and to dates when the this property is valid. HIS90: PESC - extra security/sensitive unit PPSYC - Psychiatriy MedicalUnit or CareUnit. PWOMD - Womens Department - MedicalUnit or a CareUnit. PLTTR - Long Time Treatement -  The MedicalUnit or CareUnitis a LongTimeTreatment unit. PPBFU - Productivity Based Funding - If the unit has productivity based funding. PCHYP - Children and Youth Psychiatriy MedicalUnit or CareUnit. PDRAT - (RUS) Drug and Alchohol Treatment Unit - MedicalUnit or CareUnit DEFLANG - Default language for institution/department if avaiable. Language code in found in Description tag.(Code set is DocumentLaguageCodes)</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Description" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Property description.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ValidPeriod" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Valid periode or periods.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="ValidFrom" type="xs:dateTime"/>             <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/Properties/Property/TypeOfProperty

diagram
type	xs:string
properties	content  simple
annotation	documentation Property for the unit. The validperiod defines the from and to dates when the this property is valid. HIS90: PESC - extra security/sensitive unit PPSYC - Psychiatriy MedicalUnit or CareUnit. PWOMD - Womens Department - MedicalUnit or a CareUnit. PLTTR - Long Time Treatement -  The MedicalUnit or CareUnitis a LongTimeTreatment unit. PPBFU - Productivity Based Funding - If the unit has productivity based funding. PCHYP - Children and Youth Psychiatriy MedicalUnit or CareUnit. PDRAT - (RUS) Drug and Alchohol Treatment Unit - MedicalUnit or CareUnit DEFLANG - Default language for institution/department if avaiable. Language code in found in Description tag.(Code set is DocumentLaguageCodes)
source	<xs:element name="TypeOfProperty" type="xs:string">   <xs:annotation>     <xs:documentation>Property for the unit. The validperiod defines the from and to dates when the this property is valid. HIS90: PESC - extra security/sensitive unit PPSYC - Psychiatriy MedicalUnit or CareUnit. PWOMD - Womens Department - MedicalUnit or a CareUnit. PLTTR - Long Time Treatement -  The MedicalUnit or CareUnitis a LongTimeTreatment unit. PPBFU - Productivity Based Funding - If the unit has productivity based funding. PCHYP - Children and Youth Psychiatriy MedicalUnit or CareUnit. PDRAT - (RUS) Drug and Alchohol Treatment Unit - MedicalUnit or CareUnit DEFLANG - Default language for institution/department if avaiable. Language code in found in Description tag.(Code set is DocumentLaguageCodes)</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/Properties/Property/Description

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Property description.
source	<xs:element name="Description" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Property description.</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/Properties/Property/ValidPeriod

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	ValidFrom ValidTo
annotation	documentation Valid periode or periods.
source	<xs:element name="ValidPeriod" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Valid periode or periods.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ValidFrom" type="xs:dateTime"/>       <xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/Properties/Property/ValidPeriod/ValidFrom

diagram
type	xs:dateTime
properties	content  simple
source	<xs:element name="ValidFrom" type="xs:dateTime"/>

element OrganizationType/Properties/Property/ValidPeriod/ValidTo

diagram
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ValidTo" type="xs:dateTime" minOccurs="0"/>

element OrganizationType/OrganizationAddressInformation

diagram
properties	content  complex
children	ContactPerson EMailAddress Address PhoneNumber FaxNumber
source	<xs:element name="OrganizationAddressInformation">   <xs:complexType>     <xs:sequence>       <xs:element name="ContactPerson" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>HIS90: Contact person for selected unit.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Text" type="xs:string"/>             <xs:element name="Comment" type="xs:string" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="EMailAddress" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="Text" type="xs:string"/>             <xs:element name="Comment" type="xs:string" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Address" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="UnitMainEntrance" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>HIS90: Main entrance to the unit.</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="AddressLines" minOccurs="0" maxOccurs="unbounded">               <xs:complexType>                 <xs:sequence>                   <xs:element name="Code" type="xs:string" minOccurs="0"/>                   <xs:element name="Text" type="xs:string"/>                   <xs:element name="Comment" type="xs:string" minOccurs="0"/>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="PostalAddress" minOccurs="0">               <xs:complexType>                 <xs:sequence>                   <xs:element name="Code" type="xs:string"/>                   <xs:element name="Text" type="xs:string"/>                   <xs:element name="Comment" type="xs:string" minOccurs="0"/>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="PhoneNumber" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="Text" type="xs:string"/>             <xs:element name="Extension" type="xs:string" minOccurs="0"/>             <xs:element name="Comment" type="xs:string" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="FaxNumber" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="Text" type="xs:string"/>             <xs:element name="Comment" type="xs:string" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/OrganizationAddressInformation/ContactPerson

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	Text Comment
annotation	documentation HIS90: Contact person for selected unit.
source	<xs:element name="ContactPerson" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>HIS90: Contact person for selected unit.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Text" type="xs:string"/>       <xs:element name="Comment" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/OrganizationAddressInformation/ContactPerson/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element OrganizationType/OrganizationAddressInformation/ContactPerson/Comment

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Comment" type="xs:string" minOccurs="0"/>

element OrganizationType/OrganizationAddressInformation/EMailAddress

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	Text Comment
source	<xs:element name="EMailAddress" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="Text" type="xs:string"/>       <xs:element name="Comment" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/OrganizationAddressInformation/EMailAddress/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element OrganizationType/OrganizationAddressInformation/EMailAddress/Comment

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Comment" type="xs:string" minOccurs="0"/>

element OrganizationType/OrganizationAddressInformation/Address

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	UnitMainEntrance AddressLines PostalAddress
source	<xs:element name="Address" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="UnitMainEntrance" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>HIS90: Main entrance to the unit.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="AddressLines" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="Code" type="xs:string" minOccurs="0"/>             <xs:element name="Text" type="xs:string"/>             <xs:element name="Comment" type="xs:string" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="PostalAddress" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="Code" type="xs:string"/>             <xs:element name="Text" type="xs:string"/>             <xs:element name="Comment" type="xs:string" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/OrganizationAddressInformation/Address/UnitMainEntrance

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation HIS90: Main entrance to the unit.
source	<xs:element name="UnitMainEntrance" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>HIS90: Main entrance to the unit.</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationType/OrganizationAddressInformation/Address/AddressLines

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	Code Text Comment
source	<xs:element name="AddressLines" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string" minOccurs="0"/>       <xs:element name="Text" type="xs:string"/>       <xs:element name="Comment" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/OrganizationAddressInformation/Address/AddressLines/Code

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Code" type="xs:string" minOccurs="0"/>

element OrganizationType/OrganizationAddressInformation/Address/AddressLines/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element OrganizationType/OrganizationAddressInformation/Address/AddressLines/Comment

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Comment" type="xs:string" minOccurs="0"/>

element OrganizationType/OrganizationAddressInformation/Address/PostalAddress

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text Comment
source	<xs:element name="PostalAddress" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Text" type="xs:string"/>       <xs:element name="Comment" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/OrganizationAddressInformation/Address/PostalAddress/Code

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element OrganizationType/OrganizationAddressInformation/Address/PostalAddress/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element OrganizationType/OrganizationAddressInformation/Address/PostalAddress/Comment

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Comment" type="xs:string" minOccurs="0"/>

element OrganizationType/OrganizationAddressInformation/PhoneNumber

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	Text Extension Comment
source	<xs:element name="PhoneNumber" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="Text" type="xs:string"/>       <xs:element name="Extension" type="xs:string" minOccurs="0"/>       <xs:element name="Comment" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/OrganizationAddressInformation/PhoneNumber/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element OrganizationType/OrganizationAddressInformation/PhoneNumber/Extension

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Extension" type="xs:string" minOccurs="0"/>

element OrganizationType/OrganizationAddressInformation/PhoneNumber/Comment

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Comment" type="xs:string" minOccurs="0"/>

element OrganizationType/OrganizationAddressInformation/FaxNumber

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	Text Comment
source	<xs:element name="FaxNumber" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="Text" type="xs:string"/>       <xs:element name="Comment" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element OrganizationType/OrganizationAddressInformation/FaxNumber/Text

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element OrganizationType/OrganizationAddressInformation/FaxNumber/Comment

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Comment" type="xs:string" minOccurs="0"/>

element OrganizationType/Registration

diagram
type	InsertedChangedByType
properties	minOcc  0 maxOcc  1 content  complex
children	Date Name Organization SignedBy
annotation	documentation Unit registration
source	<xs:element name="Registration" type="InsertedChangedByType" minOccurs="0">   <xs:annotation>     <xs:documentation>Unit registration</xs:documentation>   </xs:annotation> </xs:element>

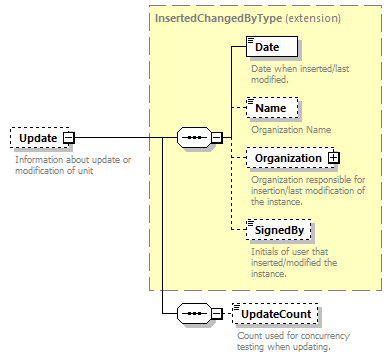

element OrganizationType/Update

diagram
type	extension of InsertedChangedByType
properties	minOcc  0 maxOcc  1 content  complex
children	Date Name Organization SignedBy UpdateCount
annotation	documentation Information about update or modification of unit
source	<xs:element name="Update" minOccurs="0">   <xs:annotation>     <xs:documentation>Information about update or modification of unit</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="InsertedChangedByType">         <xs:sequence>           <xs:element name="UpdateCount" type="xs:int" minOccurs="0">             <xs:annotation>               <xs:documentation>Count used for concurrency testing when updating.</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element OrganizationType/Update/UpdateCount

diagram
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Count used for concurrency testing when updating.
source	<xs:element name="UpdateCount" type="xs:int" minOccurs="0">   <xs:annotation>     <xs:documentation>Count used for concurrency testing when updating.</xs:documentation>   </xs:annotation> </xs:element>

complexType OrganizationTypeResourcesInt

diagram
children	Id TypeOfId ShortNameId Name AdditionalIds DefaultUnit
used by	element  GetResourceResponse/ResourceUnits
source	<xs:complexType name="OrganizationTypeResourcesInt">   <xs:sequence>     <xs:element name="Id" type="xs:string">       <xs:annotation>         <xs:documentation>Id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TypeOfId" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ShortNameId" type="xs:string" minOccurs="0"/>     <xs:element name="Name" type="xs:string" minOccurs="0"/>     <xs:element name="AdditionalIds" type="AdditionalIdTypeResourcesInt" minOccurs="0">       <xs:annotation>         <xs:documentation>Additional ids for the unit</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="DefaultUnit" type="xs:boolean" minOccurs="0">       <xs:annotation>         <xs:documentation>The resource default unit releated to this resource code</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element OrganizationTypeResourcesInt/Id

diagram
type	xs:string
properties	content  simple
annotation	documentation Id
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Id</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationTypeResourcesInt/TypeOfId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id
source	<xs:element name="TypeOfId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationTypeResourcesInt/ShortNameId

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ShortNameId" type="xs:string" minOccurs="0"/>

element OrganizationTypeResourcesInt/Name

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Name" type="xs:string" minOccurs="0"/>

element OrganizationTypeResourcesInt/AdditionalIds

diagram
type	AdditionalIdTypeResourcesInt
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId
annotation	documentation Additional ids for the unit
source	<xs:element name="AdditionalIds" type="AdditionalIdTypeResourcesInt" minOccurs="0">   <xs:annotation>     <xs:documentation>Additional ids for the unit</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationTypeResourcesInt/DefaultUnit

diagram
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation The resource default unit releated to this resource code
source	<xs:element name="DefaultUnit" type="xs:boolean" minOccurs="0">   <xs:annotation>     <xs:documentation>The resource default unit releated to this resource code</xs:documentation>   </xs:annotation> </xs:element>

simpleType OrganizationResourceFilterEnums

type	restriction of xs:string
properties	base  xs:string
used by	element  OrganizationResourceFilterType/Filter
facets	Kind  Value  Annotation enumeration  NotSet enumeration  OnlyResourcesChangedSinceLastTime enumeration  OnlyResourcesWithTimeBookOnDate
source	<xs:simpleType name="OrganizationResourceFilterEnums">   <xs:restriction base="xs:string">     <xs:enumeration value="NotSet"/>     <xs:enumeration value="OnlyResourcesChangedSinceLastTime"/>     <xs:enumeration value="OnlyResourcesWithTimeBookOnDate"/>   </xs:restriction> </xs:simpleType>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
