Schema patientws.xsd

schema location:	..\..\patientws.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified
targetNamespace:	http://healthXML.org/PasLink

Elements	Complex types	Simple types
GetPatientOverview2GRequest	AdditionalIdType	PatientsByResourceFilterType
GetPatientOverview2GResponse	AddressTypeAdditionalTypePatientWS	ResponseElement
GetUpdatedPatientFreepassRequest	AddressTypeExtPatientWS
GetUpdatedPatientFreepassResponse	AddressTypePatientWS
ListPatientsById2GRequest	CodeNameTypePatientWS
ListPatientsById2GResponse	CodeOfficialCodeTextTypePatientWS
ListPatientsByOrgRequest	CodeTextTypeOfTypePatientWS
ListPatientsByOrgResponse	CodeTextTypePatientWS
ListPatientsByResourceRequest	ContactStatusType
ListPatientsByResourceResponse	DecisionTypeForList
UpdateOfficialIdRequest	IdCodeNameTypePatientWS
UpdateOfficialIdResponse	IdOfPatientRequestTypeCollection
	NameTypePatientWS
	OrganizationTypePatientWS
	OrganizationUnitType
	PatientFreepassType
	PatientIdTypeExtPatientWS
	PatientIdTypeOfIdType
	PatientIdTypePatientWS
	PatientInfoListType
	PatientInsuranceType
	PatientListTypePatientWS
	PatientTypePatientWS
	PersonalInformationTypePatientWS
	RequesterType
	ResourceTypePatient
	TelecomTypePatientWS
	TelecomValueTypePatientWS
	TypeOfTextTypePatientWS
	ValidDateType
	ValidDateType2
	ValueTypeOfTypePatientWS

element GetPatientOverview2GRequest

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
annotation	documentation Not implemented - for future use
source	<xs:element name="GetPatientOverview2GRequest">   <xs:annotation>     <xs:documentation>Not implemented - for future use</xs:documentation>   </xs:annotation>   <xs:complexType/> </xs:element>

element GetPatientOverview2GResponse

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
annotation	documentation Not implemented - for future use
source	<xs:element name="GetPatientOverview2GResponse">   <xs:annotation>     <xs:documentation>Not implemented - for future use</xs:documentation>   </xs:annotation>   <xs:complexType/> </xs:element>

element GetUpdatedPatientFreepassRequest

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	PatientId ForceUpdate
annotation	documentation Request for getting patients freepass
source	<xs:element name="GetUpdatedPatientFreepassRequest">   <xs:annotation>     <xs:documentation>Request for getting patients freepass</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="PatientId" type="xs:int">         <xs:annotation>           <xs:documentation>Internal patient id for the HIS</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ForceUpdate" type="xs:boolean" minOccurs="0">         <xs:annotation>           <xs:documentation>Force an update of patient's freepass infofmation from offical sources regardless of information in PAS</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element GetUpdatedPatientFreepassRequest/PatientId

diagram
namespace	http://healthXML.org/PasLink
type	xs:int
properties	content  simple
annotation	documentation Internal patient id for the HIS
source	<xs:element name="PatientId" type="xs:int">   <xs:annotation>     <xs:documentation>Internal patient id for the HIS</xs:documentation>   </xs:annotation> </xs:element>

element GetUpdatedPatientFreepassRequest/ForceUpdate

diagram
namespace	http://healthXML.org/PasLink
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Force an update of patient's freepass infofmation from offical sources regardless of information in PAS
source	<xs:element name="ForceUpdate" type="xs:boolean" minOccurs="0">   <xs:annotation>     <xs:documentation>Force an update of patient's freepass infofmation from offical sources regardless of information in PAS</xs:documentation>   </xs:annotation> </xs:element>

element GetUpdatedPatientFreepassResponse

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	PatientId HaveFreepass Number ValidPeriod
annotation	documentation Response for getting patients freepass
source	<xs:element name="GetUpdatedPatientFreepassResponse">   <xs:annotation>     <xs:documentation>Response for getting patients freepass</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="PatientId" type="xs:int" minOccurs="0">         <xs:annotation>           <xs:documentation>Internal patient id for the HIS</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="HaveFreepass" type="xs:boolean" minOccurs="0">         <xs:annotation>           <xs:documentation>If Patient have freepass True = Have freepass False = Not freepass Missing/Blank = Not known</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Number" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>FrepassNumber</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ValidPeriod" type="ValidDateType2" minOccurs="0">         <xs:annotation>           <xs:documentation>Valid period for freepass</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element GetUpdatedPatientFreepassResponse/PatientId

diagram
namespace	http://healthXML.org/PasLink
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Internal patient id for the HIS
source	<xs:element name="PatientId" type="xs:int" minOccurs="0">   <xs:annotation>     <xs:documentation>Internal patient id for the HIS</xs:documentation>   </xs:annotation> </xs:element>

element GetUpdatedPatientFreepassResponse/HaveFreepass

diagram
namespace	http://healthXML.org/PasLink
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation If Patient have freepass True = Have freepass False = Not freepass Missing/Blank = Not known
source	<xs:element name="HaveFreepass" type="xs:boolean" minOccurs="0">   <xs:annotation>     <xs:documentation>If Patient have freepass True = Have freepass False = Not freepass Missing/Blank = Not known</xs:documentation>   </xs:annotation> </xs:element>

element GetUpdatedPatientFreepassResponse/Number

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation FrepassNumber
source	<xs:element name="Number" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>FrepassNumber</xs:documentation>   </xs:annotation> </xs:element>

element GetUpdatedPatientFreepassResponse/ValidPeriod

diagram
namespace	http://healthXML.org/PasLink
type	ValidDateType2
properties	minOcc  0 maxOcc  1 content  complex
children	ValidFrom ValidTo
annotation	documentation Valid period for freepass
source	<xs:element name="ValidPeriod" type="ValidDateType2" minOccurs="0">   <xs:annotation>     <xs:documentation>Valid period for freepass</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsById2GRequest

diagram
namespace	http://healthXML.org/PasLink
type	IdOfPatientRequestTypeCollection
properties	content  complex
children	Id
source	<xs:element name="ListPatientsById2GRequest" type="IdOfPatientRequestTypeCollection"/>

element ListPatientsById2GResponse

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	Patients
source	<xs:element name="ListPatientsById2GResponse">   <xs:complexType>     <xs:sequence>       <xs:element name="Patients" type="PatientListTypePatientWS"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsById2GResponse/Patients

diagram
namespace	http://healthXML.org/PasLink
type	PatientListTypePatientWS
properties	content  complex
children	Patient
source	<xs:element name="Patients" type="PatientListTypePatientWS"/>

element ListPatientsByOrgRequest

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	Organization Period TypeOfCare Status OnlyMedicalUnitInfo ResponseElements
annotation	documentation Request to PatientWS.ListPatientsByOrg. Llisting patients by organization.
source	<xs:element name="ListPatientsByOrgRequest">   <xs:annotation>     <xs:documentation>Request to PatientWS.ListPatientsByOrg. Llisting patients by organization.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Organization">         <xs:annotation>           <xs:documentation>Organization Unit to list patients from. 0 is all organization(hospital). </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="MedicalUnit" minOccurs="0">               <xs:annotation>                 <xs:documentation>Department/Medical Speciality</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Id" type="xs:string"/>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="CareUnit" minOccurs="0">               <xs:annotation>                 <xs:documentation>Organization unit where the care is taking place</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Id" type="xs:string"/>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="Section" minOccurs="0">               <xs:annotation>                 <xs:documentation>Section is units grouped within the same deaprtment</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Id" type="xs:string"/>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="CareGroup" minOccurs="0">               <xs:annotation>                 <xs:documentation>CareGroup is units from different departments grouped together.               If CareGroup.Id is used, then MedicalUnit and CareUnit must not be used.  </xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Id" type="xs:string"/>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Period" minOccurs="0">         <xs:annotation>           <xs:documentation>Date from and to where patients have contacts with the hospital/ in the PAS</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="From" type="xs:dateTime" minOccurs="0"/>             <xs:element name="To" type="xs:dateTime" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="TypeOfCare" minOccurs="0">         <xs:annotation>           <xs:documentation>TypeOfCare: I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk      D= In hospital only at daytime                   HIS90: Code/Text           Only I and D is used. D will only return daytime pateints for Inpatients.           </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Code" type="xs:string">               <xs:annotation>                 <xs:documentation>Code I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk      D= In hospital only at daytime      </xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="CategoryCode" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>Used for giving more details about type of care. HIS90 only: If TypeOfCare = I valid subtypes are D (Dagpasient) E (opphold uten for avdeling) H (Heldøgn) L (Ledsager) N (Nyfødt) P (Pasienthotell) S (Sykehotell) If TypeOfCare = P CatgoryCode is ignored                                      </xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Status" minOccurs="0">         <xs:annotation>           <xs:documentation>Status for patient's contacts to list.                         Multiple selection is possible. If no search is specified, the default is all</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="StatusCode" maxOccurs="unbounded">               <xs:complexType>                 <xs:sequence>                   <xs:element name="Code" type="xs:string">                     <xs:annotation>                       <xs:documentation>Contact status                     For TypeOfCare I:              AK=Active/Aktiv             FB= Treatment Finnished but not discharged / Ferdig behandlet, ikke utskrevet     UT=Discharged/Utskrevet   For TypeOfCare P:             AK=OutPatient Visit Arrival Registered / Ankomstregistrert               UT= OutPatient Visit Finished Registered / Besøksregistrert               </xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="OnlyMedicalUnitInfo" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Return only information about the contact for the medicalunit stay Only valid when Organization.MedicalUnit.id is used. True= Return only medical unit info for the contact False= Return all care units information for the contacts HIS90: Avd.opphold vs postopphold</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ResponseElements" minOccurs="0">         <xs:annotation>           <xs:documentation>Elements (tags) wanted in response.   Default is patietntinfo and requiered elements in Contact.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Elements" maxOccurs="unbounded">               <xs:complexType>                 <xs:sequence>                   <xs:element name="Element" type="ResponseElement">                     <xs:annotation>                       <xs:documentation>User/Application defined filtering of tags/elements in response.                            Enumarator:  Patient_Contact_All             Patient_Contact_MedicalUnit Patient_Contact_CareGroup Patient_Contact_Section Patient_Contact_CareUnit Patient_Contact_Placement Patient_Contact_Leave Patient_Contact_CareResponsible Patient_Contact_PatientResponsible Patient_Contact_Confidenatial</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

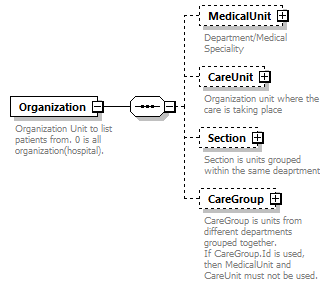

element ListPatientsByOrgRequest/Organization

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	MedicalUnit CareUnit Section CareGroup
annotation	documentation Organization Unit to list patients from. 0 is all organization(hospital).
source	<xs:element name="Organization">   <xs:annotation>     <xs:documentation>Organization Unit to list patients from. 0 is all organization(hospital). </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="MedicalUnit" minOccurs="0">         <xs:annotation>           <xs:documentation>Department/Medical Speciality</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="CareUnit" minOccurs="0">         <xs:annotation>           <xs:documentation>Organization unit where the care is taking place</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Section" minOccurs="0">         <xs:annotation>           <xs:documentation>Section is units grouped within the same deaprtment</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="CareGroup" minOccurs="0">         <xs:annotation>           <xs:documentation>CareGroup is units from different departments grouped together.               If CareGroup.Id is used, then MedicalUnit and CareUnit must not be used.  </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgRequest/Organization/MedicalUnit

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	Id
annotation	documentation Department/Medical Speciality
source	<xs:element name="MedicalUnit" minOccurs="0">   <xs:annotation>     <xs:documentation>Department/Medical Speciality</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgRequest/Organization/MedicalUnit/Id

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element ListPatientsByOrgRequest/Organization/CareUnit

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	Id
annotation	documentation Organization unit where the care is taking place
source	<xs:element name="CareUnit" minOccurs="0">   <xs:annotation>     <xs:documentation>Organization unit where the care is taking place</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgRequest/Organization/CareUnit/Id

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element ListPatientsByOrgRequest/Organization/Section

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	Id
annotation	documentation Section is units grouped within the same deaprtment
source	<xs:element name="Section" minOccurs="0">   <xs:annotation>     <xs:documentation>Section is units grouped within the same deaprtment</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgRequest/Organization/Section/Id

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element ListPatientsByOrgRequest/Organization/CareGroup

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	Id
annotation	documentation CareGroup is units from different departments grouped together.               If CareGroup.Id is used, then MedicalUnit and CareUnit must not be used.
source	<xs:element name="CareGroup" minOccurs="0">   <xs:annotation>     <xs:documentation>CareGroup is units from different departments grouped together.               If CareGroup.Id is used, then MedicalUnit and CareUnit must not be used.  </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgRequest/Organization/CareGroup/Id

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element ListPatientsByOrgRequest/Period

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	From To
annotation	documentation Date from and to where patients have contacts with the hospital/ in the PAS
source	<xs:element name="Period" minOccurs="0">   <xs:annotation>     <xs:documentation>Date from and to where patients have contacts with the hospital/ in the PAS</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="From" type="xs:dateTime" minOccurs="0"/>       <xs:element name="To" type="xs:dateTime" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgRequest/Period/From

diagram
namespace	http://healthXML.org/PasLink
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="From" type="xs:dateTime" minOccurs="0"/>

element ListPatientsByOrgRequest/Period/To

diagram
namespace	http://healthXML.org/PasLink
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="To" type="xs:dateTime" minOccurs="0"/>

element ListPatientsByOrgRequest/TypeOfCare

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	Code CategoryCode
annotation	documentation TypeOfCare: I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk      D= In hospital only at daytime                   HIS90: Code/Text           Only I and D is used. D will only return daytime pateints for Inpatients.
source	<xs:element name="TypeOfCare" minOccurs="0">   <xs:annotation>     <xs:documentation>TypeOfCare: I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk      D= In hospital only at daytime                   HIS90: Code/Text           Only I and D is used. D will only return daytime pateints for Inpatients.           </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string">         <xs:annotation>           <xs:documentation>Code I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk      D= In hospital only at daytime      </xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="CategoryCode" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Used for giving more details about type of care. HIS90 only: If TypeOfCare = I valid subtypes are D (Dagpasient) E (opphold uten for avdeling) H (Heldøgn) L (Ledsager) N (Nyfødt) P (Pasienthotell) S (Sykehotell) If TypeOfCare = P CatgoryCode is ignored                                      </xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgRequest/TypeOfCare/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Code I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk      D= In hospital only at daytime
source	<xs:element name="Code" type="xs:string">   <xs:annotation>     <xs:documentation>Code I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk      D= In hospital only at daytime      </xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgRequest/TypeOfCare/CategoryCode

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Used for giving more details about type of care. HIS90 only: If TypeOfCare = I valid subtypes are D (Dagpasient) E (opphold uten for avdeling) H (Heldøgn) L (Ledsager) N (Nyfødt) P (Pasienthotell) S (Sykehotell) If TypeOfCare = P CatgoryCode is ignored
source	<xs:element name="CategoryCode" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Used for giving more details about type of care. HIS90 only: If TypeOfCare = I valid subtypes are D (Dagpasient) E (opphold uten for avdeling) H (Heldøgn) L (Ledsager) N (Nyfødt) P (Pasienthotell) S (Sykehotell) If TypeOfCare = P CatgoryCode is ignored                                      </xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgRequest/Status

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	StatusCode
annotation	documentation Status for patient's contacts to list.                         Multiple selection is possible. If no search is specified, the default is all
source	<xs:element name="Status" minOccurs="0">   <xs:annotation>     <xs:documentation>Status for patient's contacts to list.                         Multiple selection is possible. If no search is specified, the default is all</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="StatusCode" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="Code" type="xs:string">               <xs:annotation>                 <xs:documentation>Contact status                     For TypeOfCare I:              AK=Active/Aktiv             FB= Treatment Finnished but not discharged / Ferdig behandlet, ikke utskrevet     UT=Discharged/Utskrevet   For TypeOfCare P:             AK=OutPatient Visit Arrival Registered / Ankomstregistrert               UT= OutPatient Visit Finished Registered / Besøksregistrert               </xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgRequest/Status/StatusCode

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  1 maxOcc  unbounded content  complex
children	Code
source	<xs:element name="StatusCode" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string">         <xs:annotation>           <xs:documentation>Contact status                     For TypeOfCare I:              AK=Active/Aktiv             FB= Treatment Finnished but not discharged / Ferdig behandlet, ikke utskrevet     UT=Discharged/Utskrevet   For TypeOfCare P:             AK=OutPatient Visit Arrival Registered / Ankomstregistrert               UT= OutPatient Visit Finished Registered / Besøksregistrert               </xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgRequest/Status/StatusCode/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Contact status                     For TypeOfCare I:              AK=Active/Aktiv             FB= Treatment Finnished but not discharged / Ferdig behandlet, ikke utskrevet     UT=Discharged/Utskrevet   For TypeOfCare P:             AK=OutPatient Visit Arrival Registered / Ankomstregistrert               UT= OutPatient Visit Finished Registered / Besøksregistrert
source	<xs:element name="Code" type="xs:string">   <xs:annotation>     <xs:documentation>Contact status                     For TypeOfCare I:              AK=Active/Aktiv             FB= Treatment Finnished but not discharged / Ferdig behandlet, ikke utskrevet     UT=Discharged/Utskrevet   For TypeOfCare P:             AK=OutPatient Visit Arrival Registered / Ankomstregistrert               UT= OutPatient Visit Finished Registered / Besøksregistrert               </xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgRequest/OnlyMedicalUnitInfo

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Return only information about the contact for the medicalunit stay Only valid when Organization.MedicalUnit.id is used. True= Return only medical unit info for the contact False= Return all care units information for the contacts HIS90: Avd.opphold vs postopphold
source	<xs:element name="OnlyMedicalUnitInfo" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Return only information about the contact for the medicalunit stay Only valid when Organization.MedicalUnit.id is used. True= Return only medical unit info for the contact False= Return all care units information for the contacts HIS90: Avd.opphold vs postopphold</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgRequest/ResponseElements

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	Elements
annotation	documentation Elements (tags) wanted in response.   Default is patietntinfo and requiered elements in Contact.
source	<xs:element name="ResponseElements" minOccurs="0">   <xs:annotation>     <xs:documentation>Elements (tags) wanted in response.   Default is patietntinfo and requiered elements in Contact.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Elements" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="Element" type="ResponseElement">               <xs:annotation>                 <xs:documentation>User/Application defined filtering of tags/elements in response.                            Enumarator:  Patient_Contact_All             Patient_Contact_MedicalUnit Patient_Contact_CareGroup Patient_Contact_Section Patient_Contact_CareUnit Patient_Contact_Placement Patient_Contact_Leave Patient_Contact_CareResponsible Patient_Contact_PatientResponsible Patient_Contact_Confidenatial</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgRequest/ResponseElements/Elements

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  1 maxOcc  unbounded content  complex
children	Element
source	<xs:element name="Elements" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="Element" type="ResponseElement">         <xs:annotation>           <xs:documentation>User/Application defined filtering of tags/elements in response.                            Enumarator:  Patient_Contact_All             Patient_Contact_MedicalUnit Patient_Contact_CareGroup Patient_Contact_Section Patient_Contact_CareUnit Patient_Contact_Placement Patient_Contact_Leave Patient_Contact_CareResponsible Patient_Contact_PatientResponsible Patient_Contact_Confidenatial</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgRequest/ResponseElements/Elements/Element

diagram
namespace	http://healthXML.org/PasLink
type	ResponseElement
properties	content  simple
facets	Kind  Value  Annotation enumeration  Patient_Contact_All enumeration  Patient_Contact_MedicalUnit enumeration  Patient_Contact_CareGroup enumeration  Patient_Contact_Section enumeration  Patient_Contact_CareUnit enumeration  Patient_Contact_Placement enumeration  Patient_Contact_Leave enumeration  Patient_Contact_CareResponsible enumeration  Patient_Contact_PatientResponsible enumeration  Patient_Contact_Confidenatial
annotation	documentation User/Application defined filtering of tags/elements in response.                            Enumarator:  Patient_Contact_All             Patient_Contact_MedicalUnit Patient_Contact_CareGroup Patient_Contact_Section Patient_Contact_CareUnit Patient_Contact_Placement Patient_Contact_Leave Patient_Contact_CareResponsible Patient_Contact_PatientResponsible Patient_Contact_Confidenatial
source	<xs:element name="Element" type="ResponseElement">   <xs:annotation>     <xs:documentation>User/Application defined filtering of tags/elements in response.                            Enumarator:  Patient_Contact_All             Patient_Contact_MedicalUnit Patient_Contact_CareGroup Patient_Contact_Section Patient_Contact_CareUnit Patient_Contact_Placement Patient_Contact_Leave Patient_Contact_CareResponsible Patient_Contact_PatientResponsible Patient_Contact_Confidenatial</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	Patients
annotation	documentation Response from PatientWS.ListPateintsByPOrg. A collection of patients by organization.
source	<xs:element name="ListPatientsByOrgResponse">   <xs:annotation>     <xs:documentation>Response from PatientWS.ListPateintsByPOrg. A collection of patients by organization.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Patients" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="PatientOrg">               <xs:complexType>                 <xs:sequence>                   <xs:element name="Id">                     <xs:complexType>                       <xs:sequence>                         <xs:element name="OfficialId">                           <xs:annotation>                             <xs:documentation>Official id. Can also be an emergency number.</xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:sequence>                               <xs:element name="Value" type="xs:string">                                 <xs:annotation>                                   <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>                                 </xs:annotation>                               </xs:element>                               <xs:element name="TypeOfId" type="xs:string">                                 <xs:annotation>                                   <xs:documentation>F = official id, N = Emergency number, K = Catastrophy number, U = Non human number</xs:documentation>                                 </xs:annotation>                               </xs:element>                               <xs:element name="FormattedId" type="xs:string">                                 <xs:annotation>                                   <xs:documentation>The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.</xs:documentation>                                 </xs:annotation>                               </xs:element>                             </xs:sequence>                           </xs:complexType>                         </xs:element>                         <xs:element name="PatientId" type="xs:int">                           <xs:annotation>                             <xs:documentation>Internal patient id for the HIS</xs:documentation>                           </xs:annotation>                         </xs:element>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="Name">                     <xs:complexType>                       <xs:sequence>                         <xs:element name="FormattedName" type="xs:string">                           <xs:annotation>                             <xs:documentation>The person's names formatted in one string according to national rules.</xs:documentation>                           </xs:annotation>                         </xs:element>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="PersonalInformation" minOccurs="0">                     <xs:complexType>                       <xs:sequence>                         <xs:element name="BirthDate" type="xs:date" minOccurs="0"/>                         <xs:element name="PersonNumber" type="xs:int" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Norwegian use only. 5 last numbers of the persons official id</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="BirthCentury" type="xs:int" minOccurs="0"/>                         <xs:element name="Sex" type="CodeOfficialCodeTextTypePatientWS" minOccurs="0">                           <xs:annotation>                             <xs:documentation>M = male, K = female</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="Dead" minOccurs="0">                           <xs:complexType>                             <xs:sequence>                               <xs:element name="DeathDate" type="xs:dateTime"/>                             </xs:sequence>                           </xs:complexType>                         </xs:element>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="Contact">                     <xs:complexType>                       <xs:sequence>                         <xs:element name="ContactId" type="xs:string">                           <xs:annotation>                             <xs:documentation>Internal id</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="From" type="xs:dateTime">                           <xs:annotation>                             <xs:documentation>Contact Start date/time</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="To" type="xs:dateTime" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Contact End date/time if exists</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="TypeOfCare">                           <xs:annotation>                             <xs:documentation>TypeOfCare:             I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk  D= In hospital only at daytime                                                                      HIS90: For HIS90 TypeOfCare D is not used ast this level. Only I and P is used, and D is av subset for I and P      </xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:complexContent>                               <xs:extension base="CodeTextTypePatientWS">                                 <xs:sequence>                                   <xs:element name="Category" type="CodeTextTypePatientWS" minOccurs="0">                                     <xs:annotation>                                       <xs:documentation>Used for giving more details about type of care. HIS90 only: If TypeOfCare = I valid subtypes are D (Dagpasient) E (opphold uten for avdeling) H (Heldøgn) L (Ledsager) N (Nyfødt) P (Pasienthotell) S (Sykehotell) If TypeOfCare = P valid subtype is D (Dagpasient)                                         </xs:documentation>                                     </xs:annotation>                                   </xs:element>                                 </xs:sequence>                               </xs:extension>                             </xs:complexContent>                           </xs:complexType>                         </xs:element>                         <xs:element name="Status">                           <xs:annotation>                             <xs:documentation>Contact status                     For TypeOfCare I:              AK=Active/Aktiv             FB= Treatment Finnished but not discharged / Ferdig behandlet, ikke utskrevet     UT=Discharged/Utskrevet   For TypeOfCare P:             AK=OutPatient Visit Arrival Registered / Ankomstregistrert               UT= OutPatient Visit Finished Registered / Besøksregistrert                 </xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:complexContent>                               <xs:extension base="CodeTextTypePatientWS">                                 <xs:sequence>                                   <xs:element name="TimeStatus" minOccurs="0">                                     <xs:complexType>                                       <xs:complexContent>                                         <xs:extension base="CodeTextTypePatientWS">                                           <xs:sequence>                                             <xs:element name="TimeEventDate" type="xs:dateTime"/>                                           </xs:sequence>                                         </xs:extension>                                       </xs:complexContent>                                     </xs:complexType>                                   </xs:element>                                 </xs:sequence>                               </xs:extension>                             </xs:complexContent>                           </xs:complexType>                         </xs:element>                         <xs:element name="CareUnit" type="OrganizationTypePatientWS" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Organization unit where the care is taking place              HIS90: Enhet/Post</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="MedicalUnit" type="OrganizationTypePatientWS" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Department/Medical Speciality</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="Section" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Section is a group/collection of CareUnits within one department/medical unit.</xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:sequence>                               <xs:element name="Code" type="xs:string"/>                               <xs:element name="Text" type="xs:string" minOccurs="0"/>                             </xs:sequence>                           </xs:complexType>                         </xs:element>                         <xs:element name="CareGroup" type="OrganizationTypePatientWS" minOccurs="0">                           <xs:annotation>                             <xs:documentation>HIS90 Only:                Units from different departments grouped together</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="Placement" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Where the care takes place, i.e. Roomnumber, bednumber</xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:sequence>                               <xs:element name="PermanentRoom" type="xs:string" minOccurs="0">                                 <xs:annotation>                                   <xs:documentation>Permanent placement at the care unit</xs:documentation>                                 </xs:annotation>                               </xs:element>                               <xs:element name="TemporaryRoom" type="xs:string" minOccurs="0">                                 <xs:annotation>                                   <xs:documentation>Temporary placement. May be used to show that the patient has an activity on another unit.                  HIS90: TechnicalBed</xs:documentation>                                 </xs:annotation>                               </xs:element>                               <xs:element name="TemporaryUnit" type="OrganizationTypePatientWS" minOccurs="0"/>                             </xs:sequence>                           </xs:complexType>                         </xs:element>                         <xs:element name="Leave" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Info about leave, date/time.  Only included for active  inpatients. If patient is back from leave the Leave element is omitted/blank from response.</xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:sequence>                               <xs:element name="From" type="xs:dateTime"/>                               <xs:element name="To" type="xs:boolean" minOccurs="0"/>                             </xs:sequence>                           </xs:complexType>                         </xs:element>                         <xs:element name="CareResponsibleName" type="xs:string" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Person responsible for treatement of the patient      HIS90: Ikke i bruk</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="PatientResponsibleName" type="xs:string" minOccurs="0">                           <xs:annotation>                             <xs:documentation>The resource (i.e. the chief physician) responsible for the patient.                                        HIS90: RepsonibleTreater</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="Confidential" type="CodeTextTypePatientWS" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Infomation about confidentiallyty or reservation to display/give out the information about a patient. Text contains information about the resrvation.                                                                   HIS90: Code is from 0 to 3. Where 3 is most confidential. </xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="FreeText" minOccurs="0" maxOccurs="unbounded">                           <xs:annotation>                             <xs:documentation>Free text  HIS90: From Stay</xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:sequence>                               <xs:element name="Text" type="xs:string">                                 <xs:annotation>                                   <xs:documentation>The Text</xs:documentation>                                 </xs:annotation>                               </xs:element>                               <xs:element name="TypeOfText" type="xs:string" minOccurs="0">                                 <xs:annotation>                                   <xs:documentation>Coded description of the text type. For valid codes see documentation.</xs:documentation>                                 </xs:annotation>                               </xs:element>                             </xs:sequence>                           </xs:complexType>                         </xs:element>                         <xs:element name="InDiagnosis" minOccurs="0">                           <xs:annotation>                             <xs:documentation>In diagnosis, ca be from referral and/or waiting lists HIS90: From Stay</xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:sequence>                               <xs:element name="Id" type="xs:string" minOccurs="0"/>                               <xs:element name="Code" type="xs:string">                                 <xs:annotation>                                   <xs:documentation>HIS90: PaqCape.Diagnosis_Code</xs:documentation>                                 </xs:annotation>                               </xs:element>                               <xs:element name="Text" type="xs:string" minOccurs="0"/>                               <xs:element name="MedRegister">                                 <xs:annotation>                                   <xs:documentation>Medical register, i.e. ICD10</xs:documentation>                                 </xs:annotation>                                 <xs:complexType>                                   <xs:sequence>                                     <xs:element name="Id" type="xs:string">                                       <xs:annotation>                                         <xs:documentation>HIS90: PaqCape.ICD</xs:documentation>                                       </xs:annotation>                                     </xs:element>                                     <xs:element name="Code" type="xs:string" minOccurs="0"/>                                     <xs:element name="Text" type="xs:string">                                       <xs:annotation>                                         <xs:documentation>HIS90: PAQREGI og PaqCape.ICD</xs:documentation>                                       </xs:annotation>                                     </xs:element>                                   </xs:sequence>                                 </xs:complexType>                               </xs:element>                             </xs:sequence>                           </xs:complexType>                         </xs:element>                         <xs:element name="RequestFrom" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Shows who requested the referral/application/service</xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:complexContent>                               <xs:extension base="RequesterType"/>                             </xs:complexContent>                           </xs:complexType>                         </xs:element>                         <xs:element name="Admisssion" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Addmission from</xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:sequence>                               <xs:element name="AdmissionType" type="CodeTextTypePatientWS" minOccurs="0"/>                               <xs:element name="AdmittedFrom" type="CodeTextTypePatientWS" minOccurs="0"/>                               <xs:element name="AdmittedFromUnit" type="OrganizationUnitType" minOccurs="0"/>                             </xs:sequence>                           </xs:complexType>                         </xs:element>                         <xs:element name="Discharge" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Discharge to</xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:sequence>                               <xs:element name="DischargeType" type="CodeTextTypePatientWS" minOccurs="0"/>                               <xs:element name="DischargedTo" type="CodeTextTypePatientWS" minOccurs="0"/>                               <xs:element name="DischargedToUnit" type="OrganizationUnitType" minOccurs="0"/>                             </xs:sequence>                           </xs:complexType>                         </xs:element>                         <xs:element name="WaitingList" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Information from the waitinglist</xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:sequence>                               <xs:element name="ActiveWaitingListOnUnit" minOccurs="0">                                 <xs:annotation>                                   <xs:documentation>Information if there are active waiting lists found on the same unit as the contact</xs:documentation>                                 </xs:annotation>                                 <xs:complexType>                                   <xs:sequence>                                     <xs:element name="ActiveWaitingListsFound" type="xs:boolean" minOccurs="0">                                       <xs:annotation>                                         <xs:documentation>True/false flag for setting if active waiting lists are found for patient on the selected unit</xs:documentation>                                       </xs:annotation>                                     </xs:element>                                     <xs:element name="ActiveWaitingListId" type="xs:string" minOccurs="0">                                       <xs:annotation>                                         <xs:documentation>Waitinglist Id for the first active waiting list found. HIS90; WaitingListId (CombinedId)</xs:documentation>                                       </xs:annotation>                                     </xs:element>                                   </xs:sequence>                                 </xs:complexType>                               </xs:element>                             </xs:sequence>                           </xs:complexType>                         </xs:element>                         <xs:element name="Decisions" type="DecisionTypeForList" minOccurs="0" maxOccurs="unbounded"/>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  unbounded content  complex
children	PatientOrg
source	<xs:element name="Patients" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="PatientOrg">         <xs:complexType>           <xs:sequence>             <xs:element name="Id">               <xs:complexType>                 <xs:sequence>                   <xs:element name="OfficialId">                     <xs:annotation>                       <xs:documentation>Official id. Can also be an emergency number.</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="Value" type="xs:string">                           <xs:annotation>                             <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="TypeOfId" type="xs:string">                           <xs:annotation>                             <xs:documentation>F = official id, N = Emergency number, K = Catastrophy number, U = Non human number</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="FormattedId" type="xs:string">                           <xs:annotation>                             <xs:documentation>The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.</xs:documentation>                           </xs:annotation>                         </xs:element>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="PatientId" type="xs:int">                     <xs:annotation>                       <xs:documentation>Internal patient id for the HIS</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="Name">               <xs:complexType>                 <xs:sequence>                   <xs:element name="FormattedName" type="xs:string">                     <xs:annotation>                       <xs:documentation>The person's names formatted in one string according to national rules.</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="PersonalInformation" minOccurs="0">               <xs:complexType>                 <xs:sequence>                   <xs:element name="BirthDate" type="xs:date" minOccurs="0"/>                   <xs:element name="PersonNumber" type="xs:int" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Norwegian use only. 5 last numbers of the persons official id</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="BirthCentury" type="xs:int" minOccurs="0"/>                   <xs:element name="Sex" type="CodeOfficialCodeTextTypePatientWS" minOccurs="0">                     <xs:annotation>                       <xs:documentation>M = male, K = female</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="Dead" minOccurs="0">                     <xs:complexType>                       <xs:sequence>                         <xs:element name="DeathDate" type="xs:dateTime"/>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="Contact">               <xs:complexType>                 <xs:sequence>                   <xs:element name="ContactId" type="xs:string">                     <xs:annotation>                       <xs:documentation>Internal id</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="From" type="xs:dateTime">                     <xs:annotation>                       <xs:documentation>Contact Start date/time</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="To" type="xs:dateTime" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Contact End date/time if exists</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="TypeOfCare">                     <xs:annotation>                       <xs:documentation>TypeOfCare:             I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk  D= In hospital only at daytime                                                                      HIS90: For HIS90 TypeOfCare D is not used ast this level. Only I and P is used, and D is av subset for I and P      </xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:complexContent>                         <xs:extension base="CodeTextTypePatientWS">                           <xs:sequence>                             <xs:element name="Category" type="CodeTextTypePatientWS" minOccurs="0">                               <xs:annotation>                                 <xs:documentation>Used for giving more details about type of care. HIS90 only: If TypeOfCare = I valid subtypes are D (Dagpasient) E (opphold uten for avdeling) H (Heldøgn) L (Ledsager) N (Nyfødt) P (Pasienthotell) S (Sykehotell) If TypeOfCare = P valid subtype is D (Dagpasient)                                         </xs:documentation>                               </xs:annotation>                             </xs:element>                           </xs:sequence>                         </xs:extension>                       </xs:complexContent>                     </xs:complexType>                   </xs:element>                   <xs:element name="Status">                     <xs:annotation>                       <xs:documentation>Contact status                     For TypeOfCare I:              AK=Active/Aktiv             FB= Treatment Finnished but not discharged / Ferdig behandlet, ikke utskrevet     UT=Discharged/Utskrevet   For TypeOfCare P:             AK=OutPatient Visit Arrival Registered / Ankomstregistrert               UT= OutPatient Visit Finished Registered / Besøksregistrert                 </xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:complexContent>                         <xs:extension base="CodeTextTypePatientWS">                           <xs:sequence>                             <xs:element name="TimeStatus" minOccurs="0">                               <xs:complexType>                                 <xs:complexContent>                                   <xs:extension base="CodeTextTypePatientWS">                                     <xs:sequence>                                       <xs:element name="TimeEventDate" type="xs:dateTime"/>                                     </xs:sequence>                                   </xs:extension>                                 </xs:complexContent>                               </xs:complexType>                             </xs:element>                           </xs:sequence>                         </xs:extension>                       </xs:complexContent>                     </xs:complexType>                   </xs:element>                   <xs:element name="CareUnit" type="OrganizationTypePatientWS" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Organization unit where the care is taking place              HIS90: Enhet/Post</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="MedicalUnit" type="OrganizationTypePatientWS" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Department/Medical Speciality</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="Section" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Section is a group/collection of CareUnits within one department/medical unit.</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="Code" type="xs:string"/>                         <xs:element name="Text" type="xs:string" minOccurs="0"/>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="CareGroup" type="OrganizationTypePatientWS" minOccurs="0">                     <xs:annotation>                       <xs:documentation>HIS90 Only:                Units from different departments grouped together</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="Placement" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Where the care takes place, i.e. Roomnumber, bednumber</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="PermanentRoom" type="xs:string" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Permanent placement at the care unit</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="TemporaryRoom" type="xs:string" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Temporary placement. May be used to show that the patient has an activity on another unit.                  HIS90: TechnicalBed</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="TemporaryUnit" type="OrganizationTypePatientWS" minOccurs="0"/>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="Leave" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Info about leave, date/time.  Only included for active  inpatients. If patient is back from leave the Leave element is omitted/blank from response.</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="From" type="xs:dateTime"/>                         <xs:element name="To" type="xs:boolean" minOccurs="0"/>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="CareResponsibleName" type="xs:string" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Person responsible for treatement of the patient      HIS90: Ikke i bruk</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="PatientResponsibleName" type="xs:string" minOccurs="0">                     <xs:annotation>                       <xs:documentation>The resource (i.e. the chief physician) responsible for the patient.                                        HIS90: RepsonibleTreater</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="Confidential" type="CodeTextTypePatientWS" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Infomation about confidentiallyty or reservation to display/give out the information about a patient. Text contains information about the resrvation.                                                                   HIS90: Code is from 0 to 3. Where 3 is most confidential. </xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="FreeText" minOccurs="0" maxOccurs="unbounded">                     <xs:annotation>                       <xs:documentation>Free text  HIS90: From Stay</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="Text" type="xs:string">                           <xs:annotation>                             <xs:documentation>The Text</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="TypeOfText" type="xs:string" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Coded description of the text type. For valid codes see documentation.</xs:documentation>                           </xs:annotation>                         </xs:element>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="InDiagnosis" minOccurs="0">                     <xs:annotation>                       <xs:documentation>In diagnosis, ca be from referral and/or waiting lists HIS90: From Stay</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="Id" type="xs:string" minOccurs="0"/>                         <xs:element name="Code" type="xs:string">                           <xs:annotation>                             <xs:documentation>HIS90: PaqCape.Diagnosis_Code</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="Text" type="xs:string" minOccurs="0"/>                         <xs:element name="MedRegister">                           <xs:annotation>                             <xs:documentation>Medical register, i.e. ICD10</xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:sequence>                               <xs:element name="Id" type="xs:string">                                 <xs:annotation>                                   <xs:documentation>HIS90: PaqCape.ICD</xs:documentation>                                 </xs:annotation>                               </xs:element>                               <xs:element name="Code" type="xs:string" minOccurs="0"/>                               <xs:element name="Text" type="xs:string">                                 <xs:annotation>                                   <xs:documentation>HIS90: PAQREGI og PaqCape.ICD</xs:documentation>                                 </xs:annotation>                               </xs:element>                             </xs:sequence>                           </xs:complexType>                         </xs:element>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="RequestFrom" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Shows who requested the referral/application/service</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:complexContent>                         <xs:extension base="RequesterType"/>                       </xs:complexContent>                     </xs:complexType>                   </xs:element>                   <xs:element name="Admisssion" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Addmission from</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="AdmissionType" type="CodeTextTypePatientWS" minOccurs="0"/>                         <xs:element name="AdmittedFrom" type="CodeTextTypePatientWS" minOccurs="0"/>                         <xs:element name="AdmittedFromUnit" type="OrganizationUnitType" minOccurs="0"/>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="Discharge" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Discharge to</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="DischargeType" type="CodeTextTypePatientWS" minOccurs="0"/>                         <xs:element name="DischargedTo" type="CodeTextTypePatientWS" minOccurs="0"/>                         <xs:element name="DischargedToUnit" type="OrganizationUnitType" minOccurs="0"/>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="WaitingList" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Information from the waitinglist</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="ActiveWaitingListOnUnit" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Information if there are active waiting lists found on the same unit as the contact</xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:sequence>                               <xs:element name="ActiveWaitingListsFound" type="xs:boolean" minOccurs="0">                                 <xs:annotation>                                   <xs:documentation>True/false flag for setting if active waiting lists are found for patient on the selected unit</xs:documentation>                                 </xs:annotation>                               </xs:element>                               <xs:element name="ActiveWaitingListId" type="xs:string" minOccurs="0">                                 <xs:annotation>                                   <xs:documentation>Waitinglist Id for the first active waiting list found. HIS90; WaitingListId (CombinedId)</xs:documentation>                                 </xs:annotation>                               </xs:element>                             </xs:sequence>                           </xs:complexType>                         </xs:element>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="Decisions" type="DecisionTypeForList" minOccurs="0" maxOccurs="unbounded"/>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	Id Name PersonalInformation Contact
source	<xs:element name="PatientOrg">   <xs:complexType>     <xs:sequence>       <xs:element name="Id">         <xs:complexType>           <xs:sequence>             <xs:element name="OfficialId">               <xs:annotation>                 <xs:documentation>Official id. Can also be an emergency number.</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Value" type="xs:string">                     <xs:annotation>                       <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="TypeOfId" type="xs:string">                     <xs:annotation>                       <xs:documentation>F = official id, N = Emergency number, K = Catastrophy number, U = Non human number</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="FormattedId" type="xs:string">                     <xs:annotation>                       <xs:documentation>The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="PatientId" type="xs:int">               <xs:annotation>                 <xs:documentation>Internal patient id for the HIS</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Name">         <xs:complexType>           <xs:sequence>             <xs:element name="FormattedName" type="xs:string">               <xs:annotation>                 <xs:documentation>The person's names formatted in one string according to national rules.</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="PersonalInformation" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="BirthDate" type="xs:date" minOccurs="0"/>             <xs:element name="PersonNumber" type="xs:int" minOccurs="0">               <xs:annotation>                 <xs:documentation>Norwegian use only. 5 last numbers of the persons official id</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="BirthCentury" type="xs:int" minOccurs="0"/>             <xs:element name="Sex" type="CodeOfficialCodeTextTypePatientWS" minOccurs="0">               <xs:annotation>                 <xs:documentation>M = male, K = female</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Dead" minOccurs="0">               <xs:complexType>                 <xs:sequence>                   <xs:element name="DeathDate" type="xs:dateTime"/>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Contact">         <xs:complexType>           <xs:sequence>             <xs:element name="ContactId" type="xs:string">               <xs:annotation>                 <xs:documentation>Internal id</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="From" type="xs:dateTime">               <xs:annotation>                 <xs:documentation>Contact Start date/time</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="To" type="xs:dateTime" minOccurs="0">               <xs:annotation>                 <xs:documentation>Contact End date/time if exists</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="TypeOfCare">               <xs:annotation>                 <xs:documentation>TypeOfCare:             I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk  D= In hospital only at daytime                                                                      HIS90: For HIS90 TypeOfCare D is not used ast this level. Only I and P is used, and D is av subset for I and P      </xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:complexContent>                   <xs:extension base="CodeTextTypePatientWS">                     <xs:sequence>                       <xs:element name="Category" type="CodeTextTypePatientWS" minOccurs="0">                         <xs:annotation>                           <xs:documentation>Used for giving more details about type of care. HIS90 only: If TypeOfCare = I valid subtypes are D (Dagpasient) E (opphold uten for avdeling) H (Heldøgn) L (Ledsager) N (Nyfødt) P (Pasienthotell) S (Sykehotell) If TypeOfCare = P valid subtype is D (Dagpasient)                                         </xs:documentation>                         </xs:annotation>                       </xs:element>                     </xs:sequence>                   </xs:extension>                 </xs:complexContent>               </xs:complexType>             </xs:element>             <xs:element name="Status">               <xs:annotation>                 <xs:documentation>Contact status                     For TypeOfCare I:              AK=Active/Aktiv             FB= Treatment Finnished but not discharged / Ferdig behandlet, ikke utskrevet     UT=Discharged/Utskrevet   For TypeOfCare P:             AK=OutPatient Visit Arrival Registered / Ankomstregistrert               UT= OutPatient Visit Finished Registered / Besøksregistrert                 </xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:complexContent>                   <xs:extension base="CodeTextTypePatientWS">                     <xs:sequence>                       <xs:element name="TimeStatus" minOccurs="0">                         <xs:complexType>                           <xs:complexContent>                             <xs:extension base="CodeTextTypePatientWS">                               <xs:sequence>                                 <xs:element name="TimeEventDate" type="xs:dateTime"/>                               </xs:sequence>                             </xs:extension>                           </xs:complexContent>                         </xs:complexType>                       </xs:element>                     </xs:sequence>                   </xs:extension>                 </xs:complexContent>               </xs:complexType>             </xs:element>             <xs:element name="CareUnit" type="OrganizationTypePatientWS" minOccurs="0">               <xs:annotation>                 <xs:documentation>Organization unit where the care is taking place              HIS90: Enhet/Post</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="MedicalUnit" type="OrganizationTypePatientWS" minOccurs="0">               <xs:annotation>                 <xs:documentation>Department/Medical Speciality</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Section" minOccurs="0">               <xs:annotation>                 <xs:documentation>Section is a group/collection of CareUnits within one department/medical unit.</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Code" type="xs:string"/>                   <xs:element name="Text" type="xs:string" minOccurs="0"/>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="CareGroup" type="OrganizationTypePatientWS" minOccurs="0">               <xs:annotation>                 <xs:documentation>HIS90 Only:                Units from different departments grouped together</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Placement" minOccurs="0">               <xs:annotation>                 <xs:documentation>Where the care takes place, i.e. Roomnumber, bednumber</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="PermanentRoom" type="xs:string" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Permanent placement at the care unit</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="TemporaryRoom" type="xs:string" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Temporary placement. May be used to show that the patient has an activity on another unit.                  HIS90: TechnicalBed</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="TemporaryUnit" type="OrganizationTypePatientWS" minOccurs="0"/>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="Leave" minOccurs="0">               <xs:annotation>                 <xs:documentation>Info about leave, date/time.  Only included for active  inpatients. If patient is back from leave the Leave element is omitted/blank from response.</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="From" type="xs:dateTime"/>                   <xs:element name="To" type="xs:boolean" minOccurs="0"/>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="CareResponsibleName" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>Person responsible for treatement of the patient      HIS90: Ikke i bruk</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="PatientResponsibleName" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>The resource (i.e. the chief physician) responsible for the patient.                                        HIS90: RepsonibleTreater</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Confidential" type="CodeTextTypePatientWS" minOccurs="0">               <xs:annotation>                 <xs:documentation>Infomation about confidentiallyty or reservation to display/give out the information about a patient. Text contains information about the resrvation.                                                                   HIS90: Code is from 0 to 3. Where 3 is most confidential. </xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="FreeText" minOccurs="0" maxOccurs="unbounded">               <xs:annotation>                 <xs:documentation>Free text  HIS90: From Stay</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Text" type="xs:string">                     <xs:annotation>                       <xs:documentation>The Text</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="TypeOfText" type="xs:string" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Coded description of the text type. For valid codes see documentation.</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="InDiagnosis" minOccurs="0">               <xs:annotation>                 <xs:documentation>In diagnosis, ca be from referral and/or waiting lists HIS90: From Stay</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Id" type="xs:string" minOccurs="0"/>                   <xs:element name="Code" type="xs:string">                     <xs:annotation>                       <xs:documentation>HIS90: PaqCape.Diagnosis_Code</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="Text" type="xs:string" minOccurs="0"/>                   <xs:element name="MedRegister">                     <xs:annotation>                       <xs:documentation>Medical register, i.e. ICD10</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="Id" type="xs:string">                           <xs:annotation>                             <xs:documentation>HIS90: PaqCape.ICD</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="Code" type="xs:string" minOccurs="0"/>                         <xs:element name="Text" type="xs:string">                           <xs:annotation>                             <xs:documentation>HIS90: PAQREGI og PaqCape.ICD</xs:documentation>                           </xs:annotation>                         </xs:element>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="RequestFrom" minOccurs="0">               <xs:annotation>                 <xs:documentation>Shows who requested the referral/application/service</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:complexContent>                   <xs:extension base="RequesterType"/>                 </xs:complexContent>               </xs:complexType>             </xs:element>             <xs:element name="Admisssion" minOccurs="0">               <xs:annotation>                 <xs:documentation>Addmission from</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="AdmissionType" type="CodeTextTypePatientWS" minOccurs="0"/>                   <xs:element name="AdmittedFrom" type="CodeTextTypePatientWS" minOccurs="0"/>                   <xs:element name="AdmittedFromUnit" type="OrganizationUnitType" minOccurs="0"/>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="Discharge" minOccurs="0">               <xs:annotation>                 <xs:documentation>Discharge to</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="DischargeType" type="CodeTextTypePatientWS" minOccurs="0"/>                   <xs:element name="DischargedTo" type="CodeTextTypePatientWS" minOccurs="0"/>                   <xs:element name="DischargedToUnit" type="OrganizationUnitType" minOccurs="0"/>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="WaitingList" minOccurs="0">               <xs:annotation>                 <xs:documentation>Information from the waitinglist</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="ActiveWaitingListOnUnit" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Information if there are active waiting lists found on the same unit as the contact</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="ActiveWaitingListsFound" type="xs:boolean" minOccurs="0">                           <xs:annotation>                             <xs:documentation>True/false flag for setting if active waiting lists are found for patient on the selected unit</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="ActiveWaitingListId" type="xs:string" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Waitinglist Id for the first active waiting list found. HIS90; WaitingListId (CombinedId)</xs:documentation>                           </xs:annotation>                         </xs:element>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="Decisions" type="DecisionTypeForList" minOccurs="0" maxOccurs="unbounded"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Id

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	OfficialId PatientId
source	<xs:element name="Id">   <xs:complexType>     <xs:sequence>       <xs:element name="OfficialId">         <xs:annotation>           <xs:documentation>Official id. Can also be an emergency number.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Value" type="xs:string">               <xs:annotation>                 <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="TypeOfId" type="xs:string">               <xs:annotation>                 <xs:documentation>F = official id, N = Emergency number, K = Catastrophy number, U = Non human number</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="FormattedId" type="xs:string">               <xs:annotation>                 <xs:documentation>The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="PatientId" type="xs:int">         <xs:annotation>           <xs:documentation>Internal patient id for the HIS</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Id/OfficialId

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	Value TypeOfId FormattedId
annotation	documentation Official id. Can also be an emergency number.
source	<xs:element name="OfficialId">   <xs:annotation>     <xs:documentation>Official id. Can also be an emergency number.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Value" type="xs:string">         <xs:annotation>           <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfId" type="xs:string">         <xs:annotation>           <xs:documentation>F = official id, N = Emergency number, K = Catastrophy number, U = Non human number</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="FormattedId" type="xs:string">         <xs:annotation>           <xs:documentation>The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Id/OfficialId/Value

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.
source	<xs:element name="Value" type="xs:string">   <xs:annotation>     <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Id/OfficialId/TypeOfId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation F = official id, N = Emergency number, K = Catastrophy number, U = Non human number
source	<xs:element name="TypeOfId" type="xs:string">   <xs:annotation>     <xs:documentation>F = official id, N = Emergency number, K = Catastrophy number, U = Non human number</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Id/OfficialId/FormattedId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.
source	<xs:element name="FormattedId" type="xs:string">   <xs:annotation>     <xs:documentation>The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Id/PatientId

diagram
namespace	http://healthXML.org/PasLink
type	xs:int
properties	content  simple
annotation	documentation Internal patient id for the HIS
source	<xs:element name="PatientId" type="xs:int">   <xs:annotation>     <xs:documentation>Internal patient id for the HIS</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Name

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	FormattedName
source	<xs:element name="Name">   <xs:complexType>     <xs:sequence>       <xs:element name="FormattedName" type="xs:string">         <xs:annotation>           <xs:documentation>The person's names formatted in one string according to national rules.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Name/FormattedName

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation The person's names formatted in one string according to national rules.
source	<xs:element name="FormattedName" type="xs:string">   <xs:annotation>     <xs:documentation>The person's names formatted in one string according to national rules.</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/PersonalInformation

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	BirthDate PersonNumber BirthCentury Sex Dead
source	<xs:element name="PersonalInformation" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="BirthDate" type="xs:date" minOccurs="0"/>       <xs:element name="PersonNumber" type="xs:int" minOccurs="0">         <xs:annotation>           <xs:documentation>Norwegian use only. 5 last numbers of the persons official id</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="BirthCentury" type="xs:int" minOccurs="0"/>       <xs:element name="Sex" type="CodeOfficialCodeTextTypePatientWS" minOccurs="0">         <xs:annotation>           <xs:documentation>M = male, K = female</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Dead" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="DeathDate" type="xs:dateTime"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/PersonalInformation/BirthDate

diagram
namespace	http://healthXML.org/PasLink
type	xs:date
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="BirthDate" type="xs:date" minOccurs="0"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/PersonalInformation/PersonNumber

diagram
namespace	http://healthXML.org/PasLink
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Norwegian use only. 5 last numbers of the persons official id
source	<xs:element name="PersonNumber" type="xs:int" minOccurs="0">   <xs:annotation>     <xs:documentation>Norwegian use only. 5 last numbers of the persons official id</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/PersonalInformation/BirthCentury

diagram
namespace	http://healthXML.org/PasLink
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="BirthCentury" type="xs:int" minOccurs="0"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/PersonalInformation/Sex

diagram
namespace	http://healthXML.org/PasLink
type	CodeOfficialCodeTextTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code OfficialCode Text
annotation	documentation M = male, K = female
source	<xs:element name="Sex" type="CodeOfficialCodeTextTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>M = male, K = female</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/PersonalInformation/Dead

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	DeathDate
source	<xs:element name="Dead" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="DeathDate" type="xs:dateTime"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/PersonalInformation/Dead/DeathDate

diagram
namespace	http://healthXML.org/PasLink
type	xs:dateTime
properties	content  simple
source	<xs:element name="DeathDate" type="xs:dateTime"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	ContactId From To TypeOfCare Status CareUnit MedicalUnit Section CareGroup Placement Leave CareResponsibleName PatientResponsibleName Confidential FreeText InDiagnosis RequestFrom Admisssion Discharge WaitingList Decisions
source	<xs:element name="Contact">   <xs:complexType>     <xs:sequence>       <xs:element name="ContactId" type="xs:string">         <xs:annotation>           <xs:documentation>Internal id</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="From" type="xs:dateTime">         <xs:annotation>           <xs:documentation>Contact Start date/time</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="To" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>Contact End date/time if exists</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfCare">         <xs:annotation>           <xs:documentation>TypeOfCare:             I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk  D= In hospital only at daytime                                                                      HIS90: For HIS90 TypeOfCare D is not used ast this level. Only I and P is used, and D is av subset for I and P      </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:complexContent>             <xs:extension base="CodeTextTypePatientWS">               <xs:sequence>                 <xs:element name="Category" type="CodeTextTypePatientWS" minOccurs="0">                   <xs:annotation>                     <xs:documentation>Used for giving more details about type of care. HIS90 only: If TypeOfCare = I valid subtypes are D (Dagpasient) E (opphold uten for avdeling) H (Heldøgn) L (Ledsager) N (Nyfødt) P (Pasienthotell) S (Sykehotell) If TypeOfCare = P valid subtype is D (Dagpasient)                                         </xs:documentation>                   </xs:annotation>                 </xs:element>               </xs:sequence>             </xs:extension>           </xs:complexContent>         </xs:complexType>       </xs:element>       <xs:element name="Status">         <xs:annotation>           <xs:documentation>Contact status                     For TypeOfCare I:              AK=Active/Aktiv             FB= Treatment Finnished but not discharged / Ferdig behandlet, ikke utskrevet     UT=Discharged/Utskrevet   For TypeOfCare P:             AK=OutPatient Visit Arrival Registered / Ankomstregistrert               UT= OutPatient Visit Finished Registered / Besøksregistrert                 </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:complexContent>             <xs:extension base="CodeTextTypePatientWS">               <xs:sequence>                 <xs:element name="TimeStatus" minOccurs="0">                   <xs:complexType>                     <xs:complexContent>                       <xs:extension base="CodeTextTypePatientWS">                         <xs:sequence>                           <xs:element name="TimeEventDate" type="xs:dateTime"/>                         </xs:sequence>                       </xs:extension>                     </xs:complexContent>                   </xs:complexType>                 </xs:element>               </xs:sequence>             </xs:extension>           </xs:complexContent>         </xs:complexType>       </xs:element>       <xs:element name="CareUnit" type="OrganizationTypePatientWS" minOccurs="0">         <xs:annotation>           <xs:documentation>Organization unit where the care is taking place              HIS90: Enhet/Post</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="MedicalUnit" type="OrganizationTypePatientWS" minOccurs="0">         <xs:annotation>           <xs:documentation>Department/Medical Speciality</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Section" minOccurs="0">         <xs:annotation>           <xs:documentation>Section is a group/collection of CareUnits within one department/medical unit.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Code" type="xs:string"/>             <xs:element name="Text" type="xs:string" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="CareGroup" type="OrganizationTypePatientWS" minOccurs="0">         <xs:annotation>           <xs:documentation>HIS90 Only:                Units from different departments grouped together</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Placement" minOccurs="0">         <xs:annotation>           <xs:documentation>Where the care takes place, i.e. Roomnumber, bednumber</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="PermanentRoom" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>Permanent placement at the care unit</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="TemporaryRoom" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>Temporary placement. May be used to show that the patient has an activity on another unit.                  HIS90: TechnicalBed</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="TemporaryUnit" type="OrganizationTypePatientWS" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Leave" minOccurs="0">         <xs:annotation>           <xs:documentation>Info about leave, date/time.  Only included for active  inpatients. If patient is back from leave the Leave element is omitted/blank from response.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="From" type="xs:dateTime"/>             <xs:element name="To" type="xs:boolean" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="CareResponsibleName" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Person responsible for treatement of the patient      HIS90: Ikke i bruk</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="PatientResponsibleName" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>The resource (i.e. the chief physician) responsible for the patient.                                        HIS90: RepsonibleTreater</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Confidential" type="CodeTextTypePatientWS" minOccurs="0">         <xs:annotation>           <xs:documentation>Infomation about confidentiallyty or reservation to display/give out the information about a patient. Text contains information about the resrvation.                                                                   HIS90: Code is from 0 to 3. Where 3 is most confidential. </xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="FreeText" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Free text  HIS90: From Stay</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Text" type="xs:string">               <xs:annotation>                 <xs:documentation>The Text</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="TypeOfText" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>Coded description of the text type. For valid codes see documentation.</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="InDiagnosis" minOccurs="0">         <xs:annotation>           <xs:documentation>In diagnosis, ca be from referral and/or waiting lists HIS90: From Stay</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string" minOccurs="0"/>             <xs:element name="Code" type="xs:string">               <xs:annotation>                 <xs:documentation>HIS90: PaqCape.Diagnosis_Code</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Text" type="xs:string" minOccurs="0"/>             <xs:element name="MedRegister">               <xs:annotation>                 <xs:documentation>Medical register, i.e. ICD10</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Id" type="xs:string">                     <xs:annotation>                       <xs:documentation>HIS90: PaqCape.ICD</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="Code" type="xs:string" minOccurs="0"/>                   <xs:element name="Text" type="xs:string">                     <xs:annotation>                       <xs:documentation>HIS90: PAQREGI og PaqCape.ICD</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="RequestFrom" minOccurs="0">         <xs:annotation>           <xs:documentation>Shows who requested the referral/application/service</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:complexContent>             <xs:extension base="RequesterType"/>           </xs:complexContent>         </xs:complexType>       </xs:element>       <xs:element name="Admisssion" minOccurs="0">         <xs:annotation>           <xs:documentation>Addmission from</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="AdmissionType" type="CodeTextTypePatientWS" minOccurs="0"/>             <xs:element name="AdmittedFrom" type="CodeTextTypePatientWS" minOccurs="0"/>             <xs:element name="AdmittedFromUnit" type="OrganizationUnitType" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Discharge" minOccurs="0">         <xs:annotation>           <xs:documentation>Discharge to</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="DischargeType" type="CodeTextTypePatientWS" minOccurs="0"/>             <xs:element name="DischargedTo" type="CodeTextTypePatientWS" minOccurs="0"/>             <xs:element name="DischargedToUnit" type="OrganizationUnitType" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="WaitingList" minOccurs="0">         <xs:annotation>           <xs:documentation>Information from the waitinglist</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="ActiveWaitingListOnUnit" minOccurs="0">               <xs:annotation>                 <xs:documentation>Information if there are active waiting lists found on the same unit as the contact</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="ActiveWaitingListsFound" type="xs:boolean" minOccurs="0">                     <xs:annotation>                       <xs:documentation>True/false flag for setting if active waiting lists are found for patient on the selected unit</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="ActiveWaitingListId" type="xs:string" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Waitinglist Id for the first active waiting list found. HIS90; WaitingListId (CombinedId)</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Decisions" type="DecisionTypeForList" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/ContactId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Internal id
source	<xs:element name="ContactId" type="xs:string">   <xs:annotation>     <xs:documentation>Internal id</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/From

diagram
namespace	http://healthXML.org/PasLink
type	xs:dateTime
properties	content  simple
annotation	documentation Contact Start date/time
source	<xs:element name="From" type="xs:dateTime">   <xs:annotation>     <xs:documentation>Contact Start date/time</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/To

diagram
namespace	http://healthXML.org/PasLink
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Contact End date/time if exists
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Contact End date/time if exists</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/TypeOfCare

diagram
namespace	http://healthXML.org/PasLink
type	extension of CodeTextTypePatientWS
properties	content  complex
children	Code Text Category
annotation	documentation TypeOfCare:             I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk  D= In hospital only at daytime                                                                      HIS90: For HIS90 TypeOfCare D is not used ast this level. Only I and P is used, and D is av subset for I and P
source	<xs:element name="TypeOfCare">   <xs:annotation>     <xs:documentation>TypeOfCare:             I=Inpatient/Inneliggende     P=OutPatiens/Poliklinikk  D= In hospital only at daytime                                                                      HIS90: For HIS90 TypeOfCare D is not used ast this level. Only I and P is used, and D is av subset for I and P      </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="CodeTextTypePatientWS">         <xs:sequence>           <xs:element name="Category" type="CodeTextTypePatientWS" minOccurs="0">             <xs:annotation>               <xs:documentation>Used for giving more details about type of care. HIS90 only: If TypeOfCare = I valid subtypes are D (Dagpasient) E (opphold uten for avdeling) H (Heldøgn) L (Ledsager) N (Nyfødt) P (Pasienthotell) S (Sykehotell) If TypeOfCare = P valid subtype is D (Dagpasient)                                         </xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/TypeOfCare/Category

diagram
namespace	http://healthXML.org/PasLink
type	CodeTextTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
annotation	documentation Used for giving more details about type of care. HIS90 only: If TypeOfCare = I valid subtypes are D (Dagpasient) E (opphold uten for avdeling) H (Heldøgn) L (Ledsager) N (Nyfødt) P (Pasienthotell) S (Sykehotell) If TypeOfCare = P valid subtype is D (Dagpasient)
source	<xs:element name="Category" type="CodeTextTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Used for giving more details about type of care. HIS90 only: If TypeOfCare = I valid subtypes are D (Dagpasient) E (opphold uten for avdeling) H (Heldøgn) L (Ledsager) N (Nyfødt) P (Pasienthotell) S (Sykehotell) If TypeOfCare = P valid subtype is D (Dagpasient)                                         </xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Status

diagram
namespace	http://healthXML.org/PasLink
type	extension of CodeTextTypePatientWS
properties	content  complex
children	Code Text TimeStatus
annotation	documentation Contact status                     For TypeOfCare I:              AK=Active/Aktiv             FB= Treatment Finnished but not discharged / Ferdig behandlet, ikke utskrevet     UT=Discharged/Utskrevet   For TypeOfCare P:             AK=OutPatient Visit Arrival Registered / Ankomstregistrert               UT= OutPatient Visit Finished Registered / Besøksregistrert
source	<xs:element name="Status">   <xs:annotation>     <xs:documentation>Contact status                     For TypeOfCare I:              AK=Active/Aktiv             FB= Treatment Finnished but not discharged / Ferdig behandlet, ikke utskrevet     UT=Discharged/Utskrevet   For TypeOfCare P:             AK=OutPatient Visit Arrival Registered / Ankomstregistrert               UT= OutPatient Visit Finished Registered / Besøksregistrert                 </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="CodeTextTypePatientWS">         <xs:sequence>           <xs:element name="TimeStatus" minOccurs="0">             <xs:complexType>               <xs:complexContent>                 <xs:extension base="CodeTextTypePatientWS">                   <xs:sequence>                     <xs:element name="TimeEventDate" type="xs:dateTime"/>                   </xs:sequence>                 </xs:extension>               </xs:complexContent>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Status/TimeStatus

diagram
namespace	http://healthXML.org/PasLink
type	extension of CodeTextTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text TimeEventDate
source	<xs:element name="TimeStatus" minOccurs="0">   <xs:complexType>     <xs:complexContent>       <xs:extension base="CodeTextTypePatientWS">         <xs:sequence>           <xs:element name="TimeEventDate" type="xs:dateTime"/>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Status/TimeStatus/TimeEventDate

diagram
namespace	http://healthXML.org/PasLink
type	xs:dateTime
properties	content  simple
source	<xs:element name="TimeEventDate" type="xs:dateTime"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/CareUnit

diagram
namespace	http://healthXML.org/PasLink
type	OrganizationTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name
annotation	documentation Organization unit where the care is taking place              HIS90: Enhet/Post
source	<xs:element name="CareUnit" type="OrganizationTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Organization unit where the care is taking place              HIS90: Enhet/Post</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/MedicalUnit

diagram
namespace	http://healthXML.org/PasLink
type	OrganizationTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name
annotation	documentation Department/Medical Speciality
source	<xs:element name="MedicalUnit" type="OrganizationTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Department/Medical Speciality</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Section

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
annotation	documentation Section is a group/collection of CareUnits within one department/medical unit.
source	<xs:element name="Section" minOccurs="0">   <xs:annotation>     <xs:documentation>Section is a group/collection of CareUnits within one department/medical unit.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Text" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Section/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Section/Text

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Text" type="xs:string" minOccurs="0"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/CareGroup

diagram
namespace	http://healthXML.org/PasLink
type	OrganizationTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name
annotation	documentation HIS90 Only:                Units from different departments grouped together
source	<xs:element name="CareGroup" type="OrganizationTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>HIS90 Only:                Units from different departments grouped together</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Placement

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	PermanentRoom TemporaryRoom TemporaryUnit
annotation	documentation Where the care takes place, i.e. Roomnumber, bednumber
source	<xs:element name="Placement" minOccurs="0">   <xs:annotation>     <xs:documentation>Where the care takes place, i.e. Roomnumber, bednumber</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="PermanentRoom" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Permanent placement at the care unit</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TemporaryRoom" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Temporary placement. May be used to show that the patient has an activity on another unit.                  HIS90: TechnicalBed</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TemporaryUnit" type="OrganizationTypePatientWS" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Placement/PermanentRoom

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Permanent placement at the care unit
source	<xs:element name="PermanentRoom" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Permanent placement at the care unit</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Placement/TemporaryRoom

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Temporary placement. May be used to show that the patient has an activity on another unit.                  HIS90: TechnicalBed
source	<xs:element name="TemporaryRoom" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Temporary placement. May be used to show that the patient has an activity on another unit.                  HIS90: TechnicalBed</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Placement/TemporaryUnit

diagram
namespace	http://healthXML.org/PasLink
type	OrganizationTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name
source	<xs:element name="TemporaryUnit" type="OrganizationTypePatientWS" minOccurs="0"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Leave

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	From To
annotation	documentation Info about leave, date/time.  Only included for active  inpatients. If patient is back from leave the Leave element is omitted/blank from response.
source	<xs:element name="Leave" minOccurs="0">   <xs:annotation>     <xs:documentation>Info about leave, date/time.  Only included for active  inpatients. If patient is back from leave the Leave element is omitted/blank from response.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="From" type="xs:dateTime"/>       <xs:element name="To" type="xs:boolean" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Leave/From

diagram
namespace	http://healthXML.org/PasLink
type	xs:dateTime
properties	content  simple
source	<xs:element name="From" type="xs:dateTime"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Leave/To

diagram
namespace	http://healthXML.org/PasLink
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="To" type="xs:boolean" minOccurs="0"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/CareResponsibleName

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Person responsible for treatement of the patient      HIS90: Ikke i bruk
source	<xs:element name="CareResponsibleName" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Person responsible for treatement of the patient      HIS90: Ikke i bruk</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/PatientResponsibleName

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation The resource (i.e. the chief physician) responsible for the patient.                                        HIS90: RepsonibleTreater
source	<xs:element name="PatientResponsibleName" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>The resource (i.e. the chief physician) responsible for the patient.                                        HIS90: RepsonibleTreater</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Confidential

diagram
namespace	http://healthXML.org/PasLink
type	CodeTextTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
annotation	documentation Infomation about confidentiallyty or reservation to display/give out the information about a patient. Text contains information about the resrvation.                                                                   HIS90: Code is from 0 to 3. Where 3 is most confidential.
source	<xs:element name="Confidential" type="CodeTextTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Infomation about confidentiallyty or reservation to display/give out the information about a patient. Text contains information about the resrvation.                                                                   HIS90: Code is from 0 to 3. Where 3 is most confidential. </xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/FreeText

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  unbounded content  complex
children	Text TypeOfText
annotation	documentation Free text  HIS90: From Stay
source	<xs:element name="FreeText" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Free text  HIS90: From Stay</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Text" type="xs:string">         <xs:annotation>           <xs:documentation>The Text</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfText" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Coded description of the text type. For valid codes see documentation.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/FreeText/Text

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation The Text
source	<xs:element name="Text" type="xs:string">   <xs:annotation>     <xs:documentation>The Text</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/FreeText/TypeOfText

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Coded description of the text type. For valid codes see documentation.
source	<xs:element name="TypeOfText" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Coded description of the text type. For valid codes see documentation.</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/InDiagnosis

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	Id Code Text MedRegister
annotation	documentation In diagnosis, ca be from referral and/or waiting lists HIS90: From Stay
source	<xs:element name="InDiagnosis" minOccurs="0">   <xs:annotation>     <xs:documentation>In diagnosis, ca be from referral and/or waiting lists HIS90: From Stay</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string" minOccurs="0"/>       <xs:element name="Code" type="xs:string">         <xs:annotation>           <xs:documentation>HIS90: PaqCape.Diagnosis_Code</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Text" type="xs:string" minOccurs="0"/>       <xs:element name="MedRegister">         <xs:annotation>           <xs:documentation>Medical register, i.e. ICD10</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string">               <xs:annotation>                 <xs:documentation>HIS90: PaqCape.ICD</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Code" type="xs:string" minOccurs="0"/>             <xs:element name="Text" type="xs:string">               <xs:annotation>                 <xs:documentation>HIS90: PAQREGI og PaqCape.ICD</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/InDiagnosis/Id

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Id" type="xs:string" minOccurs="0"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/InDiagnosis/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation HIS90: PaqCape.Diagnosis_Code
source	<xs:element name="Code" type="xs:string">   <xs:annotation>     <xs:documentation>HIS90: PaqCape.Diagnosis_Code</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/InDiagnosis/Text

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Text" type="xs:string" minOccurs="0"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/InDiagnosis/MedRegister

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	Id Code Text
annotation	documentation Medical register, i.e. ICD10
source	<xs:element name="MedRegister">   <xs:annotation>     <xs:documentation>Medical register, i.e. ICD10</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string">         <xs:annotation>           <xs:documentation>HIS90: PaqCape.ICD</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Code" type="xs:string" minOccurs="0"/>       <xs:element name="Text" type="xs:string">         <xs:annotation>           <xs:documentation>HIS90: PAQREGI og PaqCape.ICD</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/InDiagnosis/MedRegister/Id

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation HIS90: PaqCape.ICD
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>HIS90: PaqCape.ICD</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/InDiagnosis/MedRegister/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Code" type="xs:string" minOccurs="0"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/InDiagnosis/MedRegister/Text

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation HIS90: PAQREGI og PaqCape.ICD
source	<xs:element name="Text" type="xs:string">   <xs:annotation>     <xs:documentation>HIS90: PAQREGI og PaqCape.ICD</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/RequestFrom

diagram
namespace	http://healthXML.org/PasLink
type	extension of RequesterType
properties	minOcc  0 maxOcc  1 content  complex
children	Organization Physician
annotation	documentation Shows who requested the referral/application/service
source	<xs:element name="RequestFrom" minOccurs="0">   <xs:annotation>     <xs:documentation>Shows who requested the referral/application/service</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="RequesterType"/>     </xs:complexContent>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Admisssion

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	AdmissionType AdmittedFrom AdmittedFromUnit
annotation	documentation Addmission from
source	<xs:element name="Admisssion" minOccurs="0">   <xs:annotation>     <xs:documentation>Addmission from</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="AdmissionType" type="CodeTextTypePatientWS" minOccurs="0"/>       <xs:element name="AdmittedFrom" type="CodeTextTypePatientWS" minOccurs="0"/>       <xs:element name="AdmittedFromUnit" type="OrganizationUnitType" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Admisssion/AdmissionType

diagram
namespace	http://healthXML.org/PasLink
type	CodeTextTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
source	<xs:element name="AdmissionType" type="CodeTextTypePatientWS" minOccurs="0"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Admisssion/AdmittedFrom

diagram
namespace	http://healthXML.org/PasLink
type	CodeTextTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
source	<xs:element name="AdmittedFrom" type="CodeTextTypePatientWS" minOccurs="0"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Admisssion/AdmittedFromUnit

diagram
namespace	http://healthXML.org/PasLink
type	OrganizationUnitType
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name
source	<xs:element name="AdmittedFromUnit" type="OrganizationUnitType" minOccurs="0"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Discharge

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	DischargeType DischargedTo DischargedToUnit
annotation	documentation Discharge to
source	<xs:element name="Discharge" minOccurs="0">   <xs:annotation>     <xs:documentation>Discharge to</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="DischargeType" type="CodeTextTypePatientWS" minOccurs="0"/>       <xs:element name="DischargedTo" type="CodeTextTypePatientWS" minOccurs="0"/>       <xs:element name="DischargedToUnit" type="OrganizationUnitType" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Discharge/DischargeType

diagram
namespace	http://healthXML.org/PasLink
type	CodeTextTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
source	<xs:element name="DischargeType" type="CodeTextTypePatientWS" minOccurs="0"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Discharge/DischargedTo

diagram
namespace	http://healthXML.org/PasLink
type	CodeTextTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
source	<xs:element name="DischargedTo" type="CodeTextTypePatientWS" minOccurs="0"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Discharge/DischargedToUnit

diagram
namespace	http://healthXML.org/PasLink
type	OrganizationUnitType
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name
source	<xs:element name="DischargedToUnit" type="OrganizationUnitType" minOccurs="0"/>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/WaitingList

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	ActiveWaitingListOnUnit
annotation	documentation Information from the waitinglist
source	<xs:element name="WaitingList" minOccurs="0">   <xs:annotation>     <xs:documentation>Information from the waitinglist</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ActiveWaitingListOnUnit" minOccurs="0">         <xs:annotation>           <xs:documentation>Information if there are active waiting lists found on the same unit as the contact</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="ActiveWaitingListsFound" type="xs:boolean" minOccurs="0">               <xs:annotation>                 <xs:documentation>True/false flag for setting if active waiting lists are found for patient on the selected unit</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="ActiveWaitingListId" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>Waitinglist Id for the first active waiting list found. HIS90; WaitingListId (CombinedId)</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/WaitingList/ActiveWaitingListOnUnit

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	ActiveWaitingListsFound ActiveWaitingListId
annotation	documentation Information if there are active waiting lists found on the same unit as the contact
source	<xs:element name="ActiveWaitingListOnUnit" minOccurs="0">   <xs:annotation>     <xs:documentation>Information if there are active waiting lists found on the same unit as the contact</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ActiveWaitingListsFound" type="xs:boolean" minOccurs="0">         <xs:annotation>           <xs:documentation>True/false flag for setting if active waiting lists are found for patient on the selected unit</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ActiveWaitingListId" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Waitinglist Id for the first active waiting list found. HIS90; WaitingListId (CombinedId)</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/WaitingList/ActiveWaitingListOnUnit/ActiveWaitingListsFound

diagram
namespace	http://healthXML.org/PasLink
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation True/false flag for setting if active waiting lists are found for patient on the selected unit
source	<xs:element name="ActiveWaitingListsFound" type="xs:boolean" minOccurs="0">   <xs:annotation>     <xs:documentation>True/false flag for setting if active waiting lists are found for patient on the selected unit</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/WaitingList/ActiveWaitingListOnUnit/ActiveWaitingListId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Waitinglist Id for the first active waiting list found. HIS90; WaitingListId (CombinedId)
source	<xs:element name="ActiveWaitingListId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Waitinglist Id for the first active waiting list found. HIS90; WaitingListId (CombinedId)</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Decisions

diagram
namespace	http://healthXML.org/PasLink
type	DecisionTypeForList
properties	minOcc  0 maxOcc  unbounded content  complex
children	DecisionId Group Code Description ValidForcedDecisionsExists
source	<xs:element name="Decisions" type="DecisionTypeForList" minOccurs="0" maxOccurs="unbounded"/>

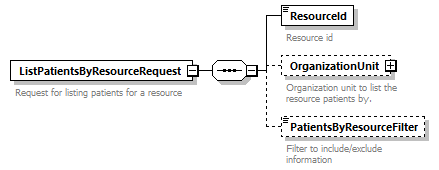

element ListPatientsByResourceRequest

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	ResourceId OrganizationUnit PatientsByResourceFilter
annotation	documentation Request for listing patients for a resource
source	<xs:element name="ListPatientsByResourceRequest">   <xs:annotation>     <xs:documentation>Request for listing patients for a resource</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ResourceId" type="xs:string">         <xs:annotation>           <xs:documentation>Resource id</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="OrganizationUnit" minOccurs="0">         <xs:annotation>           <xs:documentation>Organization unit to list the resource patients by.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Id" type="xs:string">               <xs:annotation>                 <xs:documentation>Id</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="TypeOfId" type="xs:string">               <xs:annotation>                 <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown/Local id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="PatientsByResourceFilter" type="PatientsByResourceFilterType" minOccurs="0">         <xs:annotation>           <xs:documentation>Filter to include/exclude information</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByResourceRequest/ResourceId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Resource id
source	<xs:element name="ResourceId" type="xs:string">   <xs:annotation>     <xs:documentation>Resource id</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceRequest/OrganizationUnit

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId
annotation	documentation Organization unit to list the resource patients by.
source	<xs:element name="OrganizationUnit" minOccurs="0">   <xs:annotation>     <xs:documentation>Organization unit to list the resource patients by.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string">         <xs:annotation>           <xs:documentation>Id</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfId" type="xs:string">         <xs:annotation>           <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown/Local id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByResourceRequest/OrganizationUnit/Id

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Id
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Id</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceRequest/OrganizationUnit/TypeOfId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Type of Id as defined by PAS. Empty/LOC = Unkown/Local id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id
source	<xs:element name="TypeOfId" type="xs:string">   <xs:annotation>     <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown/Local id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceRequest/PatientsByResourceFilter

diagram
namespace	http://healthXML.org/PasLink
type	PatientsByResourceFilterType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  ALL enumeration  EXCLUDE_BOOKED enumeration  EXCLUDE_BOOKED_TODAY
annotation	documentation Filter to include/exclude information
source	<xs:element name="PatientsByResourceFilter" type="PatientsByResourceFilterType" minOccurs="0">   <xs:annotation>     <xs:documentation>Filter to include/exclude information</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceResponse

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	ResourcePatients
annotation	documentation Response for listing patients for a resource
source	<xs:element name="ListPatientsByResourceResponse">   <xs:annotation>     <xs:documentation>Response for listing patients for a resource</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ResourcePatients" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="ResourcePatient" maxOccurs="unbounded">               <xs:complexType>                 <xs:sequence>                   <xs:element name="PatientInfo" type="PatientInfoListType" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Patient information</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="MedicalUnit" type="OrganizationUnitType">                     <xs:annotation>                       <xs:documentation>Department/Medical Speciality                       </xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="CareUnit" type="OrganizationUnitType" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Unit where the care takes place.                       </xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="CarePeriod">                     <xs:annotation>                       <xs:documentation>Care period</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="CarePeriodId" type="xs:string">                           <xs:annotation>                             <xs:documentation>Internal Care Period Id.    An id used to identify associated contacts or referrals.                             HIS90: Combined Id</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="Status" minOccurs="0">                           <xs:annotation>                             <xs:documentation>CarePeriod Status</xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:sequence>                               <xs:element name="Code" type="xs:string">                                 <xs:annotation>                                   <xs:documentation>Status for the CarePeriod HIS90: Status utledet ut fra StatusDate2 og StatusDate3</xs:documentation>                                 </xs:annotation>                               </xs:element>                               <xs:element name="Text" type="xs:string" minOccurs="0">                                 <xs:annotation>                                   <xs:documentation>Description/Text for the status Code</xs:documentation>                                 </xs:annotation>                               </xs:element>                               <xs:element name="WaitingTimeEndedDate" type="xs:dateTime" default="0001-01-01T00:00:00" minOccurs="0">                                 <xs:annotation>                                   <xs:documentation>Statusdate for when the waitingtime has ended. HIS90: Care_Status_Date_2 NoDate/Empty = Treatment is not started. Date = Waiting has ended.</xs:documentation>                                 </xs:annotation>                               </xs:element>                               <xs:element name="CarePeriodClosedDate" type="xs:dateTime" default="0001-01-01T00:00:00" minOccurs="0">                                 <xs:annotation>                                   <xs:documentation>Statusdate for careperiod HIS90: Care_Status_Date_3 NoDate/Empty = CarePeriod i open Date = CarePeriod is closed,  and the date gives when it is closed.</xs:documentation>                                 </xs:annotation>                               </xs:element>                             </xs:sequence>                           </xs:complexType>                         </xs:element>                         <xs:element name="TreatmentDate" type="xs:dateTime" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Date for treatment.  HIS90: PaqCape.Treatment_Date</xs:documentation>                           </xs:annotation>                         </xs:element>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="WaitingList">                     <xs:annotation>                       <xs:documentation>Waitinglist</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="WaitingListId" type="xs:string">                           <xs:annotation>                             <xs:documentation>Waitinglist Id.</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="Status">                           <xs:annotation>                             <xs:documentation>WaitingList status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:sequence>                               <xs:element name="Code" type="xs:string"/>                               <xs:element name="Text" type="xs:string"/>                             </xs:sequence>                           </xs:complexType>                         </xs:element>                         <xs:element name="CriticalDate" type="xs:dateTime" minOccurs="0">                           <xs:annotation>                             <xs:documentation>CriticalDate set by Hospital</xs:documentation>                           </xs:annotation>                         </xs:element>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="Booking" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Booking/appointment</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="BookingId" type="xs:string">                           <xs:annotation>                             <xs:documentation>The internal id for the booking/appointment  HIS90: BookingId (Combinded Id)</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="Status">                           <xs:annotation>                             <xs:documentation>Appointment/Booking status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:sequence>                               <xs:element name="Code" type="xs:string"/>                               <xs:element name="Text" type="xs:string"/>                             </xs:sequence>                           </xs:complexType>                         </xs:element>                         <xs:element name="BookingDate" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Booking/Visit time for patient if available/booked.</xs:documentation>                           </xs:annotation>                           <xs:complexType>                             <xs:sequence>                               <xs:element name="From" type="xs:dateTime">                                 <xs:annotation>                                   <xs:documentation>Date and time for the start for the appointment</xs:documentation>                                 </xs:annotation>                               </xs:element>                               <xs:element name="To" type="xs:dateTime" minOccurs="0">                                 <xs:annotation>                                   <xs:documentation>Date and time for the end  of the appointment</xs:documentation>                                 </xs:annotation>                               </xs:element>                             </xs:sequence>                           </xs:complexType>                         </xs:element>                         <xs:element name="BookedResource" type="ResourceTypePatient" minOccurs="0">                           <xs:annotation>                             <xs:documentation>The resource where the patient is booked at or is planned to have an appointment with.</xs:documentation>                           </xs:annotation>                         </xs:element>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="Contact" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Contact For future expansions HIS90: Not in use</xs:documentation>                     </xs:annotation>                     <xs:complexType/>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	ResourcePatient
source	<xs:element name="ResourcePatients" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="ResourcePatient" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="PatientInfo" type="PatientInfoListType" minOccurs="0">               <xs:annotation>                 <xs:documentation>Patient information</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="MedicalUnit" type="OrganizationUnitType">               <xs:annotation>                 <xs:documentation>Department/Medical Speciality                       </xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="CareUnit" type="OrganizationUnitType" minOccurs="0">               <xs:annotation>                 <xs:documentation>Unit where the care takes place.                       </xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="CarePeriod">               <xs:annotation>                 <xs:documentation>Care period</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="CarePeriodId" type="xs:string">                     <xs:annotation>                       <xs:documentation>Internal Care Period Id.    An id used to identify associated contacts or referrals.                             HIS90: Combined Id</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="Status" minOccurs="0">                     <xs:annotation>                       <xs:documentation>CarePeriod Status</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="Code" type="xs:string">                           <xs:annotation>                             <xs:documentation>Status for the CarePeriod HIS90: Status utledet ut fra StatusDate2 og StatusDate3</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="Text" type="xs:string" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Description/Text for the status Code</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="WaitingTimeEndedDate" type="xs:dateTime" default="0001-01-01T00:00:00" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Statusdate for when the waitingtime has ended. HIS90: Care_Status_Date_2 NoDate/Empty = Treatment is not started. Date = Waiting has ended.</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="CarePeriodClosedDate" type="xs:dateTime" default="0001-01-01T00:00:00" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Statusdate for careperiod HIS90: Care_Status_Date_3 NoDate/Empty = CarePeriod i open Date = CarePeriod is closed,  and the date gives when it is closed.</xs:documentation>                           </xs:annotation>                         </xs:element>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="TreatmentDate" type="xs:dateTime" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Date for treatment.  HIS90: PaqCape.Treatment_Date</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="WaitingList">               <xs:annotation>                 <xs:documentation>Waitinglist</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="WaitingListId" type="xs:string">                     <xs:annotation>                       <xs:documentation>Waitinglist Id.</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="Status">                     <xs:annotation>                       <xs:documentation>WaitingList status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="Code" type="xs:string"/>                         <xs:element name="Text" type="xs:string"/>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="CriticalDate" type="xs:dateTime" minOccurs="0">                     <xs:annotation>                       <xs:documentation>CriticalDate set by Hospital</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="Booking" minOccurs="0">               <xs:annotation>                 <xs:documentation>Booking/appointment</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="BookingId" type="xs:string">                     <xs:annotation>                       <xs:documentation>The internal id for the booking/appointment  HIS90: BookingId (Combinded Id)</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="Status">                     <xs:annotation>                       <xs:documentation>Appointment/Booking status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="Code" type="xs:string"/>                         <xs:element name="Text" type="xs:string"/>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="BookingDate" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Booking/Visit time for patient if available/booked.</xs:documentation>                     </xs:annotation>                     <xs:complexType>                       <xs:sequence>                         <xs:element name="From" type="xs:dateTime">                           <xs:annotation>                             <xs:documentation>Date and time for the start for the appointment</xs:documentation>                           </xs:annotation>                         </xs:element>                         <xs:element name="To" type="xs:dateTime" minOccurs="0">                           <xs:annotation>                             <xs:documentation>Date and time for the end  of the appointment</xs:documentation>                           </xs:annotation>                         </xs:element>                       </xs:sequence>                     </xs:complexType>                   </xs:element>                   <xs:element name="BookedResource" type="ResourceTypePatient" minOccurs="0">                     <xs:annotation>                       <xs:documentation>The resource where the patient is booked at or is planned to have an appointment with.</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="Contact" minOccurs="0">               <xs:annotation>                 <xs:documentation>Contact For future expansions HIS90: Not in use</xs:documentation>               </xs:annotation>               <xs:complexType/>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  1 maxOcc  unbounded content  complex
children	PatientInfo MedicalUnit CareUnit CarePeriod WaitingList Booking Contact
source	<xs:element name="ResourcePatient" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="PatientInfo" type="PatientInfoListType" minOccurs="0">         <xs:annotation>           <xs:documentation>Patient information</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="MedicalUnit" type="OrganizationUnitType">         <xs:annotation>           <xs:documentation>Department/Medical Speciality                       </xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="CareUnit" type="OrganizationUnitType" minOccurs="0">         <xs:annotation>           <xs:documentation>Unit where the care takes place.                       </xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="CarePeriod">         <xs:annotation>           <xs:documentation>Care period</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="CarePeriodId" type="xs:string">               <xs:annotation>                 <xs:documentation>Internal Care Period Id.    An id used to identify associated contacts or referrals.                             HIS90: Combined Id</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Status" minOccurs="0">               <xs:annotation>                 <xs:documentation>CarePeriod Status</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Code" type="xs:string">                     <xs:annotation>                       <xs:documentation>Status for the CarePeriod HIS90: Status utledet ut fra StatusDate2 og StatusDate3</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="Text" type="xs:string" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Description/Text for the status Code</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="WaitingTimeEndedDate" type="xs:dateTime" default="0001-01-01T00:00:00" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Statusdate for when the waitingtime has ended. HIS90: Care_Status_Date_2 NoDate/Empty = Treatment is not started. Date = Waiting has ended.</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="CarePeriodClosedDate" type="xs:dateTime" default="0001-01-01T00:00:00" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Statusdate for careperiod HIS90: Care_Status_Date_3 NoDate/Empty = CarePeriod i open Date = CarePeriod is closed,  and the date gives when it is closed.</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="TreatmentDate" type="xs:dateTime" minOccurs="0">               <xs:annotation>                 <xs:documentation>Date for treatment.  HIS90: PaqCape.Treatment_Date</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="WaitingList">         <xs:annotation>           <xs:documentation>Waitinglist</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="WaitingListId" type="xs:string">               <xs:annotation>                 <xs:documentation>Waitinglist Id.</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Status">               <xs:annotation>                 <xs:documentation>WaitingList status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Code" type="xs:string"/>                   <xs:element name="Text" type="xs:string"/>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="CriticalDate" type="xs:dateTime" minOccurs="0">               <xs:annotation>                 <xs:documentation>CriticalDate set by Hospital</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Booking" minOccurs="0">         <xs:annotation>           <xs:documentation>Booking/appointment</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="BookingId" type="xs:string">               <xs:annotation>                 <xs:documentation>The internal id for the booking/appointment  HIS90: BookingId (Combinded Id)</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Status">               <xs:annotation>                 <xs:documentation>Appointment/Booking status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="Code" type="xs:string"/>                   <xs:element name="Text" type="xs:string"/>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="BookingDate" minOccurs="0">               <xs:annotation>                 <xs:documentation>Booking/Visit time for patient if available/booked.</xs:documentation>               </xs:annotation>               <xs:complexType>                 <xs:sequence>                   <xs:element name="From" type="xs:dateTime">                     <xs:annotation>                       <xs:documentation>Date and time for the start for the appointment</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="To" type="xs:dateTime" minOccurs="0">                     <xs:annotation>                       <xs:documentation>Date and time for the end  of the appointment</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="BookedResource" type="ResourceTypePatient" minOccurs="0">               <xs:annotation>                 <xs:documentation>The resource where the patient is booked at or is planned to have an appointment with.</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Contact" minOccurs="0">         <xs:annotation>           <xs:documentation>Contact For future expansions HIS90: Not in use</xs:documentation>         </xs:annotation>         <xs:complexType/>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/PatientInfo

diagram
namespace	http://healthXML.org/PasLink
type	PatientInfoListType
properties	minOcc  0 maxOcc  1 content  complex
children	PatientId FormattedName BirthDate Dead Sex Municipality PostalAddress
annotation	documentation Patient information
source	<xs:element name="PatientInfo" type="PatientInfoListType" minOccurs="0">   <xs:annotation>     <xs:documentation>Patient information</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/MedicalUnit

diagram
namespace	http://healthXML.org/PasLink
type	OrganizationUnitType
properties	content  complex
children	Id TypeOfId ShortNameId Name
annotation	documentation Department/Medical Speciality
source	<xs:element name="MedicalUnit" type="OrganizationUnitType">   <xs:annotation>     <xs:documentation>Department/Medical Speciality                       </xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/CareUnit

diagram
namespace	http://healthXML.org/PasLink
type	OrganizationUnitType
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name
annotation	documentation Unit where the care takes place.
source	<xs:element name="CareUnit" type="OrganizationUnitType" minOccurs="0">   <xs:annotation>     <xs:documentation>Unit where the care takes place.                       </xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/CarePeriod

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	CarePeriodId Status TreatmentDate
annotation	documentation Care period
source	<xs:element name="CarePeriod">   <xs:annotation>     <xs:documentation>Care period</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="CarePeriodId" type="xs:string">         <xs:annotation>           <xs:documentation>Internal Care Period Id.    An id used to identify associated contacts or referrals.                             HIS90: Combined Id</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Status" minOccurs="0">         <xs:annotation>           <xs:documentation>CarePeriod Status</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Code" type="xs:string">               <xs:annotation>                 <xs:documentation>Status for the CarePeriod HIS90: Status utledet ut fra StatusDate2 og StatusDate3</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Text" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation>Description/Text for the status Code</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="WaitingTimeEndedDate" type="xs:dateTime" default="0001-01-01T00:00:00" minOccurs="0">               <xs:annotation>                 <xs:documentation>Statusdate for when the waitingtime has ended. HIS90: Care_Status_Date_2 NoDate/Empty = Treatment is not started. Date = Waiting has ended.</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="CarePeriodClosedDate" type="xs:dateTime" default="0001-01-01T00:00:00" minOccurs="0">               <xs:annotation>                 <xs:documentation>Statusdate for careperiod HIS90: Care_Status_Date_3 NoDate/Empty = CarePeriod i open Date = CarePeriod is closed,  and the date gives when it is closed.</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="TreatmentDate" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>Date for treatment.  HIS90: PaqCape.Treatment_Date</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/CarePeriod/CarePeriodId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Internal Care Period Id.    An id used to identify associated contacts or referrals.                             HIS90: Combined Id
source	<xs:element name="CarePeriodId" type="xs:string">   <xs:annotation>     <xs:documentation>Internal Care Period Id.    An id used to identify associated contacts or referrals.                             HIS90: Combined Id</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/CarePeriod/Status

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text WaitingTimeEndedDate CarePeriodClosedDate
annotation	documentation CarePeriod Status
source	<xs:element name="Status" minOccurs="0">   <xs:annotation>     <xs:documentation>CarePeriod Status</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string">         <xs:annotation>           <xs:documentation>Status for the CarePeriod HIS90: Status utledet ut fra StatusDate2 og StatusDate3</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Text" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Description/Text for the status Code</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="WaitingTimeEndedDate" type="xs:dateTime" default="0001-01-01T00:00:00" minOccurs="0">         <xs:annotation>           <xs:documentation>Statusdate for when the waitingtime has ended. HIS90: Care_Status_Date_2 NoDate/Empty = Treatment is not started. Date = Waiting has ended.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="CarePeriodClosedDate" type="xs:dateTime" default="0001-01-01T00:00:00" minOccurs="0">         <xs:annotation>           <xs:documentation>Statusdate for careperiod HIS90: Care_Status_Date_3 NoDate/Empty = CarePeriod i open Date = CarePeriod is closed,  and the date gives when it is closed.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/CarePeriod/Status/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Status for the CarePeriod HIS90: Status utledet ut fra StatusDate2 og StatusDate3
source	<xs:element name="Code" type="xs:string">   <xs:annotation>     <xs:documentation>Status for the CarePeriod HIS90: Status utledet ut fra StatusDate2 og StatusDate3</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/CarePeriod/Status/Text

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Description/Text for the status Code
source	<xs:element name="Text" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Description/Text for the status Code</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/CarePeriod/Status/WaitingTimeEndedDate

diagram
namespace	http://healthXML.org/PasLink
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple default  0001-01-01T00:00:00
annotation	documentation Statusdate for when the waitingtime has ended. HIS90: Care_Status_Date_2 NoDate/Empty = Treatment is not started. Date = Waiting has ended.
source	<xs:element name="WaitingTimeEndedDate" type="xs:dateTime" default="0001-01-01T00:00:00" minOccurs="0">   <xs:annotation>     <xs:documentation>Statusdate for when the waitingtime has ended. HIS90: Care_Status_Date_2 NoDate/Empty = Treatment is not started. Date = Waiting has ended.</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/CarePeriod/Status/CarePeriodClosedDate

diagram
namespace	http://healthXML.org/PasLink
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple default  0001-01-01T00:00:00
annotation	documentation Statusdate for careperiod HIS90: Care_Status_Date_3 NoDate/Empty = CarePeriod i open Date = CarePeriod is closed,  and the date gives when it is closed.
source	<xs:element name="CarePeriodClosedDate" type="xs:dateTime" default="0001-01-01T00:00:00" minOccurs="0">   <xs:annotation>     <xs:documentation>Statusdate for careperiod HIS90: Care_Status_Date_3 NoDate/Empty = CarePeriod i open Date = CarePeriod is closed,  and the date gives when it is closed.</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/CarePeriod/TreatmentDate

diagram
namespace	http://healthXML.org/PasLink
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date for treatment.  HIS90: PaqCape.Treatment_Date
source	<xs:element name="TreatmentDate" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date for treatment.  HIS90: PaqCape.Treatment_Date</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/WaitingList

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	WaitingListId Status CriticalDate
annotation	documentation Waitinglist
source	<xs:element name="WaitingList">   <xs:annotation>     <xs:documentation>Waitinglist</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="WaitingListId" type="xs:string">         <xs:annotation>           <xs:documentation>Waitinglist Id.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Status">         <xs:annotation>           <xs:documentation>WaitingList status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Code" type="xs:string"/>             <xs:element name="Text" type="xs:string"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="CriticalDate" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>CriticalDate set by Hospital</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/WaitingList/WaitingListId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Waitinglist Id.
source	<xs:element name="WaitingListId" type="xs:string">   <xs:annotation>     <xs:documentation>Waitinglist Id.</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/WaitingList/Status

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	Code Text
annotation	documentation WaitingList status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)
source	<xs:element name="Status">   <xs:annotation>     <xs:documentation>WaitingList status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Text" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/WaitingList/Status/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/WaitingList/Status/Text

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/WaitingList/CriticalDate

diagram
namespace	http://healthXML.org/PasLink
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation CriticalDate set by Hospital
source	<xs:element name="CriticalDate" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>CriticalDate set by Hospital</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/Booking

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	BookingId Status BookingDate BookedResource
annotation	documentation Booking/appointment
source	<xs:element name="Booking" minOccurs="0">   <xs:annotation>     <xs:documentation>Booking/appointment</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="BookingId" type="xs:string">         <xs:annotation>           <xs:documentation>The internal id for the booking/appointment  HIS90: BookingId (Combinded Id)</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Status">         <xs:annotation>           <xs:documentation>Appointment/Booking status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Code" type="xs:string"/>             <xs:element name="Text" type="xs:string"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="BookingDate" minOccurs="0">         <xs:annotation>           <xs:documentation>Booking/Visit time for patient if available/booked.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="From" type="xs:dateTime">               <xs:annotation>                 <xs:documentation>Date and time for the start for the appointment</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="To" type="xs:dateTime" minOccurs="0">               <xs:annotation>                 <xs:documentation>Date and time for the end  of the appointment</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="BookedResource" type="ResourceTypePatient" minOccurs="0">         <xs:annotation>           <xs:documentation>The resource where the patient is booked at or is planned to have an appointment with.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/Booking/BookingId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation The internal id for the booking/appointment  HIS90: BookingId (Combinded Id)
source	<xs:element name="BookingId" type="xs:string">   <xs:annotation>     <xs:documentation>The internal id for the booking/appointment  HIS90: BookingId (Combinded Id)</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/Booking/Status

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	Code Text
annotation	documentation Appointment/Booking status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)
source	<xs:element name="Status">   <xs:annotation>     <xs:documentation>Appointment/Booking status  HIS90: Valid status is: 1 Active on waitinglist 2 Deleted from waitinglist 3 Suspended from waitinglist 4 Active on waitinglist with appointment time (Visit time) in place. 5 Deleted from waitinglist (deleted from status 4) 6 Did not meet up 7 Met at Policlinic  8 Met at clinic for inpatients 9 Suspended. (Suspension code 55)</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Text" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/Booking/Status/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/Booking/Status/Text

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/Booking/BookingDate

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	From To
annotation	documentation Booking/Visit time for patient if available/booked.
source	<xs:element name="BookingDate" minOccurs="0">   <xs:annotation>     <xs:documentation>Booking/Visit time for patient if available/booked.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="From" type="xs:dateTime">         <xs:annotation>           <xs:documentation>Date and time for the start for the appointment</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="To" type="xs:dateTime" minOccurs="0">         <xs:annotation>           <xs:documentation>Date and time for the end  of the appointment</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/Booking/BookingDate/From

diagram
namespace	http://healthXML.org/PasLink
type	xs:dateTime
properties	content  simple
annotation	documentation Date and time for the start for the appointment
source	<xs:element name="From" type="xs:dateTime">   <xs:annotation>     <xs:documentation>Date and time for the start for the appointment</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/Booking/BookingDate/To

diagram
namespace	http://healthXML.org/PasLink
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Date and time for the end  of the appointment
source	<xs:element name="To" type="xs:dateTime" minOccurs="0">   <xs:annotation>     <xs:documentation>Date and time for the end  of the appointment</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/Booking/BookedResource

diagram
namespace	http://healthXML.org/PasLink
type	ResourceTypePatient
properties	minOcc  0 maxOcc  1 content  complex
children	ResourceId TypeOfId Code Name Property
annotation	documentation The resource where the patient is booked at or is planned to have an appointment with.
source	<xs:element name="BookedResource" type="ResourceTypePatient" minOccurs="0">   <xs:annotation>     <xs:documentation>The resource where the patient is booked at or is planned to have an appointment with.</xs:documentation>   </xs:annotation> </xs:element>

element ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/Contact

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
annotation	documentation Contact For future expansions HIS90: Not in use
source	<xs:element name="Contact" minOccurs="0">   <xs:annotation>     <xs:documentation>Contact For future expansions HIS90: Not in use</xs:documentation>   </xs:annotation>   <xs:complexType/> </xs:element>

element UpdateOfficialIdRequest

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	Patients
annotation	documentation Request to PatientWS.UpdateOfficialId. Update a patient's official id
source	<xs:element name="UpdateOfficialIdRequest">   <xs:annotation>     <xs:documentation>Request to PatientWS.UpdateOfficialId. Update a patient's official id</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Patients">         <xs:complexType>           <xs:sequence>             <xs:element name="PatientOrg" maxOccurs="unbounded">               <xs:complexType>                 <xs:sequence>                   <xs:element name="OfficialId" type="xs:string">                     <xs:annotation>                       <xs:documentation>The patient present id.          Only an emergency id is accepeted.</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="NewOfficialId" type="xs:string">                     <xs:annotation>                       <xs:documentation>The patient new id.         Only a official social security number is accepted. </xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element UpdateOfficialIdRequest/Patients

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	PatientOrg
source	<xs:element name="Patients">   <xs:complexType>     <xs:sequence>       <xs:element name="PatientOrg" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="OfficialId" type="xs:string">               <xs:annotation>                 <xs:documentation>The patient present id.          Only an emergency id is accepeted.</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="NewOfficialId" type="xs:string">               <xs:annotation>                 <xs:documentation>The patient new id.         Only a official social security number is accepted. </xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element UpdateOfficialIdRequest/Patients/PatientOrg

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  1 maxOcc  unbounded content  complex
children	OfficialId NewOfficialId
source	<xs:element name="PatientOrg" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="OfficialId" type="xs:string">         <xs:annotation>           <xs:documentation>The patient present id.          Only an emergency id is accepeted.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="NewOfficialId" type="xs:string">         <xs:annotation>           <xs:documentation>The patient new id.         Only a official social security number is accepted. </xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element UpdateOfficialIdRequest/Patients/PatientOrg/OfficialId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation The patient present id.          Only an emergency id is accepeted.
source	<xs:element name="OfficialId" type="xs:string">   <xs:annotation>     <xs:documentation>The patient present id.          Only an emergency id is accepeted.</xs:documentation>   </xs:annotation> </xs:element>

element UpdateOfficialIdRequest/Patients/PatientOrg/NewOfficialId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation The patient new id.         Only a official social security number is accepted.
source	<xs:element name="NewOfficialId" type="xs:string">   <xs:annotation>     <xs:documentation>The patient new id.         Only a official social security number is accepted. </xs:documentation>   </xs:annotation> </xs:element>

element UpdateOfficialIdResponse

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
annotation	documentation Response from PatientWS.UpdateOfficialId
source	<xs:element name="UpdateOfficialIdResponse">   <xs:annotation>     <xs:documentation>Response from PatientWS.UpdateOfficialId</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence/>   </xs:complexType> </xs:element>

complexType AdditionalIdType

diagram
namespace	http://healthXML.org/PasLink
children	Id TypeOfId
source	<xs:complexType name="AdditionalIdType">   <xs:sequence>     <xs:element name="Id" type="xs:string"/>     <xs:element name="TypeOfId" type="xs:string">       <xs:annotation>         <xs:documentation>KITH code standard  8268 Some of the types are:        ENH=Off. org.no in Br.sund HER=HER-id                BER=BER-id                 NPR= NPR nr               LOK= Lokal id           XXX=Annet                   HIS90: LOKUI=UniqueId    </xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element AdditionalIdType/Id

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Id" type="xs:string"/>

element AdditionalIdType/TypeOfId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation KITH code standard  8268 Some of the types are:        ENH=Off. org.no in Br.sund HER=HER-id                BER=BER-id                 NPR= NPR nr               LOK= Lokal id           XXX=Annet                   HIS90: LOKUI=UniqueId
source	<xs:element name="TypeOfId" type="xs:string">   <xs:annotation>     <xs:documentation>KITH code standard  8268 Some of the types are:        ENH=Off. org.no in Br.sund HER=HER-id                BER=BER-id                 NPR= NPR nr               LOK= Lokal id           XXX=Annet                   HIS90: LOKUI=UniqueId    </xs:documentation>   </xs:annotation> </xs:element>

complexType AddressTypeAdditionalTypePatientWS

diagram
namespace	http://healthXML.org/PasLink
type	extension of AddressTypePatientWS
properties	base  AddressTypePatientWS
children	AddressLines PostalAddress Country AddressType
used by	element  PatientTypePatientWS/Address/AddiotionalAddresses
source	<xs:complexType name="AddressTypeAdditionalTypePatientWS">   <xs:complexContent>     <xs:extension base="AddressTypePatientWS">       <xs:sequence>         <xs:element name="AddressType" type="xs:string">           <xs:annotation>             <xs:documentation>Adresse type Valide vaules are: H Bostedsadresse  HP Folkeregisteradresse  HV Ferieadresse  INV Faktureringsadresse  PST Postadresse  RES Besøksadresse  TMP Midlertidig adresse  WP Arbeidsadresse  BAD Ubrukelig adresse </xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element AddressTypeAdditionalTypePatientWS/AddressType

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Adresse type Valide vaules are: H Bostedsadresse  HP Folkeregisteradresse  HV Ferieadresse  INV Faktureringsadresse  PST Postadresse  RES Besøksadresse  TMP Midlertidig adresse  WP Arbeidsadresse  BAD Ubrukelig adresse
source	<xs:element name="AddressType" type="xs:string">   <xs:annotation>     <xs:documentation>Adresse type Valide vaules are: H Bostedsadresse  HP Folkeregisteradresse  HV Ferieadresse  INV Faktureringsadresse  PST Postadresse  RES Besøksadresse  TMP Midlertidig adresse  WP Arbeidsadresse  BAD Ubrukelig adresse </xs:documentation>   </xs:annotation> </xs:element>

complexType AddressTypeExtPatientWS

diagram
namespace	http://healthXML.org/PasLink
type	extension of AddressTypePatientWS
properties	base  AddressTypePatientWS
children	AddressLines PostalAddress Country County Municipality UrbanNeighbourhood
used by	element  PatientTypePatientWS/Address
source	<xs:complexType name="AddressTypeExtPatientWS">   <xs:complexContent>     <xs:extension base="AddressTypePatientWS">       <xs:sequence>         <xs:element name="County" type="CodeNameTypePatientWS" minOccurs="0">           <xs:annotation>             <xs:documentation>Patient's primary/living county. Usually same as in population register.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="Municipality" type="CodeNameTypePatientWS" minOccurs="0">           <xs:annotation>             <xs:documentation>Patient's primary/living Municpality. Usually same as in population register.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="UrbanNeighbourhood" type="CodeNameTypePatientWS" minOccurs="0">           <xs:annotation>             <xs:documentation>Patient's primary/living Urban Neighbourhood. Usually same as in population register.</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element AddressTypeExtPatientWS/County

diagram
namespace	http://healthXML.org/PasLink
type	CodeNameTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code Name
annotation	documentation Patient's primary/living county. Usually same as in population register.
source	<xs:element name="County" type="CodeNameTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Patient's primary/living county. Usually same as in population register.</xs:documentation>   </xs:annotation> </xs:element>

element AddressTypeExtPatientWS/Municipality

diagram
namespace	http://healthXML.org/PasLink
type	CodeNameTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code Name
annotation	documentation Patient's primary/living Municpality. Usually same as in population register.
source	<xs:element name="Municipality" type="CodeNameTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Patient's primary/living Municpality. Usually same as in population register.</xs:documentation>   </xs:annotation> </xs:element>

element AddressTypeExtPatientWS/UrbanNeighbourhood

diagram
namespace	http://healthXML.org/PasLink
type	CodeNameTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code Name
annotation	documentation Patient's primary/living Urban Neighbourhood. Usually same as in population register.
source	<xs:element name="UrbanNeighbourhood" type="CodeNameTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Patient's primary/living Urban Neighbourhood. Usually same as in population register.</xs:documentation>   </xs:annotation> </xs:element>

complexType AddressTypePatientWS

diagram
namespace	http://healthXML.org/PasLink
children	AddressLines PostalAddress Country
used by	complexTypes  AddressTypeAdditionalTypePatientWS AddressTypeExtPatientWS
source	<xs:complexType name="AddressTypePatientWS">   <xs:sequence>     <xs:element name="AddressLines" minOccurs="0">       <xs:annotation>         <xs:documentation>Patient's street, bost addresses</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="AddressLine" maxOccurs="unbounded">             <xs:annotation>               <xs:documentation>Address, e.g. streetname and number, house numbre, postboks etc. TypeOfText is coding the type of adress, Valid values for TypeOfText are: STR = Streetname and number POB=Postbox CO= CO address GPS=GPS coordinates </xs:documentation>             </xs:annotation>             <xs:complexType>               <xs:complexContent>                 <xs:extension base="TypeOfTextTypePatientWS">                   <xs:sequence>                     <xs:element name="Sequence" type="xs:int" minOccurs="0">                       <xs:annotation>                         <xs:documentation>Sequence of address if several of same type, if sequence is important</xs:documentation>                       </xs:annotation>                     </xs:element>                   </xs:sequence>                 </xs:extension>               </xs:complexContent>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="PostalAddress" type="CodeNameTypePatientWS" minOccurs="0">       <xs:annotation>         <xs:documentation>Patient'ss postal code and city</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Country" type="CodeNameTypePatientWS" minOccurs="0">       <xs:annotation>         <xs:documentation>Living country is given if the person is a foreigner. County, UrbanNeighbourhood and municipality is not given if country is given. HIS90: N/A No data field for patient living country in HIS90 PAS</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element AddressTypePatientWS/AddressLines

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	AddressLine
annotation	documentation Patient's street, bost addresses
source	<xs:element name="AddressLines" minOccurs="0">   <xs:annotation>     <xs:documentation>Patient's street, bost addresses</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="AddressLine" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Address, e.g. streetname and number, house numbre, postboks etc. TypeOfText is coding the type of adress, Valid values for TypeOfText are: STR = Streetname and number POB=Postbox CO= CO address GPS=GPS coordinates </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:complexContent>             <xs:extension base="TypeOfTextTypePatientWS">               <xs:sequence>                 <xs:element name="Sequence" type="xs:int" minOccurs="0">                   <xs:annotation>                     <xs:documentation>Sequence of address if several of same type, if sequence is important</xs:documentation>                   </xs:annotation>                 </xs:element>               </xs:sequence>             </xs:extension>           </xs:complexContent>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element AddressTypePatientWS/AddressLines/AddressLine

diagram
namespace	http://healthXML.org/PasLink
type	extension of TypeOfTextTypePatientWS
properties	minOcc  1 maxOcc  unbounded content  complex
children	TypeOfText Text Sequence
annotation	documentation Address, e.g. streetname and number, house numbre, postboks etc. TypeOfText is coding the type of adress, Valid values for TypeOfText are: STR = Streetname and number POB=Postbox CO= CO address GPS=GPS coordinates
source	<xs:element name="AddressLine" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Address, e.g. streetname and number, house numbre, postboks etc. TypeOfText is coding the type of adress, Valid values for TypeOfText are: STR = Streetname and number POB=Postbox CO= CO address GPS=GPS coordinates </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="TypeOfTextTypePatientWS">         <xs:sequence>           <xs:element name="Sequence" type="xs:int" minOccurs="0">             <xs:annotation>               <xs:documentation>Sequence of address if several of same type, if sequence is important</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element AddressTypePatientWS/AddressLines/AddressLine/Sequence

diagram
namespace	http://healthXML.org/PasLink
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Sequence of address if several of same type, if sequence is important
source	<xs:element name="Sequence" type="xs:int" minOccurs="0">   <xs:annotation>     <xs:documentation>Sequence of address if several of same type, if sequence is important</xs:documentation>   </xs:annotation> </xs:element>

element AddressTypePatientWS/PostalAddress

diagram
namespace	http://healthXML.org/PasLink
type	CodeNameTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code Name
annotation	documentation Patient'ss postal code and city
source	<xs:element name="PostalAddress" type="CodeNameTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Patient'ss postal code and city</xs:documentation>   </xs:annotation> </xs:element>

element AddressTypePatientWS/Country

diagram
namespace	http://healthXML.org/PasLink
type	CodeNameTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code Name
annotation	documentation Living country is given if the person is a foreigner. County, UrbanNeighbourhood and municipality is not given if country is given. HIS90: N/A No data field for patient living country in HIS90 PAS
source	<xs:element name="Country" type="CodeNameTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Living country is given if the person is a foreigner. County, UrbanNeighbourhood and municipality is not given if country is given. HIS90: N/A No data field for patient living country in HIS90 PAS</xs:documentation>   </xs:annotation> </xs:element>

complexType CodeNameTypePatientWS

diagram
namespace	http://healthXML.org/PasLink
children	Code Name
used by	elements  PersonalInformationTypePatientWS/BirthMunicipality AddressTypePatientWS/Country AddressTypeExtPatientWS/County AddressTypeExtPatientWS/Municipality AddressTypePatientWS/PostalAddress PatientTypePatientWS/Economy/SocialInsuranceNation AddressTypeExtPatientWS/UrbanNeighbourhood
source	<xs:complexType name="CodeNameTypePatientWS">   <xs:sequence>     <xs:element name="Code" type="xs:string"/>     <xs:element name="Name" type="xs:string"/>   </xs:sequence> </xs:complexType>

element CodeNameTypePatientWS/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element CodeNameTypePatientWS/Name

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Name" type="xs:string"/>

complexType CodeOfficialCodeTextTypePatientWS

diagram
namespace	http://healthXML.org/PasLink
children	Code OfficialCode Text
used by	elements  ListPatientsByOrgResponse/Patients/PatientOrg/PersonalInformation/Sex PersonalInformationTypePatientWS/Sex
annotation	documentation Code, OfficialCode and Text
source	<xs:complexType name="CodeOfficialCodeTextTypePatientWS">   <xs:annotation>     <xs:documentation>Code, OfficialCode and Text</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Code" type="xs:string"/>     <xs:element name="OfficialCode" type="xs:string" minOccurs="0"/>     <xs:element name="Text" type="xs:string"/>   </xs:sequence> </xs:complexType>

element CodeOfficialCodeTextTypePatientWS/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element CodeOfficialCodeTextTypePatientWS/OfficialCode

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="OfficialCode" type="xs:string" minOccurs="0"/>

element CodeOfficialCodeTextTypePatientWS/Text

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

complexType CodeTextTypeOfTypePatientWS

diagram
namespace	http://healthXML.org/PasLink
type	extension of CodeTextTypePatientWS
properties	base  CodeTextTypePatientWS
children	Code Text TypeOfCode
source	<xs:complexType name="CodeTextTypeOfTypePatientWS">   <xs:complexContent>     <xs:extension base="CodeTextTypePatientWS">       <xs:sequence>         <xs:element name="TypeOfCode" type="xs:string" minOccurs="0">           <xs:annotation>             <xs:documentation>The code set used, if any. Valid code sets can be found in CommonCodesWS.ListCommonCodes</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element CodeTextTypeOfTypePatientWS/TypeOfCode

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation The code set used, if any. Valid code sets can be found in CommonCodesWS.ListCommonCodes
source	<xs:element name="TypeOfCode" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>The code set used, if any. Valid code sets can be found in CommonCodesWS.ListCommonCodes</xs:documentation>   </xs:annotation> </xs:element>

complexType CodeTextTypePatientWS

diagram
namespace	http://healthXML.org/PasLink
children	Code Text
used by	elements  ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Admisssion/AdmissionType ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Admisssion/AdmittedFrom ListPatientsByOrgResponse/Patients/PatientOrg/Contact/TypeOfCare/Category ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Confidential ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Discharge/DischargedTo ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Discharge/DischargeType DecisionTypeForList/Group PersonalInformationTypePatientWS/Language PersonalInformationTypePatientWS/Nationality ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Status ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Status/TimeStatus ListPatientsByOrgResponse/Patients/PatientOrg/Contact/TypeOfCare ContactStatusType/Current/TypeOfCare complexType  CodeTextTypeOfTypePatientWS
annotation	documentation Code and Text
source	<xs:complexType name="CodeTextTypePatientWS">   <xs:annotation>     <xs:documentation>Code and Text</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Code" type="xs:string"/>     <xs:element name="Text" type="xs:string" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element CodeTextTypePatientWS/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element CodeTextTypePatientWS/Text

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Text" type="xs:string" minOccurs="0"/>

complexType ContactStatusType

diagram
namespace	http://healthXML.org/PasLink
children	Current
used by	element  PatientTypePatientWS/ContactStatus
source	<xs:complexType name="ContactStatusType">   <xs:choice>     <xs:element name="Current" minOccurs="0">       <xs:annotation>         <xs:documentation>Current contact, only displayed if patient is an active in-patient or has an out-patient registration same day as query is done. HIS90; Only contact/Stay from logged/current on PAS, nothing across PAS systems</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="ContactId" type="xs:string">             <xs:annotation>               <xs:documentation>ContactId HIS90: Combined Id</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="TypeOfCare" type="CodeTextTypePatientWS"/>           <xs:element name="Institution" type="OrganizationTypePatientWS" minOccurs="0">             <xs:annotation>               <xs:documentation>Institution for last contact</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="MedicalUnit" type="OrganizationTypePatientWS" minOccurs="0">             <xs:annotation>               <xs:documentation>Department/MedicalSpeciality</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="CareUnit" type="OrganizationTypePatientWS" minOccurs="0">             <xs:annotation>               <xs:documentation>Organization unit where the care is taking place</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:choice> </xs:complexType>

element ContactStatusType/Current

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	ContactId TypeOfCare Institution MedicalUnit CareUnit
annotation	documentation Current contact, only displayed if patient is an active in-patient or has an out-patient registration same day as query is done. HIS90; Only contact/Stay from logged/current on PAS, nothing across PAS systems
source	<xs:element name="Current" minOccurs="0">   <xs:annotation>     <xs:documentation>Current contact, only displayed if patient is an active in-patient or has an out-patient registration same day as query is done. HIS90; Only contact/Stay from logged/current on PAS, nothing across PAS systems</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="ContactId" type="xs:string">         <xs:annotation>           <xs:documentation>ContactId HIS90: Combined Id</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfCare" type="CodeTextTypePatientWS"/>       <xs:element name="Institution" type="OrganizationTypePatientWS" minOccurs="0">         <xs:annotation>           <xs:documentation>Institution for last contact</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="MedicalUnit" type="OrganizationTypePatientWS" minOccurs="0">         <xs:annotation>           <xs:documentation>Department/MedicalSpeciality</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="CareUnit" type="OrganizationTypePatientWS" minOccurs="0">         <xs:annotation>           <xs:documentation>Organization unit where the care is taking place</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element ContactStatusType/Current/ContactId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation ContactId HIS90: Combined Id
source	<xs:element name="ContactId" type="xs:string">   <xs:annotation>     <xs:documentation>ContactId HIS90: Combined Id</xs:documentation>   </xs:annotation> </xs:element>

element ContactStatusType/Current/TypeOfCare

diagram
namespace	http://healthXML.org/PasLink
type	CodeTextTypePatientWS
properties	content  complex
children	Code Text
source	<xs:element name="TypeOfCare" type="CodeTextTypePatientWS"/>

element ContactStatusType/Current/Institution

diagram
namespace	http://healthXML.org/PasLink
type	OrganizationTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name
annotation	documentation Institution for last contact
source	<xs:element name="Institution" type="OrganizationTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Institution for last contact</xs:documentation>   </xs:annotation> </xs:element>

element ContactStatusType/Current/MedicalUnit

diagram
namespace	http://healthXML.org/PasLink
type	OrganizationTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name
annotation	documentation Department/MedicalSpeciality
source	<xs:element name="MedicalUnit" type="OrganizationTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Department/MedicalSpeciality</xs:documentation>   </xs:annotation> </xs:element>

element ContactStatusType/Current/CareUnit

diagram
namespace	http://healthXML.org/PasLink
type	OrganizationTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name
annotation	documentation Organization unit where the care is taking place
source	<xs:element name="CareUnit" type="OrganizationTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Organization unit where the care is taking place</xs:documentation>   </xs:annotation> </xs:element>

complexType DecisionTypeForList

diagram
namespace	http://healthXML.org/PasLink
children	DecisionId Group Code Description ValidForcedDecisionsExists
used by	element  ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Decisions
source	<xs:complexType name="DecisionTypeForList">   <xs:sequence>     <xs:element name="DecisionId" type="xs:string">       <xs:annotation>         <xs:documentation>Decision id HIS90: Combined id PatientId|SerialNoDeci</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Group" type="CodeTextTypePatientWS" minOccurs="0">       <xs:annotation>         <xs:documentation>Describes which group this decision is releted to. E.g. RUS, PSYC Use CommonCodesWS.ListCommonCodes with CommonCodeTypes = DecisionGroup HIS90: DECI_GROUP</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Code" type="xs:string">       <xs:annotation>         <xs:documentation>Decision code. HIS90: DECI_CODE </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Description" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Description of the code HIS90: PAQPACO.DESC</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ValidForcedDecisionsExists" type="xs:boolean" minOccurs="0">       <xs:annotation>         <xs:documentation>Flag for if one or more valid forced/compulsory decisions exists</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element DecisionTypeForList/DecisionId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Decision id HIS90: Combined id PatientId|SerialNoDeci
source	<xs:element name="DecisionId" type="xs:string">   <xs:annotation>     <xs:documentation>Decision id HIS90: Combined id PatientId|SerialNoDeci</xs:documentation>   </xs:annotation> </xs:element>

element DecisionTypeForList/Group

diagram
namespace	http://healthXML.org/PasLink
type	CodeTextTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
annotation	documentation Describes which group this decision is releted to. E.g. RUS, PSYC Use CommonCodesWS.ListCommonCodes with CommonCodeTypes = DecisionGroup HIS90: DECI_GROUP
source	<xs:element name="Group" type="CodeTextTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Describes which group this decision is releted to. E.g. RUS, PSYC Use CommonCodesWS.ListCommonCodes with CommonCodeTypes = DecisionGroup HIS90: DECI_GROUP</xs:documentation>   </xs:annotation> </xs:element>

element DecisionTypeForList/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Decision code. HIS90: DECI_CODE
source	<xs:element name="Code" type="xs:string">   <xs:annotation>     <xs:documentation>Decision code. HIS90: DECI_CODE </xs:documentation>   </xs:annotation> </xs:element>

element DecisionTypeForList/Description

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Description of the code HIS90: PAQPACO.DESC
source	<xs:element name="Description" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Description of the code HIS90: PAQPACO.DESC</xs:documentation>   </xs:annotation> </xs:element>

element DecisionTypeForList/ValidForcedDecisionsExists

diagram
namespace	http://healthXML.org/PasLink
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Flag for if one or more valid forced/compulsory decisions exists
source	<xs:element name="ValidForcedDecisionsExists" type="xs:boolean" minOccurs="0">   <xs:annotation>     <xs:documentation>Flag for if one or more valid forced/compulsory decisions exists</xs:documentation>   </xs:annotation> </xs:element>

complexType IdCodeNameTypePatientWS

diagram
namespace	http://healthXML.org/PasLink
children	Id Code Name
used by	element  PersonalInformationTypePatientWS/ExternalDoctor
source	<xs:complexType name="IdCodeNameTypePatientWS">   <xs:sequence>     <xs:element name="Id" type="xs:int"/>     <xs:element name="Code" type="xs:string" minOccurs="0"/>     <xs:element name="Name" type="xs:string"/>   </xs:sequence> </xs:complexType>

element IdCodeNameTypePatientWS/Id

diagram
namespace	http://healthXML.org/PasLink
type	xs:int
properties	content  simple
source	<xs:element name="Id" type="xs:int"/>

element IdCodeNameTypePatientWS/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Code" type="xs:string" minOccurs="0"/>

element IdCodeNameTypePatientWS/Name

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Name" type="xs:string"/>

complexType IdOfPatientRequestTypeCollection

diagram
namespace	http://healthXML.org/PasLink
children	Id
used by	element  ListPatientsById2GRequest
source	<xs:complexType name="IdOfPatientRequestTypeCollection">   <xs:sequence>     <xs:element name="Id" maxOccurs="unbounded">       <xs:complexType>         <xs:choice>           <xs:element name="OfficialId">             <xs:annotation>               <xs:documentation>Official id. Can also be an emergency number.</xs:documentation>             </xs:annotation>             <xs:complexType>               <xs:sequence>                 <xs:element name="Value" type="xs:string">                   <xs:annotation>                     <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>                   </xs:annotation>                 </xs:element>                 <xs:element name="TypeOfId" type="xs:string">                   <xs:annotation>                     <xs:documentation>F = official id, N = Emergency number, K = Catastrophy number, U = Non human number</xs:documentation>                   </xs:annotation>                 </xs:element>               </xs:sequence>             </xs:complexType>           </xs:element>           <xs:element name="PatientId" type="xs:int">             <xs:annotation>               <xs:documentation>Internal patient id for the HIS</xs:documentation>             </xs:annotation>           </xs:element>         </xs:choice>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element IdOfPatientRequestTypeCollection/Id

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  1 maxOcc  unbounded content  complex
children	OfficialId PatientId
source	<xs:element name="Id" maxOccurs="unbounded">   <xs:complexType>     <xs:choice>       <xs:element name="OfficialId">         <xs:annotation>           <xs:documentation>Official id. Can also be an emergency number.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="Value" type="xs:string">               <xs:annotation>                 <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="TypeOfId" type="xs:string">               <xs:annotation>                 <xs:documentation>F = official id, N = Emergency number, K = Catastrophy number, U = Non human number</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="PatientId" type="xs:int">         <xs:annotation>           <xs:documentation>Internal patient id for the HIS</xs:documentation>         </xs:annotation>       </xs:element>     </xs:choice>   </xs:complexType> </xs:element>

element IdOfPatientRequestTypeCollection/Id/OfficialId

diagram
namespace	http://healthXML.org/PasLink
properties	content  complex
children	Value TypeOfId
annotation	documentation Official id. Can also be an emergency number.
source	<xs:element name="OfficialId">   <xs:annotation>     <xs:documentation>Official id. Can also be an emergency number.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Value" type="xs:string">         <xs:annotation>           <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfId" type="xs:string">         <xs:annotation>           <xs:documentation>F = official id, N = Emergency number, K = Catastrophy number, U = Non human number</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element IdOfPatientRequestTypeCollection/Id/OfficialId/Value

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.
source	<xs:element name="Value" type="xs:string">   <xs:annotation>     <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>   </xs:annotation> </xs:element>

element IdOfPatientRequestTypeCollection/Id/OfficialId/TypeOfId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation F = official id, N = Emergency number, K = Catastrophy number, U = Non human number
source	<xs:element name="TypeOfId" type="xs:string">   <xs:annotation>     <xs:documentation>F = official id, N = Emergency number, K = Catastrophy number, U = Non human number</xs:documentation>   </xs:annotation> </xs:element>

element IdOfPatientRequestTypeCollection/Id/PatientId

diagram
namespace	http://healthXML.org/PasLink
type	xs:int
properties	content  simple
annotation	documentation Internal patient id for the HIS
source	<xs:element name="PatientId" type="xs:int">   <xs:annotation>     <xs:documentation>Internal patient id for the HIS</xs:documentation>   </xs:annotation> </xs:element>

complexType NameTypePatientWS

diagram
namespace	http://healthXML.org/PasLink
children	FormattedName LastName MiddleName FirstName GivenName
used by	element  PatientTypePatientWS/Name
source	<xs:complexType name="NameTypePatientWS">   <xs:sequence>     <xs:element name="FormattedName" type="xs:string">       <xs:annotation>         <xs:documentation>The person's names formatted in one string according to national or application's rules.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="LastName" type="xs:string" minOccurs="0"/>     <xs:element name="MiddleName" type="xs:string" minOccurs="0"/>     <xs:element name="FirstName" type="xs:string" minOccurs="0"/>     <xs:element name="GivenName" type="xs:string" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element NameTypePatientWS/FormattedName

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation The person's names formatted in one string according to national or application's rules.
source	<xs:element name="FormattedName" type="xs:string">   <xs:annotation>     <xs:documentation>The person's names formatted in one string according to national or application's rules.</xs:documentation>   </xs:annotation> </xs:element>

element NameTypePatientWS/LastName

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="LastName" type="xs:string" minOccurs="0"/>

element NameTypePatientWS/MiddleName

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="MiddleName" type="xs:string" minOccurs="0"/>

element NameTypePatientWS/FirstName

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="FirstName" type="xs:string" minOccurs="0"/>

element NameTypePatientWS/GivenName

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="GivenName" type="xs:string" minOccurs="0"/>

complexType OrganizationTypePatientWS

diagram
namespace	http://healthXML.org/PasLink
children	Id TypeOfId ShortNameId Name
used by	elements  ListPatientsByOrgResponse/Patients/PatientOrg/Contact/CareGroup ListPatientsByOrgResponse/Patients/PatientOrg/Contact/CareUnit ContactStatusType/Current/CareUnit ContactStatusType/Current/Institution ListPatientsByOrgResponse/Patients/PatientOrg/Contact/MedicalUnit ContactStatusType/Current/MedicalUnit ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Placement/TemporaryUnit
annotation	documentation Type for the organizational unit and additional ids
source	<xs:complexType name="OrganizationTypePatientWS">   <xs:annotation>     <xs:documentation>Type for the organizational unit and additional ids</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:int"/>     <xs:element name="TypeOfId" type="xs:string"/>     <xs:element name="ShortNameId" type="xs:string"/>     <xs:element name="Name" type="xs:string" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element OrganizationTypePatientWS/Id

diagram
namespace	http://healthXML.org/PasLink
type	xs:int
properties	content  simple
source	<xs:element name="Id" type="xs:int"/>

element OrganizationTypePatientWS/TypeOfId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="TypeOfId" type="xs:string"/>

element OrganizationTypePatientWS/ShortNameId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="ShortNameId" type="xs:string"/>

element OrganizationTypePatientWS/Name

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Name" type="xs:string" minOccurs="0"/>

complexType OrganizationUnitType

diagram
namespace	http://healthXML.org/PasLink
children	Id TypeOfId ShortNameId Name
used by	elements  ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Admisssion/AdmittedFromUnit ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/CareUnit ListPatientsByOrgResponse/Patients/PatientOrg/Contact/Discharge/DischargedToUnit ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/MedicalUnit
annotation	documentation Type for a organization unit
source	<xs:complexType name="OrganizationUnitType">   <xs:annotation>     <xs:documentation>Type for a organization unit</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:string">       <xs:annotation>         <xs:documentation>Id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TypeOfId" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ShortNameId" type="xs:string" minOccurs="0"/>     <xs:element name="Name" type="xs:string" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element OrganizationUnitType/Id

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Id
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Id</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationUnitType/TypeOfId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id
source	<xs:element name="TypeOfId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationUnitType/ShortNameId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ShortNameId" type="xs:string" minOccurs="0"/>

element OrganizationUnitType/Name

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Name" type="xs:string" minOccurs="0"/>

complexType PatientFreepassType

diagram
namespace	http://healthXML.org/PasLink
children	Number ValidPeriod HaveFreepass
used by	element  PatientTypePatientWS/Economy/Freepass
source	<xs:complexType name="PatientFreepassType">   <xs:sequence>     <xs:element name="Number" type="xs:string" minOccurs="0"/>     <xs:element name="ValidPeriod" type="ValidDateType" minOccurs="0"/>     <xs:element name="HaveFreepass" type="xs:boolean" minOccurs="0">       <xs:annotation>         <xs:documentation>If Patient have freepass True = Have freepass False = Not freepass Missing/Blank = Not known if have freepass</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element PatientFreepassType/Number

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Number" type="xs:string" minOccurs="0"/>

element PatientFreepassType/ValidPeriod

diagram
namespace	http://healthXML.org/PasLink
type	ValidDateType
properties	minOcc  0 maxOcc  1 content  complex
children	FromDate ToDate
source	<xs:element name="ValidPeriod" type="ValidDateType" minOccurs="0"/>

element PatientFreepassType/HaveFreepass

diagram
namespace	http://healthXML.org/PasLink
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation If Patient have freepass True = Have freepass False = Not freepass Missing/Blank = Not known if have freepass
source	<xs:element name="HaveFreepass" type="xs:boolean" minOccurs="0">   <xs:annotation>     <xs:documentation>If Patient have freepass True = Have freepass False = Not freepass Missing/Blank = Not known if have freepass</xs:documentation>   </xs:annotation> </xs:element>

complexType PatientIdTypeExtPatientWS

diagram
namespace	http://healthXML.org/PasLink
type	extension of PatientIdTypePatientWS
properties	base  PatientIdTypePatientWS
children	OfficialId PatientId AdditionalIds
used by	element  PatientTypePatientWS/Id
source	<xs:complexType name="PatientIdTypeExtPatientWS">   <xs:complexContent>     <xs:extension base="PatientIdTypePatientWS">       <xs:sequence>         <xs:element name="AdditionalIds" type="PatientIdTypeOfIdType" minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>AdditionalIds if the patient have more than one internal id. (HIS90)</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element PatientIdTypeExtPatientWS/AdditionalIds

diagram
namespace	http://healthXML.org/PasLink
type	PatientIdTypeOfIdType
properties	minOcc  0 maxOcc  unbounded content  complex
children	Id TypeOfId FormattedId
annotation	documentation AdditionalIds if the patient have more than one internal id. (HIS90)
source	<xs:element name="AdditionalIds" type="PatientIdTypeOfIdType" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>AdditionalIds if the patient have more than one internal id. (HIS90)</xs:documentation>   </xs:annotation> </xs:element>

complexType PatientIdTypeOfIdType

diagram
namespace	http://healthXML.org/PasLink
children	Id TypeOfId FormattedId
used by	elements  PatientIdTypeExtPatientWS/AdditionalIds PatientIdTypePatientWS/OfficialId
annotation	documentation Type for Patient's OfficialId with TypeOfId coding. Also the formatted id can be presentend according to given formatting rules.
source	<xs:complexType name="PatientIdTypeOfIdType">   <xs:annotation>     <xs:documentation>Type for Patient's OfficialId with TypeOfId coding. Also the formatted id can be presentend according to given formatting rules.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Id" type="xs:string">       <xs:annotation>         <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TypeOfId" type="xs:string">       <xs:annotation>         <xs:documentation>F = official id H or N = Emergency number K = Catastrophy number U = Non human number D = D-number (Norway only) LOC= LocalId/PID/PatientId</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="FormattedId" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789. Only used when the Id have a special format.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element PatientIdTypeOfIdType/Id

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.</xs:documentation>   </xs:annotation> </xs:element>

element PatientIdTypeOfIdType/TypeOfId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation F = official id H or N = Emergency number K = Catastrophy number U = Non human number D = D-number (Norway only) LOC= LocalId/PID/PatientId
source	<xs:element name="TypeOfId" type="xs:string">   <xs:annotation>     <xs:documentation>F = official id H or N = Emergency number K = Catastrophy number U = Non human number D = D-number (Norway only) LOC= LocalId/PID/PatientId</xs:documentation>   </xs:annotation> </xs:element>

element PatientIdTypeOfIdType/FormattedId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789. Only used when the Id have a special format.
source	<xs:element name="FormattedId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789. Only used when the Id have a special format.</xs:documentation>   </xs:annotation> </xs:element>

complexType PatientIdTypePatientWS

diagram
namespace	http://healthXML.org/PasLink
children	OfficialId PatientId
used by	complexType  PatientIdTypeExtPatientWS
source	<xs:complexType name="PatientIdTypePatientWS">   <xs:sequence>     <xs:element name="OfficialId" type="PatientIdTypeOfIdType">       <xs:annotation>         <xs:documentation>Official id. Can also be an emergency number.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="PatientId" type="xs:int">       <xs:annotation>         <xs:documentation>Internal patient id for the HIS</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element PatientIdTypePatientWS/OfficialId

diagram
namespace	http://healthXML.org/PasLink
type	PatientIdTypeOfIdType
properties	content  complex
children	Id TypeOfId FormattedId
annotation	documentation Official id. Can also be an emergency number.
source	<xs:element name="OfficialId" type="PatientIdTypeOfIdType">   <xs:annotation>     <xs:documentation>Official id. Can also be an emergency number.</xs:documentation>   </xs:annotation> </xs:element>

element PatientIdTypePatientWS/PatientId

diagram
namespace	http://healthXML.org/PasLink
type	xs:int
properties	content  simple
annotation	documentation Internal patient id for the HIS
source	<xs:element name="PatientId" type="xs:int">   <xs:annotation>     <xs:documentation>Internal patient id for the HIS</xs:documentation>   </xs:annotation> </xs:element>

complexType PatientInfoListType

diagram
namespace	http://healthXML.org/PasLink
children	PatientId FormattedName BirthDate Dead Sex Municipality PostalAddress
used by	element  ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/PatientInfo
annotation	documentation Common Patient info type used in list methods. Please only use data as necessary to avoid big responses.
source	<xs:complexType name="PatientInfoListType">   <xs:annotation>     <xs:documentation>Common Patient info type used in list methods. Please only use data as necessary to avoid big responses.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="PatientId" type="xs:int">       <xs:annotation>         <xs:documentation>Internal patient id for the HIS</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="FormattedName" type="xs:string">       <xs:annotation>         <xs:documentation>The person's names formatted in one string according to national rules.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="BirthDate" type="xs:date" minOccurs="0">       <xs:annotation>         <xs:documentation>Birthdate including century</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Dead" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="DeathDate" type="xs:dateTime"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Sex" minOccurs="0">       <xs:annotation>         <xs:documentation>M = male, K = female, U=Unknown</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="xs:string"/>           <xs:element name="OfficialCode" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>1=Male, 2=Female, 9=Unknown</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="Text" type="xs:string"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Municipality" minOccurs="0">       <xs:annotation>         <xs:documentation>Municipality the patient belongs to. Economic Municipality</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="xs:string"/>           <xs:element name="Name" type="xs:string"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="PostalAddress" minOccurs="0">       <xs:annotation>         <xs:documentation>Postal code/address for the patient.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="xs:string"/>           <xs:element name="Name" type="xs:string"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element PatientInfoListType/PatientId

diagram
namespace	http://healthXML.org/PasLink
type	xs:int
properties	content  simple
annotation	documentation Internal patient id for the HIS
source	<xs:element name="PatientId" type="xs:int">   <xs:annotation>     <xs:documentation>Internal patient id for the HIS</xs:documentation>   </xs:annotation> </xs:element>

element PatientInfoListType/FormattedName

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation The person's names formatted in one string according to national rules.
source	<xs:element name="FormattedName" type="xs:string">   <xs:annotation>     <xs:documentation>The person's names formatted in one string according to national rules.</xs:documentation>   </xs:annotation> </xs:element>

element PatientInfoListType/BirthDate

diagram
namespace	http://healthXML.org/PasLink
type	xs:date
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Birthdate including century
source	<xs:element name="BirthDate" type="xs:date" minOccurs="0">   <xs:annotation>     <xs:documentation>Birthdate including century</xs:documentation>   </xs:annotation> </xs:element>

element PatientInfoListType/Dead

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	DeathDate
source	<xs:element name="Dead" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="DeathDate" type="xs:dateTime"/>     </xs:sequence>   </xs:complexType> </xs:element>

element PatientInfoListType/Dead/DeathDate

diagram
namespace	http://healthXML.org/PasLink
type	xs:dateTime
properties	content  simple
source	<xs:element name="DeathDate" type="xs:dateTime"/>

element PatientInfoListType/Sex

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	Code OfficialCode Text
annotation	documentation M = male, K = female, U=Unknown
source	<xs:element name="Sex" minOccurs="0">   <xs:annotation>     <xs:documentation>M = male, K = female, U=Unknown</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="OfficialCode" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>1=Male, 2=Female, 9=Unknown</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Text" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element PatientInfoListType/Sex/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element PatientInfoListType/Sex/OfficialCode

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation 1=Male, 2=Female, 9=Unknown
source	<xs:element name="OfficialCode" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>1=Male, 2=Female, 9=Unknown</xs:documentation>   </xs:annotation> </xs:element>

element PatientInfoListType/Sex/Text

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

element PatientInfoListType/Municipality

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	Code Name
annotation	documentation Municipality the patient belongs to. Economic Municipality
source	<xs:element name="Municipality" minOccurs="0">   <xs:annotation>     <xs:documentation>Municipality the patient belongs to. Economic Municipality</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Name" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element PatientInfoListType/Municipality/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element PatientInfoListType/Municipality/Name

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Name" type="xs:string"/>

element PatientInfoListType/PostalAddress

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	Code Name
annotation	documentation Postal code/address for the patient.
source	<xs:element name="PostalAddress" minOccurs="0">   <xs:annotation>     <xs:documentation>Postal code/address for the patient.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="xs:string"/>       <xs:element name="Name" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element PatientInfoListType/PostalAddress/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Code" type="xs:string"/>

element PatientInfoListType/PostalAddress/Name

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Name" type="xs:string"/>

complexType PatientInsuranceType

diagram
namespace	http://healthXML.org/PasLink
children	Id Type Text ValidPeriod InsuranceOffice
used by	element  PatientTypePatientWS/Economy/Insurance
source	<xs:complexType name="PatientInsuranceType">   <xs:sequence>     <xs:element name="Id" type="xs:string">       <xs:annotation>         <xs:documentation>Insurance card number or policy</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Type" type="xs:string">       <xs:annotation>         <xs:documentation>Type of card or policy</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Text" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Description of card or policy</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ValidPeriod" type="ValidDateType" minOccurs="0">       <xs:annotation>         <xs:documentation>Valid period for insurance</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="InsuranceOffice" minOccurs="0">       <xs:annotation>         <xs:documentation>Social security office, Inscurance company name,</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Id" type="xs:int"/>           <xs:element name="Name" type="xs:string"/>           <xs:element name="ForeignPatientId" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>External or foreign patient id related to the insurance</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element PatientInsuranceType/Id

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Insurance card number or policy
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Insurance card number or policy</xs:documentation>   </xs:annotation> </xs:element>

element PatientInsuranceType/Type

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Type of card or policy
source	<xs:element name="Type" type="xs:string">   <xs:annotation>     <xs:documentation>Type of card or policy</xs:documentation>   </xs:annotation> </xs:element>

element PatientInsuranceType/Text

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Description of card or policy
source	<xs:element name="Text" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Description of card or policy</xs:documentation>   </xs:annotation> </xs:element>

element PatientInsuranceType/ValidPeriod

diagram
namespace	http://healthXML.org/PasLink
type	ValidDateType
properties	minOcc  0 maxOcc  1 content  complex
children	FromDate ToDate
annotation	documentation Valid period for insurance
source	<xs:element name="ValidPeriod" type="ValidDateType" minOccurs="0">   <xs:annotation>     <xs:documentation>Valid period for insurance</xs:documentation>   </xs:annotation> </xs:element>

element PatientInsuranceType/InsuranceOffice

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	Id Name ForeignPatientId
annotation	documentation Social security office, Inscurance company name,
source	<xs:element name="InsuranceOffice" minOccurs="0">   <xs:annotation>     <xs:documentation>Social security office, Inscurance company name,</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:int"/>       <xs:element name="Name" type="xs:string"/>       <xs:element name="ForeignPatientId" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>External or foreign patient id related to the insurance</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element PatientInsuranceType/InsuranceOffice/Id

diagram
namespace	http://healthXML.org/PasLink
type	xs:int
properties	content  simple
source	<xs:element name="Id" type="xs:int"/>

element PatientInsuranceType/InsuranceOffice/Name

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Name" type="xs:string"/>

element PatientInsuranceType/InsuranceOffice/ForeignPatientId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation External or foreign patient id related to the insurance
source	<xs:element name="ForeignPatientId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>External or foreign patient id related to the insurance</xs:documentation>   </xs:annotation> </xs:element>

complexType PatientListTypePatientWS

diagram
namespace	http://healthXML.org/PasLink
children	Patient
used by	element  ListPatientsById2GResponse/Patients
source	<xs:complexType name="PatientListTypePatientWS">   <xs:sequence>     <xs:element name="Patient" type="PatientTypePatientWS" minOccurs="0" maxOccurs="unbounded"/>   </xs:sequence> </xs:complexType>

element PatientListTypePatientWS/Patient

diagram
namespace	http://healthXML.org/PasLink
type	PatientTypePatientWS
properties	minOcc  0 maxOcc  unbounded content  complex
children	Id Name Address Telecom PersonalInformation Economy ContactStatus
source	<xs:element name="Patient" type="PatientTypePatientWS" minOccurs="0" maxOccurs="unbounded"/>

complexType PatientTypePatientWS

diagram
namespace	http://healthXML.org/PasLink
children	Id Name Address Telecom PersonalInformation Economy ContactStatus
used by	element  PatientListTypePatientWS/Patient
source	<xs:complexType name="PatientTypePatientWS">   <xs:sequence>     <xs:element name="Id" type="PatientIdTypeExtPatientWS">       <xs:annotation>         <xs:documentation>Patient's ids</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Name" type="NameTypePatientWS">       <xs:annotation>         <xs:documentation>Patient's name</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Address" minOccurs="0">       <xs:annotation>         <xs:documentation>Addresses for the patient. E.g. primaray address where he/she is living</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:complexContent>           <xs:extension base="AddressTypeExtPatientWS">             <xs:sequence>               <xs:element name="AddiotionalAddresses" type="AddressTypeAdditionalTypePatientWS" minOccurs="0" maxOccurs="unbounded">                 <xs:annotation>                   <xs:documentation>Additional address for the patient HIS90: Not used</xs:documentation>                 </xs:annotation>               </xs:element>             </xs:sequence>           </xs:extension>         </xs:complexContent>       </xs:complexType>     </xs:element>     <xs:element name="Telecom" type="TelecomTypePatientWS" minOccurs="0">       <xs:annotation>         <xs:documentation>Telecom addresses. Telphonenumbers, email adresses</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="PersonalInformation" type="PersonalInformationTypePatientWS" minOccurs="0">       <xs:annotation>         <xs:documentation>Other information related to the patient</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Economy" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="SocialInsuranceNation" type="CodeNameTypePatientWS" minOccurs="0">             <xs:annotation>               <xs:documentation>Social insurance nation, paying country. HIS90: PAQPERS.NATIONALITY</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="Freepass" type="PatientFreepassType" minOccurs="0">             <xs:annotation>               <xs:documentation>Patents freepass Missing/Blank = Not known if have freepass</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="Insurance" type="PatientInsuranceType" minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:documentation>Patients inscurance or EHIC(EU Health Insurance Card)</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="ContactStatus" type="ContactStatusType" minOccurs="0">       <xs:annotation>         <xs:documentation>Contact status for patient. Current or previous.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element PatientTypePatientWS/Id

diagram
namespace	http://healthXML.org/PasLink
type	PatientIdTypeExtPatientWS
properties	content  complex
children	OfficialId PatientId AdditionalIds
annotation	documentation Patient's ids
source	<xs:element name="Id" type="PatientIdTypeExtPatientWS">   <xs:annotation>     <xs:documentation>Patient's ids</xs:documentation>   </xs:annotation> </xs:element>

element PatientTypePatientWS/Name

diagram
namespace	http://healthXML.org/PasLink
type	NameTypePatientWS
properties	content  complex
children	FormattedName LastName MiddleName FirstName GivenName
annotation	documentation Patient's name
source	<xs:element name="Name" type="NameTypePatientWS">   <xs:annotation>     <xs:documentation>Patient's name</xs:documentation>   </xs:annotation> </xs:element>

element PatientTypePatientWS/Address

diagram
namespace	http://healthXML.org/PasLink
type	extension of AddressTypeExtPatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	AddressLines PostalAddress Country County Municipality UrbanNeighbourhood AddiotionalAddresses
annotation	documentation Addresses for the patient. E.g. primaray address where he/she is living
source	<xs:element name="Address" minOccurs="0">   <xs:annotation>     <xs:documentation>Addresses for the patient. E.g. primaray address where he/she is living</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="AddressTypeExtPatientWS">         <xs:sequence>           <xs:element name="AddiotionalAddresses" type="AddressTypeAdditionalTypePatientWS" minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:documentation>Additional address for the patient HIS90: Not used</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element PatientTypePatientWS/Address/AddiotionalAddresses

diagram
namespace	http://healthXML.org/PasLink
type	AddressTypeAdditionalTypePatientWS
properties	minOcc  0 maxOcc  unbounded content  complex
children	AddressLines PostalAddress Country AddressType
annotation	documentation Additional address for the patient HIS90: Not used
source	<xs:element name="AddiotionalAddresses" type="AddressTypeAdditionalTypePatientWS" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Additional address for the patient HIS90: Not used</xs:documentation>   </xs:annotation> </xs:element>

element PatientTypePatientWS/Telecom

diagram
namespace	http://healthXML.org/PasLink
type	TelecomTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Telephones EMails
annotation	documentation Telecom addresses. Telphonenumbers, email adresses
source	<xs:element name="Telecom" type="TelecomTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Telecom addresses. Telphonenumbers, email adresses</xs:documentation>   </xs:annotation> </xs:element>

element PatientTypePatientWS/PersonalInformation

diagram
namespace	http://healthXML.org/PasLink
type	PersonalInformationTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	BirthDate BirthMunicipality Sex Dead Nationality Language ExternalDoctor
annotation	documentation Other information related to the patient
source	<xs:element name="PersonalInformation" type="PersonalInformationTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Other information related to the patient</xs:documentation>   </xs:annotation> </xs:element>

element PatientTypePatientWS/Economy

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	SocialInsuranceNation Freepass Insurance
source	<xs:element name="Economy" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="SocialInsuranceNation" type="CodeNameTypePatientWS" minOccurs="0">         <xs:annotation>           <xs:documentation>Social insurance nation, paying country. HIS90: PAQPERS.NATIONALITY</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Freepass" type="PatientFreepassType" minOccurs="0">         <xs:annotation>           <xs:documentation>Patents freepass Missing/Blank = Not known if have freepass</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Insurance" type="PatientInsuranceType" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Patients inscurance or EHIC(EU Health Insurance Card)</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element PatientTypePatientWS/Economy/SocialInsuranceNation

diagram
namespace	http://healthXML.org/PasLink
type	CodeNameTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code Name
annotation	documentation Social insurance nation, paying country. HIS90: PAQPERS.NATIONALITY
source	<xs:element name="SocialInsuranceNation" type="CodeNameTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Social insurance nation, paying country. HIS90: PAQPERS.NATIONALITY</xs:documentation>   </xs:annotation> </xs:element>

element PatientTypePatientWS/Economy/Freepass

diagram
namespace	http://healthXML.org/PasLink
type	PatientFreepassType
properties	minOcc  0 maxOcc  1 content  complex
children	Number ValidPeriod HaveFreepass
annotation	documentation Patents freepass Missing/Blank = Not known if have freepass
source	<xs:element name="Freepass" type="PatientFreepassType" minOccurs="0">   <xs:annotation>     <xs:documentation>Patents freepass Missing/Blank = Not known if have freepass</xs:documentation>   </xs:annotation> </xs:element>

element PatientTypePatientWS/Economy/Insurance

diagram
namespace	http://healthXML.org/PasLink
type	PatientInsuranceType
properties	minOcc  0 maxOcc  unbounded content  complex
children	Id Type Text ValidPeriod InsuranceOffice
annotation	documentation Patients inscurance or EHIC(EU Health Insurance Card)
source	<xs:element name="Insurance" type="PatientInsuranceType" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Patients inscurance or EHIC(EU Health Insurance Card)</xs:documentation>   </xs:annotation> </xs:element>

element PatientTypePatientWS/ContactStatus

diagram
namespace	http://healthXML.org/PasLink
type	ContactStatusType
properties	minOcc  0 maxOcc  1 content  complex
children	Current
annotation	documentation Contact status for patient. Current or previous.
source	<xs:element name="ContactStatus" type="ContactStatusType" minOccurs="0">   <xs:annotation>     <xs:documentation>Contact status for patient. Current or previous.</xs:documentation>   </xs:annotation> </xs:element>

complexType PersonalInformationTypePatientWS

diagram
namespace	http://healthXML.org/PasLink
children	BirthDate BirthMunicipality Sex Dead Nationality Language ExternalDoctor
used by	element  PatientTypePatientWS/PersonalInformation
source	<xs:complexType name="PersonalInformationTypePatientWS">   <xs:sequence>     <xs:element name="BirthDate" type="xs:date" minOccurs="0">       <xs:annotation>         <xs:documentation>Birthdate of person</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="BirthMunicipality" type="CodeNameTypePatientWS" minOccurs="0">       <xs:annotation>         <xs:documentation>Patient's birth municiplaity</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Sex" type="CodeOfficialCodeTextTypePatientWS" minOccurs="0">       <xs:annotation>         <xs:documentation>Person's sex M = male, K = female</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Dead" minOccurs="0">       <xs:annotation>         <xs:documentation>Death date of person, only set if dead</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="DeathDate" type="xs:dateTime"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Nationality" type="CodeTextTypePatientWS" minOccurs="0">       <xs:annotation>         <xs:documentation>Nationality of person HIS90: Not in HIS90</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Language" type="CodeTextTypePatientWS" minOccurs="0">       <xs:annotation>         <xs:documentation>Primary language of person</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ExternalDoctor" type="IdCodeNameTypePatientWS" minOccurs="0">       <xs:annotation>         <xs:documentation>External doctor Norway: Fastlege HIS90: PAQPRMK where DEPT_NO=0</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element PersonalInformationTypePatientWS/BirthDate

diagram
namespace	http://healthXML.org/PasLink
type	xs:date
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Birthdate of person
source	<xs:element name="BirthDate" type="xs:date" minOccurs="0">   <xs:annotation>     <xs:documentation>Birthdate of person</xs:documentation>   </xs:annotation> </xs:element>

element PersonalInformationTypePatientWS/BirthMunicipality

diagram
namespace	http://healthXML.org/PasLink
type	CodeNameTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code Name
annotation	documentation Patient's birth municiplaity
source	<xs:element name="BirthMunicipality" type="CodeNameTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Patient's birth municiplaity</xs:documentation>   </xs:annotation> </xs:element>

element PersonalInformationTypePatientWS/Sex

diagram
namespace	http://healthXML.org/PasLink
type	CodeOfficialCodeTextTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code OfficialCode Text
annotation	documentation Person's sex M = male, K = female
source	<xs:element name="Sex" type="CodeOfficialCodeTextTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Person's sex M = male, K = female</xs:documentation>   </xs:annotation> </xs:element>

element PersonalInformationTypePatientWS/Dead

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	DeathDate
annotation	documentation Death date of person, only set if dead
source	<xs:element name="Dead" minOccurs="0">   <xs:annotation>     <xs:documentation>Death date of person, only set if dead</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="DeathDate" type="xs:dateTime"/>     </xs:sequence>   </xs:complexType> </xs:element>

element PersonalInformationTypePatientWS/Dead/DeathDate

diagram
namespace	http://healthXML.org/PasLink
type	xs:dateTime
properties	content  simple
source	<xs:element name="DeathDate" type="xs:dateTime"/>

element PersonalInformationTypePatientWS/Nationality

diagram
namespace	http://healthXML.org/PasLink
type	CodeTextTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
annotation	documentation Nationality of person HIS90: Not in HIS90
source	<xs:element name="Nationality" type="CodeTextTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Nationality of person HIS90: Not in HIS90</xs:documentation>   </xs:annotation> </xs:element>

element PersonalInformationTypePatientWS/Language

diagram
namespace	http://healthXML.org/PasLink
type	CodeTextTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Code Text
annotation	documentation Primary language of person
source	<xs:element name="Language" type="CodeTextTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>Primary language of person</xs:documentation>   </xs:annotation> </xs:element>

element PersonalInformationTypePatientWS/ExternalDoctor

diagram
namespace	http://healthXML.org/PasLink
type	IdCodeNameTypePatientWS
properties	minOcc  0 maxOcc  1 content  complex
children	Id Code Name
annotation	documentation External doctor Norway: Fastlege HIS90: PAQPRMK where DEPT_NO=0
source	<xs:element name="ExternalDoctor" type="IdCodeNameTypePatientWS" minOccurs="0">   <xs:annotation>     <xs:documentation>External doctor Norway: Fastlege HIS90: PAQPRMK where DEPT_NO=0</xs:documentation>   </xs:annotation> </xs:element>

complexType RequesterType

diagram
namespace	http://healthXML.org/PasLink
children	Organization Physician
used by	element  ListPatientsByOrgResponse/Patients/PatientOrg/Contact/RequestFrom
annotation	documentation Type for requester
source	<xs:complexType name="RequesterType">   <xs:annotation>     <xs:documentation>Type for requester</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Organization" minOccurs="0">       <xs:annotation>         <xs:documentation>The orginal organization for the requester</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Id" type="xs:string">             <xs:annotation>               <xs:documentation>Id</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="TypeOfId" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="ShortNameId" type="xs:string" minOccurs="0"/>           <xs:element name="Name" type="xs:string" minOccurs="0"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="Physician" minOccurs="0">       <xs:annotation>         <xs:documentation>The orginal physician who made the request.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Id" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Internal Id Mandatory only for internal requester, optional for external physicain.</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="TypeOfId" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown local id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="Code" type="xs:string" minOccurs="0"/>           <xs:element name="Name" type="xs:string"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element RequesterType/Organization

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId ShortNameId Name
annotation	documentation The orginal organization for the requester
source	<xs:element name="Organization" minOccurs="0">   <xs:annotation>     <xs:documentation>The orginal organization for the requester</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string">         <xs:annotation>           <xs:documentation>Id</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfId" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ShortNameId" type="xs:string" minOccurs="0"/>       <xs:element name="Name" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element RequesterType/Organization/Id

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Id
source	<xs:element name="Id" type="xs:string">   <xs:annotation>     <xs:documentation>Id</xs:documentation>   </xs:annotation> </xs:element>

element RequesterType/Organization/TypeOfId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id
source	<xs:element name="TypeOfId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown lLocal id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>   </xs:annotation> </xs:element>

element RequesterType/Organization/ShortNameId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ShortNameId" type="xs:string" minOccurs="0"/>

element RequesterType/Organization/Name

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Name" type="xs:string" minOccurs="0"/>

element RequesterType/Physician

diagram
namespace	http://healthXML.org/PasLink
properties	minOcc  0 maxOcc  1 content  complex
children	Id TypeOfId Code Name
annotation	documentation The orginal physician who made the request.
source	<xs:element name="Physician" minOccurs="0">   <xs:annotation>     <xs:documentation>The orginal physician who made the request.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Id" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Internal Id Mandatory only for internal requester, optional for external physicain.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="TypeOfId" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown local id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Code" type="xs:string" minOccurs="0"/>       <xs:element name="Name" type="xs:string"/>     </xs:sequence>   </xs:complexType> </xs:element>

element RequesterType/Physician/Id

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Internal Id Mandatory only for internal requester, optional for external physicain.
source	<xs:element name="Id" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Internal Id Mandatory only for internal requester, optional for external physicain.</xs:documentation>   </xs:annotation> </xs:element>

element RequesterType/Physician/TypeOfId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Type of Id as defined by PAS. Empty/LOC = Unkown local id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id
source	<xs:element name="TypeOfId" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Type of Id as defined by PAS. Empty/LOC = Unkown local id in PAS LIN = Local institution id LAV = Local medical unit /department id LEN = Local care unit id LUI = Local Unique Id HER = HER id</xs:documentation>   </xs:annotation> </xs:element>

element RequesterType/Physician/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Code" type="xs:string" minOccurs="0"/>

element RequesterType/Physician/Name

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Name" type="xs:string"/>

complexType ResourceTypePatient

diagram
namespace	http://healthXML.org/PasLink
children	ResourceId TypeOfId Code Name Property
used by	element  ListPatientsByResourceResponse/ResourcePatients/ResourcePatient/Booking/BookedResource
source	<xs:complexType name="ResourceTypePatient">   <xs:sequence>     <xs:element name="ResourceId" type="xs:string">       <xs:annotation>         <xs:documentation>Internal Id</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TypeOfId" type="xs:string">       <xs:annotation>         <xs:documentation>Type of Id For internal id set to LRC</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Code" type="xs:string" minOccurs="0"/>     <xs:element name="Name" type="xs:string" minOccurs="0"/>     <xs:element name="Property" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Resource type</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element ResourceTypePatient/ResourceId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Internal Id
source	<xs:element name="ResourceId" type="xs:string">   <xs:annotation>     <xs:documentation>Internal Id</xs:documentation>   </xs:annotation> </xs:element>

element ResourceTypePatient/TypeOfId

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
annotation	documentation Type of Id For internal id set to LRC
source	<xs:element name="TypeOfId" type="xs:string">   <xs:annotation>     <xs:documentation>Type of Id For internal id set to LRC</xs:documentation>   </xs:annotation> </xs:element>

element ResourceTypePatient/Code

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Code" type="xs:string" minOccurs="0"/>

element ResourceTypePatient/Name

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Name" type="xs:string" minOccurs="0"/>

element ResourceTypePatient/Property

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Resource type
source	<xs:element name="Property" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Resource type</xs:documentation>   </xs:annotation> </xs:element>

complexType TelecomTypePatientWS

diagram
namespace	http://healthXML.org/PasLink
children	Telephones EMails
used by	element  PatientTypePatientWS/Telecom
source	<xs:complexType name="TelecomTypePatientWS">   <xs:sequence>     <xs:element name="Telephones" minOccurs="0" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>Telephone numbers Valid TypeOfText values are: H Hjemme eller ukjent MC Mobiltelefon  HV Ferietelefon  F Fax Telefaks WC Arbeidsplass sentralbord WP Arbeidsplass</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:complexContent>           <xs:extension base="TelecomValueTypePatientWS">             <xs:sequence>               <xs:element name="Extension" type="xs:string" minOccurs="0">                 <xs:annotation>                   <xs:documentation>Extension on phone number if aplicable</xs:documentation>                 </xs:annotation>               </xs:element>             </xs:sequence>           </xs:extension>         </xs:complexContent>       </xs:complexType>     </xs:element>     <xs:element name="EMails" type="TelecomValueTypePatientWS" minOccurs="0" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>Email addresses Valid TypeOfText values are: EM Hjemme eller ukjent EMH Email home/private EMW Email work</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element TelecomTypePatientWS/Telephones

diagram
namespace	http://healthXML.org/PasLink
type	extension of TelecomValueTypePatientWS
properties	minOcc  0 maxOcc  unbounded content  complex
children	TypeOfText Text Reservation Extension
annotation	documentation Telephone numbers Valid TypeOfText values are: H Hjemme eller ukjent MC Mobiltelefon  HV Ferietelefon  F Fax Telefaks WC Arbeidsplass sentralbord WP Arbeidsplass
source	<xs:element name="Telephones" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Telephone numbers Valid TypeOfText values are: H Hjemme eller ukjent MC Mobiltelefon  HV Ferietelefon  F Fax Telefaks WC Arbeidsplass sentralbord WP Arbeidsplass</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="TelecomValueTypePatientWS">         <xs:sequence>           <xs:element name="Extension" type="xs:string" minOccurs="0">             <xs:annotation>               <xs:documentation>Extension on phone number if aplicable</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

element TelecomTypePatientWS/Telephones/Extension

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Extension on phone number if aplicable
source	<xs:element name="Extension" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Extension on phone number if aplicable</xs:documentation>   </xs:annotation> </xs:element>

element TelecomTypePatientWS/EMails

diagram
namespace	http://healthXML.org/PasLink
type	TelecomValueTypePatientWS
properties	minOcc  0 maxOcc  unbounded content  complex
children	TypeOfText Text Reservation
annotation	documentation Email addresses Valid TypeOfText values are: EM Hjemme eller ukjent EMH Email home/private EMW Email work
source	<xs:element name="EMails" type="TelecomValueTypePatientWS" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Email addresses Valid TypeOfText values are: EM Hjemme eller ukjent EMH Email home/private EMW Email work</xs:documentation>   </xs:annotation> </xs:element>

complexType TelecomValueTypePatientWS

diagram
namespace	http://healthXML.org/PasLink
type	extension of TypeOfTextTypePatientWS
properties	base  TypeOfTextTypePatientWS
children	TypeOfText Text Reservation
used by	elements  TelecomTypePatientWS/EMails TelecomTypePatientWS/Telephones
source	<xs:complexType name="TelecomValueTypePatientWS">   <xs:complexContent>     <xs:extension base="TypeOfTextTypePatientWS">       <xs:sequence>         <xs:element name="Reservation" type="xs:boolean" minOccurs="0">           <xs:annotation>             <xs:documentation>Set to true if the patients has reservations about using his telephone number/email address</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element TelecomValueTypePatientWS/Reservation

diagram
namespace	http://healthXML.org/PasLink
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Set to true if the patients has reservations about using his telephone number/email address
source	<xs:element name="Reservation" type="xs:boolean" minOccurs="0">   <xs:annotation>     <xs:documentation>Set to true if the patients has reservations about using his telephone number/email address</xs:documentation>   </xs:annotation> </xs:element>

complexType TypeOfTextTypePatientWS

diagram
namespace	http://healthXML.org/PasLink
children	TypeOfText Text
used by	element  AddressTypePatientWS/AddressLines/AddressLine complexType  TelecomValueTypePatientWS
source	<xs:complexType name="TypeOfTextTypePatientWS">   <xs:sequence>     <xs:element name="TypeOfText" type="xs:string"/>     <xs:element name="Text" type="xs:string"/>   </xs:sequence> </xs:complexType>

element TypeOfTextTypePatientWS/TypeOfText

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="TypeOfText" type="xs:string"/>

element TypeOfTextTypePatientWS/Text

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Text" type="xs:string"/>

complexType ValidDateType

diagram
namespace	http://healthXML.org/PasLink
children	FromDate ToDate
used by	elements  PatientFreepassType/ValidPeriod PatientInsuranceType/ValidPeriod
annotation	documentation Type for valid date(and time) form and to
source	<xs:complexType name="ValidDateType">   <xs:annotation>     <xs:documentation>Type for valid date(and time) form and to</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="FromDate" type="xs:dateTime" minOccurs="0"/>     <xs:element name="ToDate" type="xs:dateTime" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element ValidDateType/FromDate

diagram
namespace	http://healthXML.org/PasLink
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="FromDate" type="xs:dateTime" minOccurs="0"/>

element ValidDateType/ToDate

diagram
namespace	http://healthXML.org/PasLink
type	xs:dateTime
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ToDate" type="xs:dateTime" minOccurs="0"/>

complexType ValidDateType2

diagram
namespace	http://healthXML.org/PasLink
children	ValidFrom ValidTo
used by	element  GetUpdatedPatientFreepassResponse/ValidPeriod
source	<xs:complexType name="ValidDateType2">   <xs:sequence>     <xs:element name="ValidFrom" type="xs:date" minOccurs="0"/>     <xs:element name="ValidTo" type="xs:date"/>   </xs:sequence> </xs:complexType>

element ValidDateType2/ValidFrom

diagram
namespace	http://healthXML.org/PasLink
type	xs:date
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ValidFrom" type="xs:date" minOccurs="0"/>

element ValidDateType2/ValidTo

diagram
namespace	http://healthXML.org/PasLink
type	xs:date
properties	content  simple
source	<xs:element name="ValidTo" type="xs:date"/>

complexType ValueTypeOfTypePatientWS

diagram
namespace	http://healthXML.org/PasLink
children	TypeOfValue Value
source	<xs:complexType name="ValueTypeOfTypePatientWS">   <xs:sequence>     <xs:element name="TypeOfValue" type="xs:int"/>     <xs:element name="Value" type="xs:string"/>   </xs:sequence> </xs:complexType>

element ValueTypeOfTypePatientWS/TypeOfValue

diagram
namespace	http://healthXML.org/PasLink
type	xs:int
properties	content  simple
source	<xs:element name="TypeOfValue" type="xs:int"/>

element ValueTypeOfTypePatientWS/Value

diagram
namespace	http://healthXML.org/PasLink
type	xs:string
properties	content  simple
source	<xs:element name="Value" type="xs:string"/>

simpleType PatientsByResourceFilterType

namespace	http://healthXML.org/PasLink
type	restriction of xs:string
properties	base  xs:string
used by	element  ListPatientsByResourceRequest/PatientsByResourceFilter
facets	Kind  Value  Annotation enumeration  ALL enumeration  EXCLUDE_BOOKED enumeration  EXCLUDE_BOOKED_TODAY
source	<xs:simpleType name="PatientsByResourceFilterType">   <xs:restriction base="xs:string">     <xs:enumeration value="ALL"/>     <xs:enumeration value="EXCLUDE_BOOKED"/>     <xs:enumeration value="EXCLUDE_BOOKED_TODAY"/>   </xs:restriction> </xs:simpleType>

simpleType ResponseElement

namespace	http://healthXML.org/PasLink
type	restriction of xs:string
properties	base  xs:string
used by	element  ListPatientsByOrgRequest/ResponseElements/Elements/Element
facets	Kind  Value  Annotation enumeration  Patient_Contact_All enumeration  Patient_Contact_MedicalUnit enumeration  Patient_Contact_CareGroup enumeration  Patient_Contact_Section enumeration  Patient_Contact_CareUnit enumeration  Patient_Contact_Placement enumeration  Patient_Contact_Leave enumeration  Patient_Contact_CareResponsible enumeration  Patient_Contact_PatientResponsible enumeration  Patient_Contact_Confidenatial
annotation	documentation Enumerator for å velge elementer i ListPatientsByOrgResponse som skal returneres
source	<xs:simpleType name="ResponseElement">   <xs:annotation>     <xs:documentation>Enumerator for å velge elementer i ListPatientsByOrgResponse som skal returneres</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:enumeration value="Patient_Contact_All"/>     <xs:enumeration value="Patient_Contact_MedicalUnit"/>     <xs:enumeration value="Patient_Contact_CareGroup"/>     <xs:enumeration value="Patient_Contact_Section"/>     <xs:enumeration value="Patient_Contact_CareUnit"/>     <xs:enumeration value="Patient_Contact_Placement"/>     <xs:enumeration value="Patient_Contact_Leave"/>     <xs:enumeration value="Patient_Contact_CareResponsible"/>     <xs:enumeration value="Patient_Contact_PatientResponsible"/>     <xs:enumeration value="Patient_Contact_Confidenatial"/>   </xs:restriction> </xs:simpleType>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
