Schema SimplePatient.xsd

schema location:	..\..\SimplePatient.xsd

Elements

SimplePatient

schema location:	..\..\Include\PersonBasicTypes.xsd

Complex types

PatientEconomicAddressBaseType

PatientEconomicAddressType

PatientIdFormattedType

PatientIdType

PersonAddressExtType

PersonAddressType

PersonalInformationBaseType

PersonalInformationExt1Type

PersonalInformationExt2Type

PersonalInformationExt3Type

PersonIdType

PersonNamesType

PersonNameType

PersonRegisterAddressBaseType

PersonRegisterAddressType

PersonTelecomType

schema location:	..\..\Include\CommonBasicTypes.xsd

Complex types

CodeNameType

CodeOfficialCodeTextType

CodeTextType

IdCodeNameType

IdCodeOfficialCodeTextType

IdCodeShortAndLongTextType

IdCodeTextType

IdCodeType

IdNameType

IdShortAndLongTextType

schema location:	..\..\Include\OrgBasicTypes.xsd

Complex types

ExternalOrganizationType

OrganizationType

ResourceType

element SimplePatient

diagram

children

Id Name Address Economy PersonalInformation

annotation

documentation

Simple patient schema typically used for listing patients.

element SimplePatient/Id

diagram
type	PatientIdType
children	OfficialId PatientId

element SimplePatient/Name

diagram
type	PersonNameType
children	FormattedName

element SimplePatient/Address

diagram
type	PersonAddressType
children	AddressLines PostalAddress

element SimplePatient/Economy

diagram
children	EconomicAddress

element SimplePatient/Economy/EconomicAddress

diagram
type	PatientEconomicAddressBaseType
children	County Municipality UrbanNeighbourhood Country

element SimplePatient/PersonalInformation

diagram
type	PersonalInformationExt1Type
children	BirthDate PersonNumber BirthCentury Sex Dead

complexType PatientEconomicAddressBaseType

diagram

children

County Municipality UrbanNeighbourhood Country

used by

element	SimplePatient/Economy/EconomicAddress
complexType	PatientEconomicAddressType

annotation

documentation

Patient economic address base

element PatientEconomicAddressBaseType/County

diagram
type	CodeNameType
children	Code Name

element PatientEconomicAddressBaseType/Municipality

diagram
type	CodeNameType
children	Code Name

element PatientEconomicAddressBaseType/UrbanNeighbourhood

diagram
type	CodeNameType
children	Code Name

element PatientEconomicAddressBaseType/Country

Country is given if the person is a foreigner. County and municipality is not given if country is given. This is used for economic purposes.

complexType PatientEconomicAddressType

diagram

type

extension of PatientEconomicAddressBaseType

children

County Municipality UrbanNeighbourhood Country HouseProperty District BillingDistrict

annotation

documentation

Patient economic address

element PatientEconomicAddressType/HouseProperty

For Swedish persons only

element PatientEconomicAddressType/District

For Swedish persons only

element PatientEconomicAddressType/BillingDistrict

For Swedish persons only

complexType PatientIdFormattedType

Patient ID, Official ID formatted

element PatientIdFormattedType/PatientId

Internal patient id for the HIS

element PatientIdFormattedType/OfficialId

Official id. Can also be an emergency number.

element PatientIdFormattedType/OfficialId/FormattedId

The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.

complexType PatientIdType

diagram

type

extension of PersonIdType

Patient id's

element PatientIdType/PatientId

Internal patient id for the HIS

complexType PersonAddressExtType

diagram

type

extension of PersonAddressType

children

AddressLines PostalAddress Country Municipality

annotation

documentation

Incl. municipality and country

element PersonAddressExtType/Country

diagram
type	xs:string

element PersonAddressExtType/Municipality

diagram
type	CodeNameType
children	Code Name

complexType PersonAddressType

diagram

children

AddressLines PostalAddress

used by

element	SimplePatient/Address
complexTypes	PersonAddressExtType PersonRegisterAddressBaseType

annotation

documentation

Addresslines, postaladdress

element PersonAddressType/AddressLines

diagram
children	AddressLine

element PersonAddressType/AddressLines/AddressLine

diagram
children	Type Text

element PersonAddressType/AddressLines/AddressLine/Type

Type of address line, ie 1 and 2 if the HIS has more than one address line. CO for 'care of' address.

element PersonAddressType/AddressLines/AddressLine/Text

The address

element PersonAddressType/PostalAddress

diagram
type	CodeNameType
children	Code Name

complexType PersonalInformationBaseType

diagram

children

BirthDate PersonNumber BirthCentury Sex

used by

complexType

PersonalInformationExt1Type

annotation

documentation

Personal information base. Typically used for listing persons.

element PersonalInformationBaseType/BirthDate

diagram
type	xs:date

element PersonalInformationBaseType/PersonNumber

Norwegian use only. 5 last numbers of the persons official id

element PersonalInformationBaseType/BirthCentury

diagram
type	xs:int

element PersonalInformationBaseType/Sex

diagram

type

CodeOfficialCodeTextType

children

Code OfficialCode Text

annotation

documentation

M = male, K = female

complexType PersonalInformationExt1Type

diagram

type

extension of PersonalInformationBaseType

children

BirthDate PersonNumber BirthCentury Sex Dead

used by

element	SimplePatient/PersonalInformation
complexType	PersonalInformationExt2Type

annotation

documentation

Personal information type. Typically used for listing patients.

element PersonalInformationExt1Type/Dead

diagram
children	DeathDate

element PersonalInformationExt1Type/Dead/DeathDate

diagram
type	xs:dateTime

complexType PersonalInformationExt2Type

diagram

type

extension of PersonalInformationExt1Type

children

BirthDate PersonNumber BirthCentury Sex Dead Nationality MaritalStatus

used by

complexType

PersonalInformationExt3Type

annotation

documentation

Personal information type. Typically used for getting a person.

element PersonalInformationExt2Type/Nationality

diagram
type	CodeTextType
children	Code Text

element PersonalInformationExt2Type/MaritalStatus

diagram
type	CodeTextType
children	Code Text

complexType PersonalInformationExt3Type

diagram

type

extension of PersonalInformationExt2Type

children

BirthDate PersonNumber BirthCentury Sex Dead Nationality MaritalStatus Occupation ExternalDoctor HealthCareCentre PatientSecurity

annotation

documentation

Personal information type for patient. Typically used for getting a patient.

element PersonalInformationExt3Type/Occupation

diagram
type	CodeTextType
children	Code Text

element PersonalInformationExt3Type/ExternalDoctor

diagram
type	ExternalOrganizationType
children	Id Code Name

element PersonalInformationExt3Type/HealthCareCentre

diagram
type	ExternalOrganizationType
children	Id Code Name

element PersonalInformationExt3Type/PatientSecurity

For Swedish persons only

complexType PersonIdType

Person id

element PersonIdType/OfficialId

diagram

children

Value TypeOfId FormattedId

annotation

documentation

Official id. Can also be an emergency number.

element PersonIdType/OfficialId/Value

The value of the official id as it is stored in the database, ie. the Norwegian number 01013356789.

element PersonIdType/OfficialId/TypeOfId

F = official id, N = Emergency number, K = catastrophy number

element PersonIdType/OfficialId/FormattedId

The official id formatted to be used for viewing the number, ie the Norwegian number 010133 56789.

complexType PersonNamesType

diagram

type

extension of PersonNameType

children

FormattedName LastName MiddleName FirstName GivenName

annotation

documentation

Person names

element PersonNamesType/LastName

diagram
type	xs:string

element PersonNamesType/MiddleName

diagram
type	xs:string

element PersonNamesType/FirstName

diagram
type	xs:string

element PersonNamesType/GivenName

diagram
type	xs:string

complexType PersonNameType

element	SimplePatient/Name
complexType	PersonNamesType

annotation

documentation

Formatted name

element PersonNameType/FormattedName

The person's names formatted in one string according to national rules.

complexType PersonRegisterAddressBaseType

diagram

type

extension of PersonAddressType

children

AddressLines PostalAddress Municipality

used by

complexType

PersonRegisterAddressType

annotation

documentation

Address type for persons. Typicallly used for listing persons from the national register.

element PersonRegisterAddressBaseType/Municipality

diagram
type	CodeNameType
children	Code Name

complexType PersonRegisterAddressType

diagram

type

extension of PersonRegisterAddressBaseType

children

AddressLines PostalAddress Municipality County UrbanNeighbourhood HouseProperty District BillingDistrict

annotation

documentation

Address type for persons. Typicallly used for getting a person from the national register.

element PersonRegisterAddressType/County

diagram
type	CodeNameType
children	Code Name

element PersonRegisterAddressType/UrbanNeighbourhood

diagram
type	CodeNameType
children	Code Name

element PersonRegisterAddressType/HouseProperty

For Swedish persons only

element PersonRegisterAddressType/District

For Swedish persons only

element PersonRegisterAddressType/BillingDistrict

For Swedish persons only

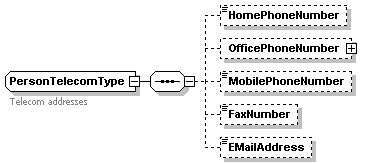

complexType PersonTelecomType

diagram

children

HomePhoneNumber OfficePhoneNumber MobilePhoneNumber FaxNumber EMailAddress

annotation

documentation

Telecom addresses

element PersonTelecomType/HomePhoneNumber

diagram
type	xs:string

element PersonTelecomType/OfficePhoneNumber

diagram
children	Value Extension

element PersonTelecomType/OfficePhoneNumber/Value

diagram
type	xs:string

element PersonTelecomType/OfficePhoneNumber/Extension

diagram
type	xs:string

element PersonTelecomType/MobilePhoneNumber

diagram
type	xs:string

element PersonTelecomType/FaxNumber

diagram
type	xs:string

element PersonTelecomType/EMailAddress

diagram
type	xs:string

complexType CodeNameType

PatientEconomicAddressBaseType/Country PersonRegisterAddressType/County PatientEconomicAddressBaseType/County PersonAddressExtType/Municipality PersonRegisterAddressBaseType/Municipality PatientEconomicAddressBaseType/Municipality PersonAddressType/PostalAddress PersonRegisterAddressType/UrbanNeighbourhood PatientEconomicAddressBaseType/UrbanNeighbourhood

annotation

documentation

Code and Name

element CodeNameType/Code

diagram
type	xs:string

element CodeNameType/Name

diagram
type	xs:string

complexType CodeOfficialCodeTextType

diagram

children

Code OfficialCode Text

used by

element

PersonalInformationBaseType/Sex

annotation

documentation

Code, OfficialCode and Text

element CodeOfficialCodeTextType/Code

diagram
type	xs:string

element CodeOfficialCodeTextType/OfficialCode

diagram
type	xs:string

element CodeOfficialCodeTextType/Text

diagram
type	xs:string

complexType CodeTextType

PersonalInformationExt2Type/MaritalStatus PersonalInformationExt2Type/Nationality PersonalInformationExt3Type/Occupation

annotation

documentation

Code and Text

element CodeTextType/Code

diagram
type	xs:string

element CodeTextType/Text

diagram
type	xs:string

complexType IdCodeNameType

Id, Code and Name

element IdCodeNameType/Id

diagram
type	xs:int

element IdCodeNameType/Code

diagram
type	xs:string

element IdCodeNameType/Name

diagram
type	xs:string

complexType IdCodeOfficialCodeTextType

diagram

children

Id Code OfficialCode Text

annotation

documentation

Id, Code, Official Code and Text

element IdCodeOfficialCodeTextType/Id

diagram
type	xs:int

element IdCodeOfficialCodeTextType/Code

diagram
type	xs:string

element IdCodeOfficialCodeTextType/OfficialCode

diagram
type	xs:string

element IdCodeOfficialCodeTextType/Text

diagram
type	xs:string

complexType IdCodeShortAndLongTextType

diagram

children

Id Code ShortText LongText

annotation

documentation

Id, Code, ShortText and LongText

element IdCodeShortAndLongTextType/Id

diagram
type	xs:int

element IdCodeShortAndLongTextType/Code

diagram
type	xs:string

element IdCodeShortAndLongTextType/ShortText

diagram
type	xs:string

element IdCodeShortAndLongTextType/LongText

diagram
type	xs:string

complexType IdCodeTextType

Id, Code and Text

element IdCodeTextType/Id

diagram
type	xs:int

element IdCodeTextType/Code

diagram
type	xs:string

element IdCodeTextType/Text

diagram
type	xs:string

complexType IdCodeType

 Id and Code

element IdCodeType/Id

diagram
type	xs:int

element IdCodeType/Code

diagram
type	xs:string

complexType IdNameType

Id and Name

element IdNameType/Id

diagram
type	xs:int

element IdNameType/Name

diagram
type	xs:string

complexType IdShortAndLongTextType

diagram

children

Id ShortText LongText

annotation

documentation

Id, ShortText and LongText

element IdShortAndLongTextType/Id

diagram
type	xs:int

element IdShortAndLongTextType/ShortText

diagram
type	xs:string

element IdShortAndLongTextType/LongText

diagram
type	xs:string

complexType IdTextType

Id and Text

element IdTextType/Id

diagram
type	xs:int

element IdTextType/Text

diagram
type	xs:string

complexType LastChangedType

Last changed by and date

element LastChangedType/ChangedBy

diagram
type	xs:string

element LastChangedType/Changed

diagram
type	xs:dateTime

complexType ShortAndLongTextType

ShortText and LongText

element ShortAndLongTextType/ShortText

diagram
type	xs:string

element ShortAndLongTextType/LongText

diagram
type	xs:string

ShortNameId and Name

element UserType/Name

diagram
type	xs:string

element UserType/FullName

diagram
type	xs:string

complexType ExternalOrganizationType

PersonalInformationExt3Type/ExternalDoctor PersonalInformationExt3Type/HealthCareCentre

annotation

documentation

Type for an external organization or resource (EksternInstans)

element ExternalOrganizationType/Id

diagram
type	xs:int

element ExternalOrganizationType/Code

diagram
type	xs:string

element ExternalOrganizationType/Name

diagram
type	xs:string

complexType OrganizationType

Type for the organizational unit

element OrganizationType/Id

diagram
type	xs:int

element OrganizationType/ShortNameId

diagram
type	xs:string

element OrganizationType/Name

diagram
type	xs:string

complexType ResourceType

Type for a resource

element ResourceType/Id

diagram
type	xs:int

element ResourceType/Code

diagram
type	xs:string

element ResourceType/Name

diagram
type	xs:string

XML Schema documentation generated with XML Spy Schema Editor www.xmlspy.com
